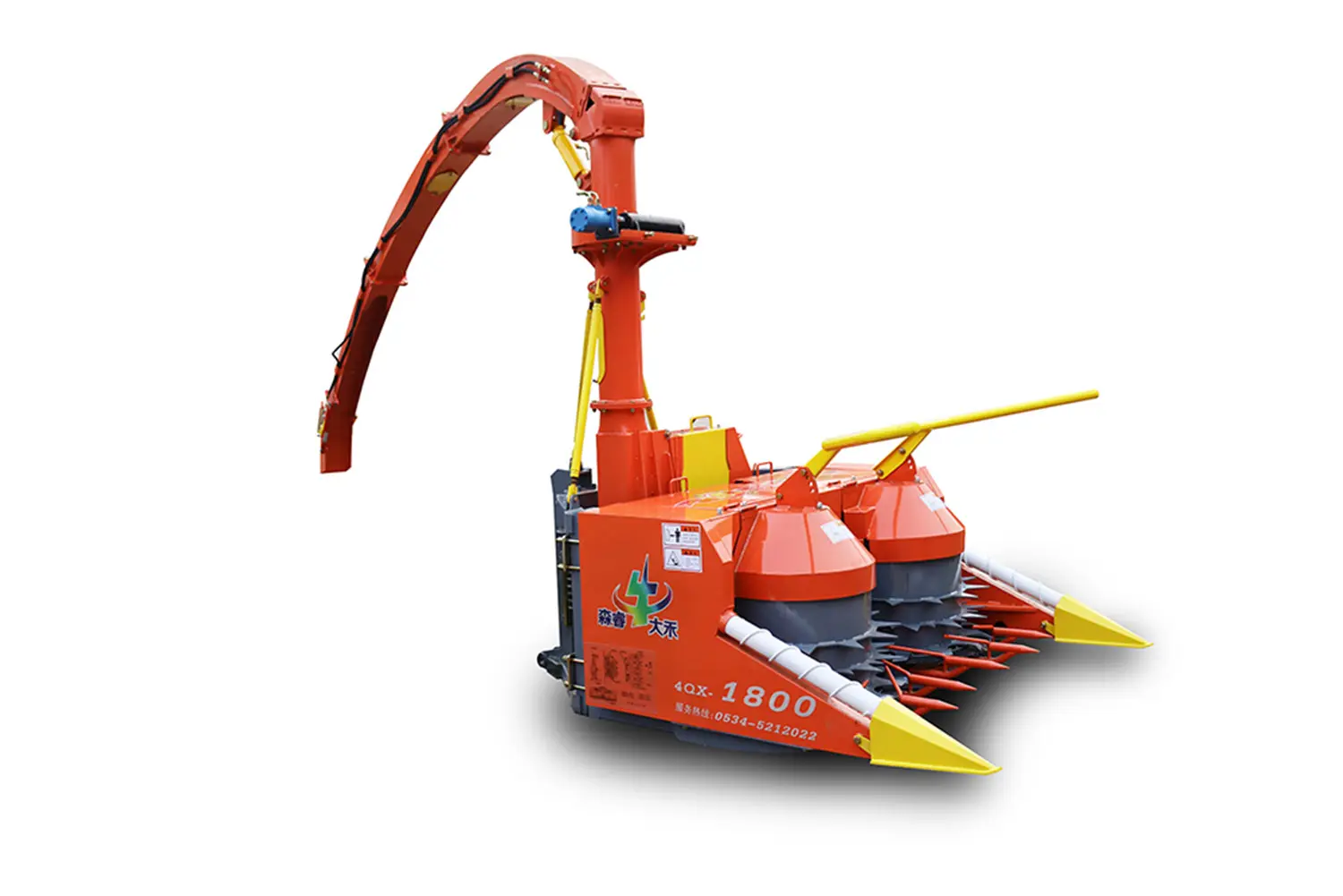

Dahe series hanging green fodder harvester 4QX-1800 export container
Dahe series hanging green fodder harvester 4QX-1800 export container
Product superiority:

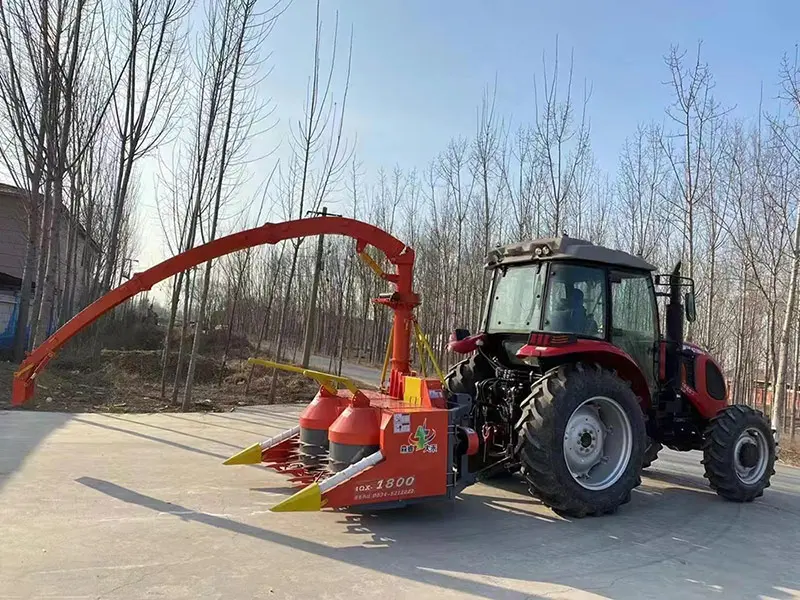

1.8m Backload type green (yellow) feed harvester, the equipment is small in volume, less energy consumption, flexible action. With each brand of tractor, harvester supporting low requirements. The spray barrel rotation adopts the worm wheel worm mechanism, which can rotate 180 degrees, effectively lock the spray barrel Angle, making the spraying more stable and reliable.
Product characteristics:
★ With automatic knife sharpening function, to solve the user knife sharpening time-consuming and laborious problem, greatly shorten the maintenance time, improve efficiency.
★ Vertical cylinder feeding device, can adapt to the corn, sorghum and other high straw crops wrong harvest.
★ Four roller feeding into the mandatory sequence feeding device, can well cut off the material, sequence evenly feed into the material cutting device.
★ The nozzle rotation using the worm wheel worm mechanism, can be ± 180 rotation, effectively lock the nozzle Angle, so that the spray Angle is more stable.
★ Material crushing device, can achieve the material crushing length is adjustable, to meet the needs of different forage feed harvest.
★ The cutting device adopts double disc saw blade, material cutting accurate, smooth, uniform and consistent.
★ The throwing device can quickly and accurately throw the chopped materials into the accompanying material box with adjustable direction, Angle and position.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1800 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4630*1800*4930 |
structural quality | kg | 1340 |
Matching power range | kW | 73.5~95.6 |
Effective harvesting width of the cutter | mm | 1585 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 92 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 13~25 |
Customers come to inspect the factory:

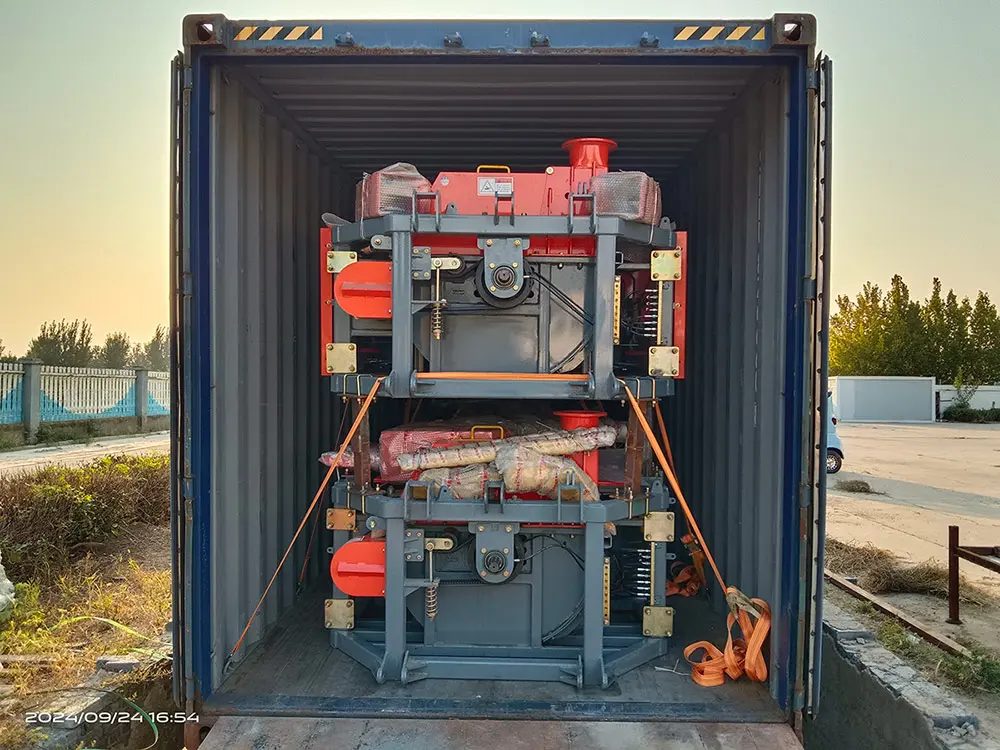

Loading site:
