Forage Grass Grinder
Product Advantages:
★ It features a simple structure, convenient operation, and a humanized design, making it easy to operate and maintain.
★ It can quickly crush various agricultural crops, thereby increasing the utilization rate of forage.
★ It has a high level of safety. The electrical cabinet is equipped with multiple leakage protectors to ensure safer use.
★ The high-strength opposed-roller grain crushing rollers can achieve a grain crushing rate of over 97%, which improves the adaptability and feeding rate of livestock.
Product Details:

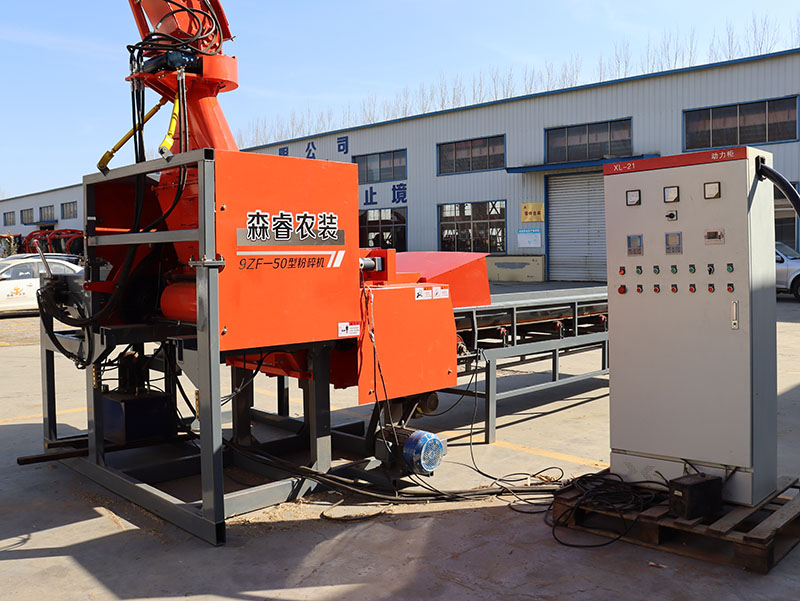

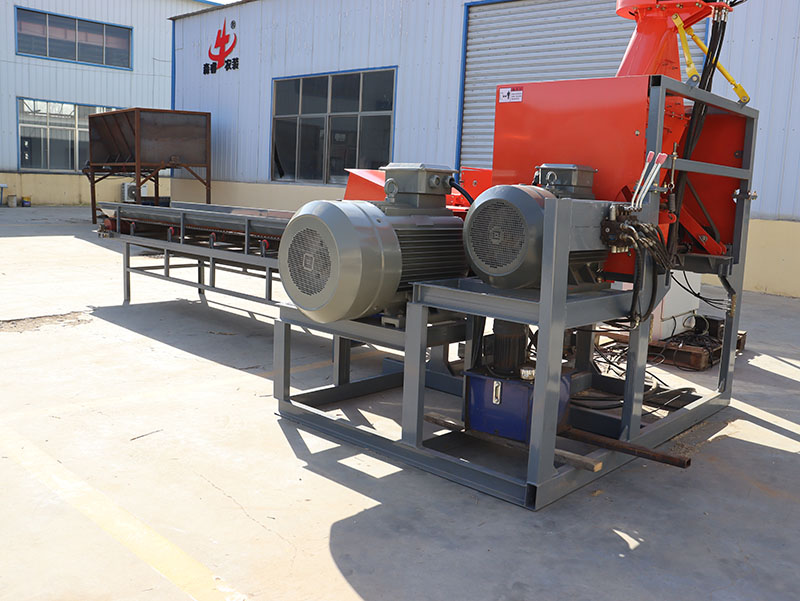

This machine is a high-efficiency straw crusher that can crush agricultural crops such as corn stalks, wheat straws, Pennisetum purpureum, sugarcane tail leaves, tree bark, and Caragana korshinskii. It has been widely used in the green forage processing industry. This model is mainly composed of a feeding system, a grain crushing system, and a throwing system. The feeding system is powered by a (5.5KW) motor, the chopping part is powered by a (110KW) main motor, and the grain crushing and throwing parts are powered by a (55KW) motor.
Product parameter:
Projects | unit | design value |
Model Name | / | Model 9ZF-50 Crusher |
form | / | Horizontal double-roller grain crushing |
Working condition external dimensions (L*W*H) | mm | 6050*3200*5420 |
structural quality | kg | 4674 |
Rated power of the engine supporting the feeding mechanism | kw | 5.5 |
Rated power of the engine supporting the straw chopping mechanism | kw | 110 |
Rated power of the engine supporting the grain crushing mechanism | kw | 55 |
Diameter of the straw chopping mechanism | mm | 700 |
The number of movable knife blades | piece | 24 |
Type of the feeding mechanism | / | Feeding roller |
The number of feeding mechanisms | piece | 4 |
Type of the straw chopping mechanism | / | drum-type |
Type of the grain crushing mechanism | / | Double-roller type |
Power consumption | kw/h | 130 |
Designed cutting length | mm | 5-50 |
