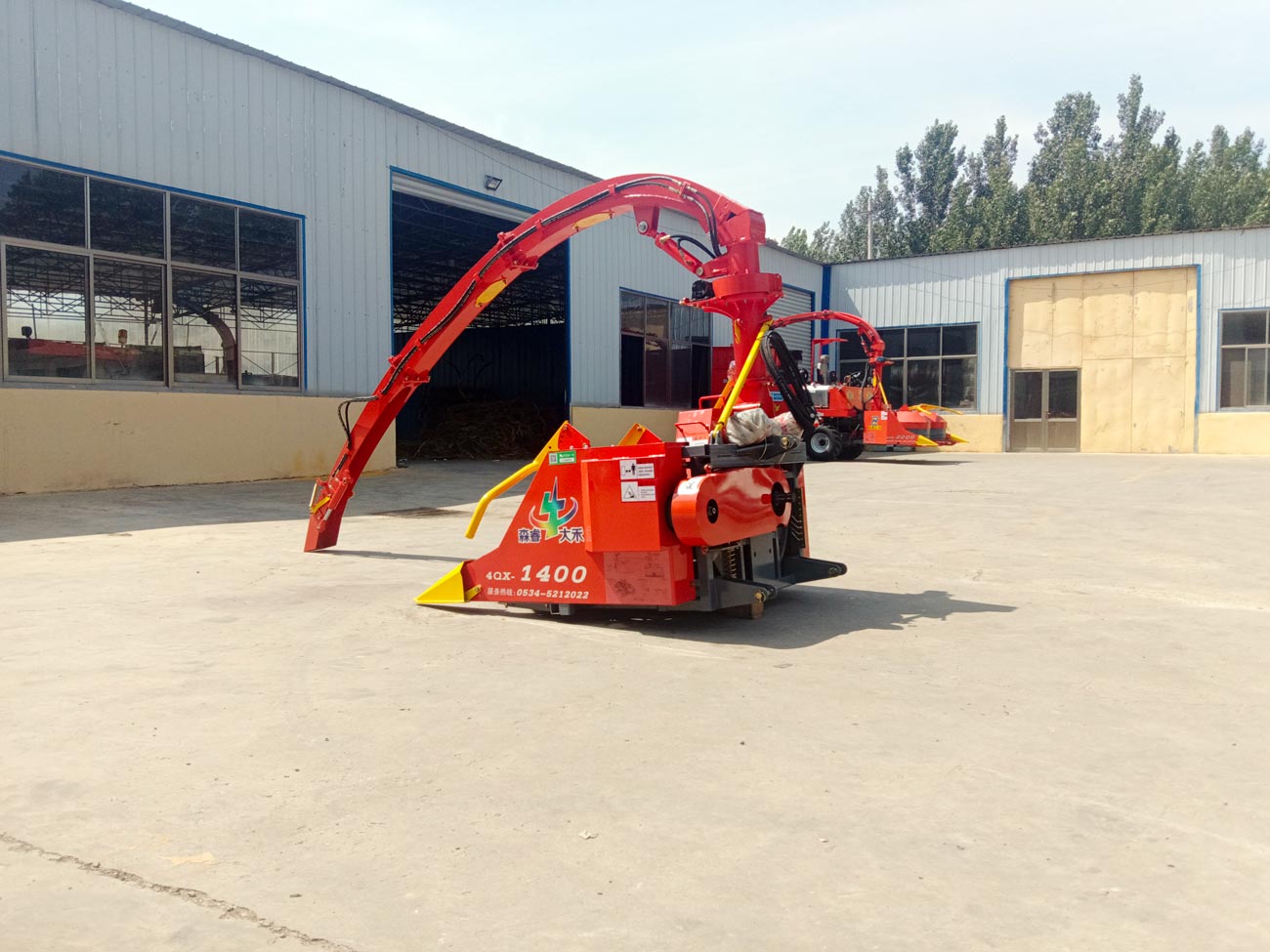

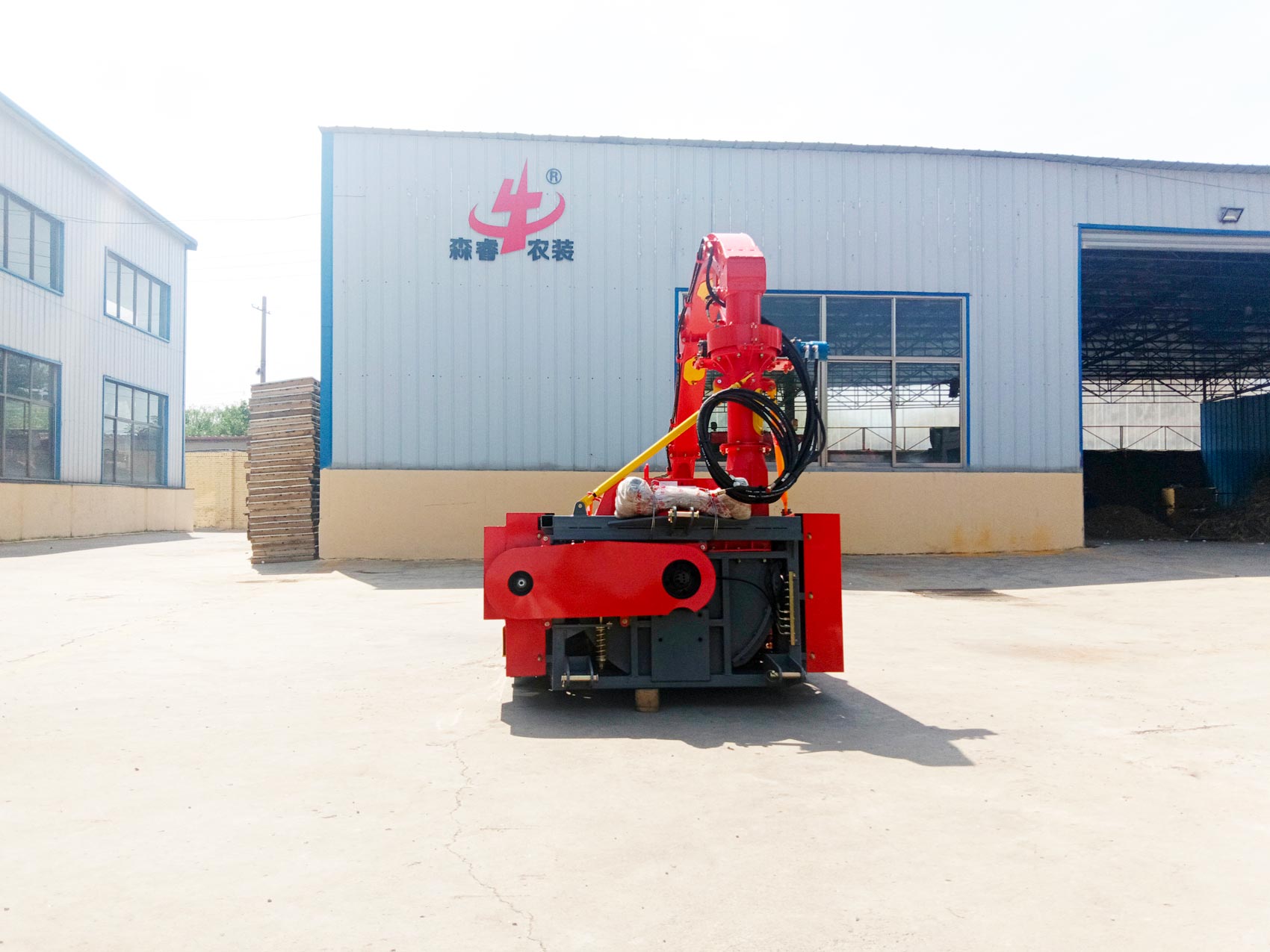

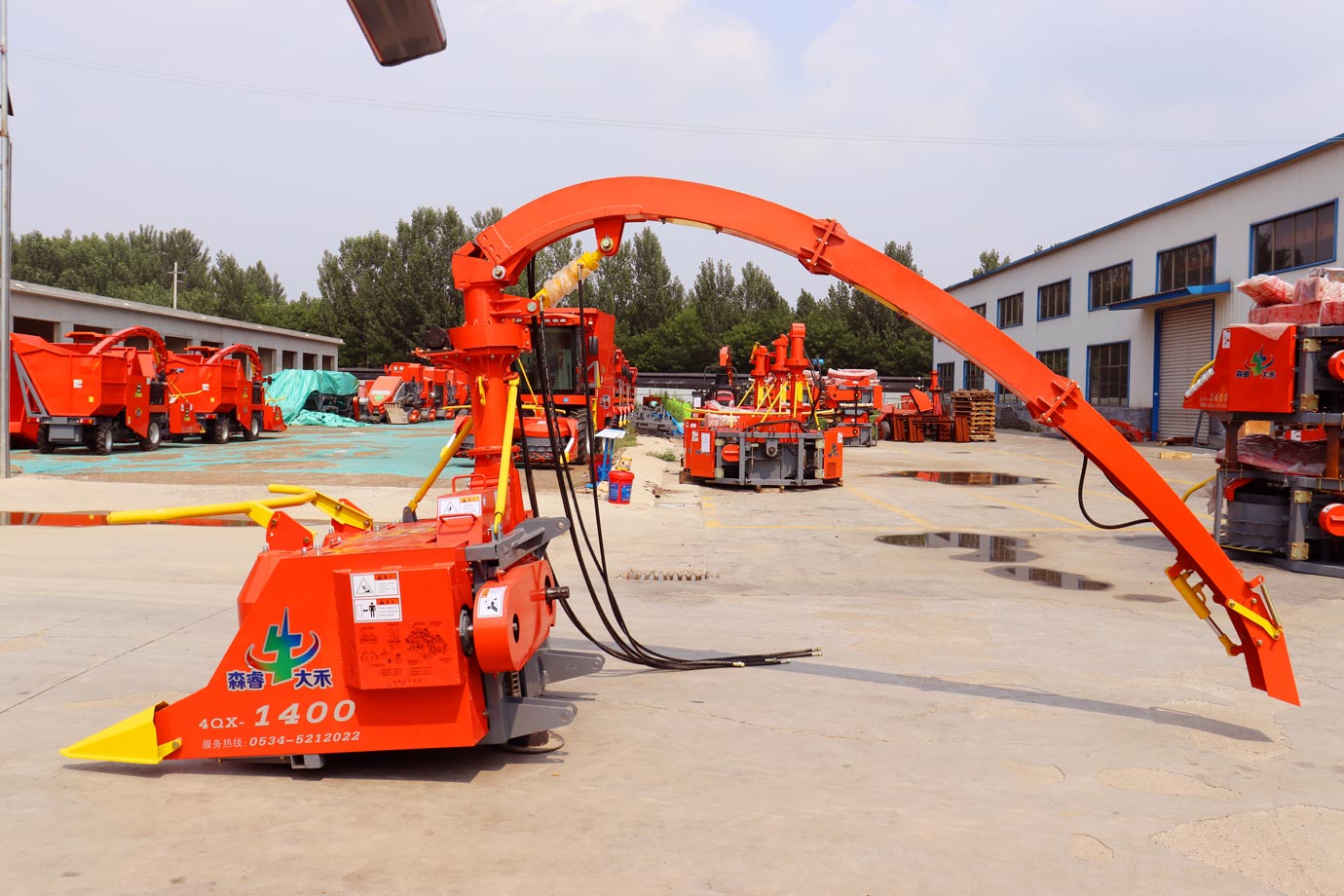

1.270m Front Mounted Silage chopper
Product features
★ disc cutter chopping device, achieve grass chopping length of multi-level can be adjusted one-time completion of crop harvest, chopping, kneading, throwing operations.

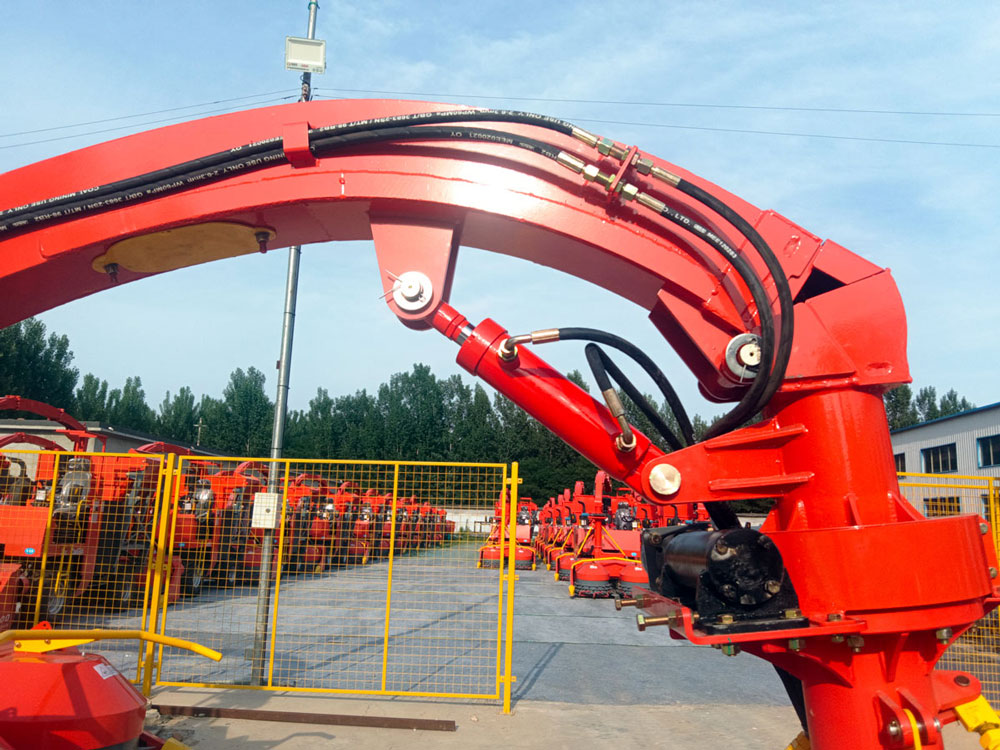

★Fully hydraulic operation, convenient, flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.

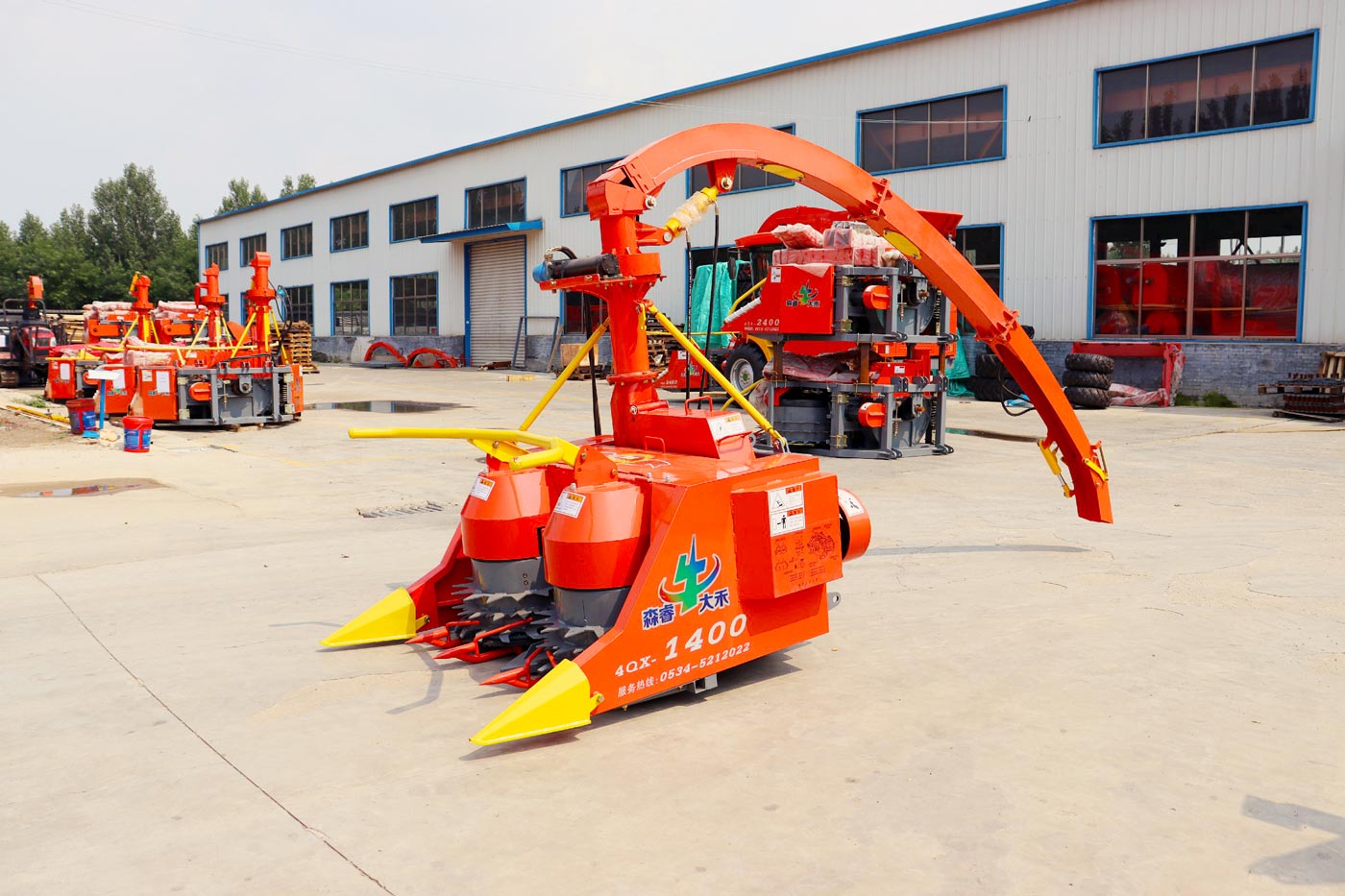

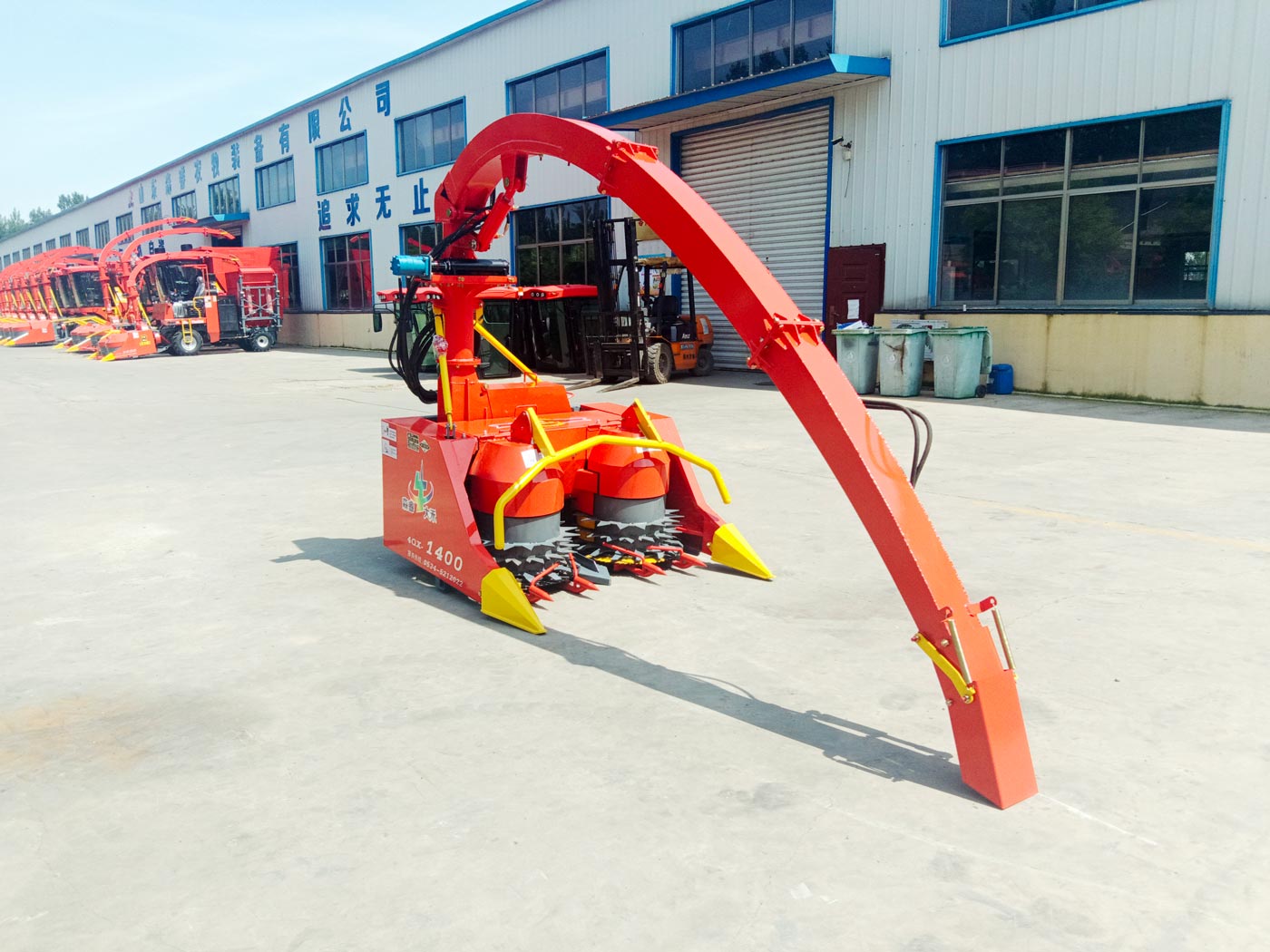

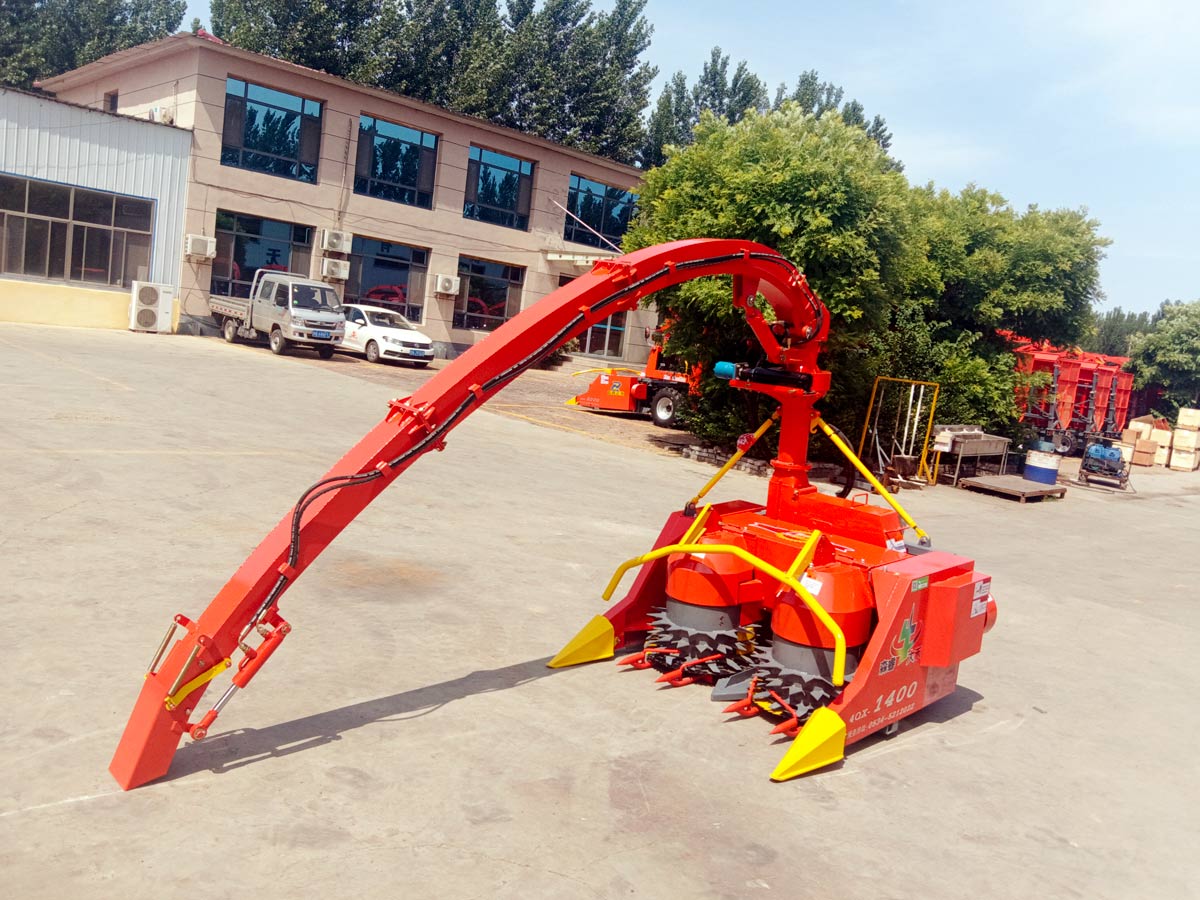

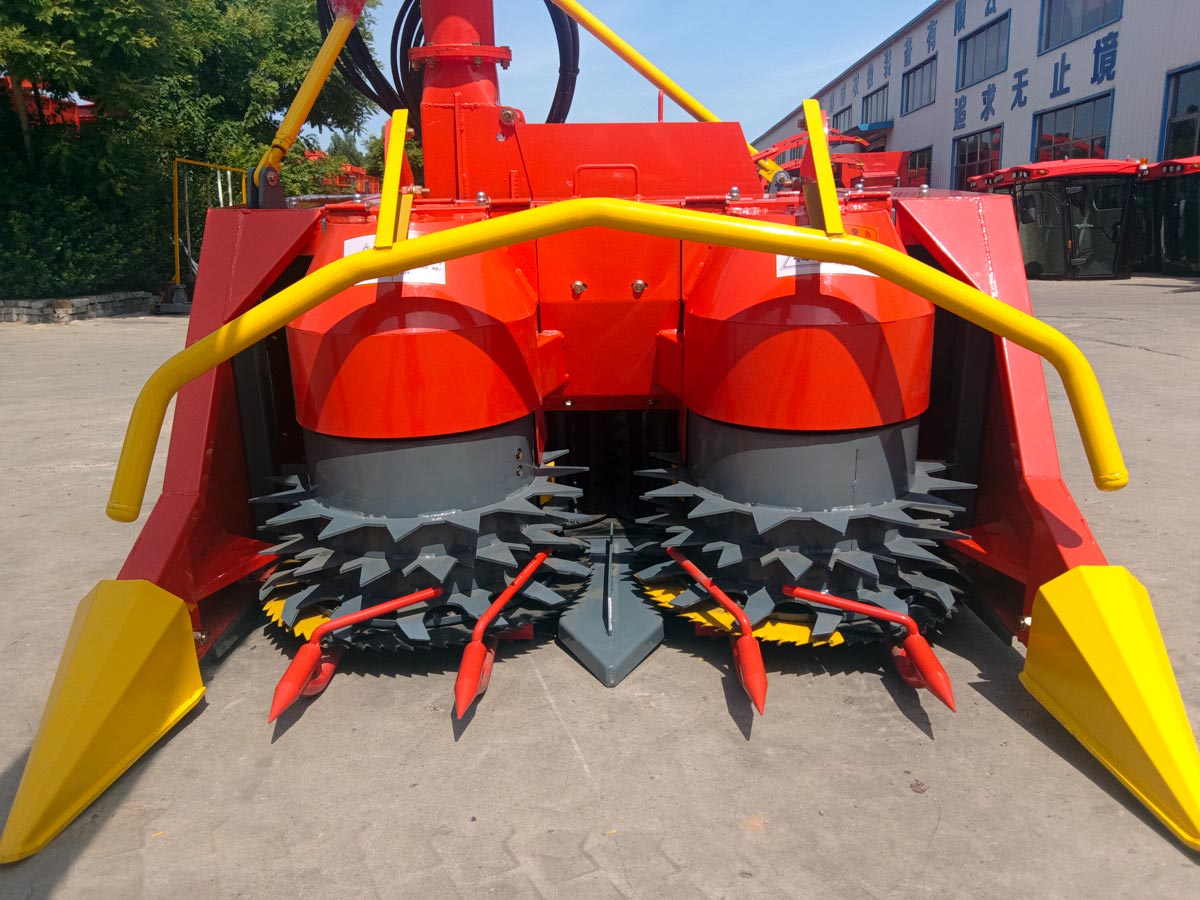

★The double-disc saw blade cutter can adapt to the non-parallel harvest of all straw-like forage crops.
★The spray barrel can rotate with worm gear and worm mechanism, and can effectively lock the spray barrel angle with ± 180 ° rotation, so that the spray angle is more stable.
Product introduction
4QX-1400 type green (yellow) feed harvester, novel design, complete realization of the row harvest operation. Row spacing constraint can meet the needs of small plots such as hills and mountains. The utility model integrates the advantages of high operating efficiency, safe and reliable performance, and can be matched with various brand tractors and harvesters to meet the requirements, it can complete many operations such as cutting off the ground, feeding in sequence, even chopping, throwing and loading (harvesting, chopping, kneading and throwing) on the green (yellow) forage crops at one time, high efficiency, wide use, less energy consumption, smart, not subject to crops.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4350*1490*3410 |
structural quality | kg | 890 |
Matching power range | kW | 40.4~55.1 |
Effective harvesting width of the cutter | mm | 1270 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | 790 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
