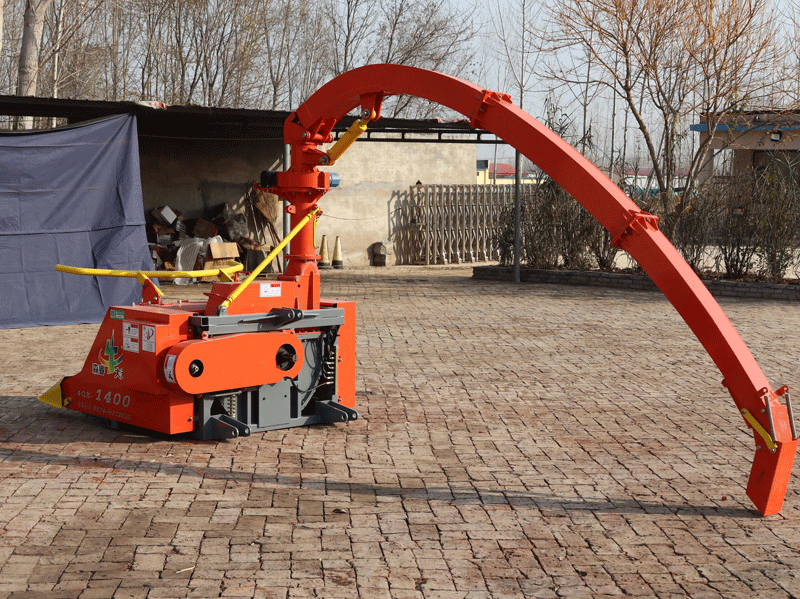

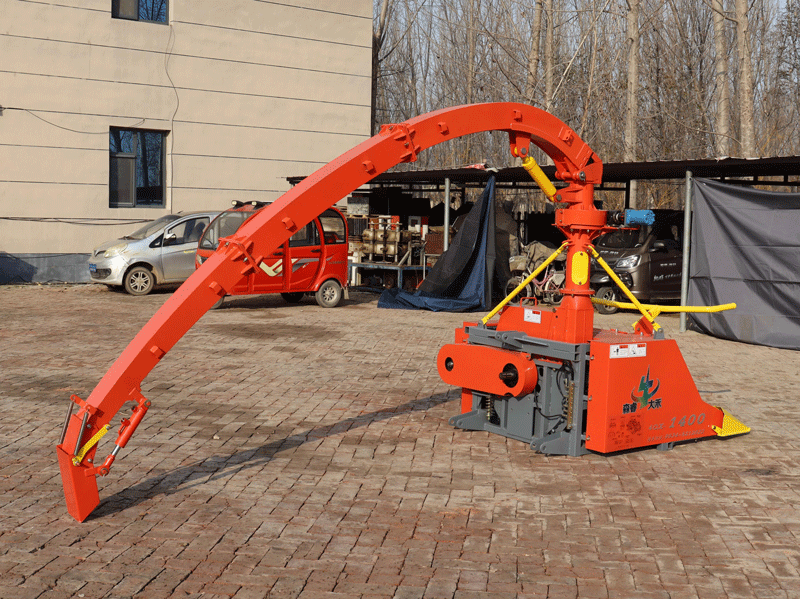

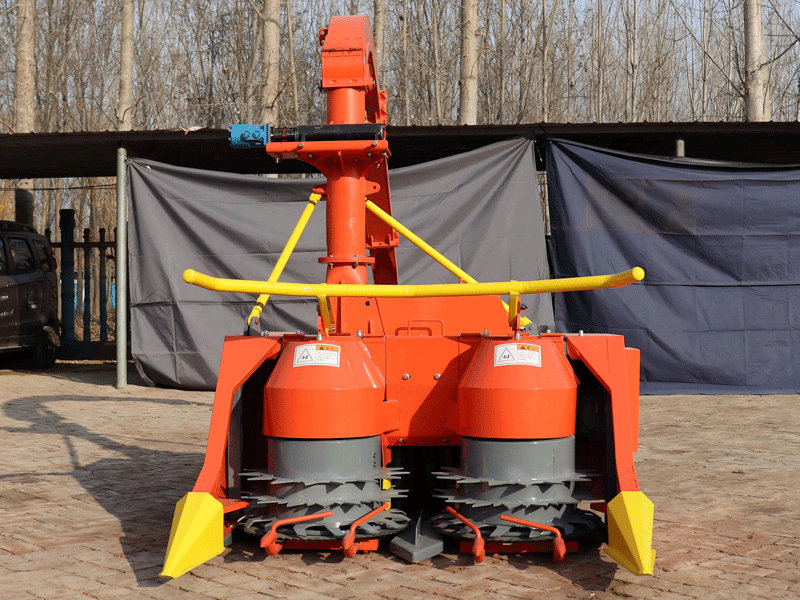

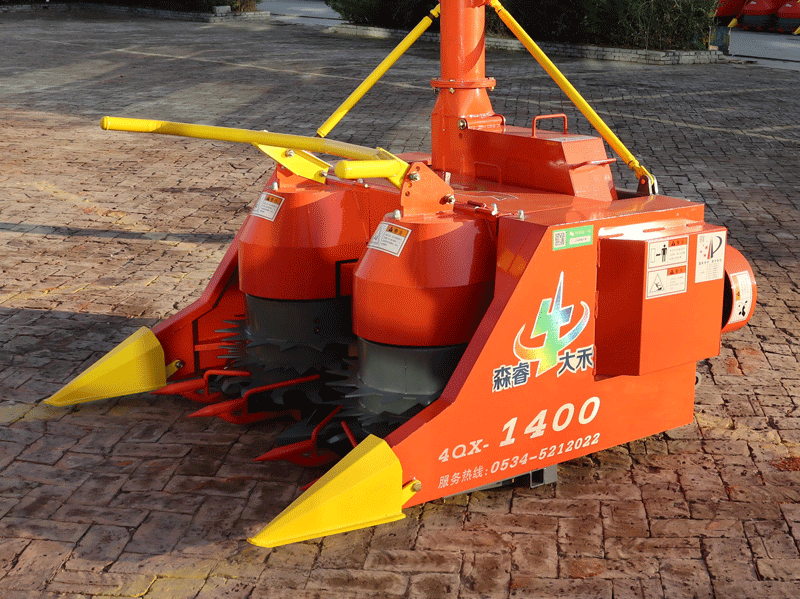

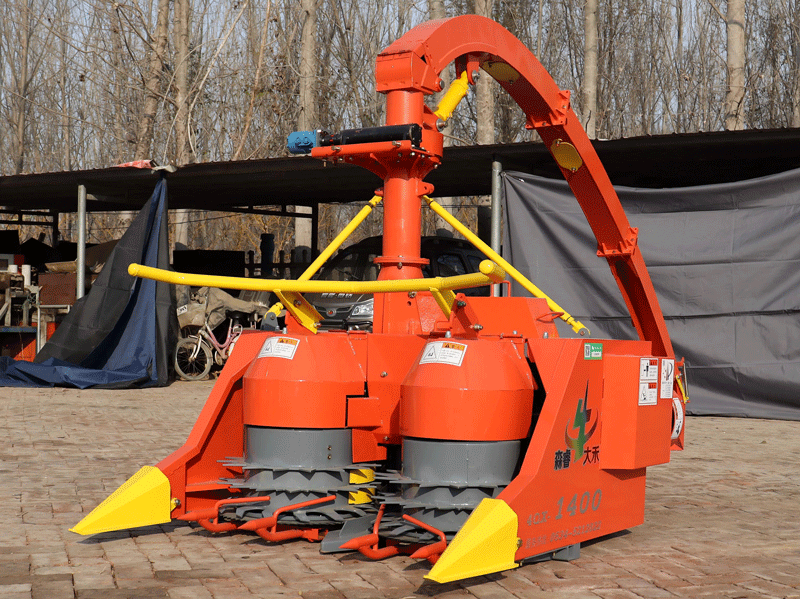

1.270m Trailed Fodder Beet Harvester For Sale
Features
★ double disc saw blade cutter, can adapt to all straw-like forage crops on the wrong line harvest
★ disc Cutter Chopping Device, the utility model can realize the multi-level adjustable grass fodder mincing length, and can complete the operations of harvesting, mincing, kneading, throwing of crops at one time.
★The spray cylinder is rotated by worm gear and worm mechanism, which can effectively lock the spray cylinder angle with ± 180 ° rotation, making the spray angle more stable.
★Fully hydraulic operation, convenient, flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product introduction
Senrui 4QX-1400 type backpack type green (yellow) feed harvester, the harvester design is novel, completely realizes the row harvest operation. The utility model has the advantages that the cutting length of the grass fodder can be multistage adjusted, the double-disc saw blade type cutting machine is adopted, which can adapt to stagger harvesting of various straw fodder crops, and the disc type (Hanging Type) structure form is adopted, the working condition size (length × width × height) is 4350x1490x3410mm, it can complete cutting ground, sequential feeding, even cutting. Can meet the requirements of the various brands of tractors, harvesters supporting
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4350*1490*3410 |
structural quality | kg | 890 |
Matching power range | kW | 40.4～55.1 |
Effective harvesting width of the cutter | mm | 1270 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | 790 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
