1.480m Small Silage Chopper For Sale

Product characteristics：

★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.

★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.

★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.

★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product introduction:

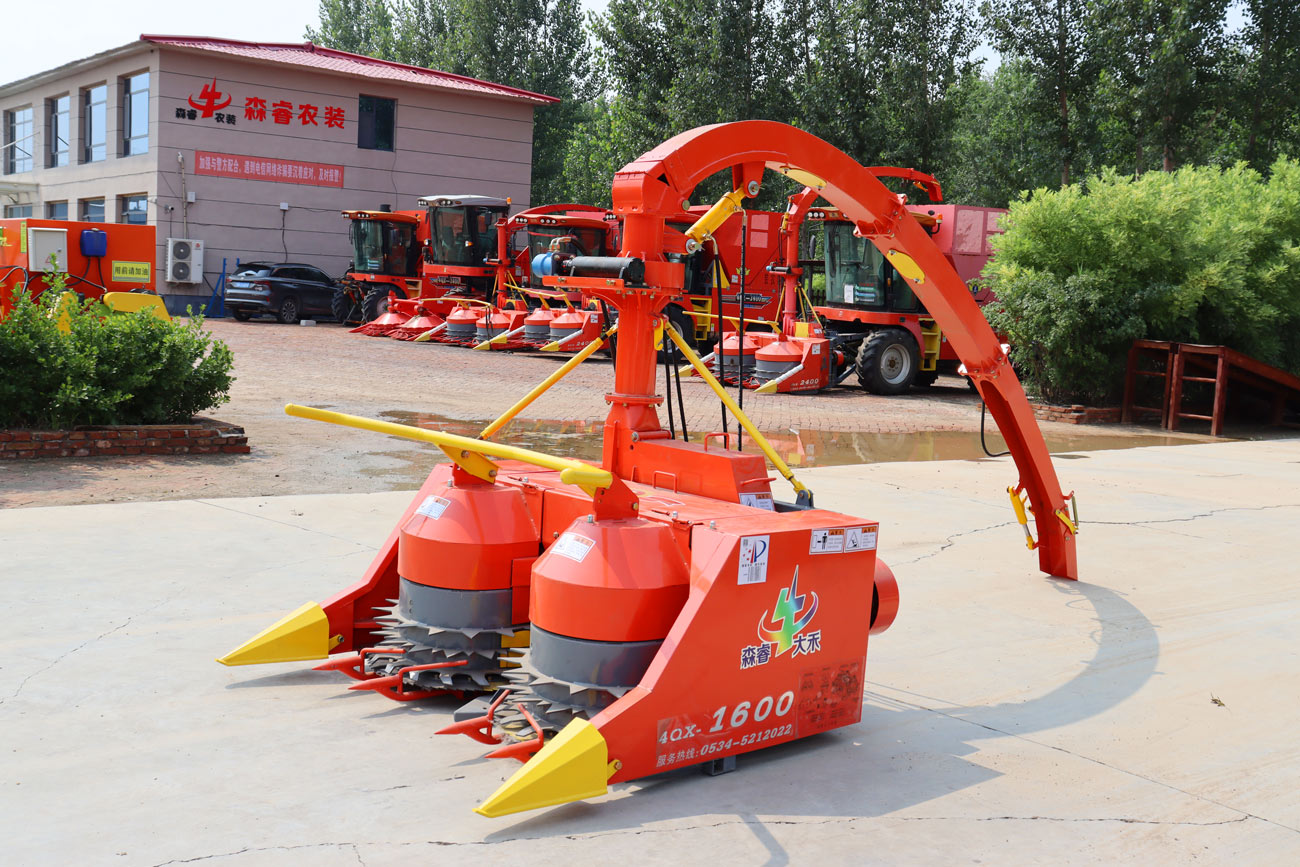

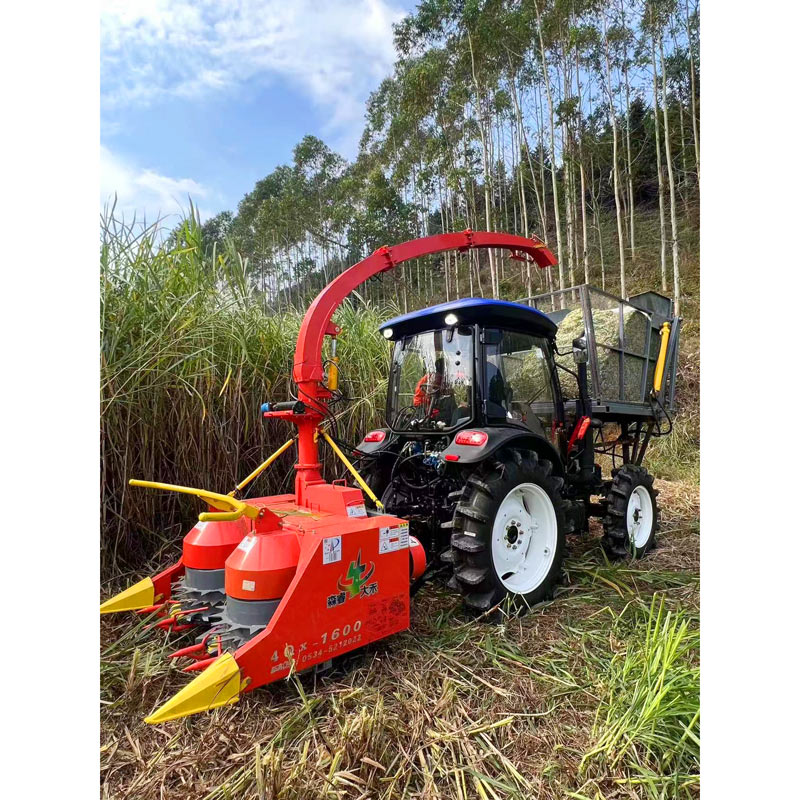

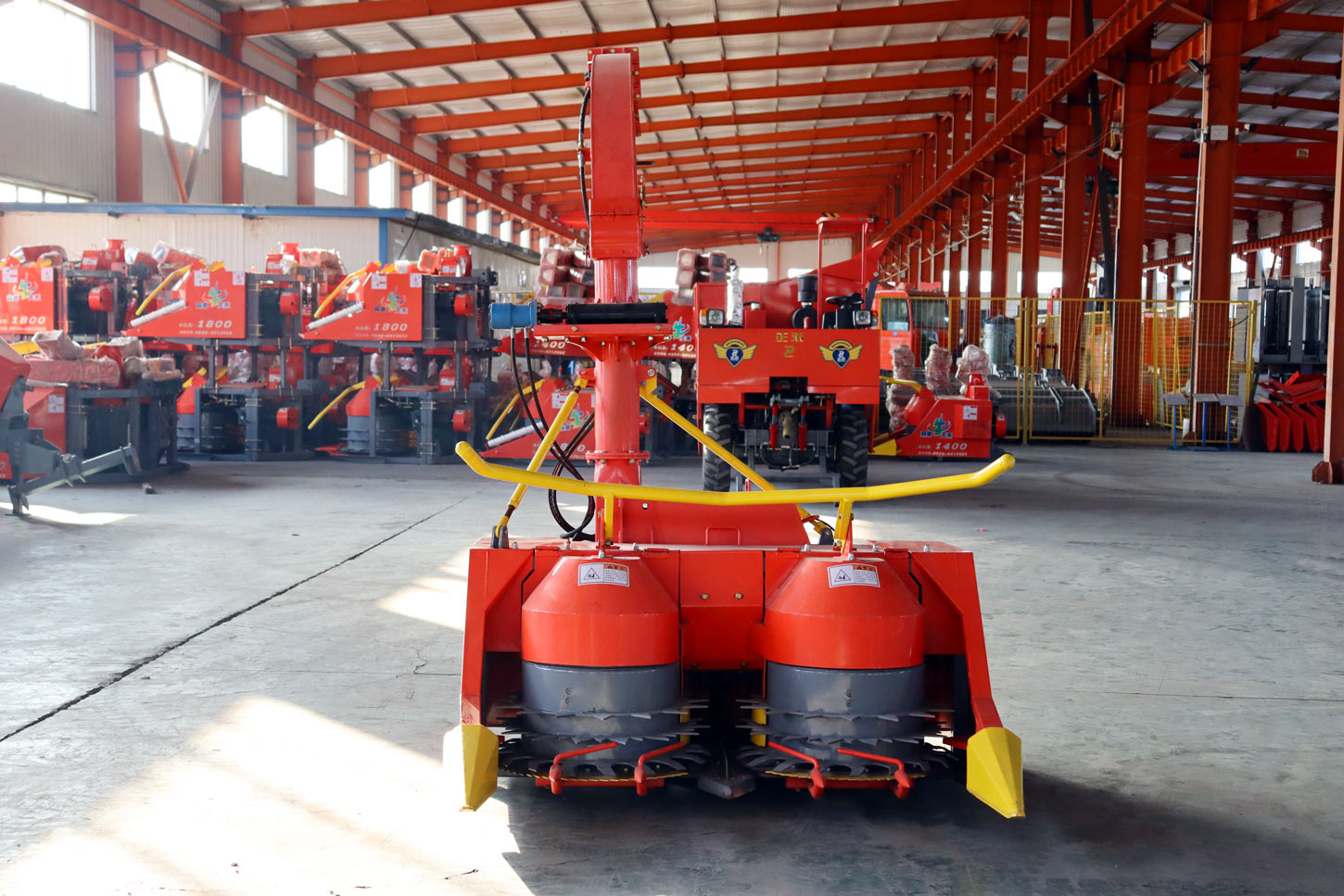

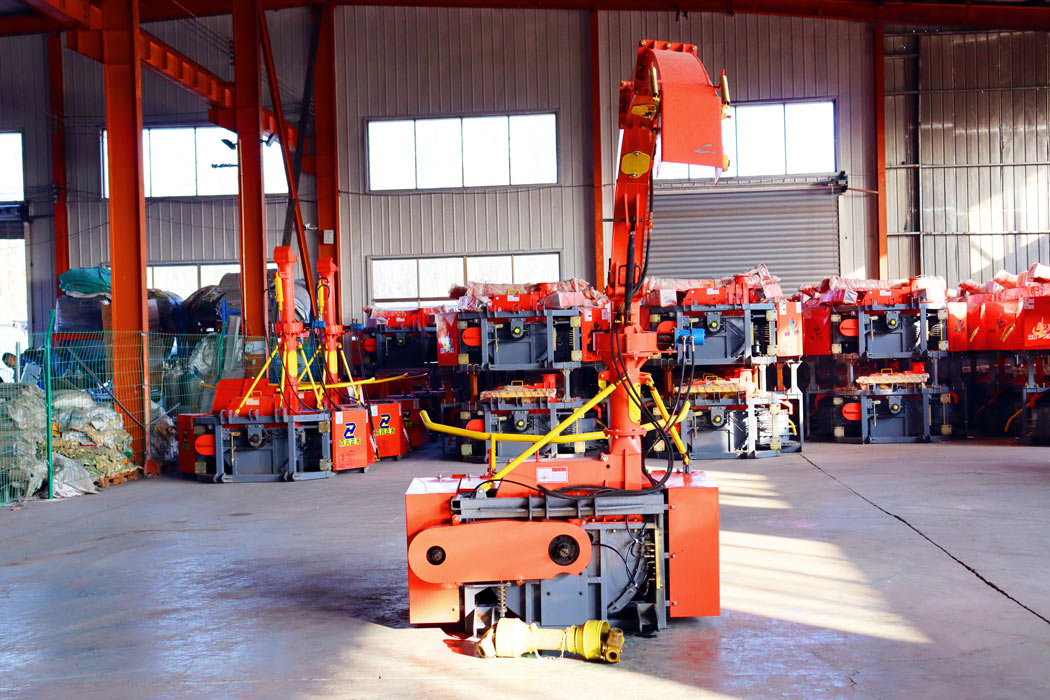

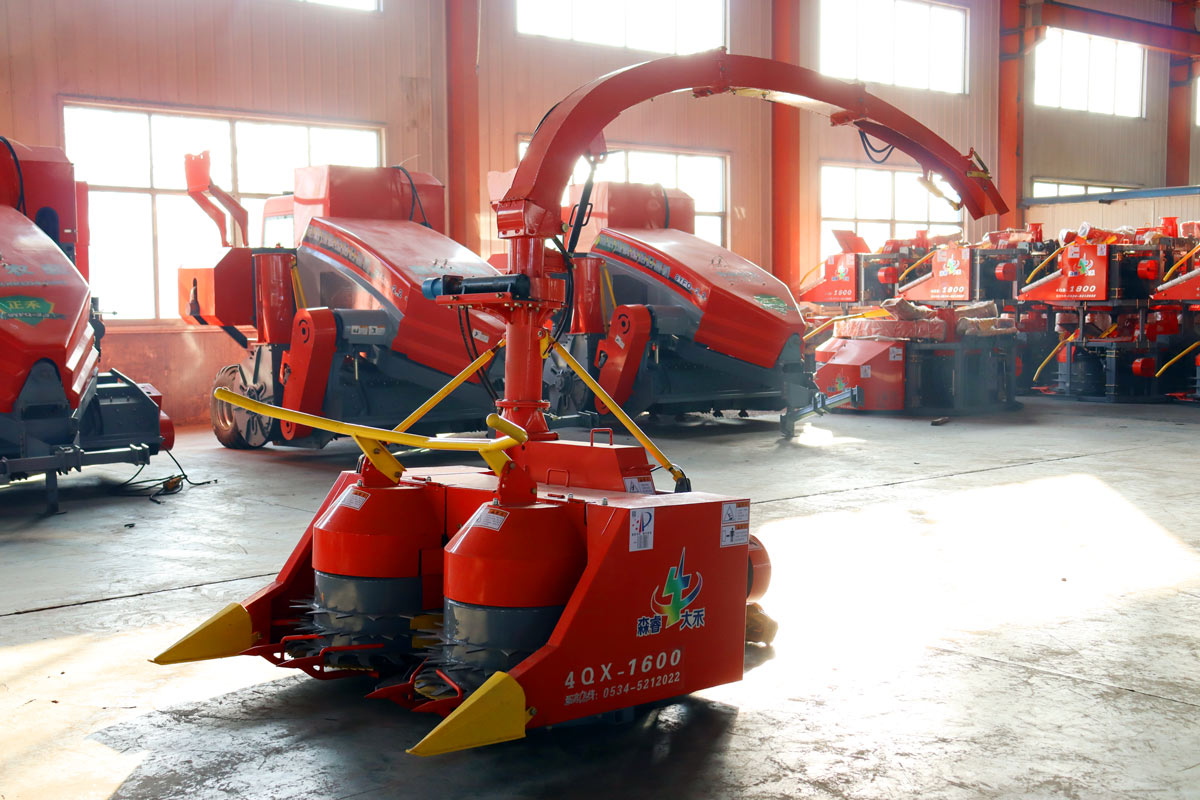

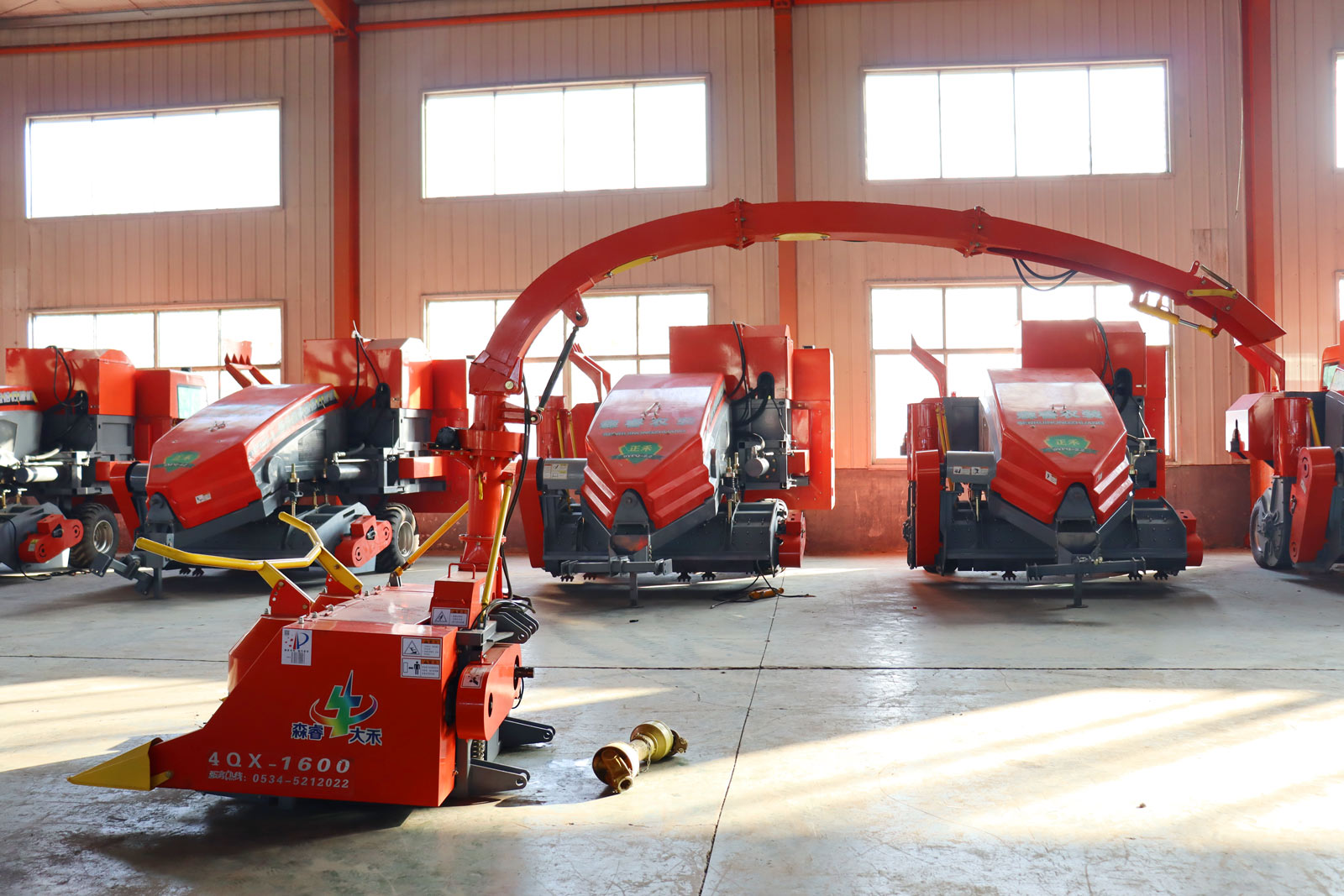

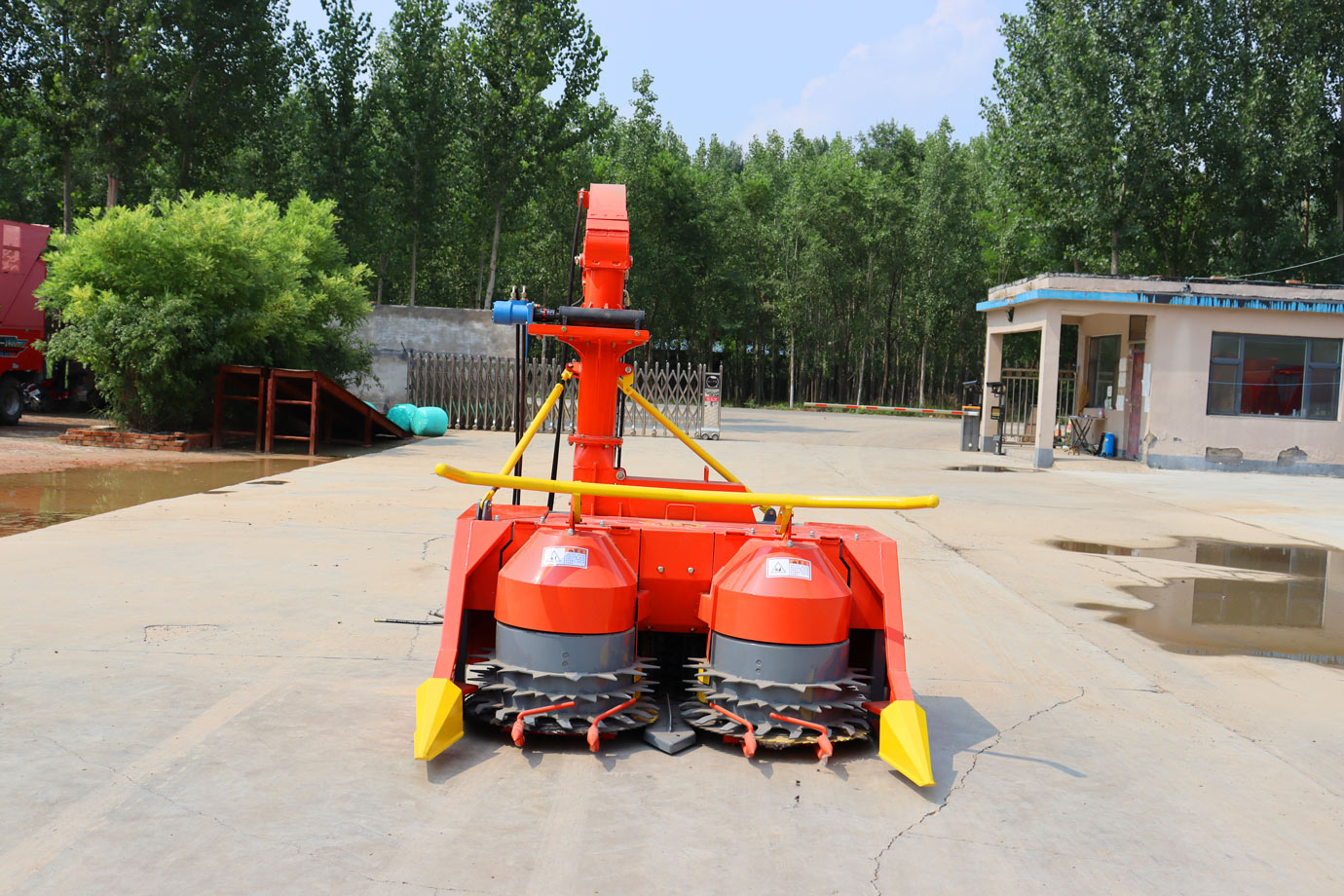

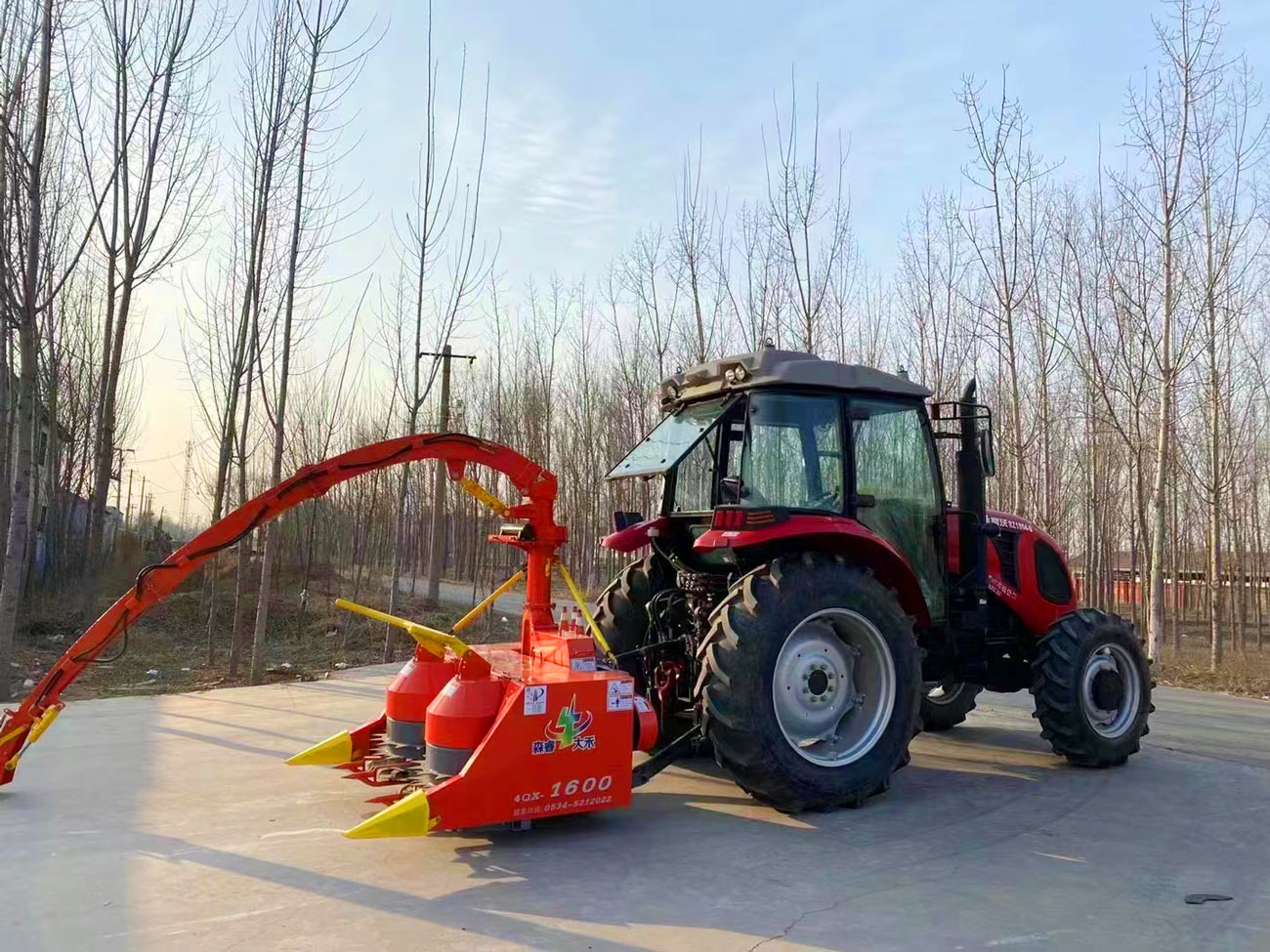

4QX-1600 green fodder harvester, the effective harvest width is 1.480 m

backpack type storage machine feeding device and cutting table power input using gearbox and drive shaft power loss is small, reliable stability is not easy to damage, installation and disassembly flexible, does not affect the normal use of tractors, harvesters,Can harvest corn straw, emperor bamboo grass, suitable for small and medium-sized plots of work, farming farmers a good helper.

1.480m Small Silage Chopper For Sale

Product parameter:

Projects	unit	design value
Model Name	/	4QX-1600 type backpack green fodder harvester
Form of Construction (Hook-up)	/	suspended type
Working condition external dimensions (LWH)	mm	475017203410
structural quality	kg	1020
Matching power range	kW	44.1~58.5
Effective harvesting width of the cutter	mm	1480
Crop collection cutter type	/	Straight cutting table
Cutting table cutter type	/	Disc cutter
Feeding mechanism type	/	Feed rollers
Number of institutions fed	/	1 pair
Chopping mechanism rotor diameter	mm	Φ790
Rated spindle speed	r/min	850-1000
Maximum throwing height	mm	3400
Throwing Minimum Height	mm	3100
Swivelling angle of throwing cylinder	°	±180
Throwing maximum horizontal distance	m	10
Operating speed range	km/h	3~6
Mean geometric height of material	mm	20
Standard Grass Length Ratio	%	93
Number of moving knives	Piece	8
operating method	/	fully hydraulic
Adaptation to crop height	mm	400-5000
efficiency of production	t/h	10~20
