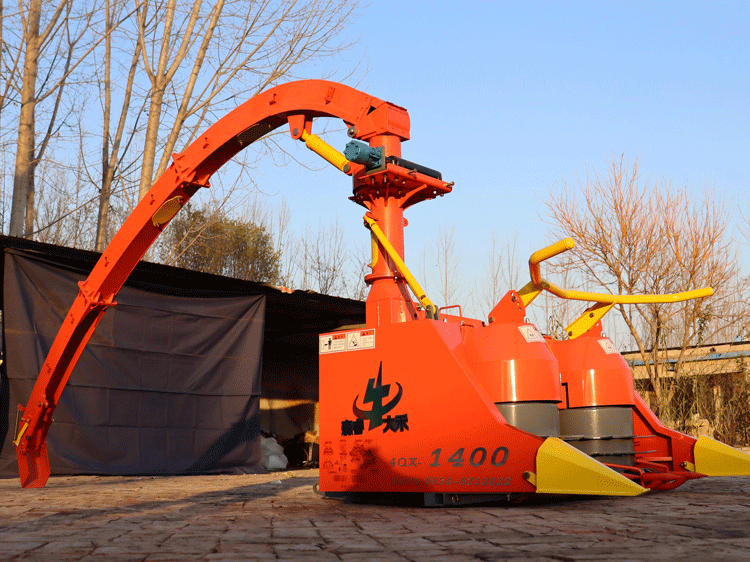

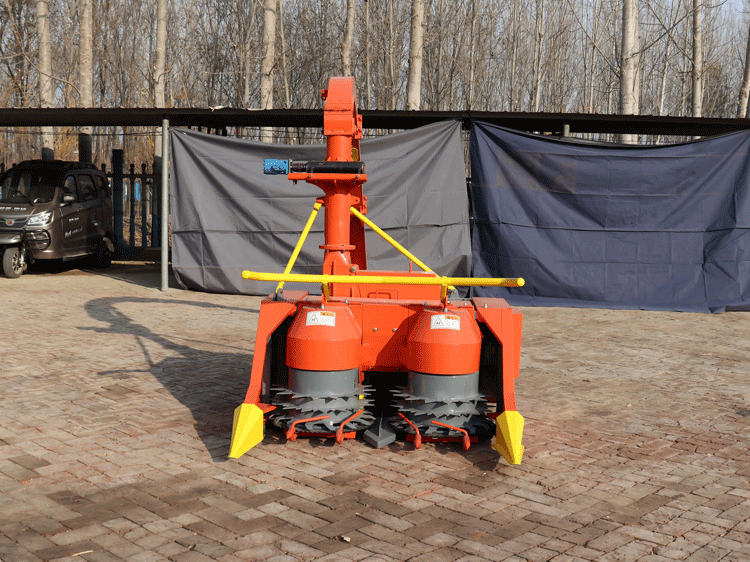

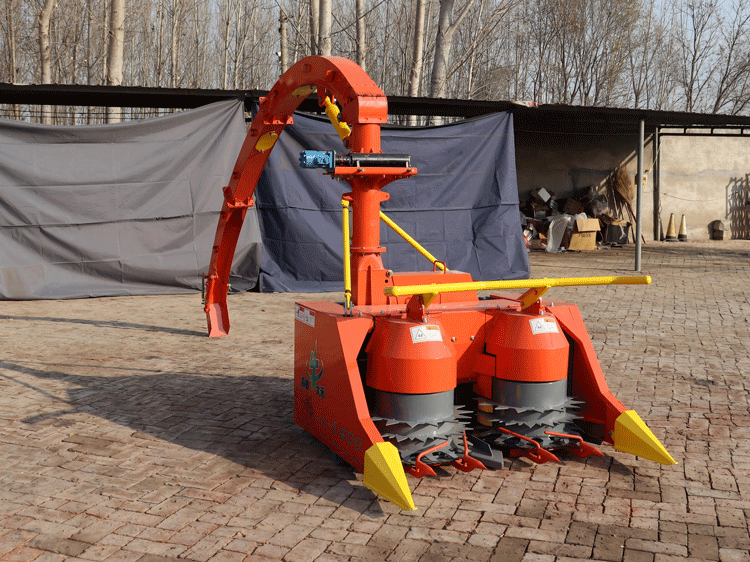

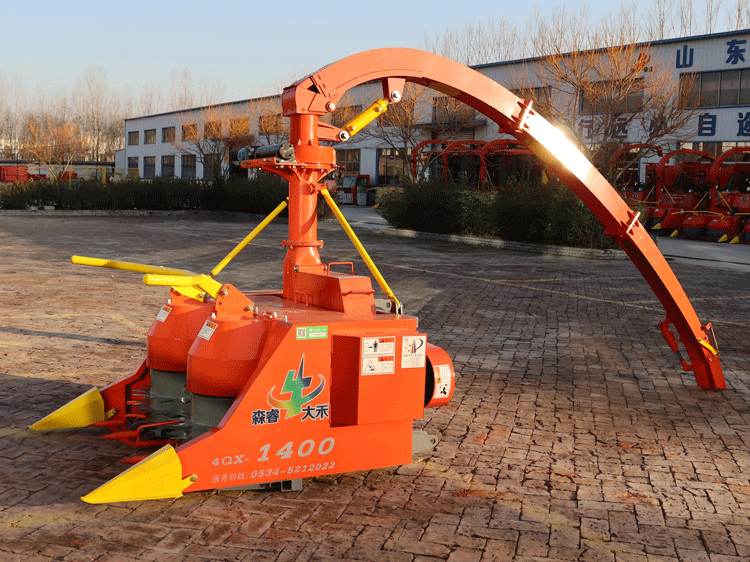

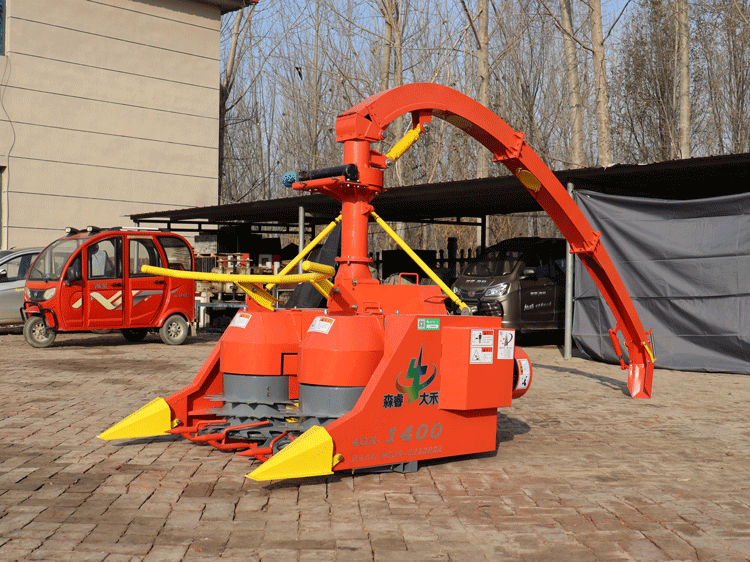

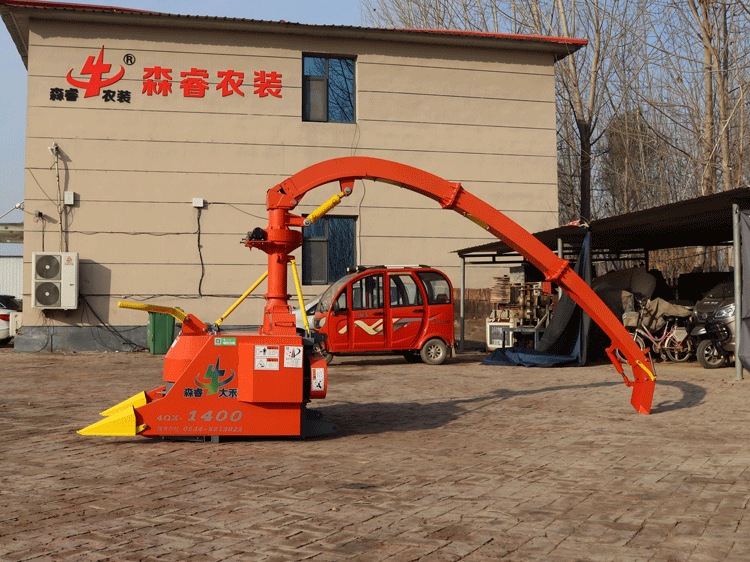

1.270m Forage Harvester Tractor
Features
* double disc saw blade cutter, can adapt to all straw-like forage crops on the wrong line harvest
* disc Cutter Chopping Device, the utility model can realize the multi-level adjustable grass foddermincing length, and can complete the operations of harvesting, mincing, kneading, throwing of crops atone time.
*The spray cylinder is rotated by worm gear and worm mechanism, which can effectively lock thespray cylinder angle with + 180 ° rotation, making the spray angle more stable.
*Fuly hydraulic operation, convenient, flexible, so that the throwing direction, throwing distance.
*stubbleheight flexible adiustment.
Product introduction
4QX-1400 green (yellow) feed harvester, tractor, can complete the harvest of crops, shredding, kneading, throwing operations, novel design, small and portable, full implementation of the row-wise harvest operation. The row spacing constraint can satisfy the harvesting operation of small plots such as mountains, hills and hills. The utility model integrates the advantages of high operating efficiency, safe and reliable performance, and can be matched with various brand tractors and harvesters to meet the requirements, it can complete many operations such as cutting off the ground, feeding in sequence, even chopping, throwing and loading the green (yellow) fodder crops at one time, high efficiency, wide use, less energy consumption, smart action. The cylinder is rotated by worm gear and worm mechanism, and the angle of the cylinder can be locked effectively by ± 180 ° rotation, so that the angle of the spray material is more stable.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4350*1490*3410 |
structural quality | kg | 890 |
Matching power range | kW | 40.4~55.1 |
Effective harvesting width of the cutter | mm | 1270 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | 790 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
