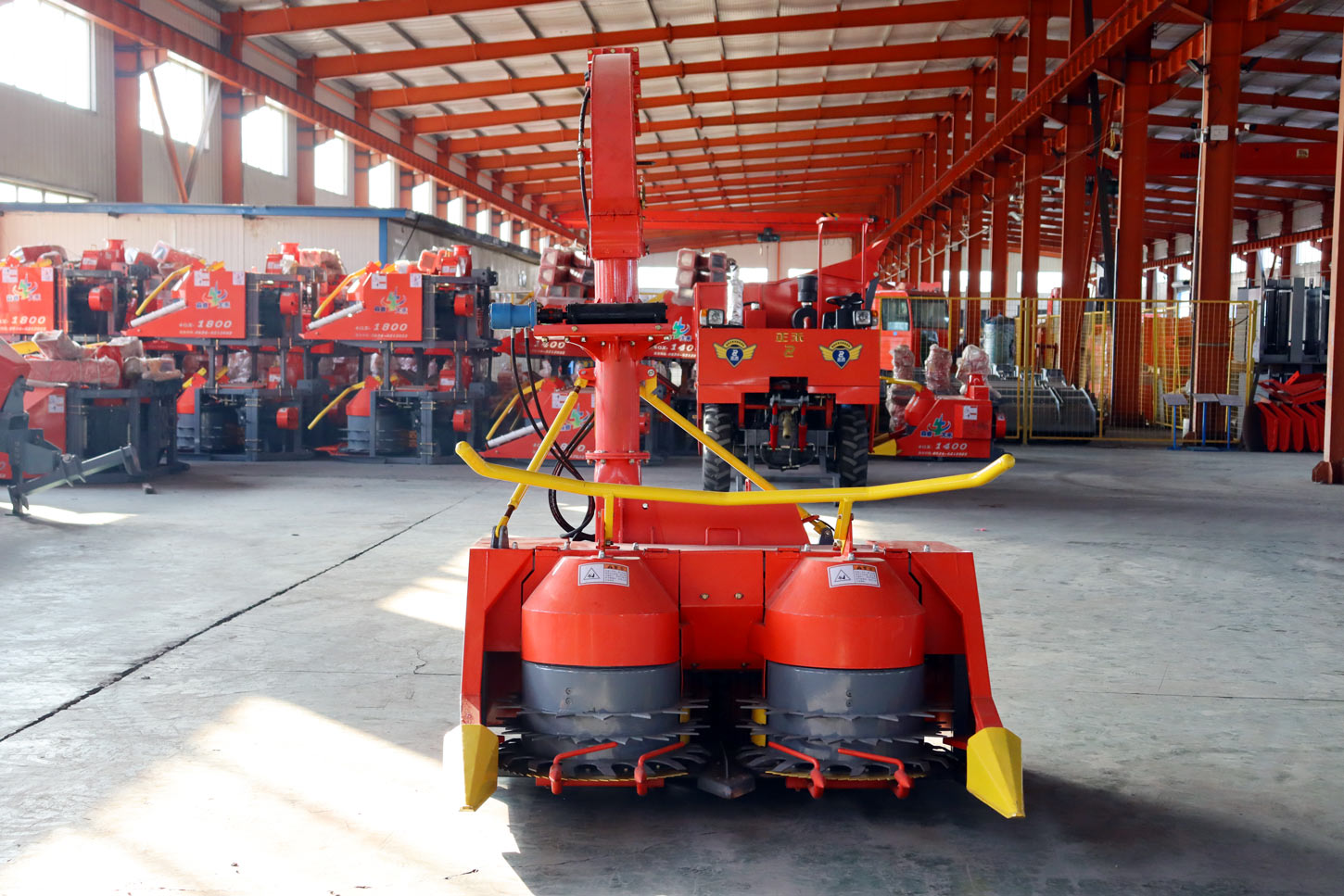

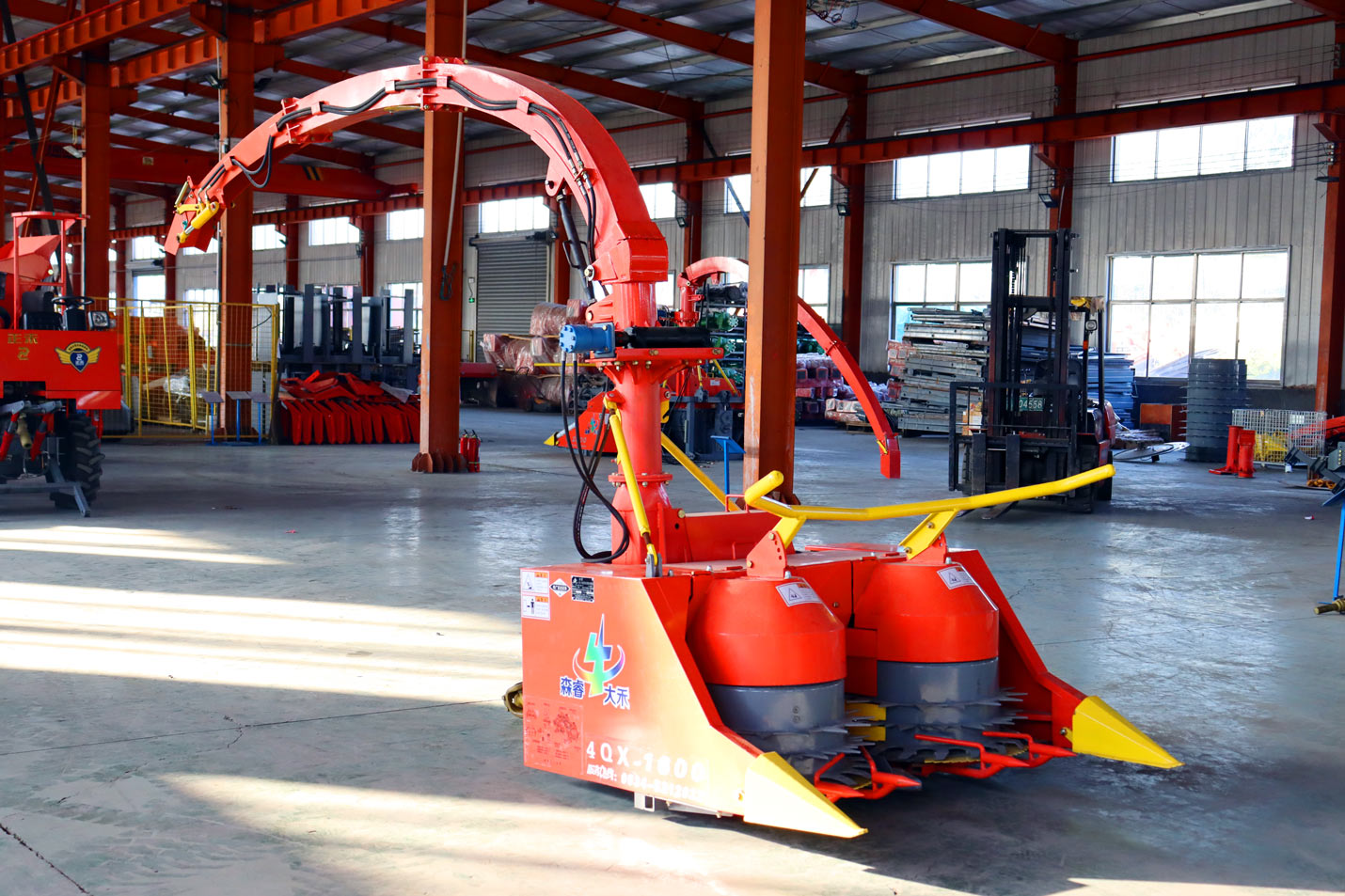

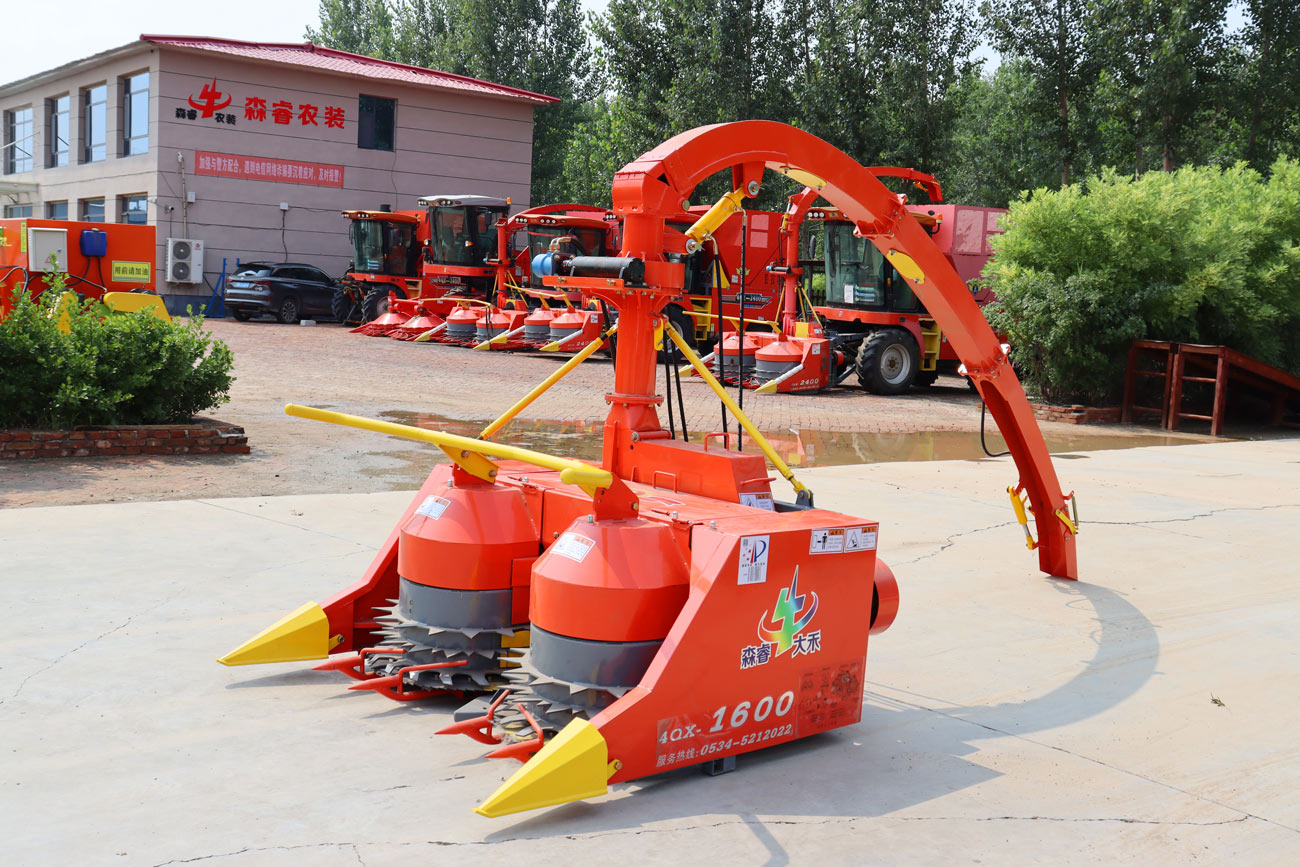

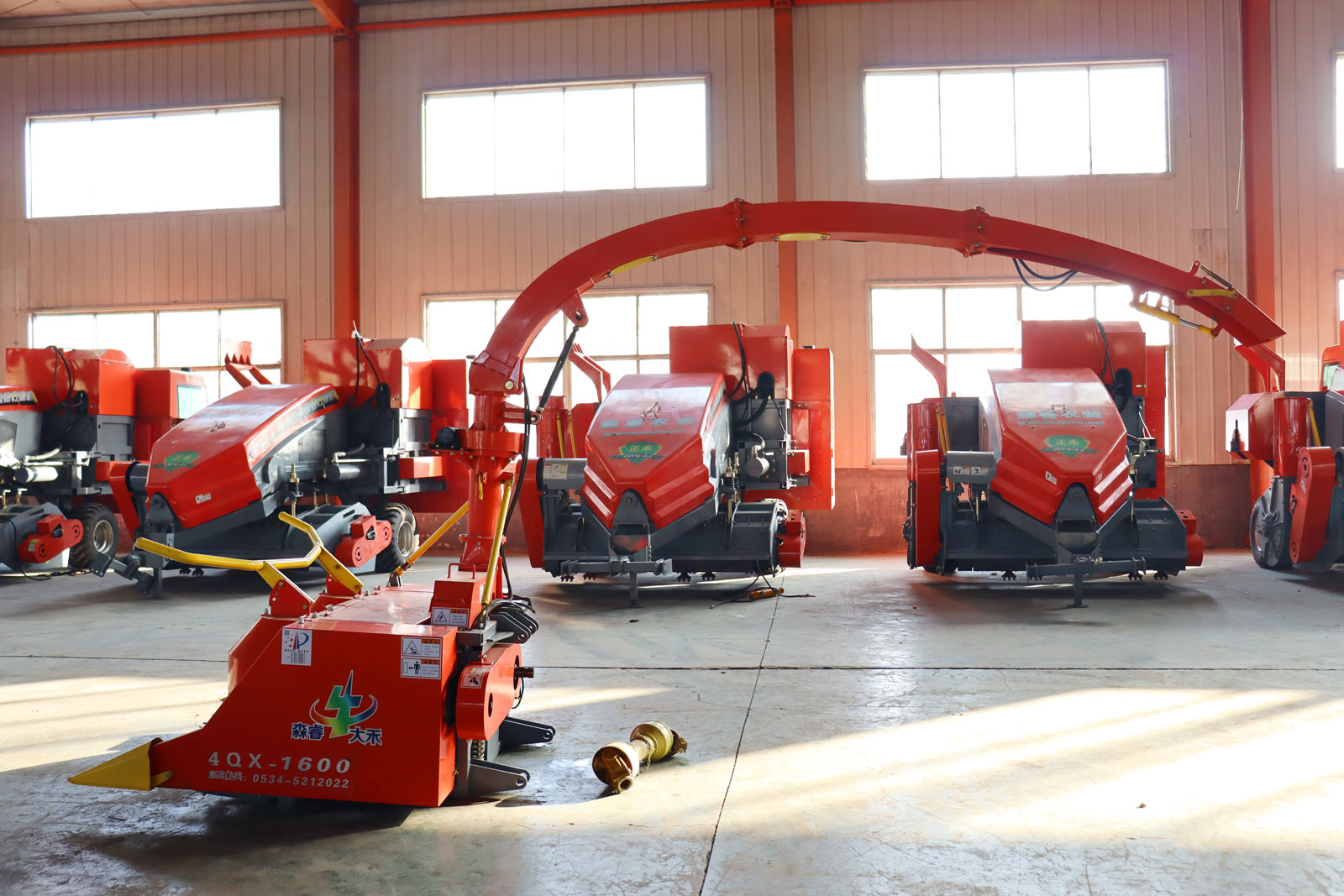

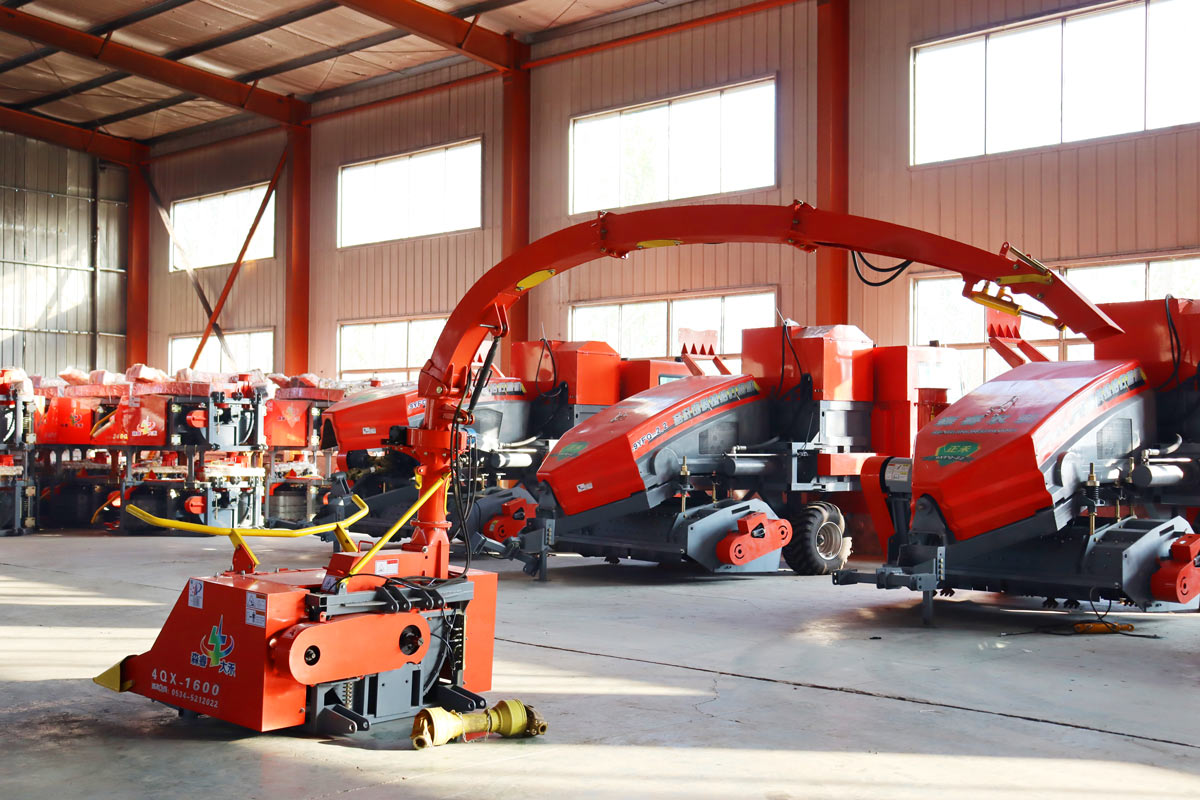

1.480m Grass Harvester Machine
Product characteristics：
★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.
★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.

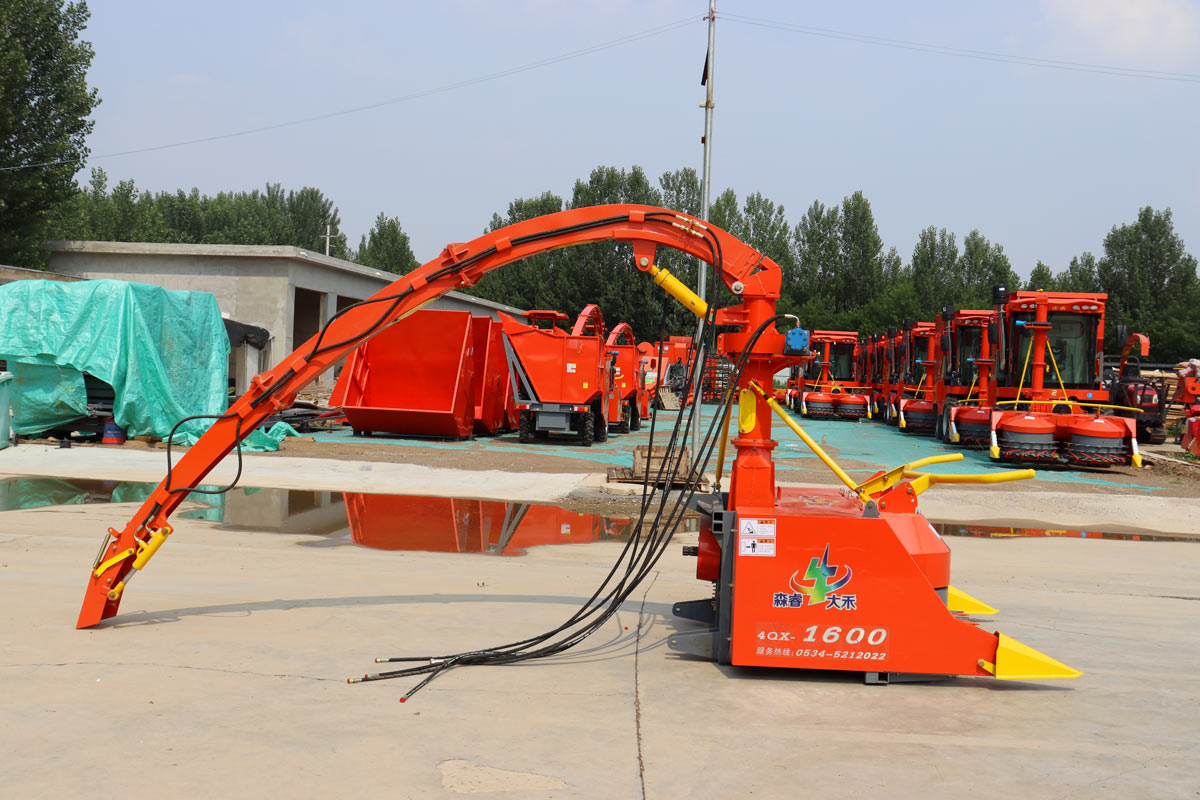

★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product advantages:
☆ 1.480m knapsack type storage machine cutting table adopts disk vertical feeding device, which is not limited by row spacing, strong adaptability, high efficiency and fast speed.
☆ It adopts alloy blade, which is sharper and wear-resistant and has longer service life.

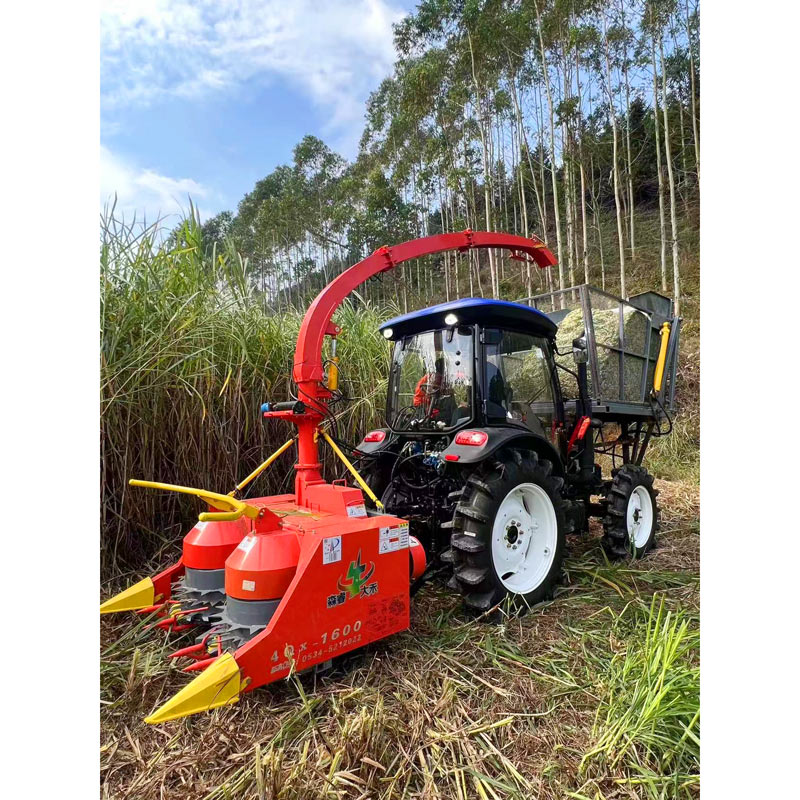

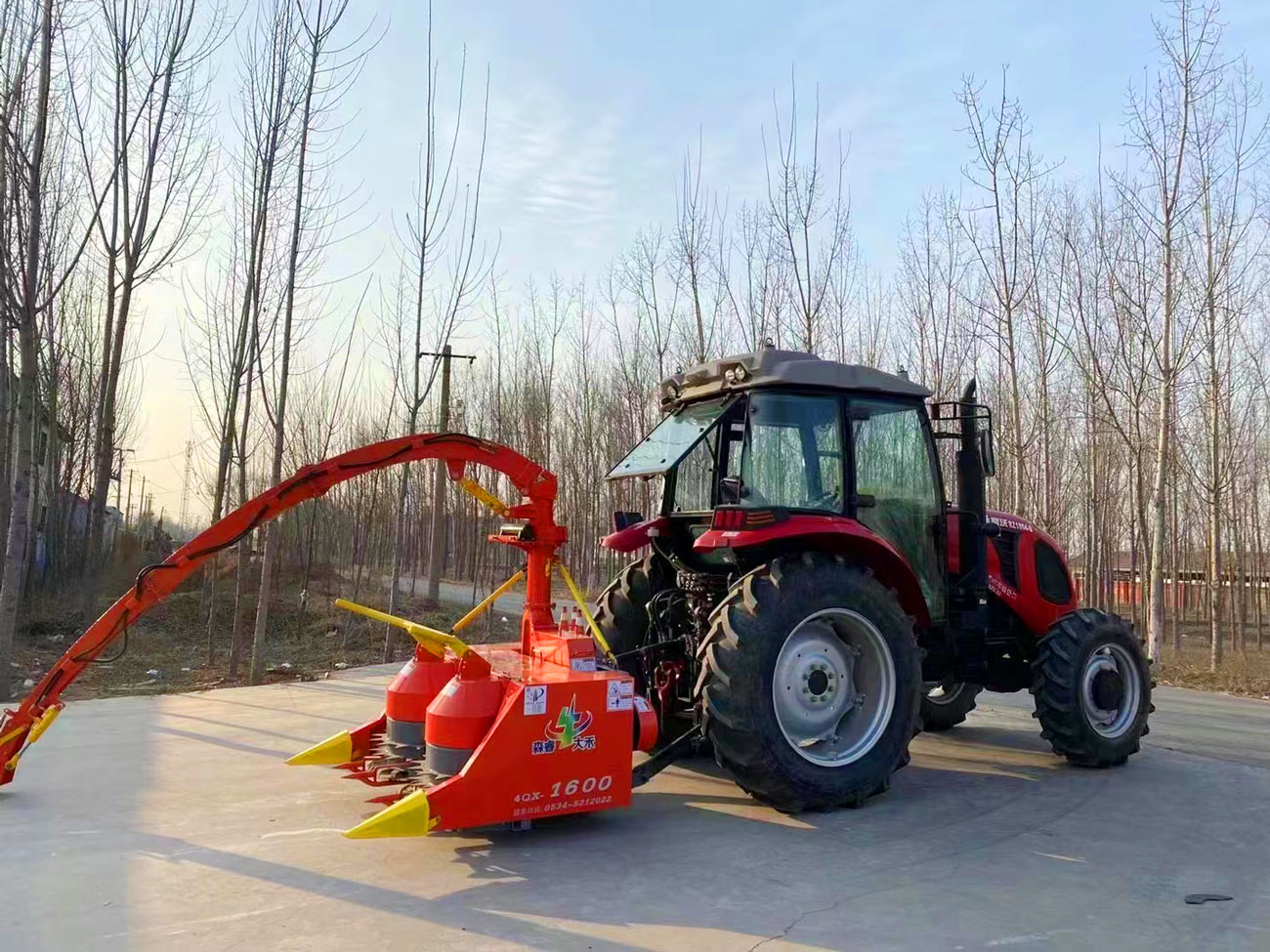

☆ 1.480m knapsack storage machine needs to be equipped with 60-80 horsepower tractor, harvester. The rear three-point suspension cutting table is easy to install and disassemble.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
