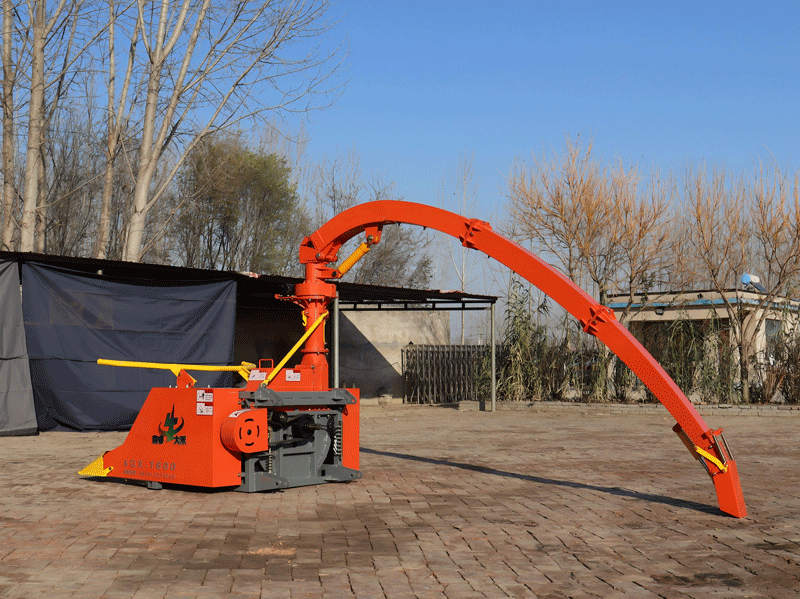

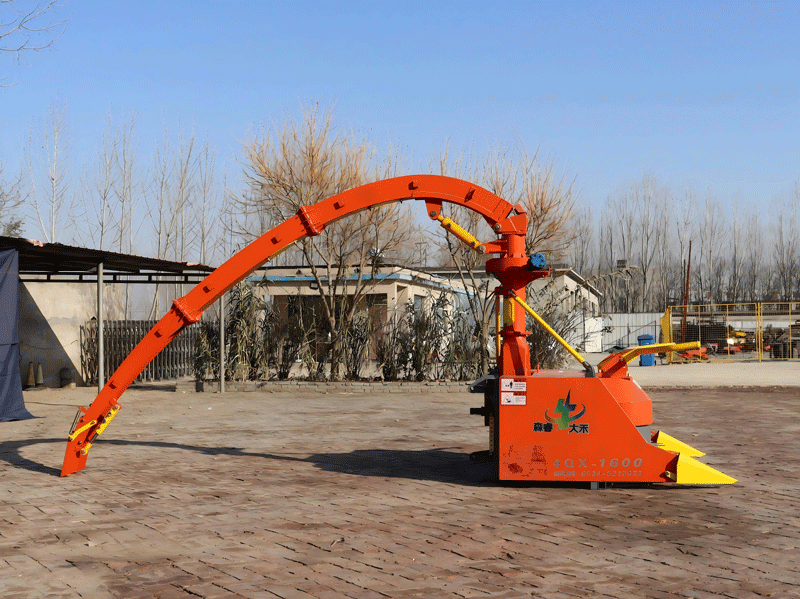

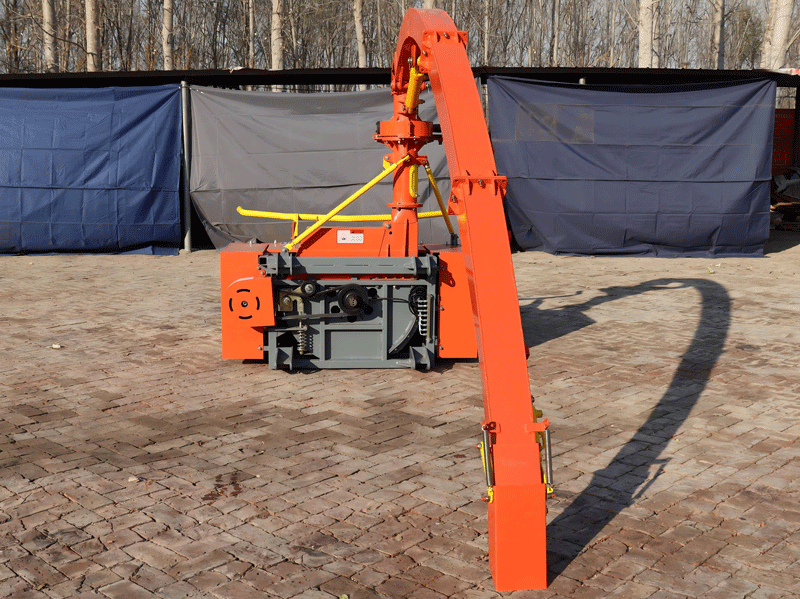

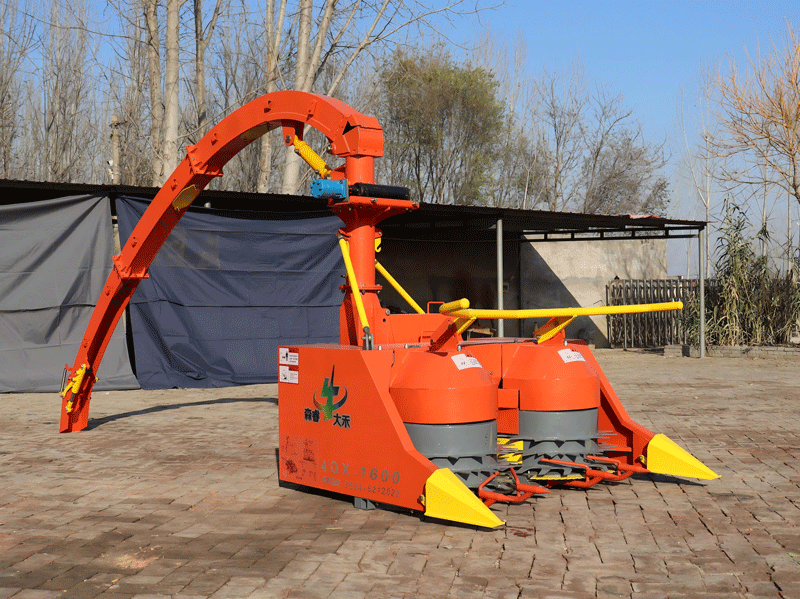

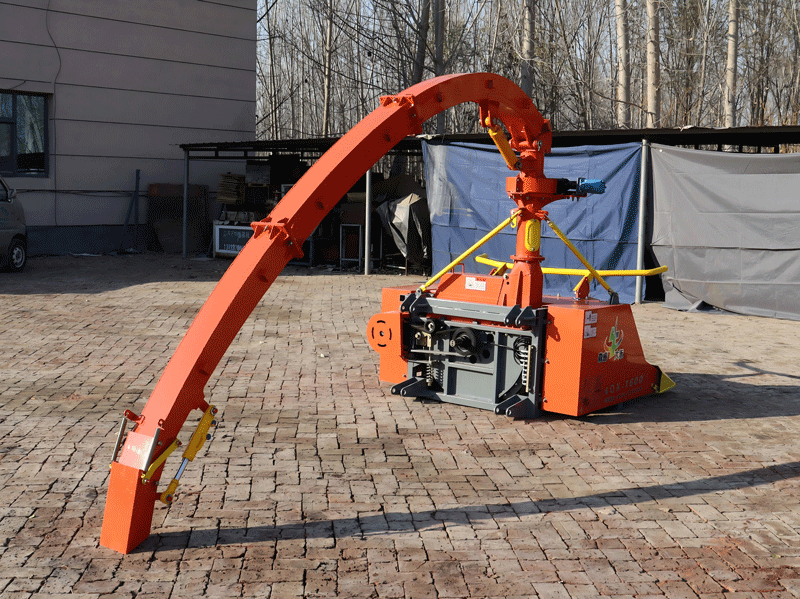

1.480m Mounted Forage Harvester
Product Features:

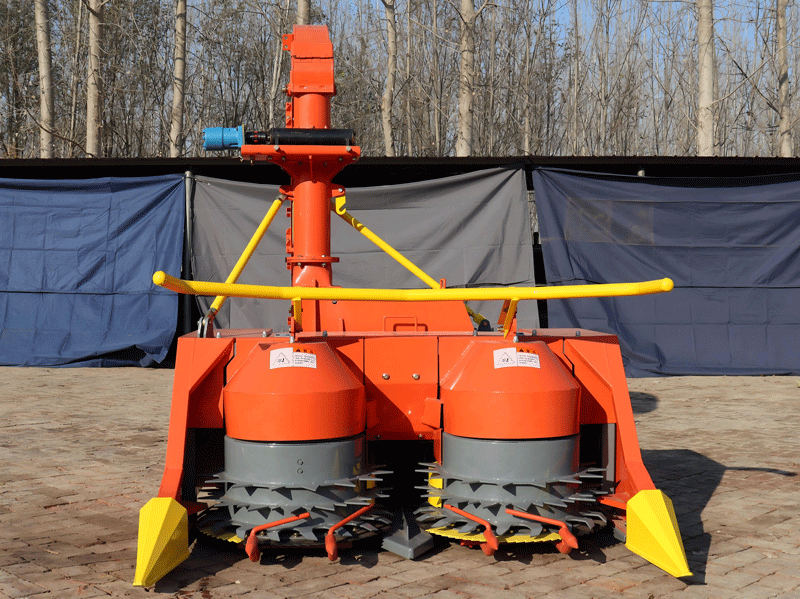

★ Adopting double disc saw blade type cutter, it can adapt to all culm forage crops harvested without opposite rows.
★ Disc knife chopping device, to achieve multi-level adjustable length of forage chopping.
★ The spray cylinder rotation adopts worm gear mechanism, which can rotate ±180°, effectively locking the spray cylinder angle and making the spray angle more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance and stubble height can be adjusted flexibly.
Product introduction:

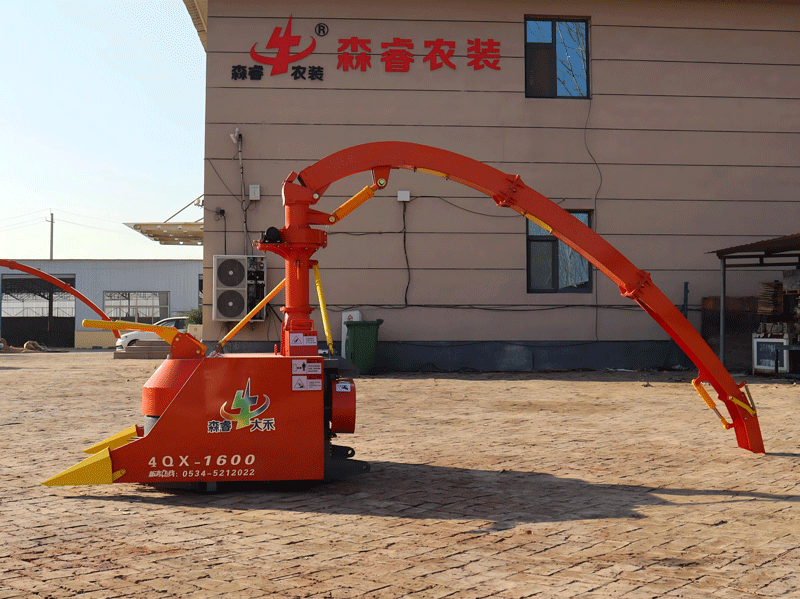

4QX-1600 mounted forage harvester is designed for one film and three rows, with a cutting width of 1.480m, which can completely realise the harvesting operation without rows. Mounted forage harvester is small in size, high in efficiency, wide in use, low in energy consumption, dexterous in action, not subject to crop spacing constraints, combining the advantages of high operational efficiency and safe and reliable performance, etc. Mounted forage harvester can be matched with various brands of tractors and harvesters to meet the requirements, and it can one-time complete a number of operations such as cutting off the green (yellow) silage crops from the ground, sequentially feeding them, uniformly chopping them up, and sending them to be loaded onto the trucks.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
