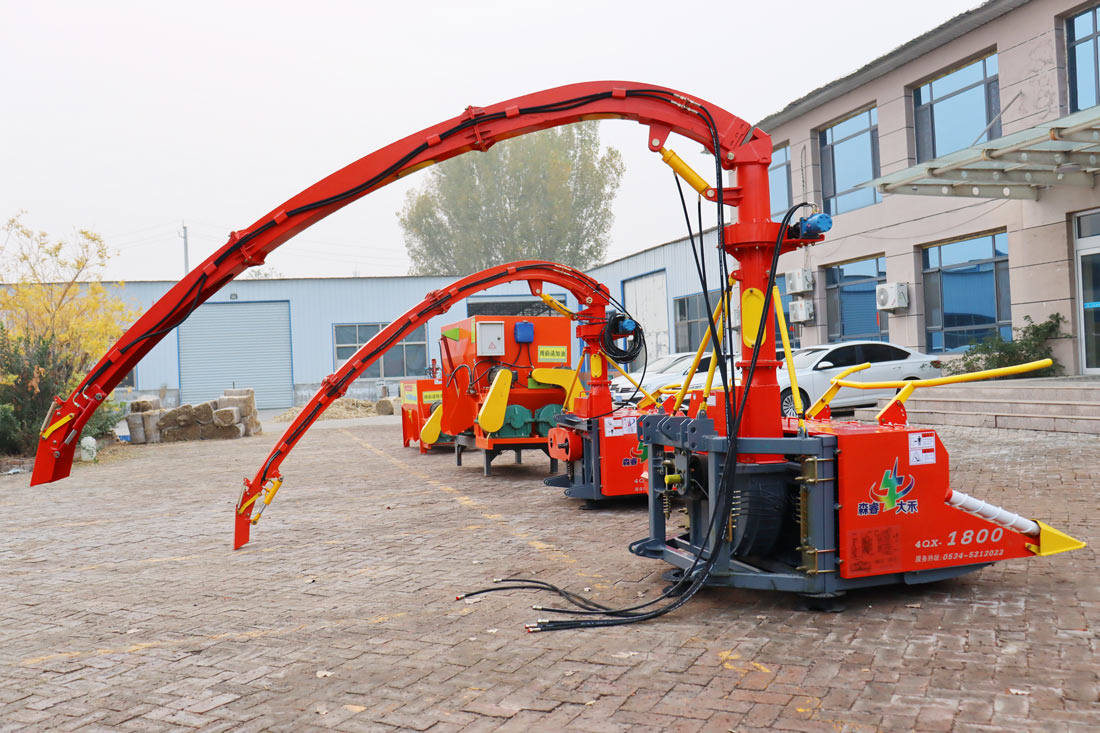

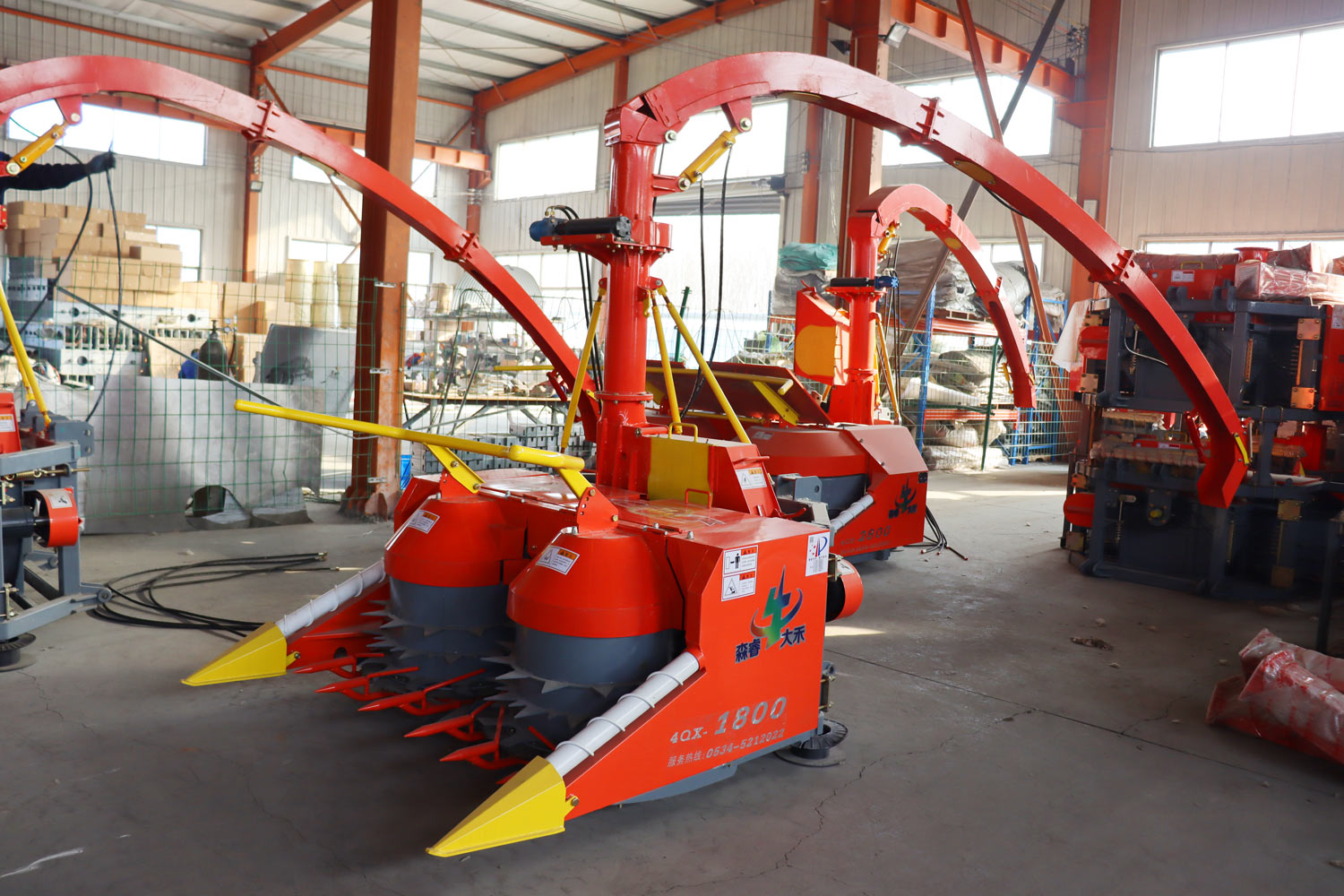

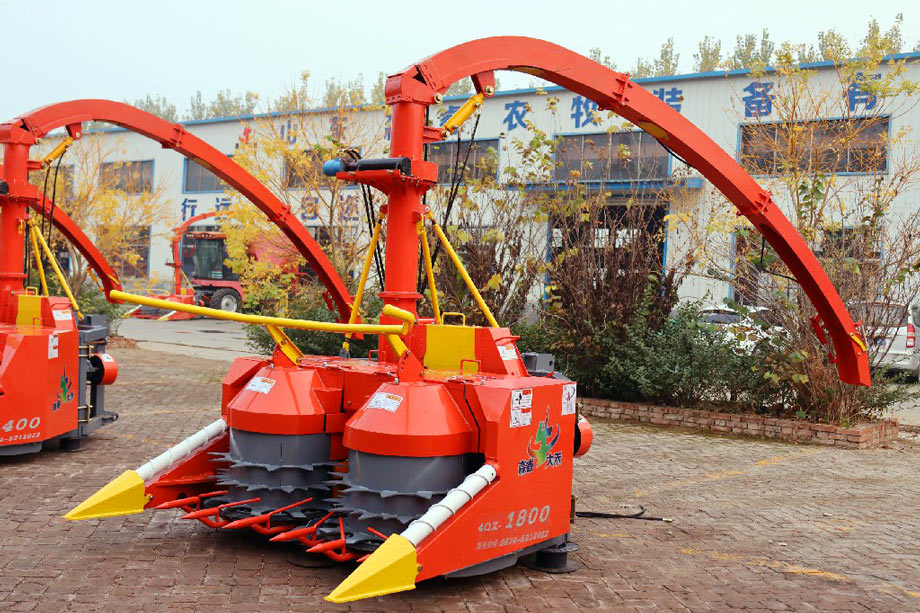

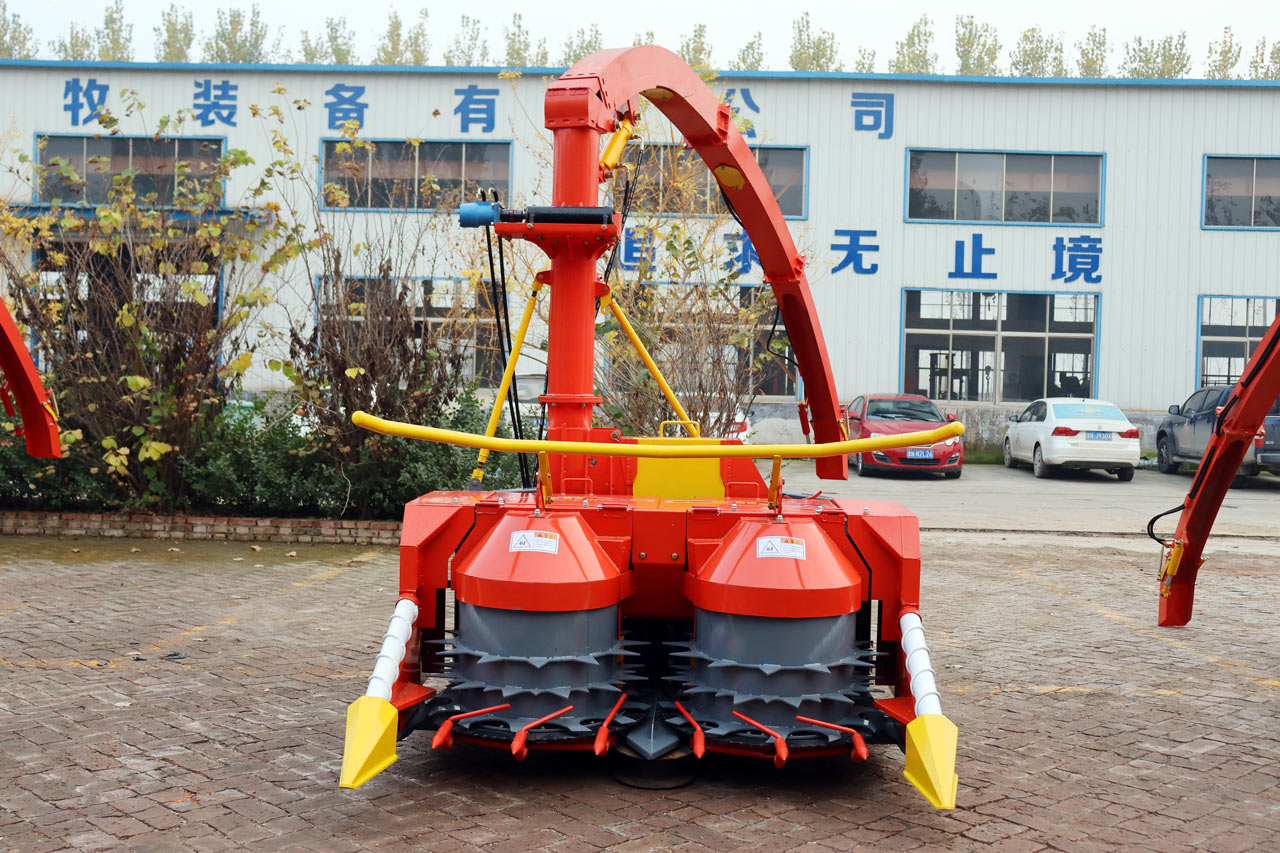

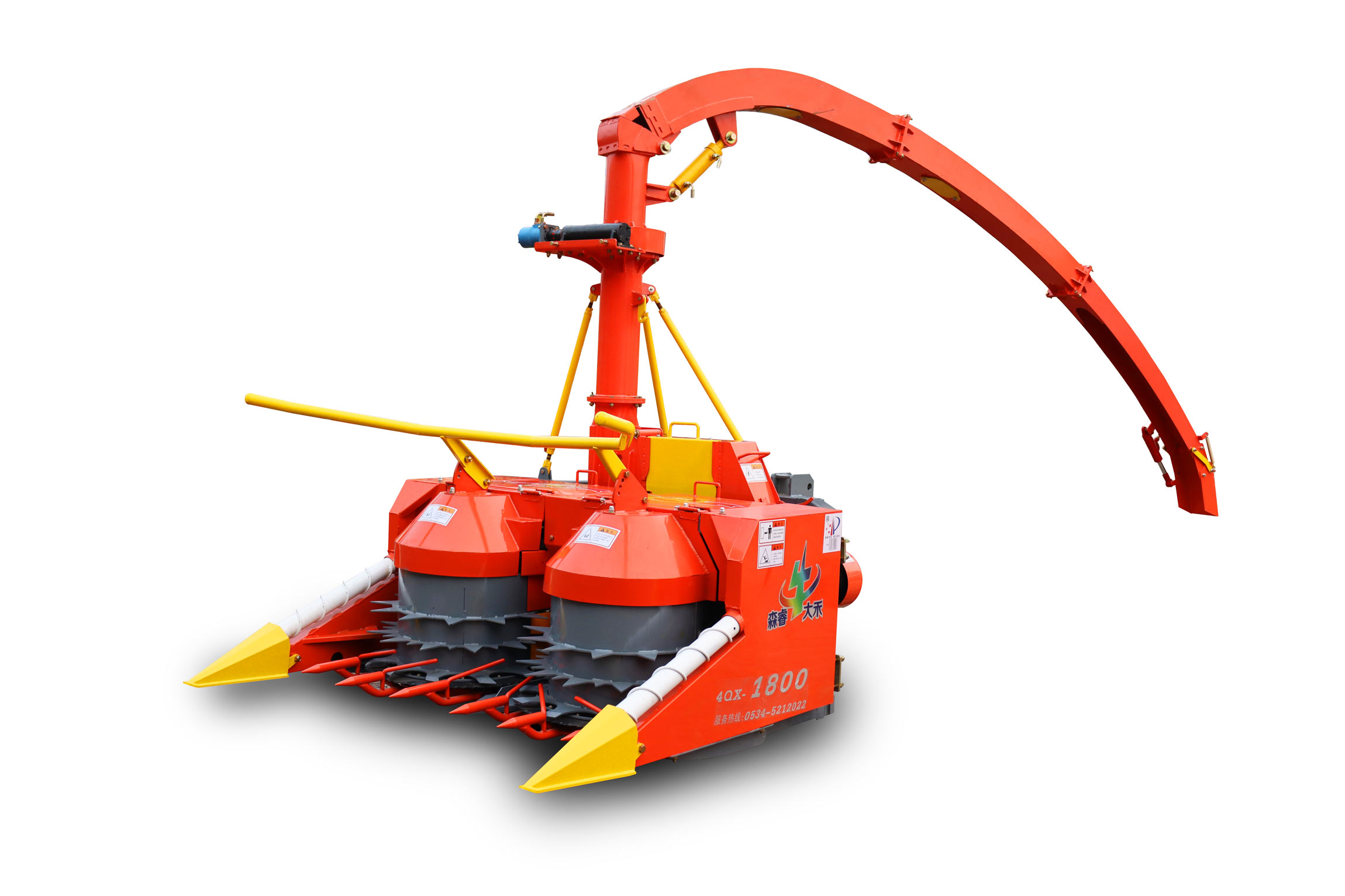

1.585m Corn Silage Harvester
Product features
★ with automatic tool grinding function, to solve the problem of time-consuming and laborious users, greatly reducing maintenance time, improve efficiency.
★ The vertical cylinder feeding device can adapt to the harvest of high straw crops such as corn and sorghum.
★ The four-roll forced sequential feeding device can feed the cut-off material into the material chopping device in good order.
★ The spray cylinder is rotated by worm gear and worm mechanism, and can rotate ± 180 ° , effectively locking the spray cylinder angle, making the spray angle more stable.
★ The material chopping device can realize the adjustable length of the material chopping, so as to meet the needs of different forage forage harvesting.
★ The cutting device adopts double disc saw blade, the material cutting is accurate and stable, and the stubble left is even and consistent.
★ The throwing device can quickly and accurately throw the chopped material into the accompanying material
Product introduction

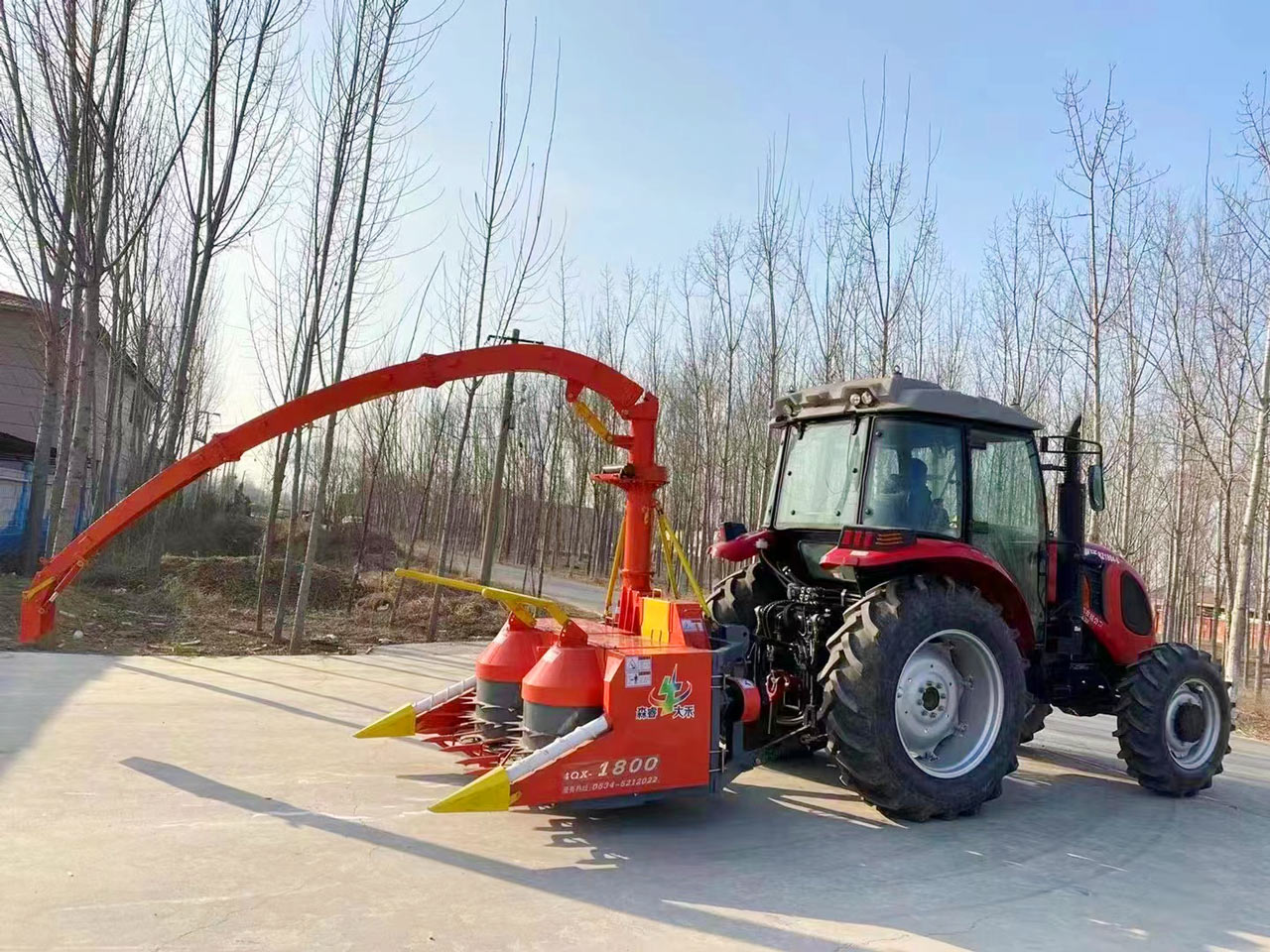

Senrui 4QX-1800 green fodder harvester, novel design, fully achieve the row harvest operation. The material cutting device of the equipment can realize the adjustable length of the material cutting, so as to meet the needs of harvesting different fodder. The cutting device adopts double-disc saw blade, the material cutting is accurate and smooth, the stubble left is even and consistent, the equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, and not constrained by crop row spacing, the utility model integrates the advantages of high operating efficiency, safe and reliable performance, and can be matched with various brand tractors and harvesters to meet the requirements, sequential feeding, even cutting, throwing loading and other operations. The throwing device can quickly and accurately throw the chopped material into the accompanying material.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1800 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4630*1800*4930 |
structural quality | kg | 1340 |
Matching power range | kW | 73.5~95.6 |
Effective harvesting width of the cutter | mm | 1585 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 92 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 13~25 |
