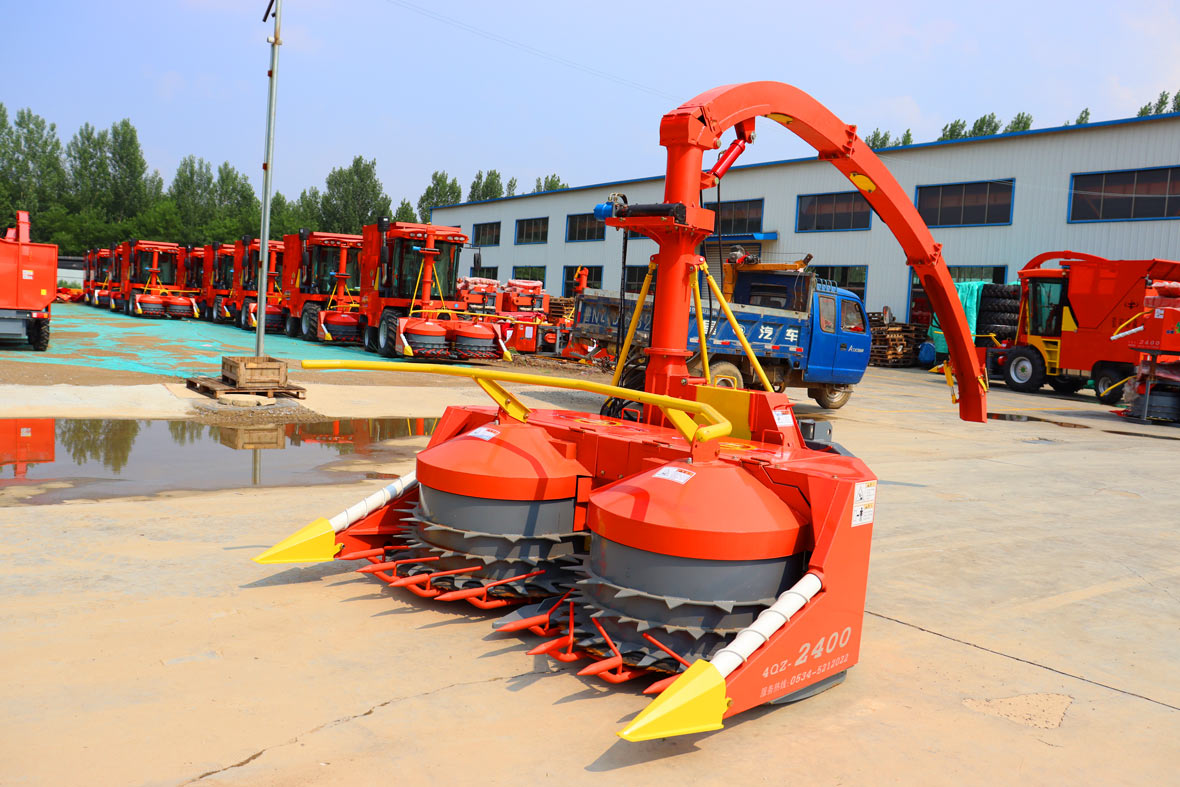

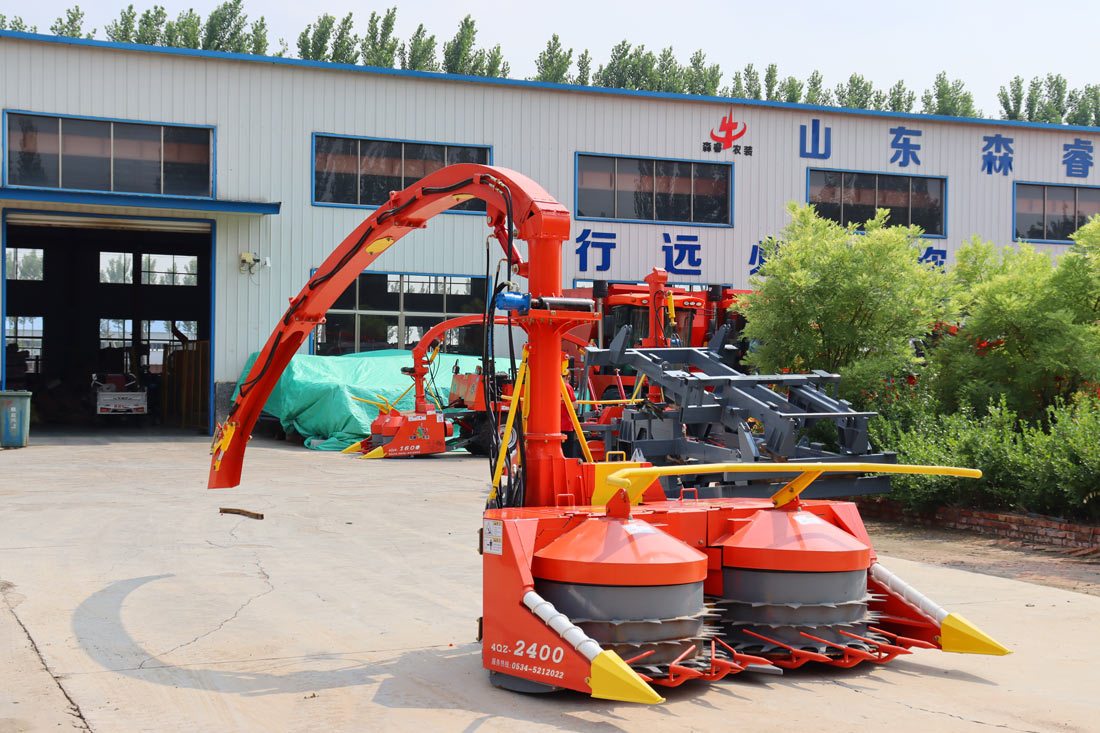

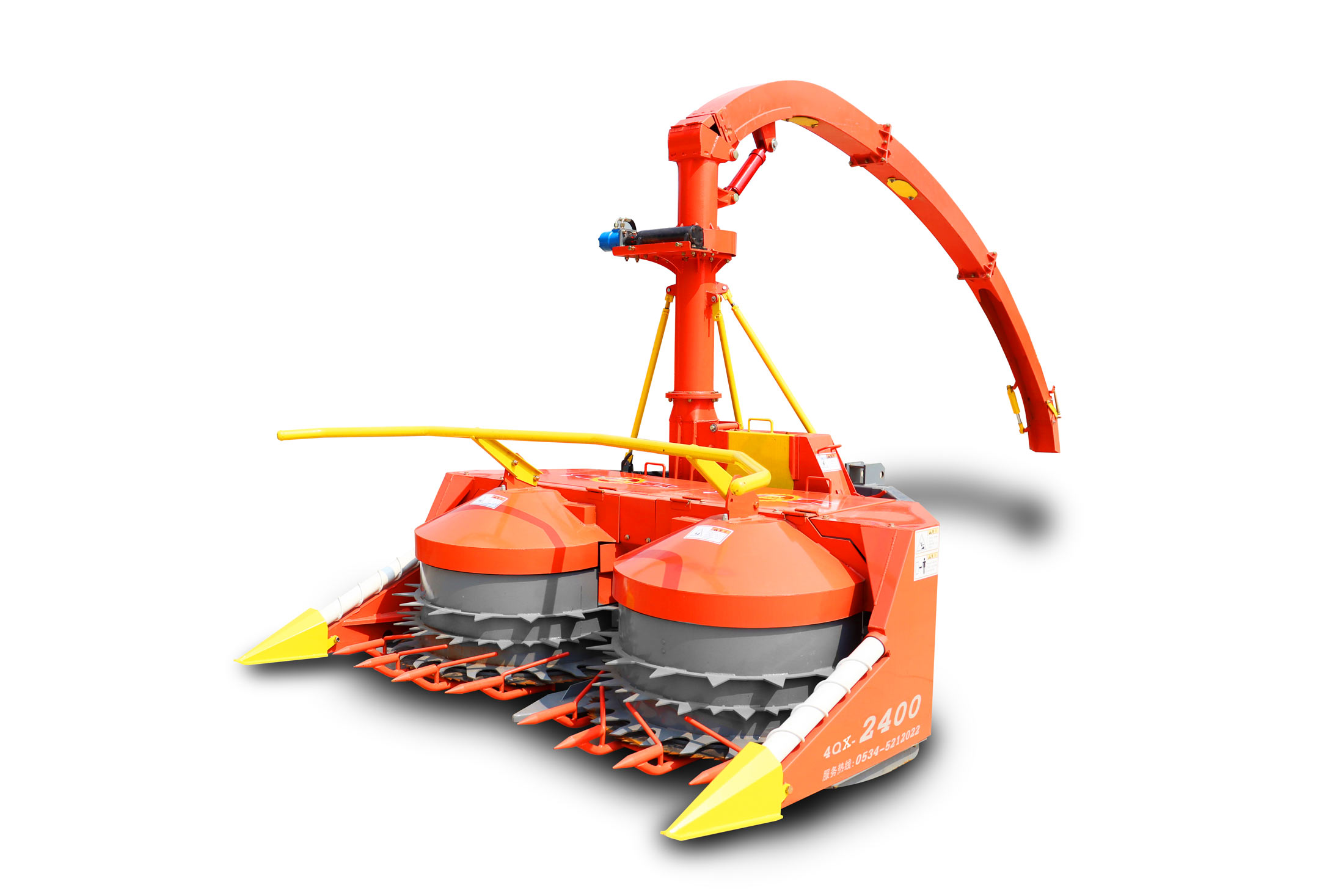

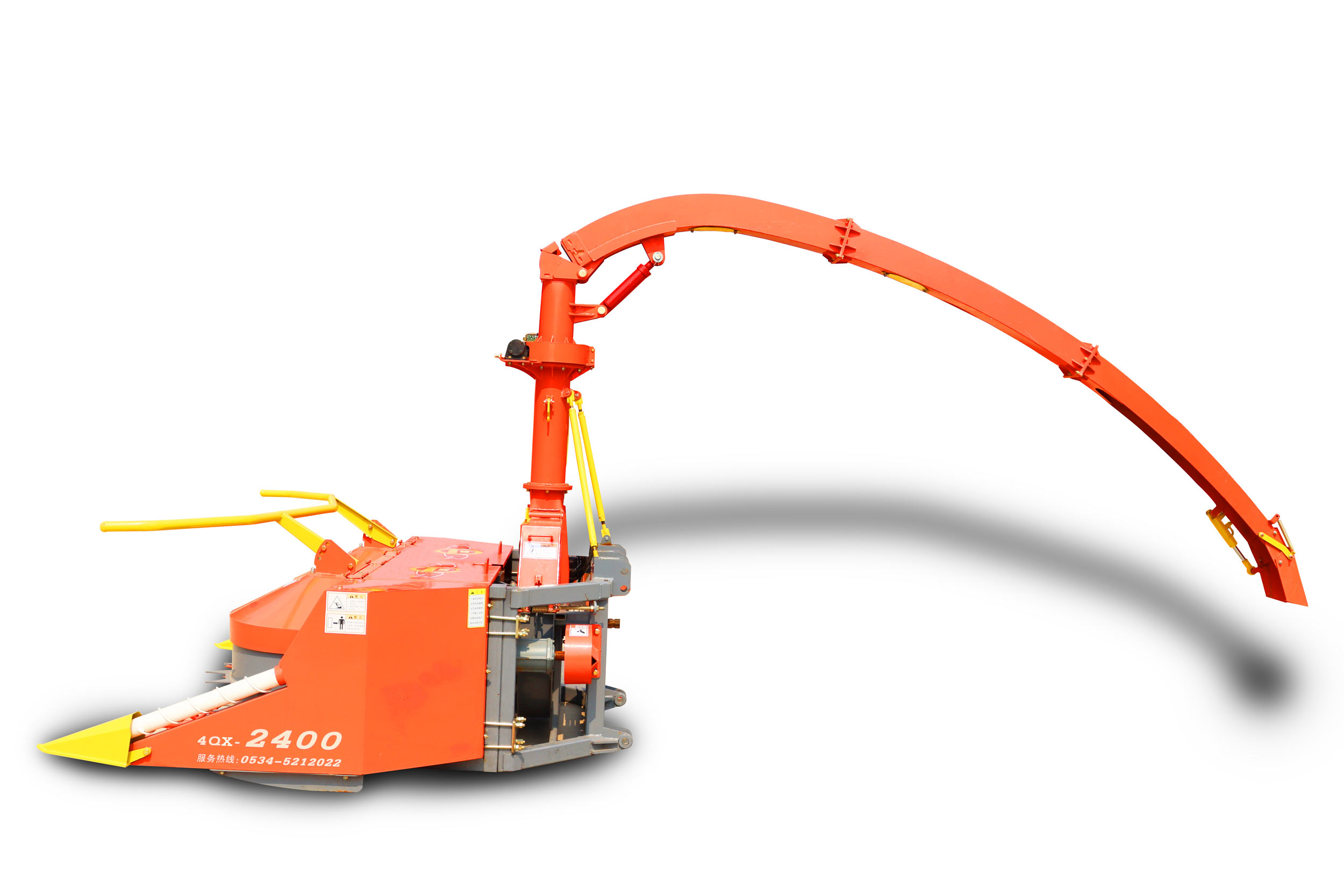

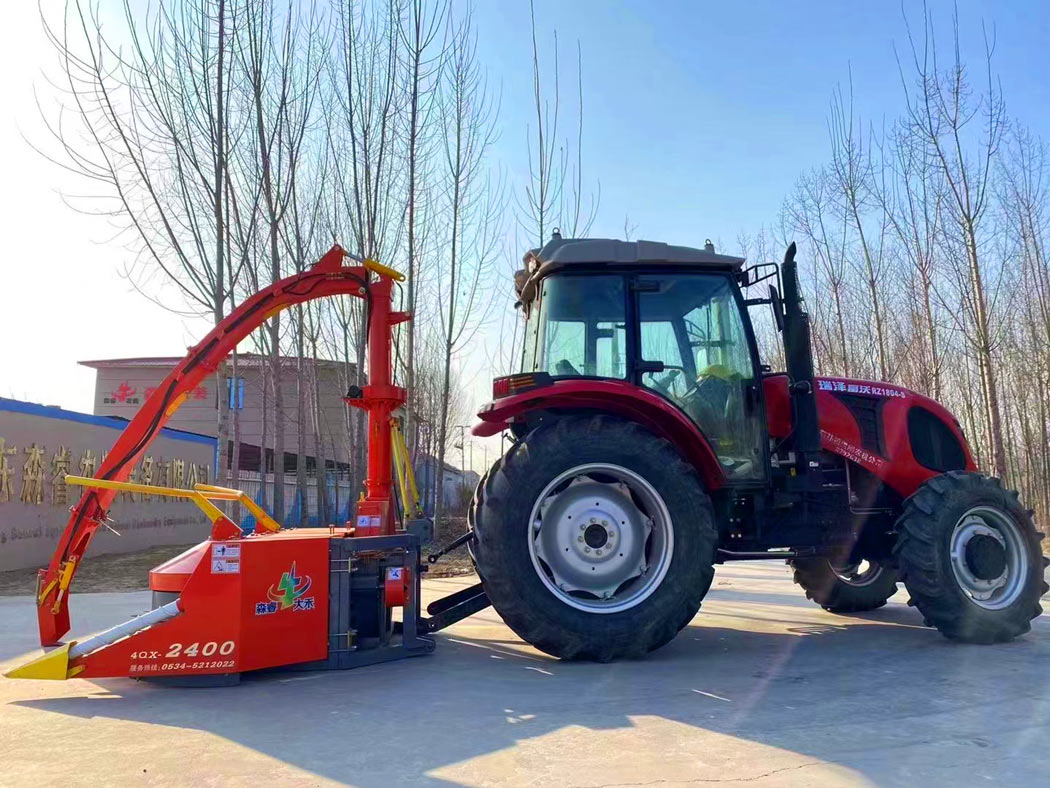

2.220m Corn Silage Chopper
product description Senrui:

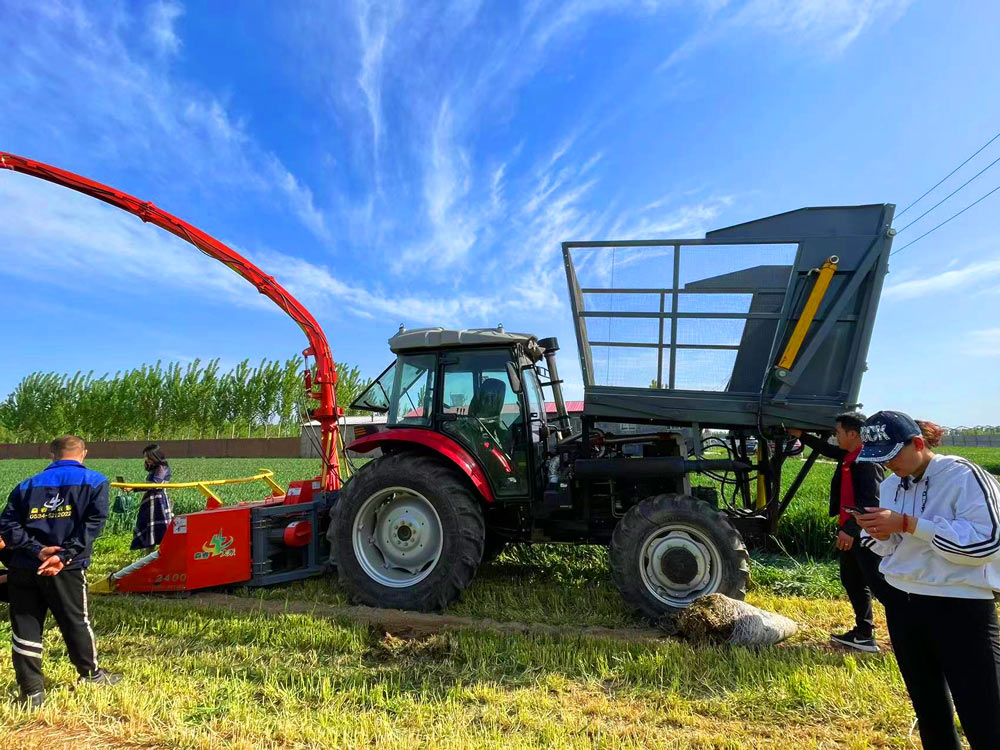

2.220m Green fodder harvester has a novel design and completely realizes uneven harvesting operations. This equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, and not restricted by crop row spacing. It integrates the advantages of high operating efficiency and safe and reliable performance. It can be matched with tractors and harvesters of various brands that meet the requirements. It can complete multiple operations such as cutting off the ground, sequential feeding, uniform chopping, throwing and loading of green (yellow) feed crops at one time.
Product characteristics:
★It has an automatic knife sharpening function, which solves the problem of time-consuming and labor-intensive sharpening for users, greatly shortens maintenance time and improves efficiency.
★Vertical cylinder feeding device can adapt to uneven harvesting of tall straw crops such as corn and sorghum.
★The four-roller forced sequential feeding device can feed the cut materials into the material chopping device evenly and sequentially.
★The spray barrel rotation adopts a worm gear mechanism, which can rotate ±180°, effectively locking the spray barrel angle and making the spray angle more stable.
★The material chopping device can adjust the material chopping length to meet the needs of different forage harvesting.
★The cutting device adopts double disc saw blades, which can cut the material accurately and smoothly, leaving uniform and consistent cutting stubble.
★The throwing device can quickly and accurately throw the chopped materials into the accompanying material box. The throwing direction, angle and position are adjustable.
Product video：
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |

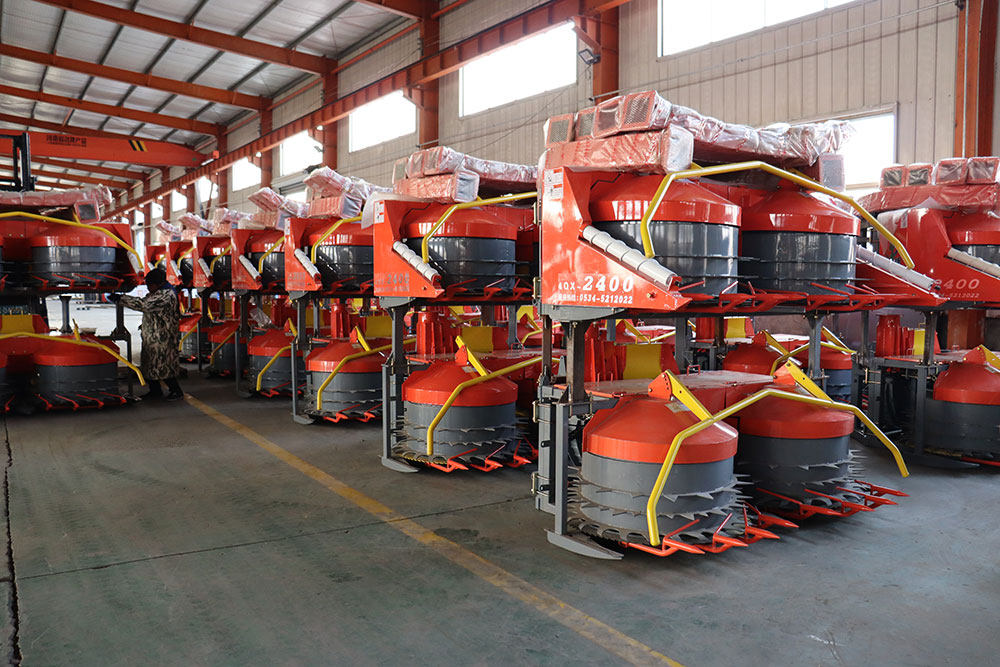

Workshop display:

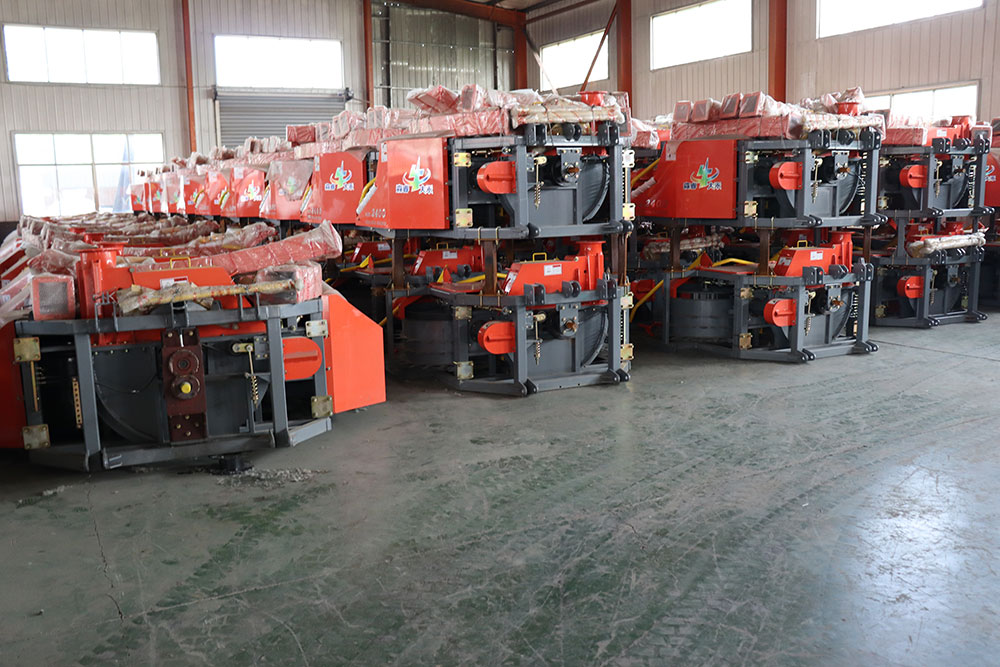

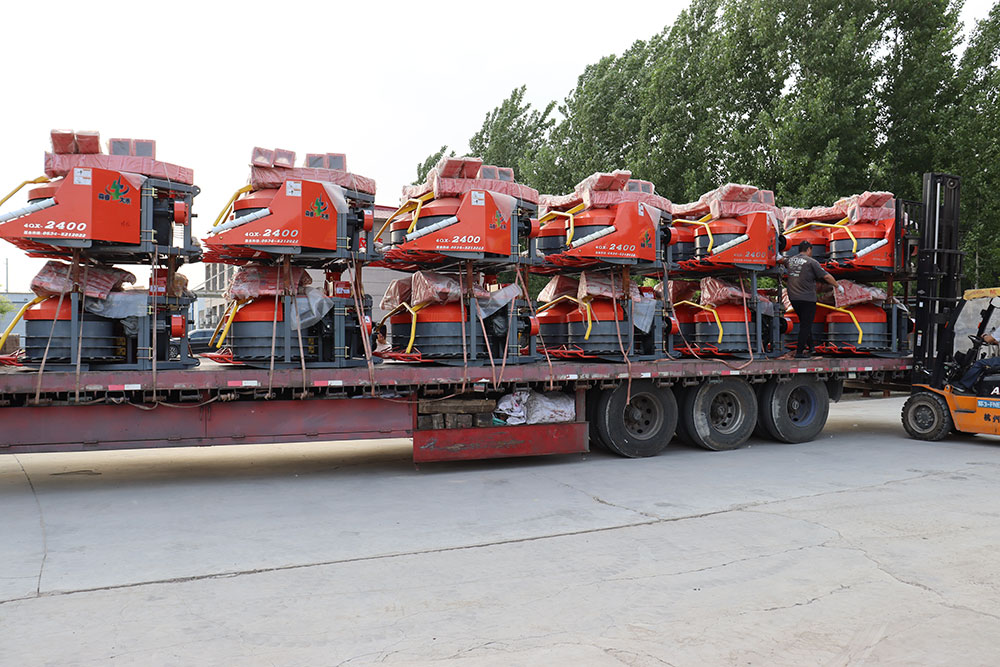

Delivery site:

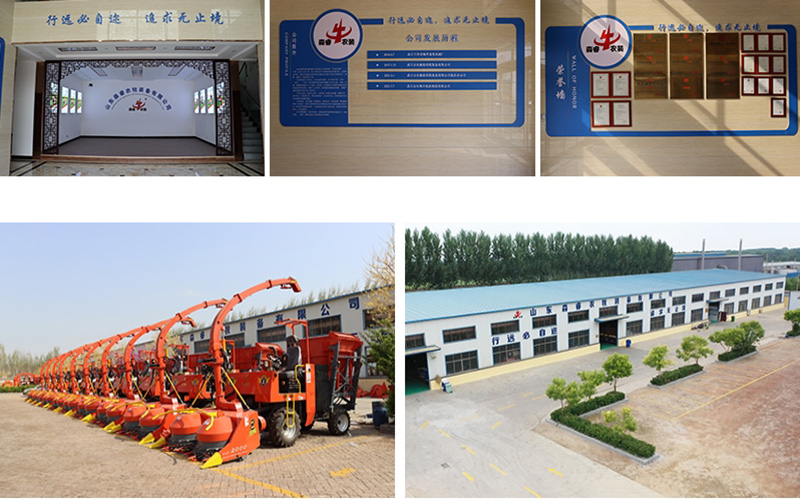

Factory:
