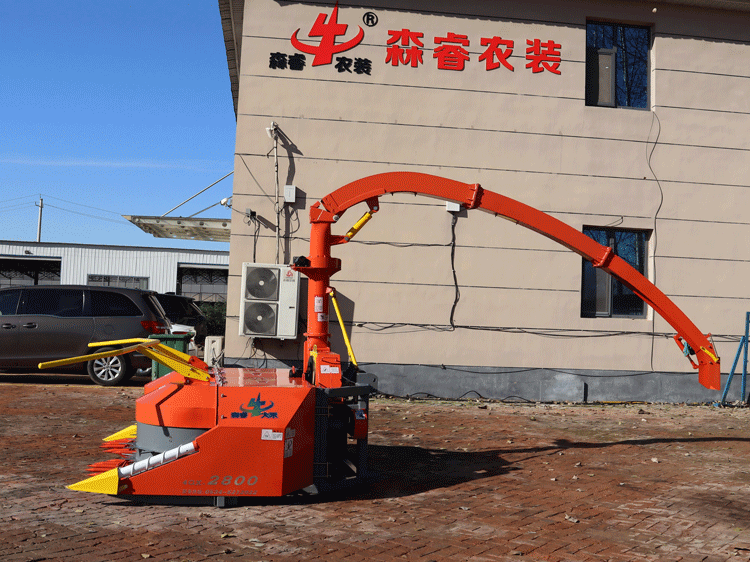

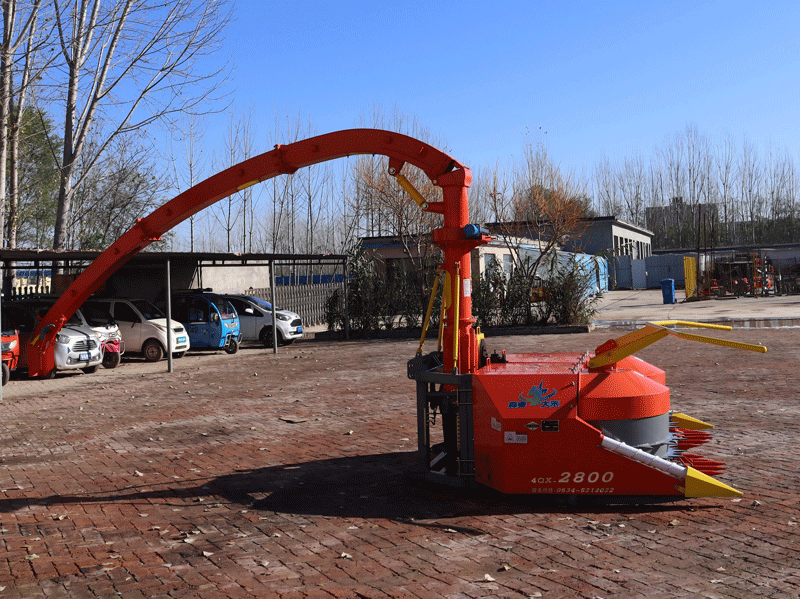

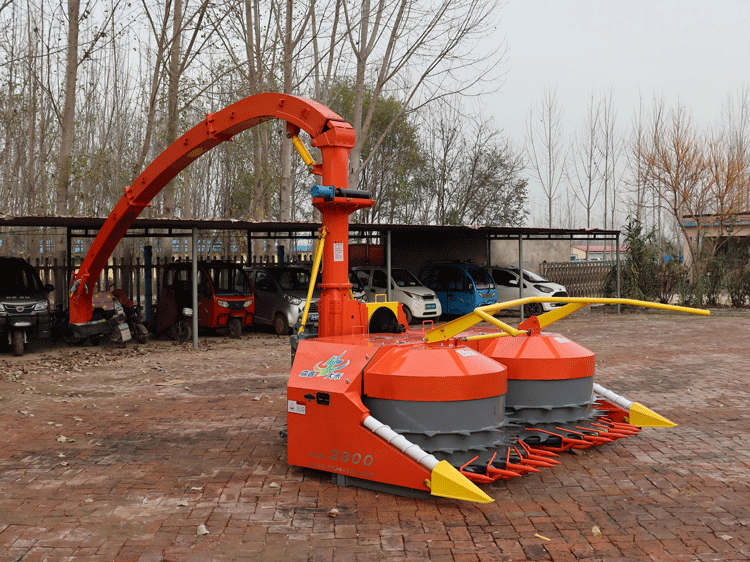

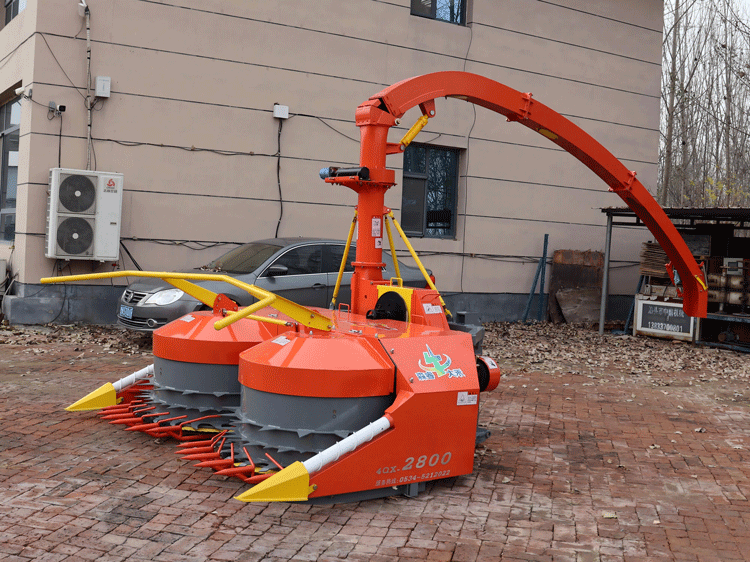

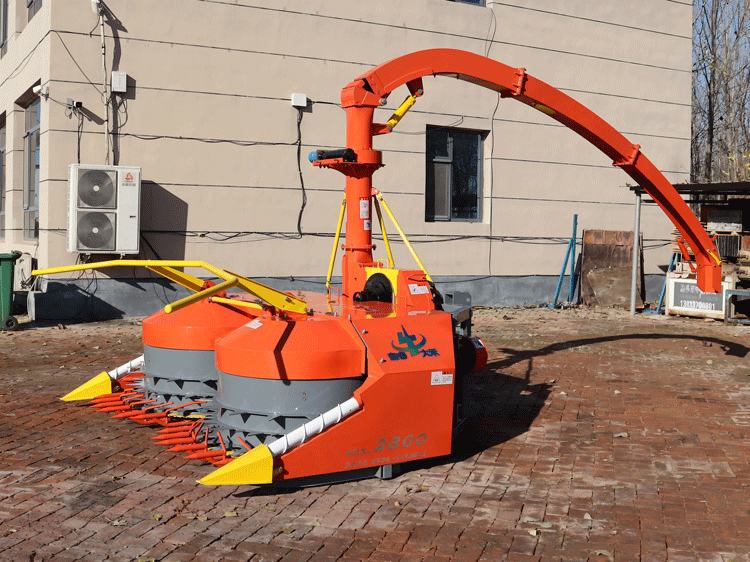

2.620m Mounted Forage Harvester
Product Features:

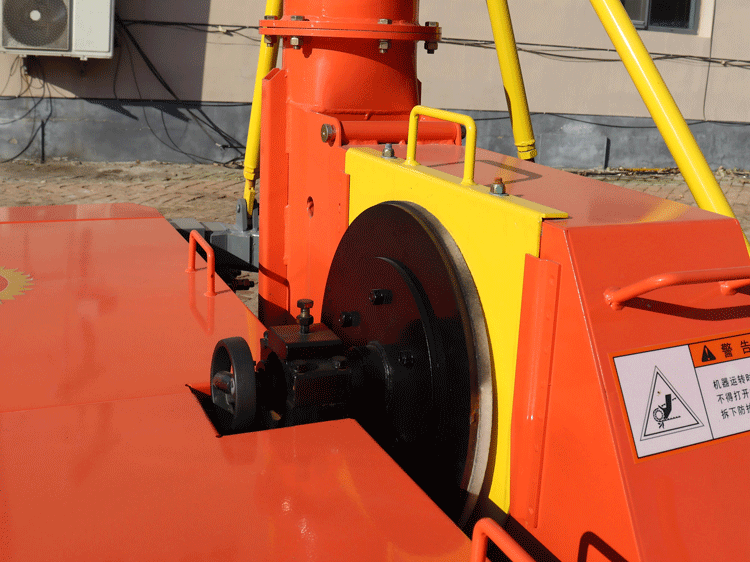

★With automatic knife grinding function, it solves the problem of time-consuming and labour-intensive knife grinding for users, greatly shortens the maintenance time and improves the efficiency.
★Vertical cylinder feeding device, can adapt to corn, sorghum and other high straw crops not opposite rows of harvesting.
★Four-roller feeding forced sequential feeding device, can well cut off the material, the sequence of uniform feeding into the material chopping device.
★The spray cylinder rotation adopts worm gear mechanism, which can rotate ±180°, effectively locking the spray cylinder angle, making the spray angle more stable.
★Material chopping device can realise the adjustable length of material chopping to meet the needs of different forage and fodder harvesting.
★Cutting device adopts double disc saw-type piece, material cutting is accurate and smooth, leaving stubble cut evenly and consistently.
★Throwing device can quickly and accurately throw the chopped materials into the accompanying material box, and the throwing direction, angle and position can be adjusted.
Product introduction:
The 4QX-2800 mounted forage harvester has a novel design with a cutting width of 2.620 m, allowing for complete row-free harvesting operations. The forage harvester is small, efficient, versatile, low in energy consumption and mobility. It is not subject to crop spacing restrictions and can be harvested in hills, hills and other small areas. The utility model integrates the advantages of high operating efficiency, safety and reliability, and can meet the matching requirements of various brands of tractors and harvesters, it can complete many operations such as cutting the ground, feeding sequence, even cutting, throwing and loading on the green (yellow) silage crops at one time.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2800 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Suspension |
Working condition external dimensions (L*W*H) | mm | 5868*2870*4890 |
structural quality | kg | 1950 |
Matching power range | kW | 117.6~154.35 |
Effective harvesting width of the cutter | mm | 2620 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 1000 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 5500 |
Throwing Minimum Height | mm | 3500 |
Swivelling angle of throwing cylinder | / | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | ≤7 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
