Case Forage Harvester
Product description:
Senrui 4QX-2400 Case Forage Harvester has a novel design and completely realizes uneven harvesting operations. This equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, and not restricted by crop row spacing. It integrates the advantages of high operating efficiency and safe and reliable performance. It can be matched with tractors and harvesters of various brands that meet the requirements. It can complete multiple operations such as cutting off the ground, sequential feeding, uniform chopping, throwing and loading of green (yellow) feed crops at one time.
Product characteristics:

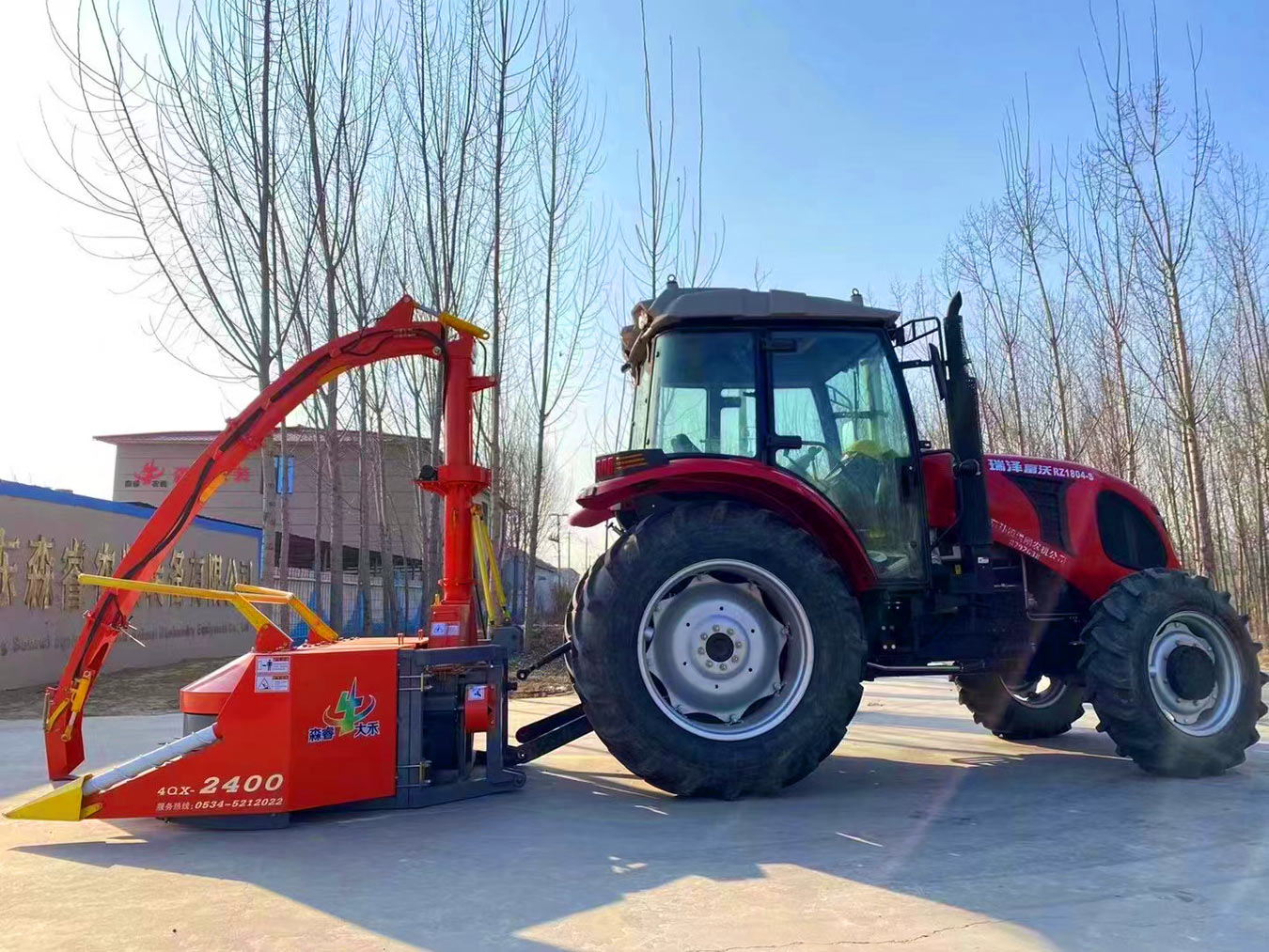

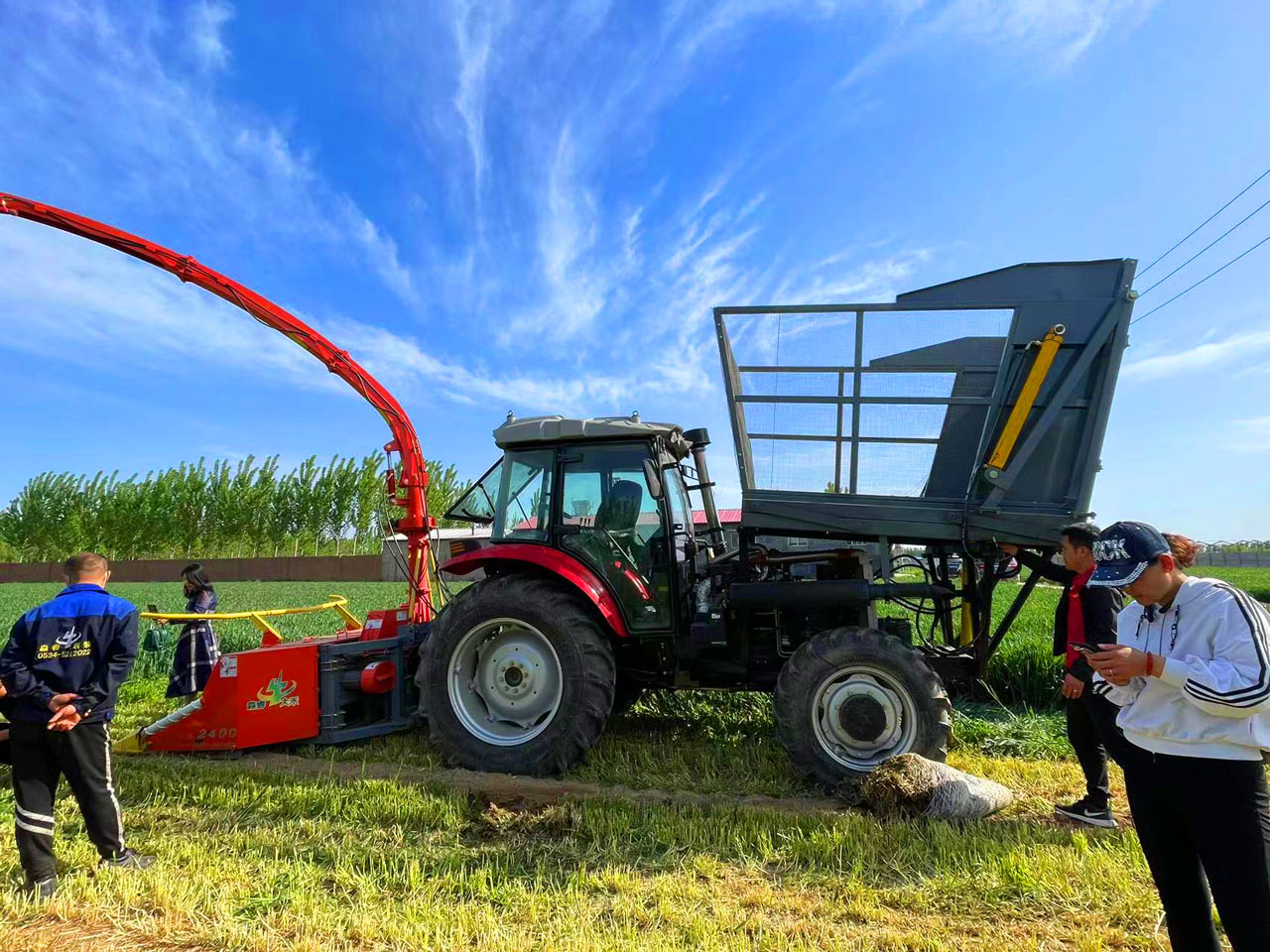

4QX -2400 Case Forage Harvester is usually used in conjunction with a tractor, connected by a hanging device and operated by the power of the tractor. This design gives it a great deal of flexibility in operation, and it can be adapted to different scale pastures and complex terrain conditions. Compared with the traditional forage harvesting, the hanging forage harvester has many obvious advantages. First, it can quickly and neatly mow grass, greatly reducing the intensity of manual labor and time costs. Its sharp cutting device can accurately cut the grass, keep the grass length uniform, conducive to subsequent processing and storage. Secondly, the hanging forage harvester has less damage to forage during harvesting. It can handle grass gently, avoiding excessive crushing and pressure loss, thus retaining the nutritional value and quality of the grass. It is of great significance to improve the feed quality and promote the growth and health of livestock.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
