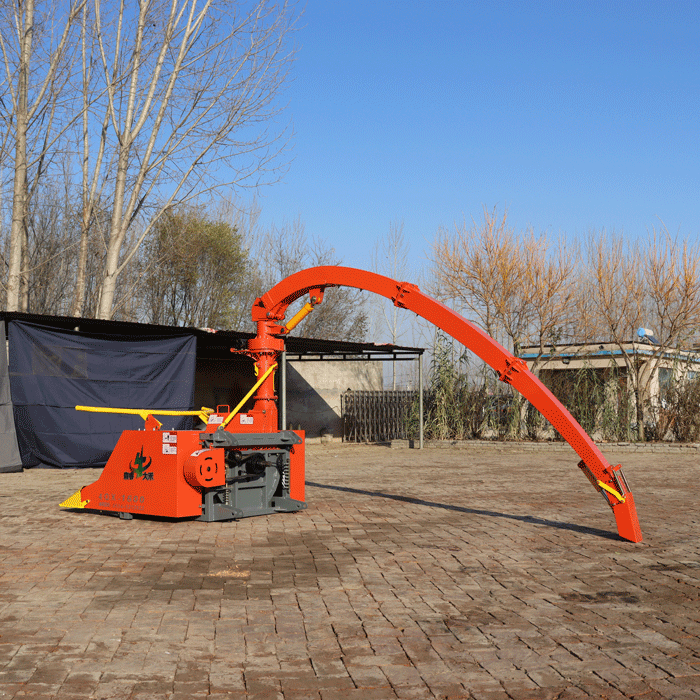

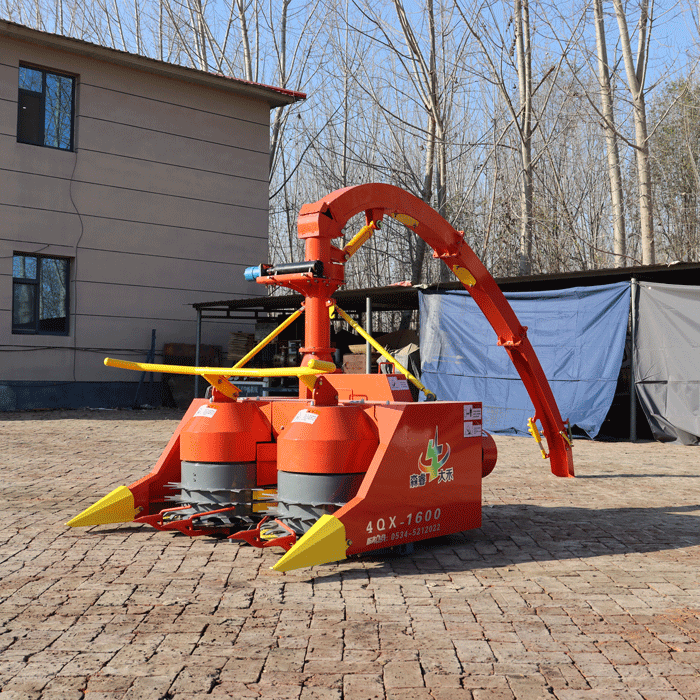

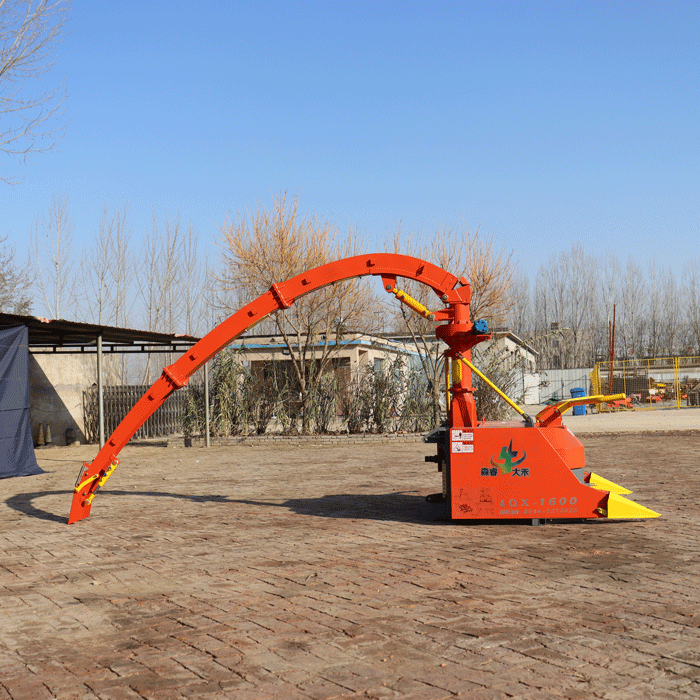

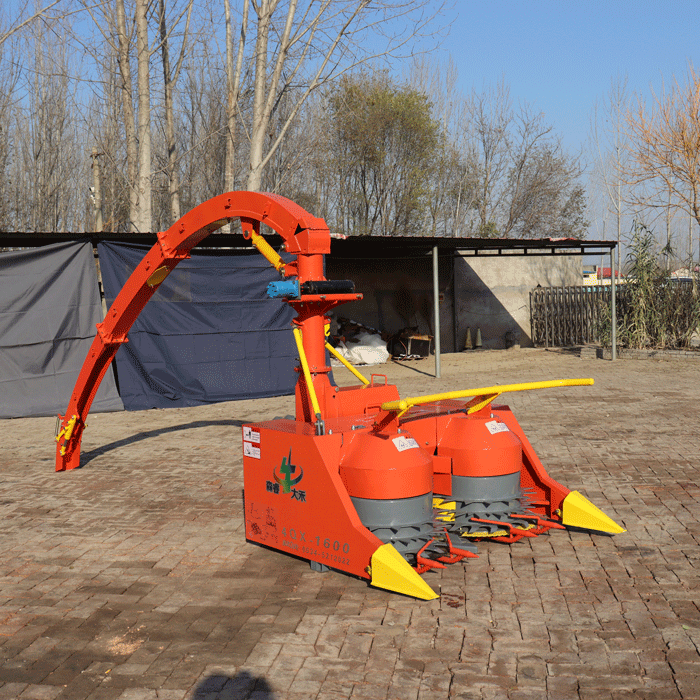

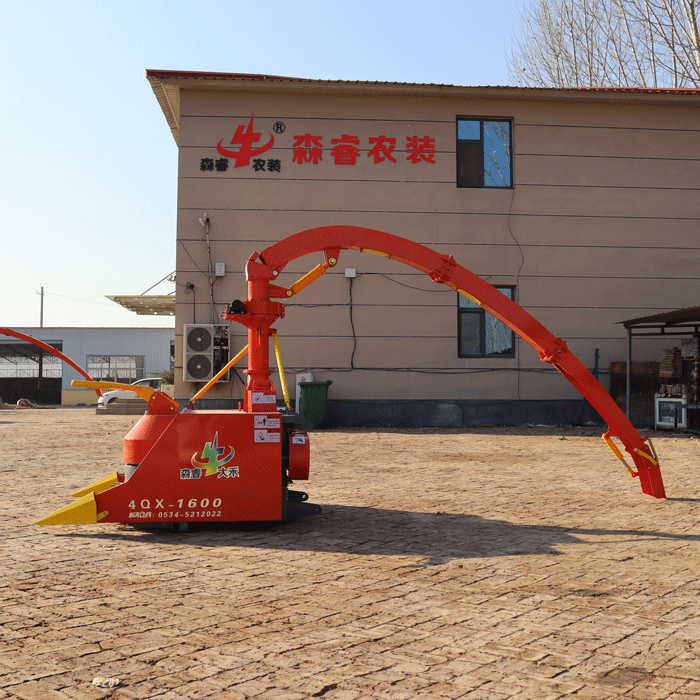

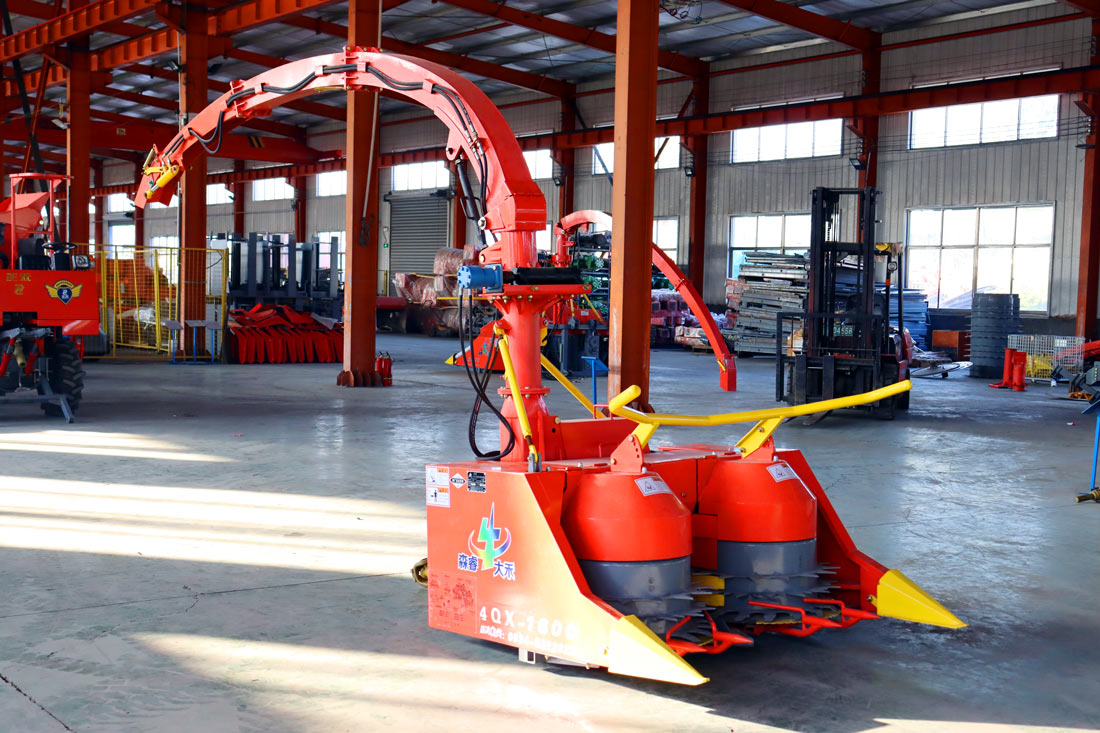

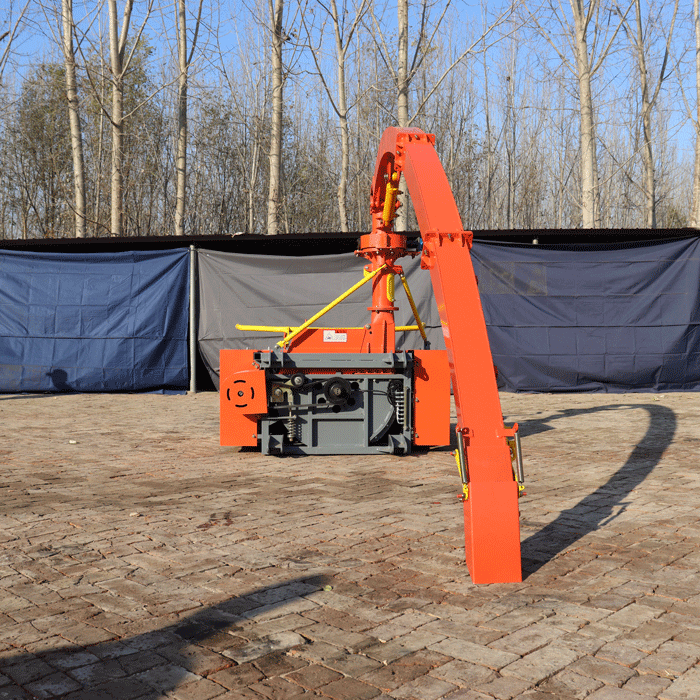

Grass Harvester Machine
Product Introduction:

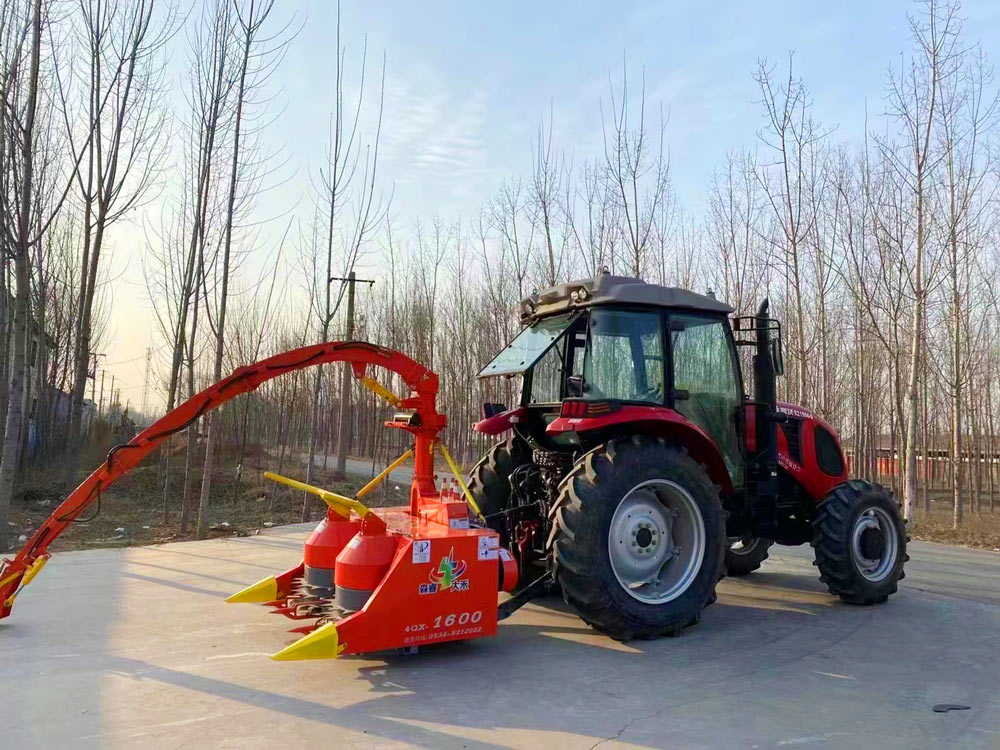

4QX-1600 green fodder harvester, designed for one film three rows, completely achieve the row harvest operation. The equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, independent of crop spacing, and integrated with high efficiency and safe and reliable performance, can meet the requirements of the brand tractors, harvesters, one-time green (yellow) feed crops to complete cutting off the ground, sequential feeding, even cutting, throwing loading and other operations.
Product characteristics：

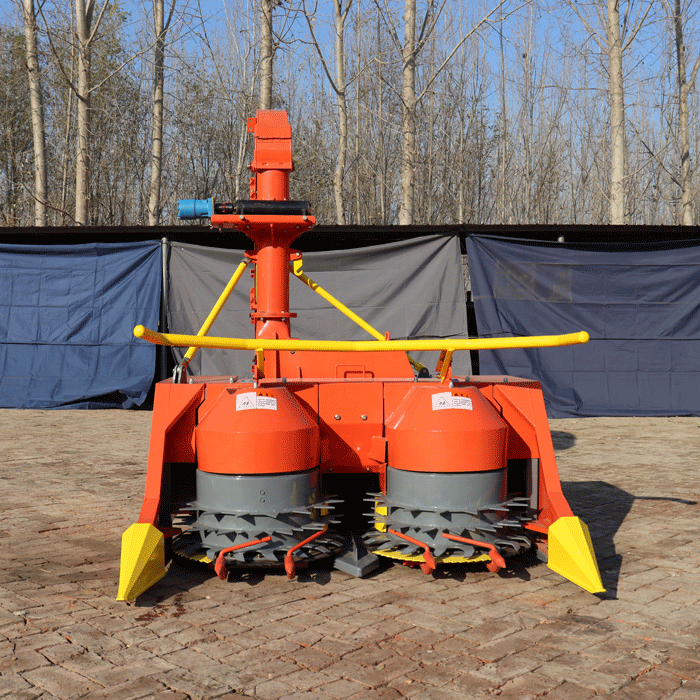

★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.
★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.
★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product advantages:
1. Efficient harvesting: can quickly complete a large area of corn harvesting operations, improve work efficiency.
2. Mincing function: corn plants will be minced into a suitable length, usually about 2-3 cm, for the subsequent fermentation of silage.
3. Tossing device: to throw chopped silage into a transport vehicle or silage.
4.Strong Adaptability: can adapt to different terrain and corn planting density of farmland. The use of corn silage machine can save labor, time and cost, and ensure the quality and yield of silage, providing sufficient and high-quality feed sources for animal husbandry.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
