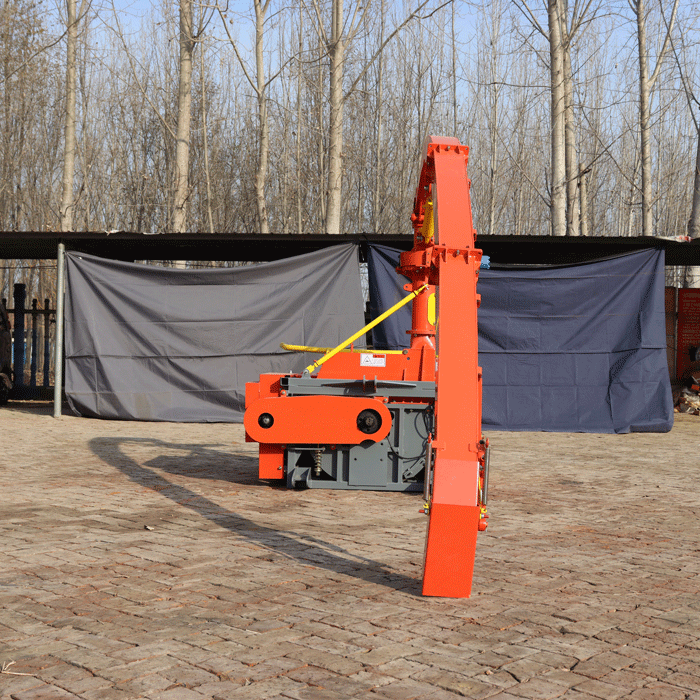

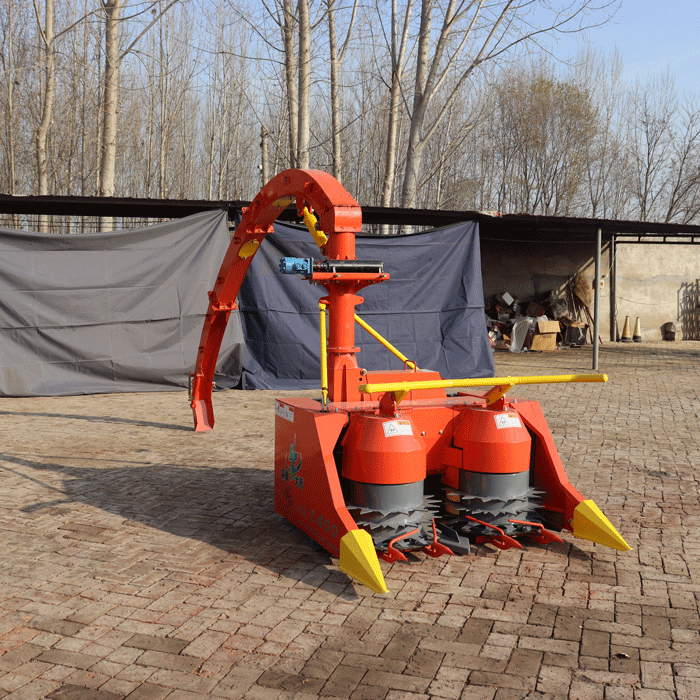

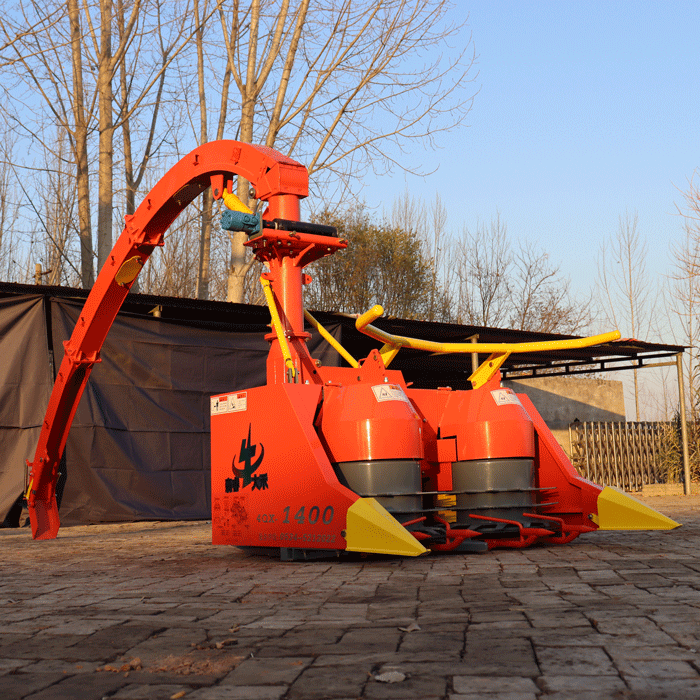

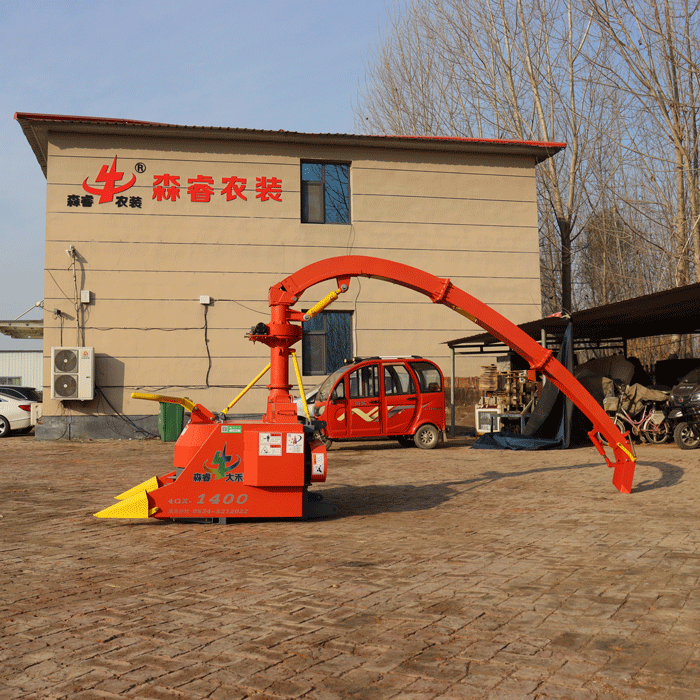

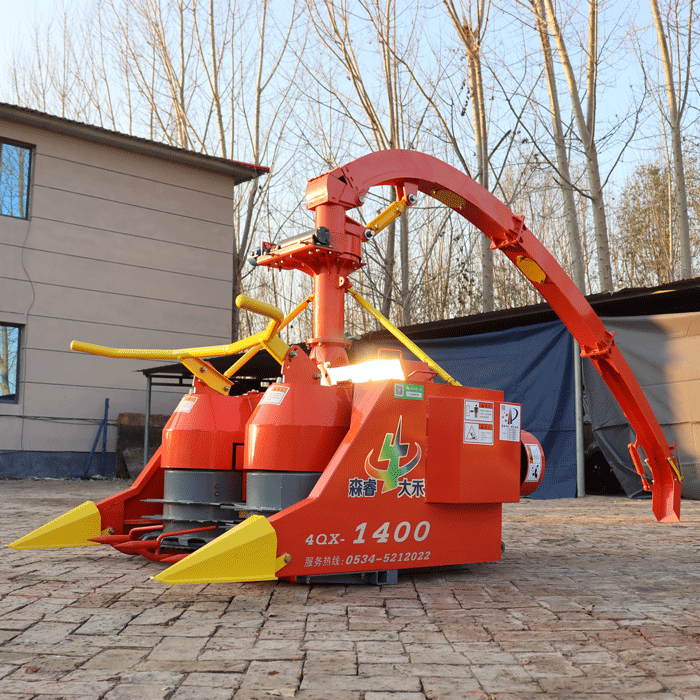

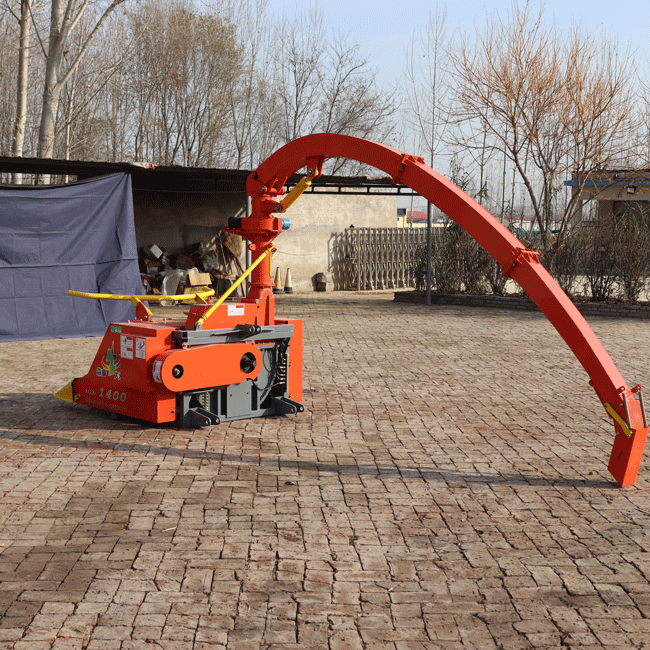

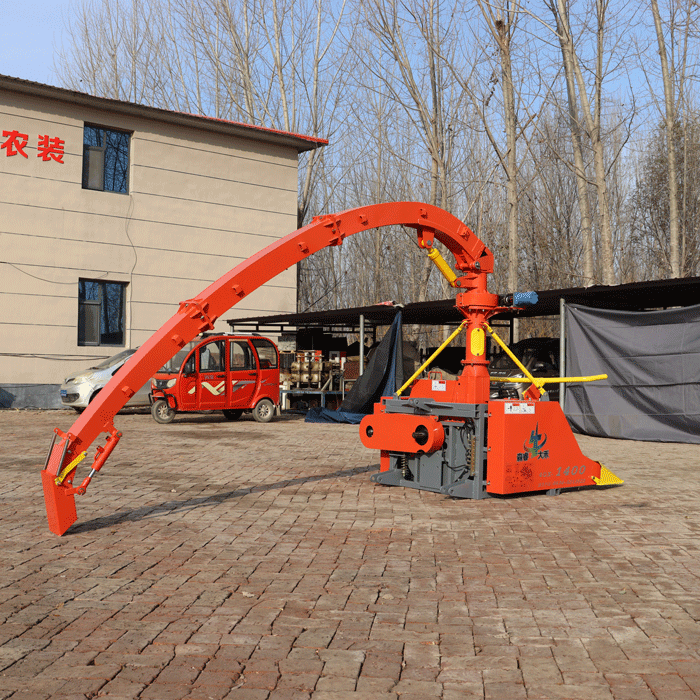

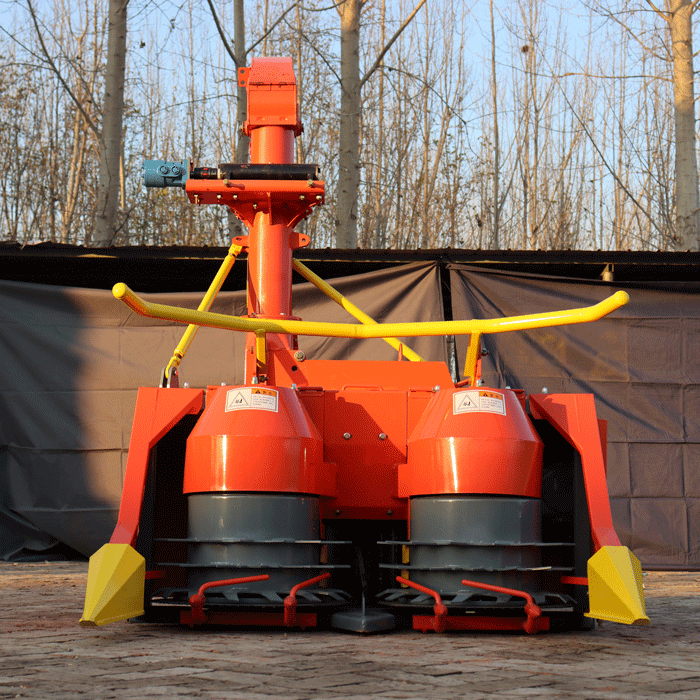

Mounted Forage Harvester
Product Features:
★ Adopts double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows of harvesting
★ Disc knife chopping device, to achieve multi-level adjustable length of forage chopping
★ Can complete crop harvesting, chopping, kneading, throwing and other operations in one go.
★ The nozzle rotation adopts worm gear mechanism, which can rotate ±180° to effectively lock the nozzle angle and make the spraying angle more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance and stubble height can be adjusted flexibly.
Product details：
4QX-1400 Mounted Forage Harvester ，effective harvest width of the cutter is 1.270 m, the length of the whole machine is 4.35 m, the width is 1.49 m, the height is 3.41 m, the hanging type can be connected with various types of tractors, the disc type cutter, the maximum height of throwing is 3.4 m, the minimum height is 3.1 m, can be positive or negative 180 degrees rotation effective lock barrel angle, spray more sufficient.
Silage CutterCan be harvested on the industry, can be harvested corn, emperor bamboo grass, Napier grass, high efficiency, low stubble, good feed crushing, good helper farmers friends breeding.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4350*1490*3410 |
structural quality | kg | 890 |
Matching power range | kW | 40.4～55.1 |
Effective harvesting width of the cutter | mm | 1270 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | 790 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
