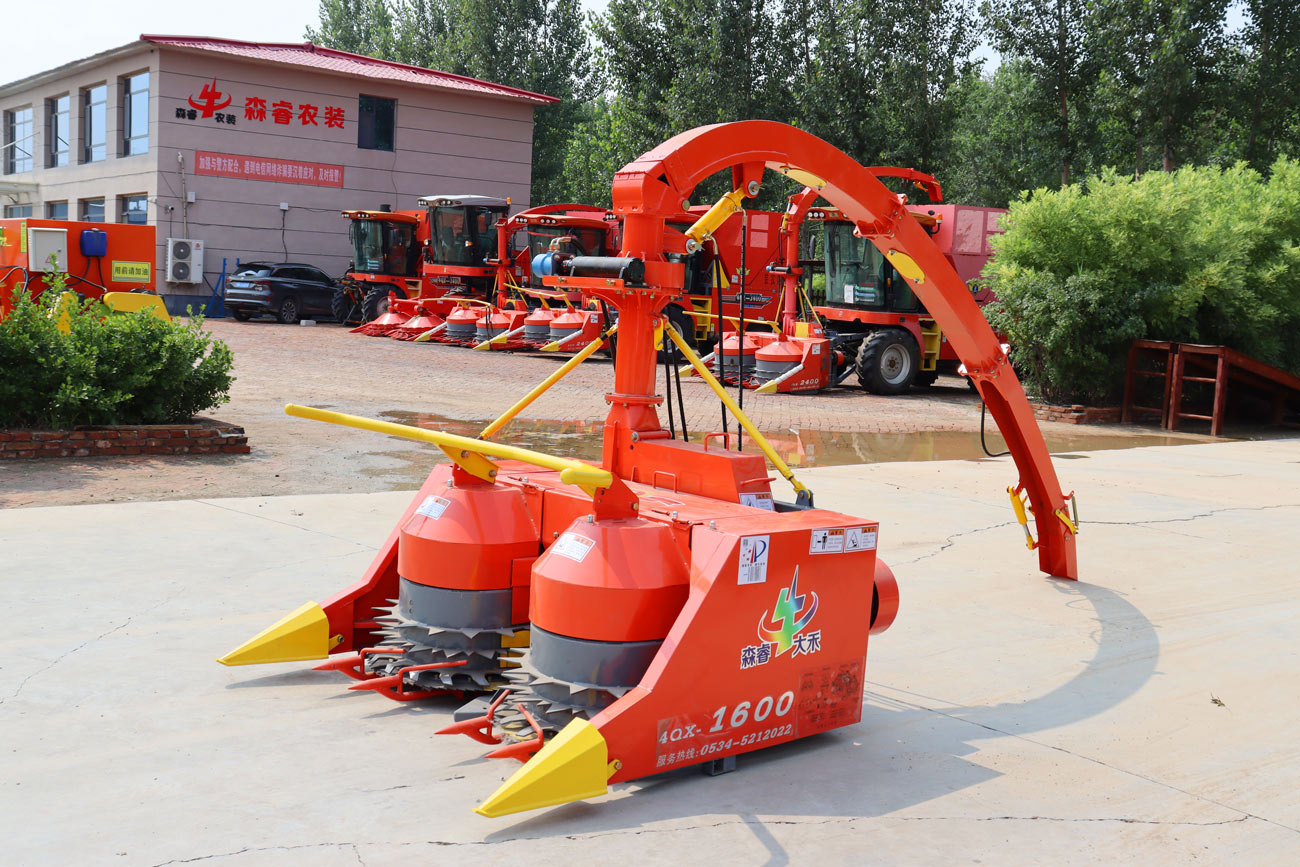

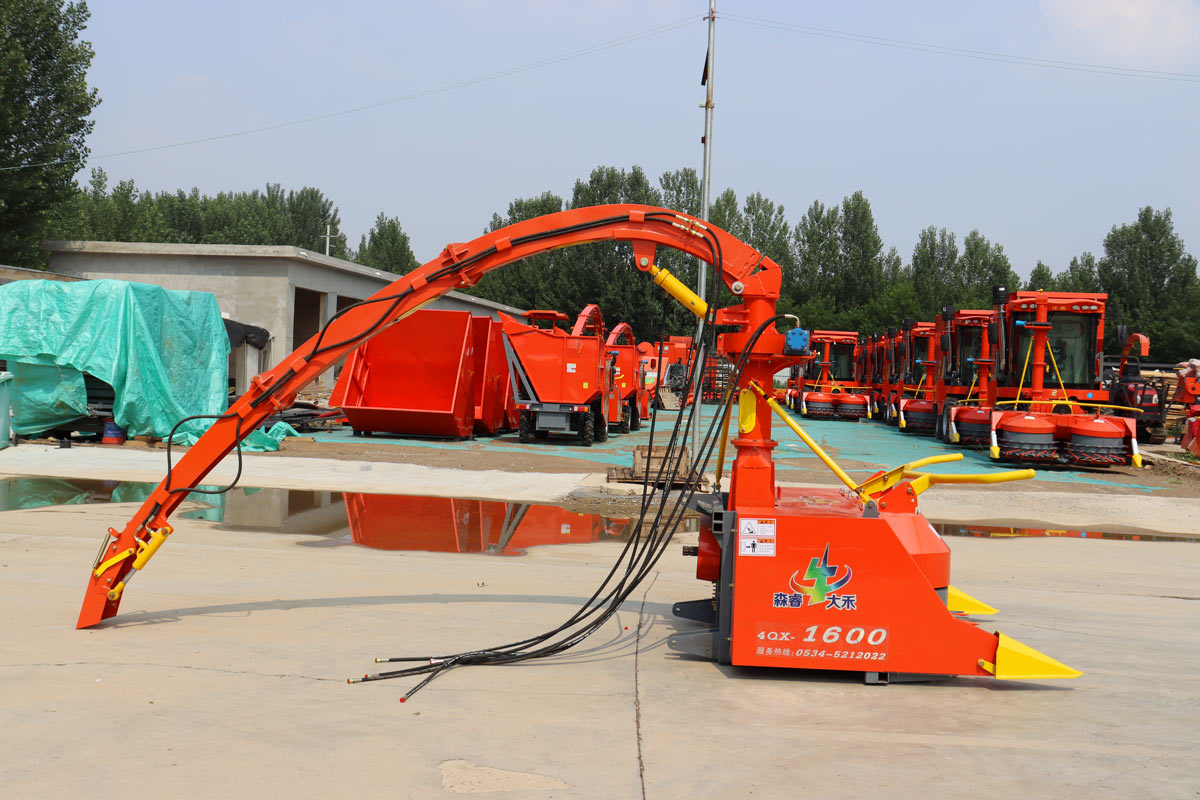

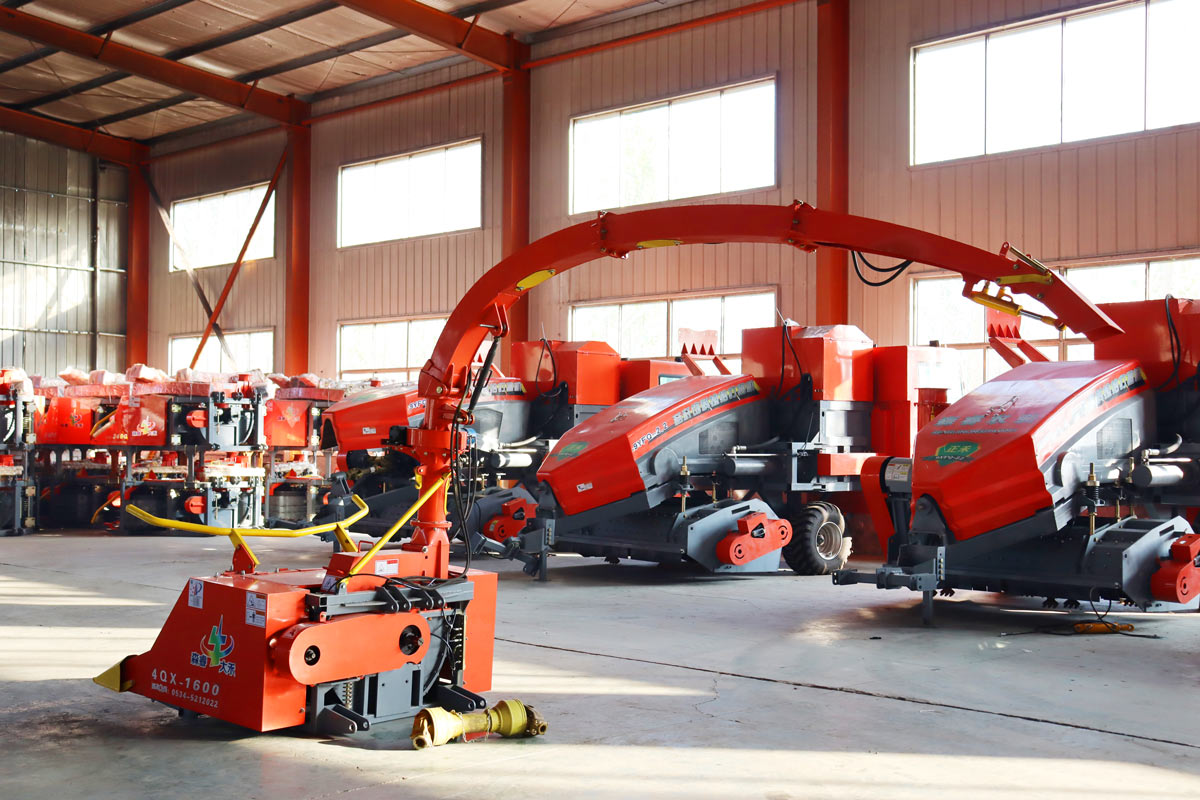

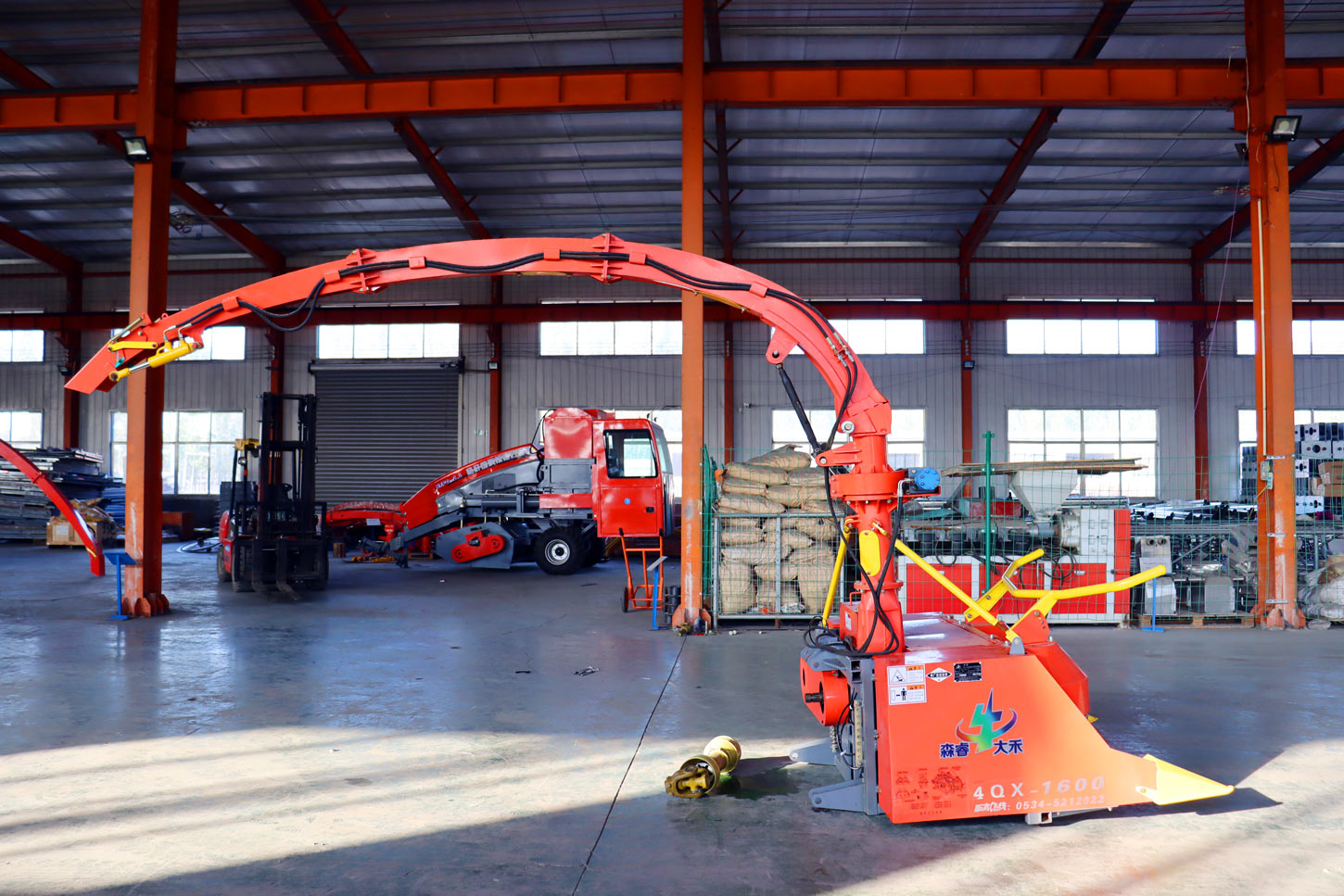

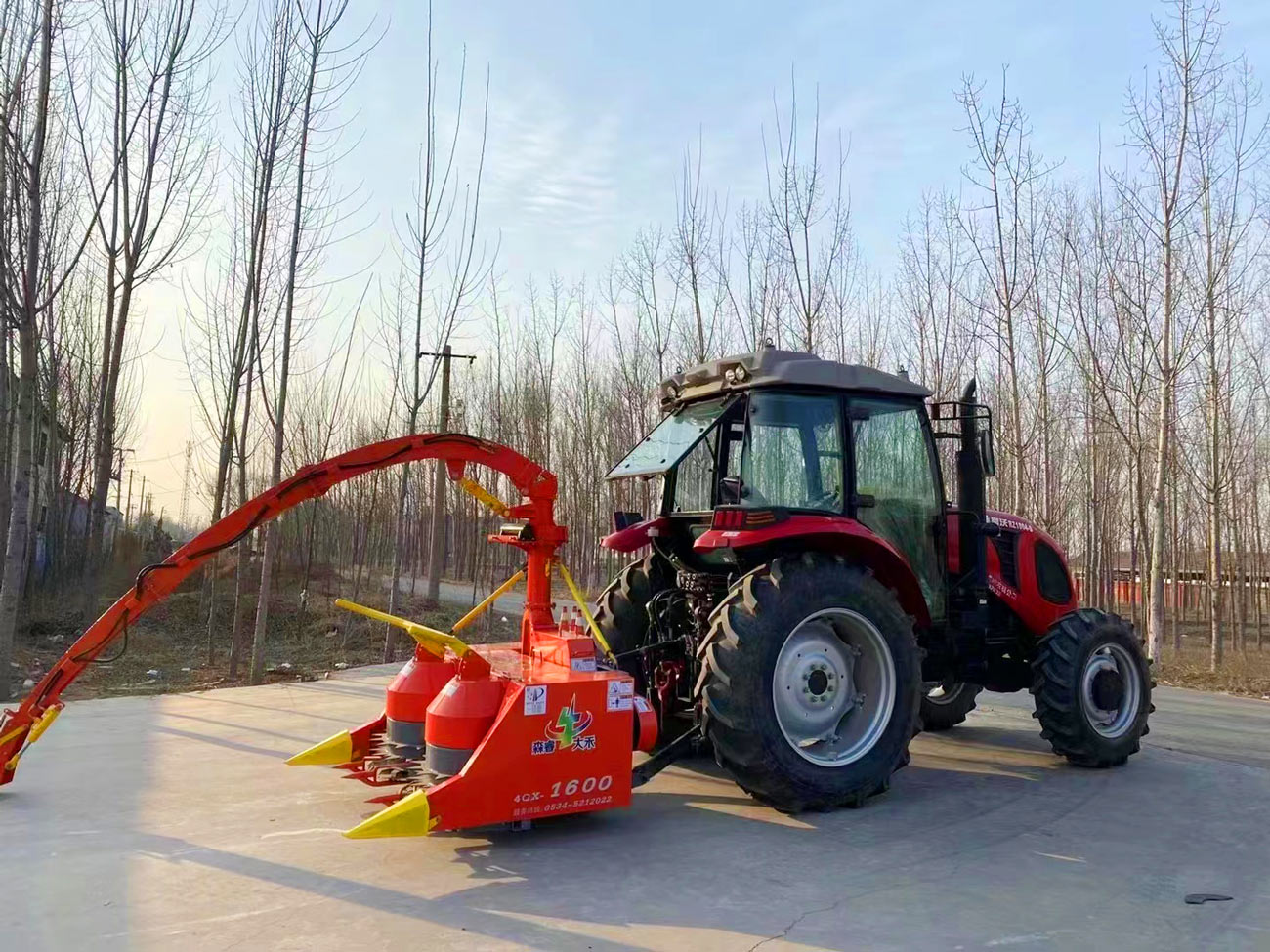

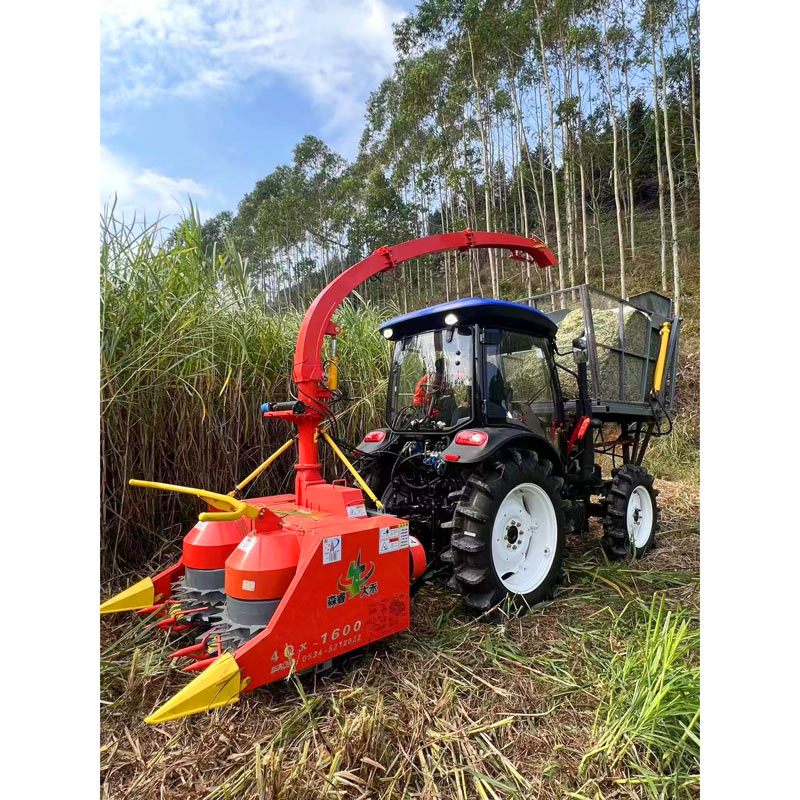

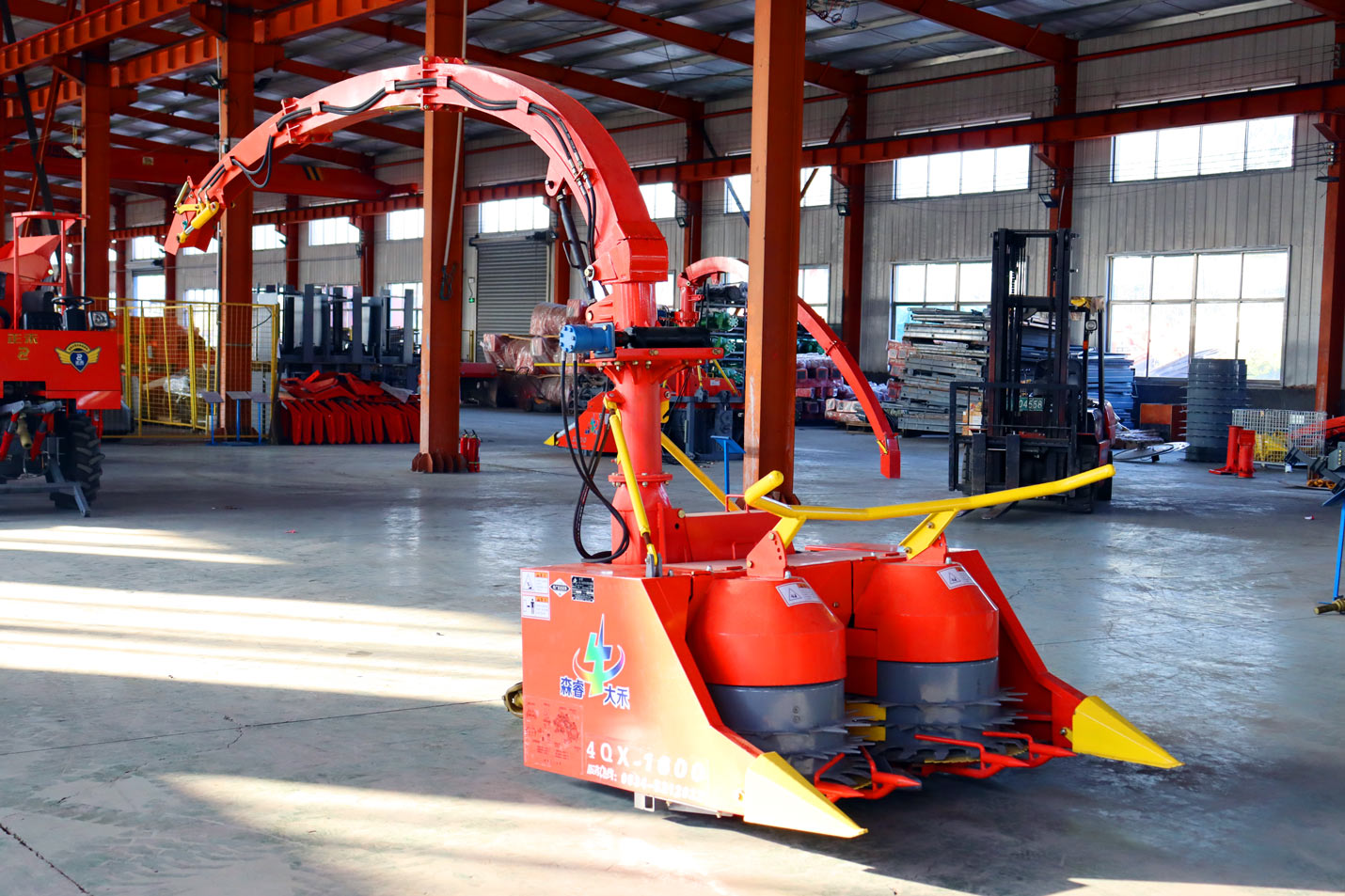

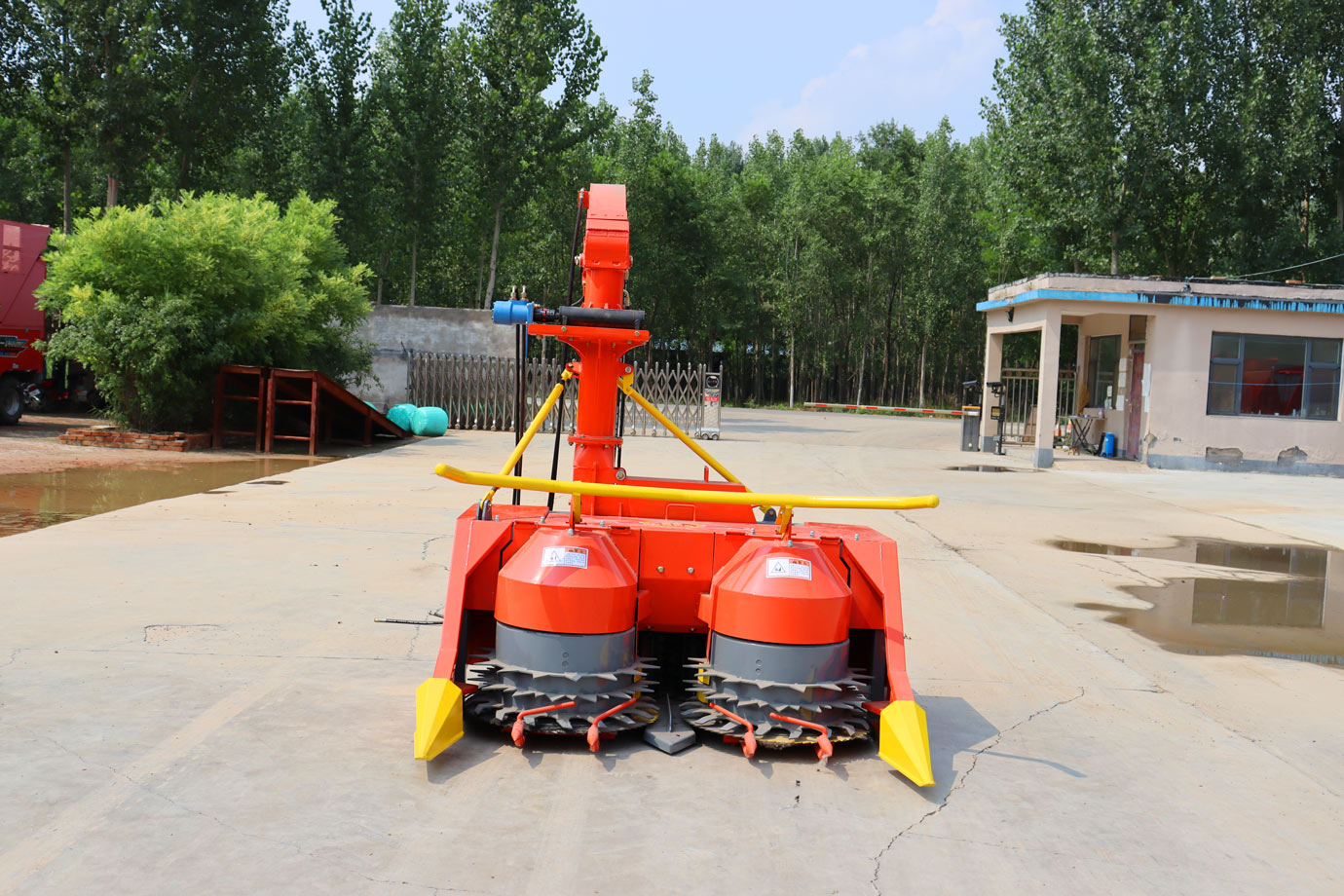

1.480m Silage Machine
Product advantages:
★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.
★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.
★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product Details:
☆ 1.480m knapsack storage machine through crushing and compression, reduce the air content of feed, inhibit microbial activity, thereby extending the storage life of feed. At the same time, the grinding process can also destroy the cell wall of the feed, improve the digestibility of the feed and increase the nutritional value.
☆ The spray barrel adopts worm gear and worm better locking finger spray barrel Angle three-stage spray barrel for easy disassembly. The distance and direction of discharge port are flexible and adjustable.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
