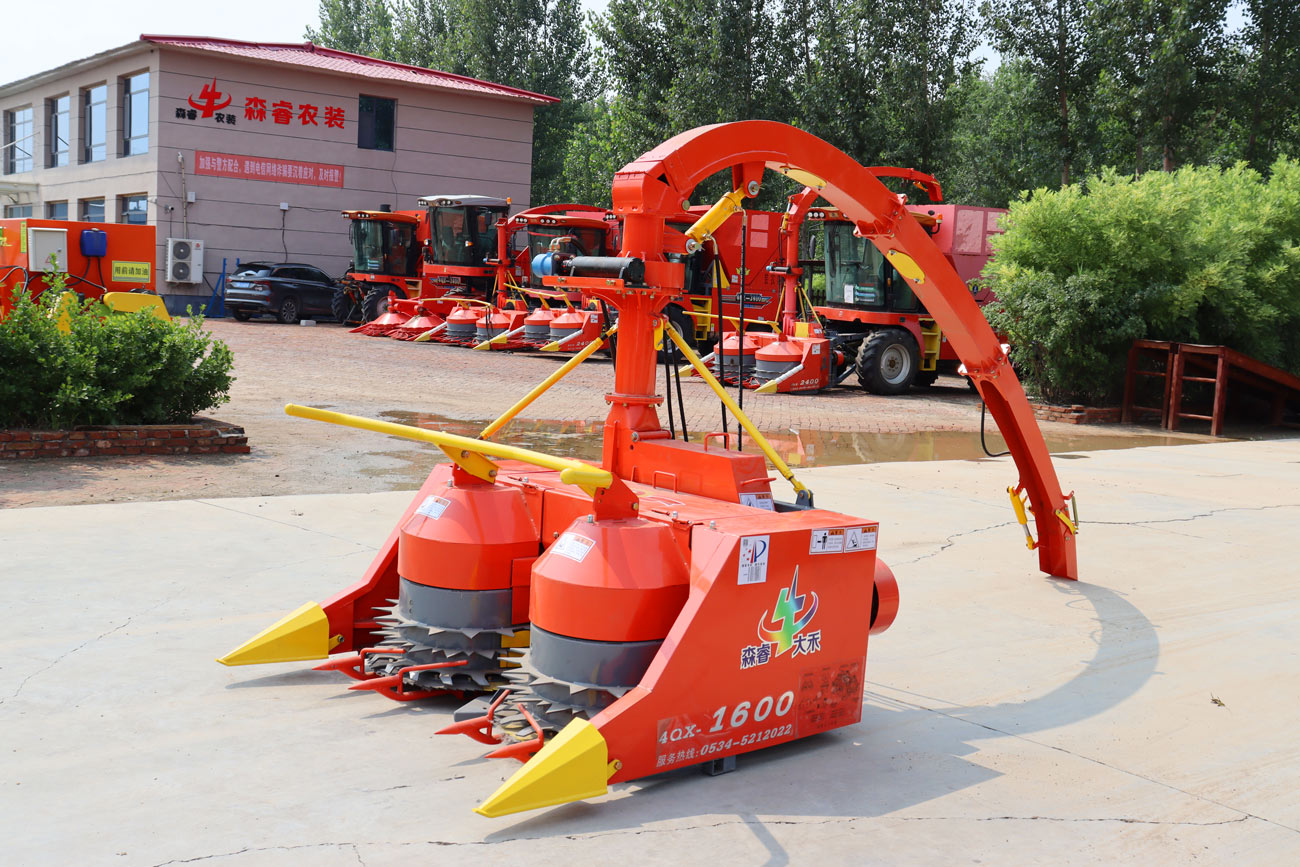

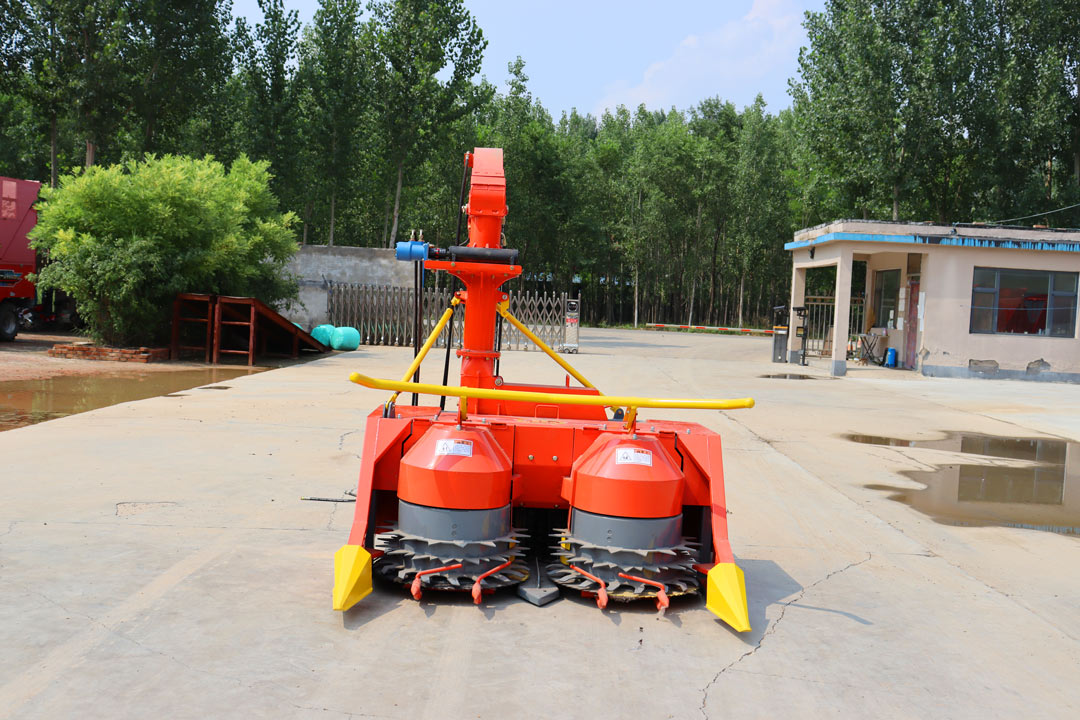

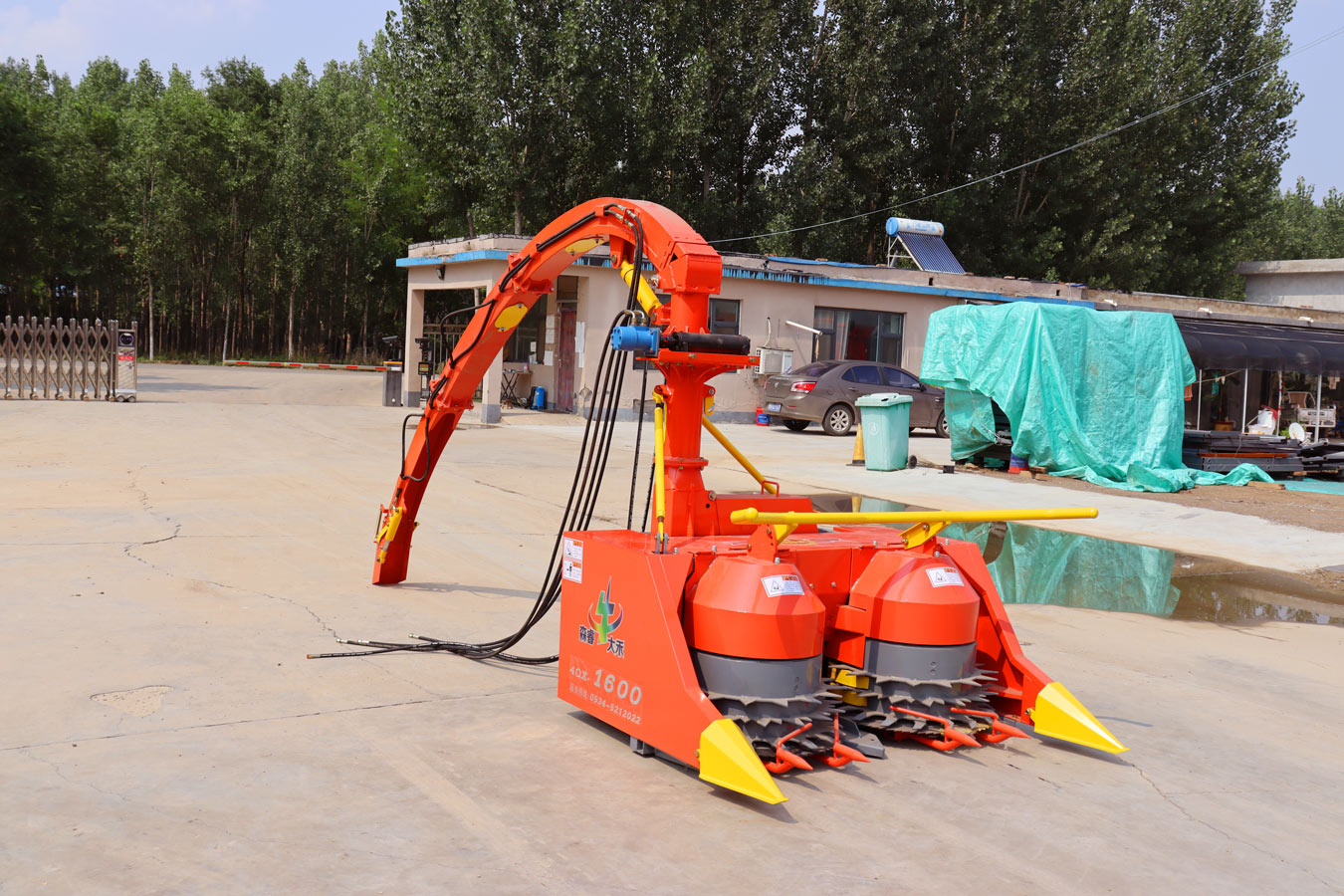

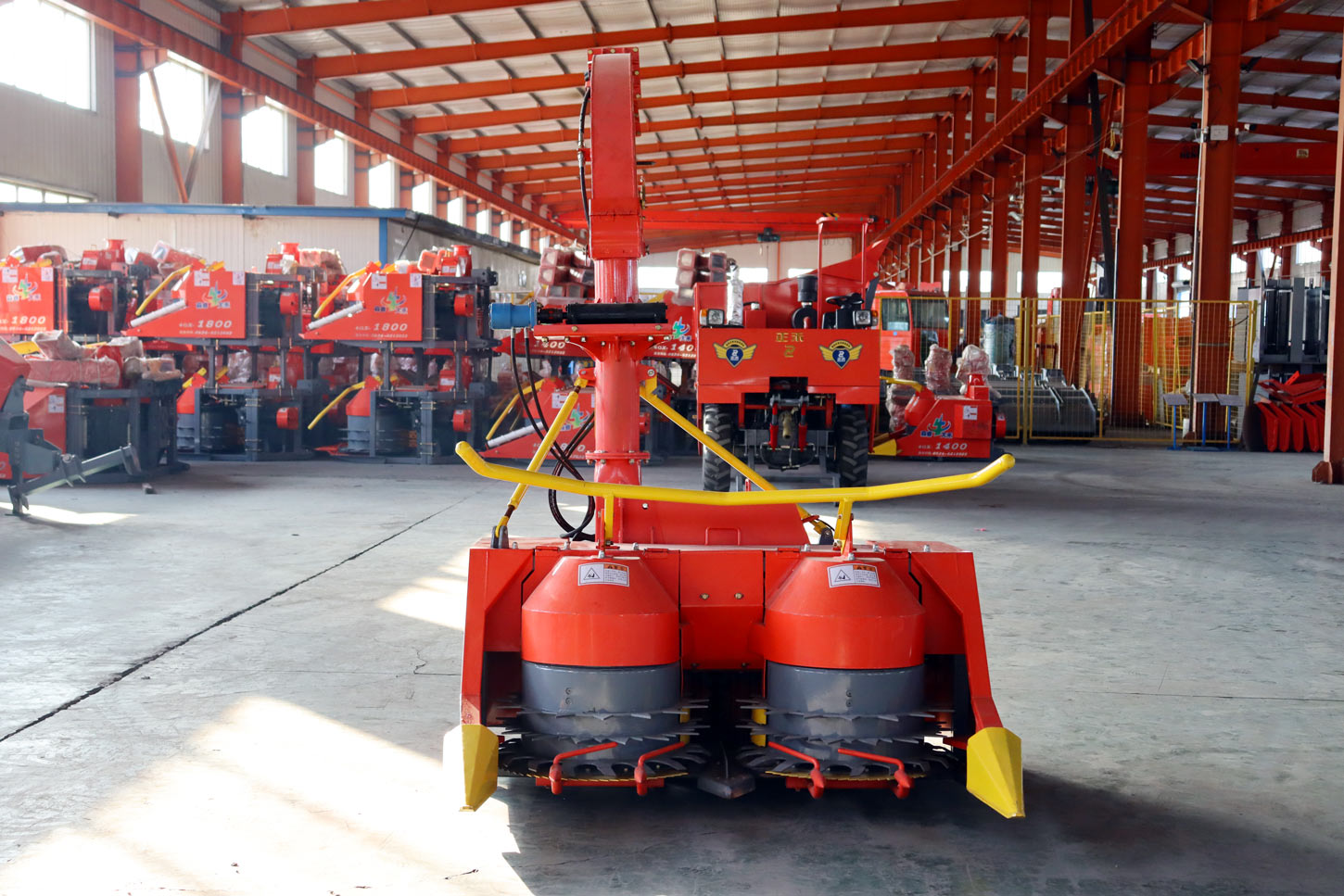

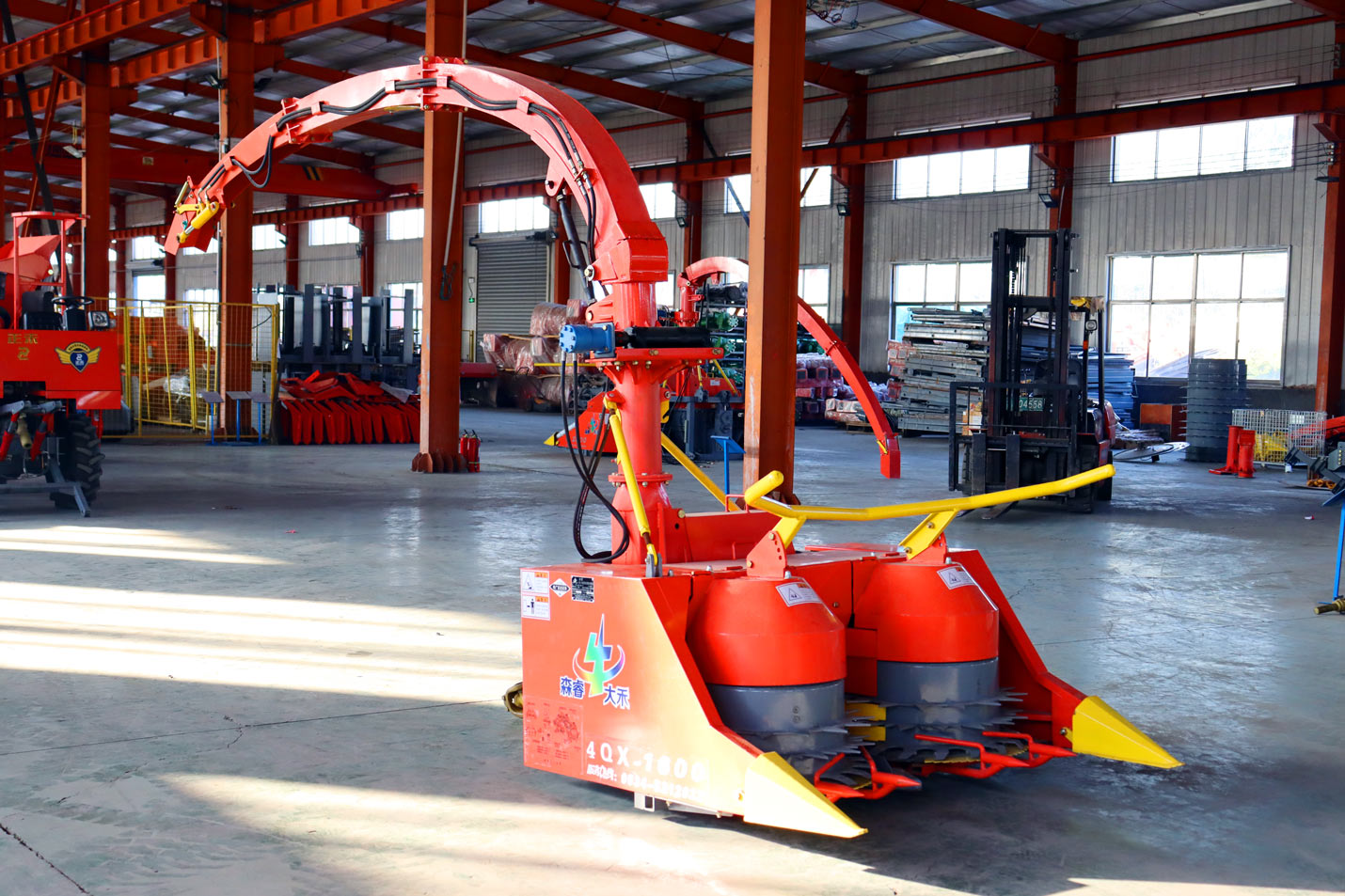

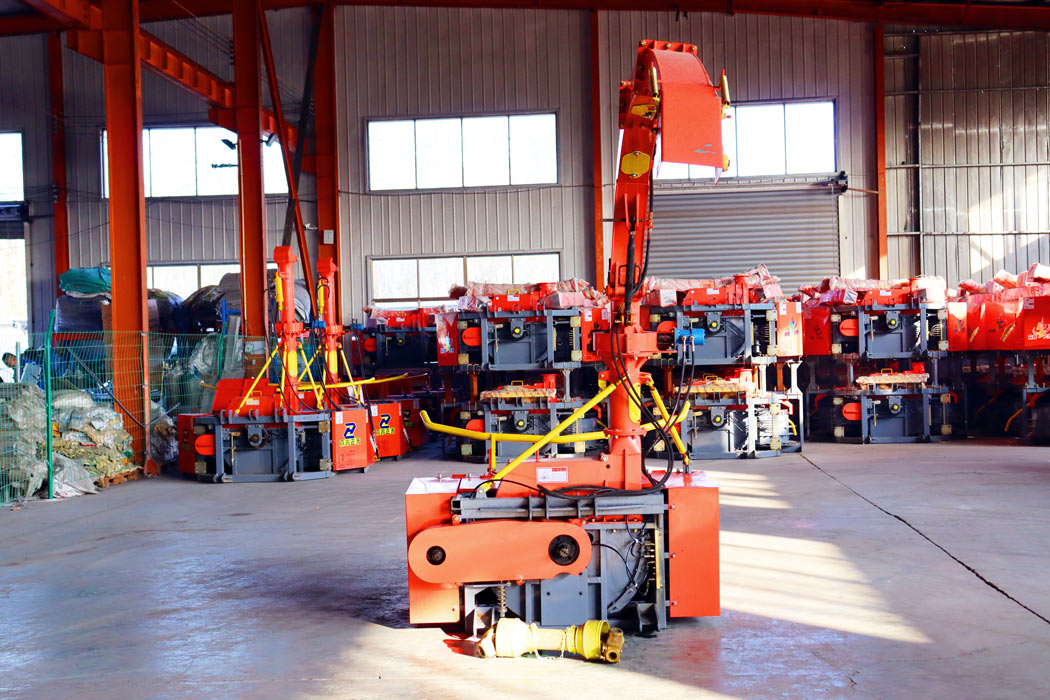

1.480m Silage Chopping
Product features:
★ cutting device adopts double disc saw blade, accurate and stable cutting material, uniform stubble.
★ Vertical cylinder feeding device, can adapt to corn, sorghum and other high straw crops harvest.
★ Two-roll forced sequential feeding device, which can orderly feed the cut material into the cutting device.
★ injection cylinder is rotated by worm gear mechanism, which can rotate + 180°, effectively locking the injection cylinder Angle, making the injection Angle more stable.
★ throwing device can quickly and accurately throw the chopped material into the mixing box
★ cutting device can realize the cutting length can be adjusted to meet the harvest of various grasses and straw

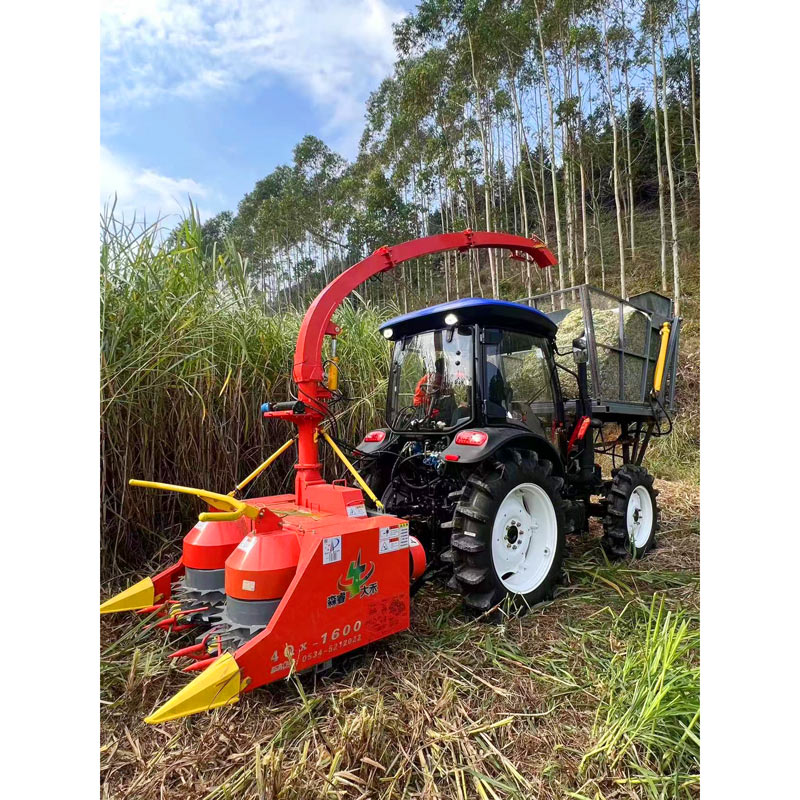

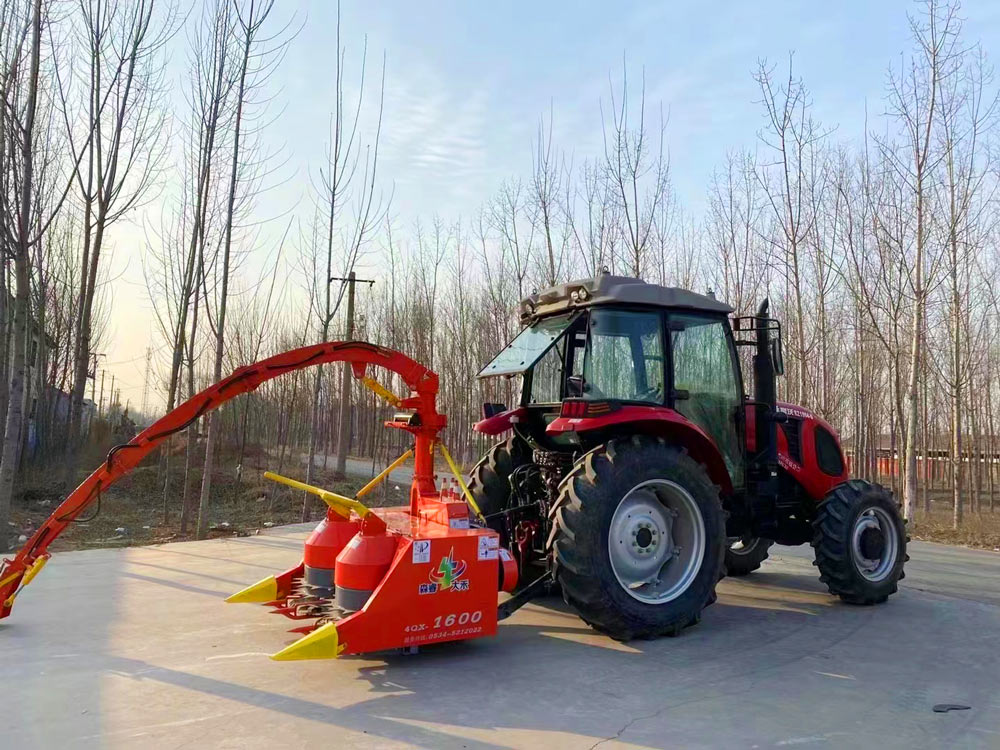

1600 knapsack storage machine efficient harvesting, chopping green grass and other crops, whether it is low green feed crops or higher crops can achieve good harvest results, and compress it into storage feed, greatly improve the efficiency of the operation to save manpower and time!
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
