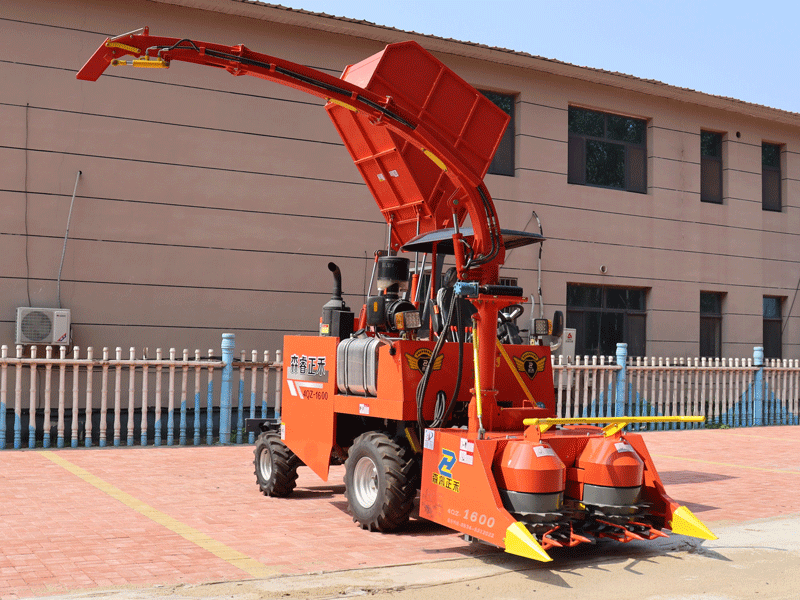

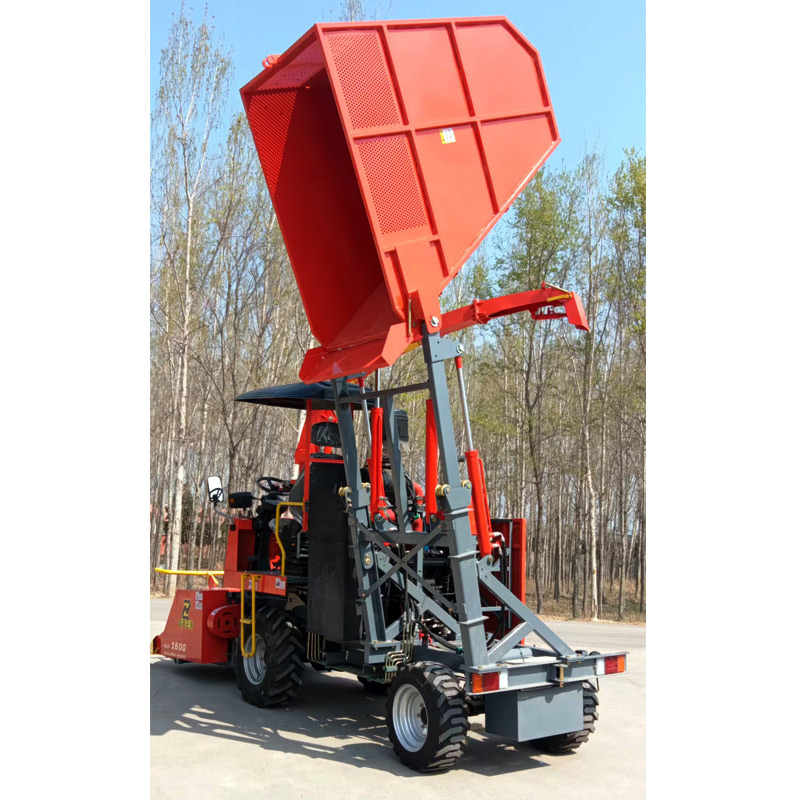

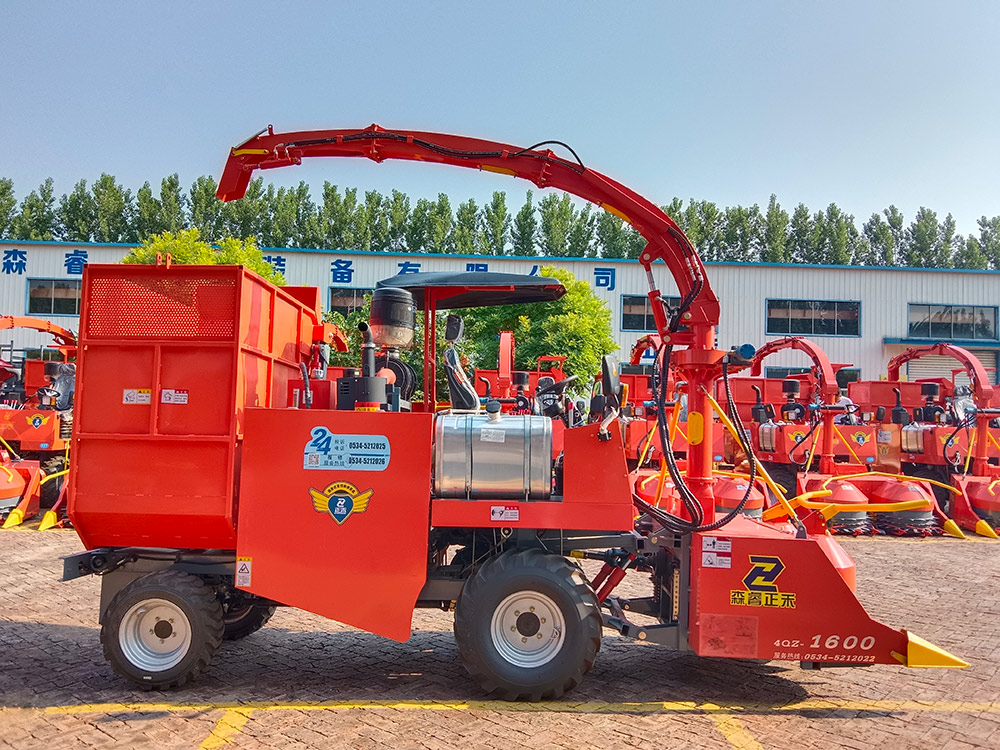

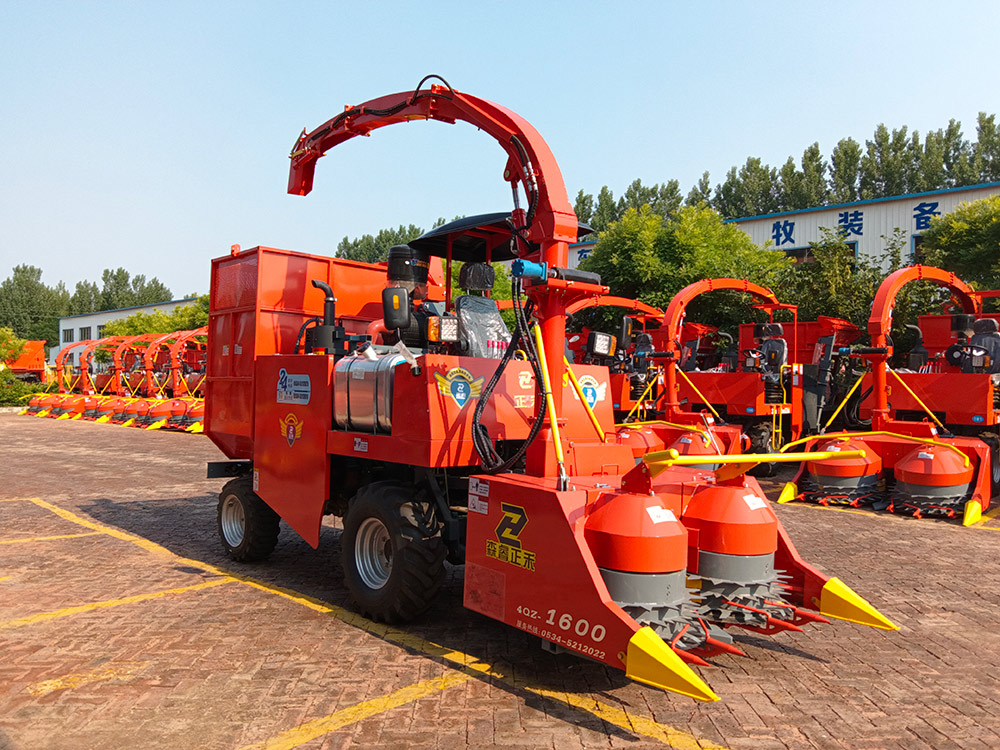

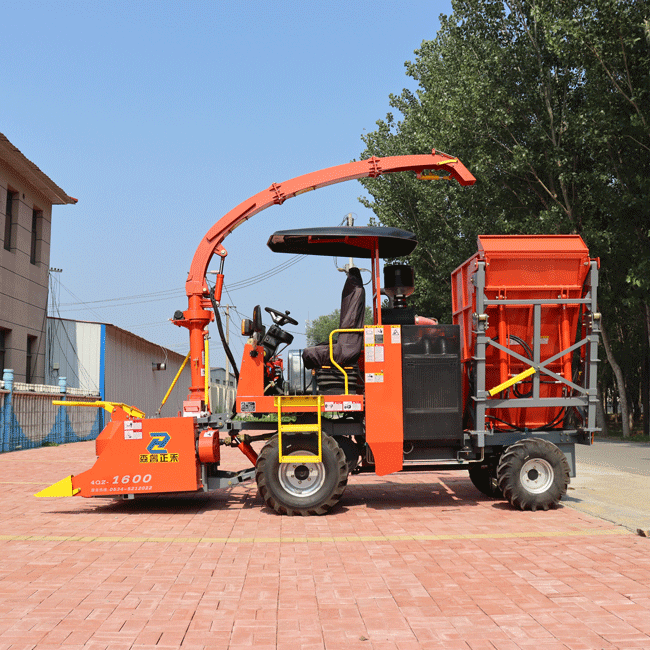

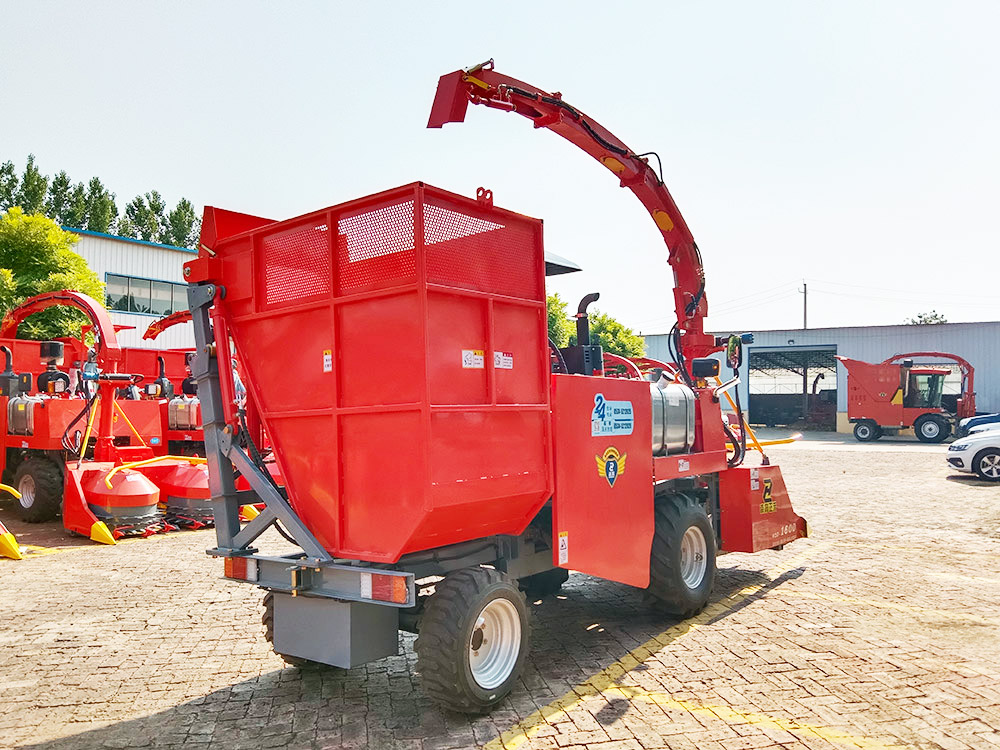

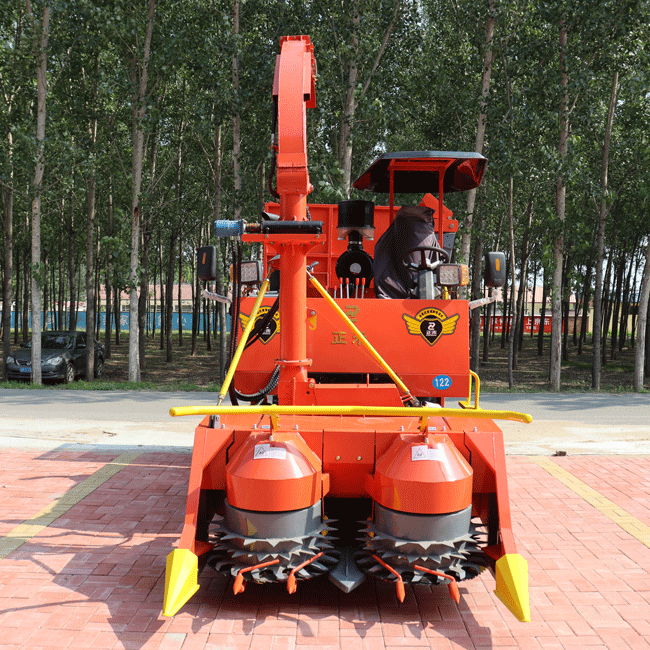

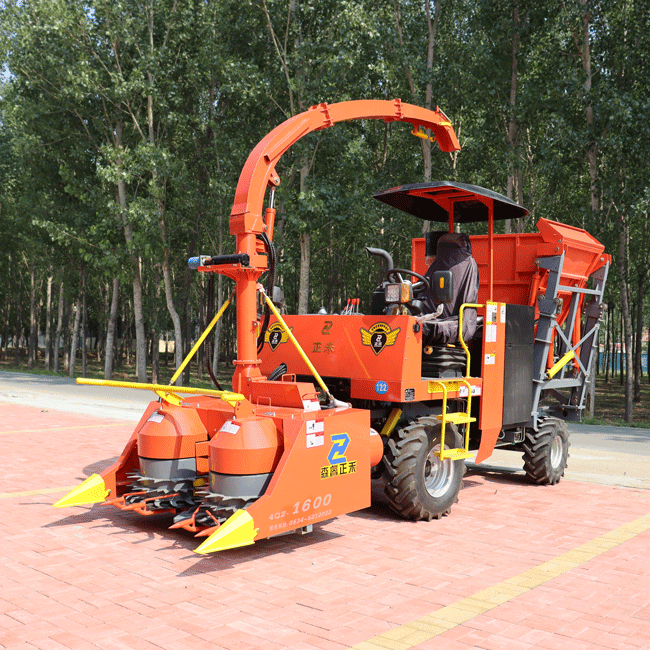

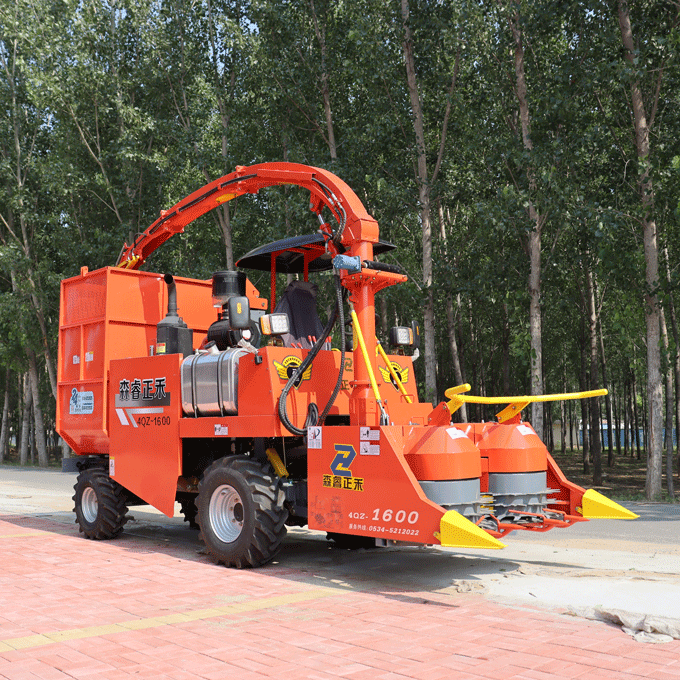

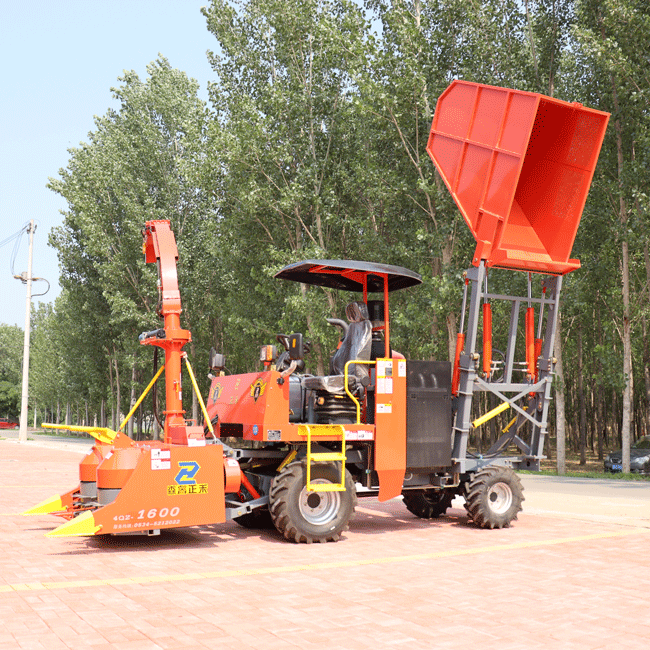

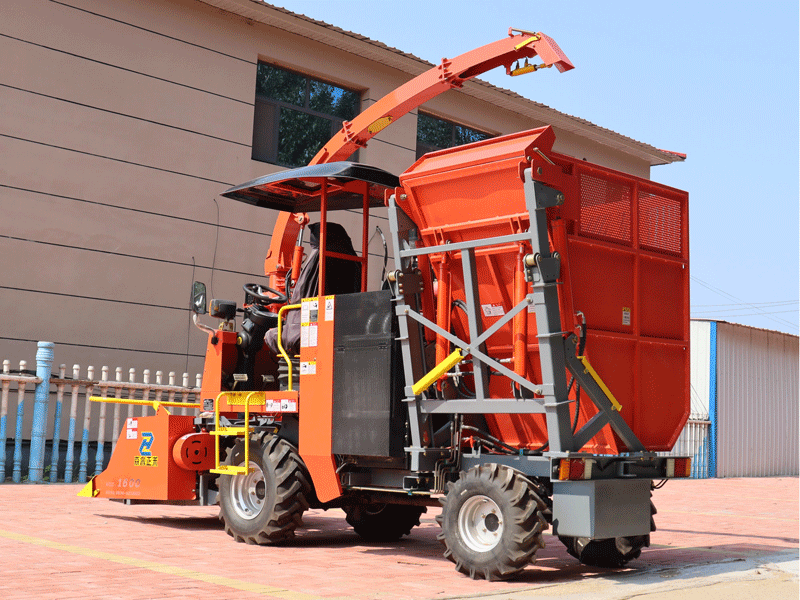

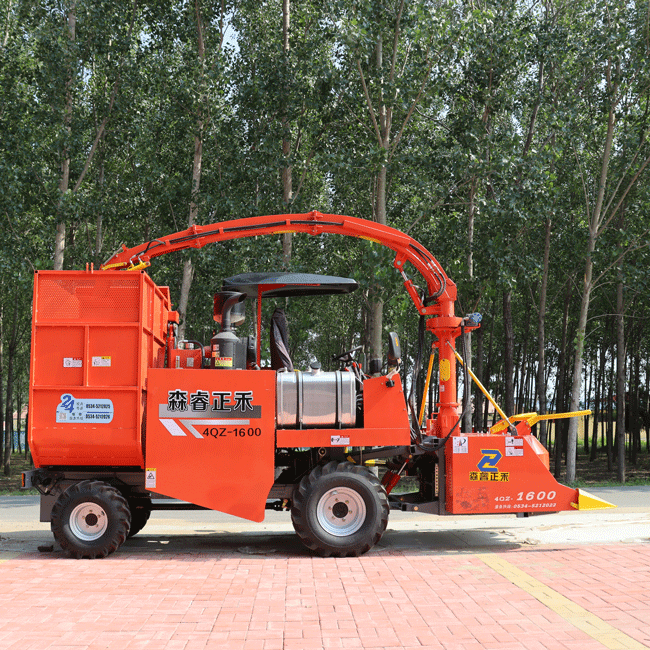

1.480 Self Propelled Silage Harvester
Product advantages:
4QX-1600self-propelled harvester is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, independent of crop spacing, and integrated with high efficiency and safe and reliable performance, can be one-time green (yellow) feed crops to complete cutting off the ground, sequential feeding, even chopping, throwing loading and other operations.
Product details:
4QZ-1600 green fodder harvester has a cutting width of 1.480 m and a matching 140 horsepower engine, which can be used for non-parallel harvesting. It combines advanced mechanical technology and agricultural knowledge, can quickly and accurately complete the corn green fodder harvesting, shredding and collection work. The appearance of this kind of machine has greatly improved the harvesting efficiency of corn green fodder, reduced the artificial cost, and provided a better feed source for the development of animal husbandry.
Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-1600 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*1950*4000 |
Structural quality | kg | 3650 |
Matching Engine Rated Power | kw | 103 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
