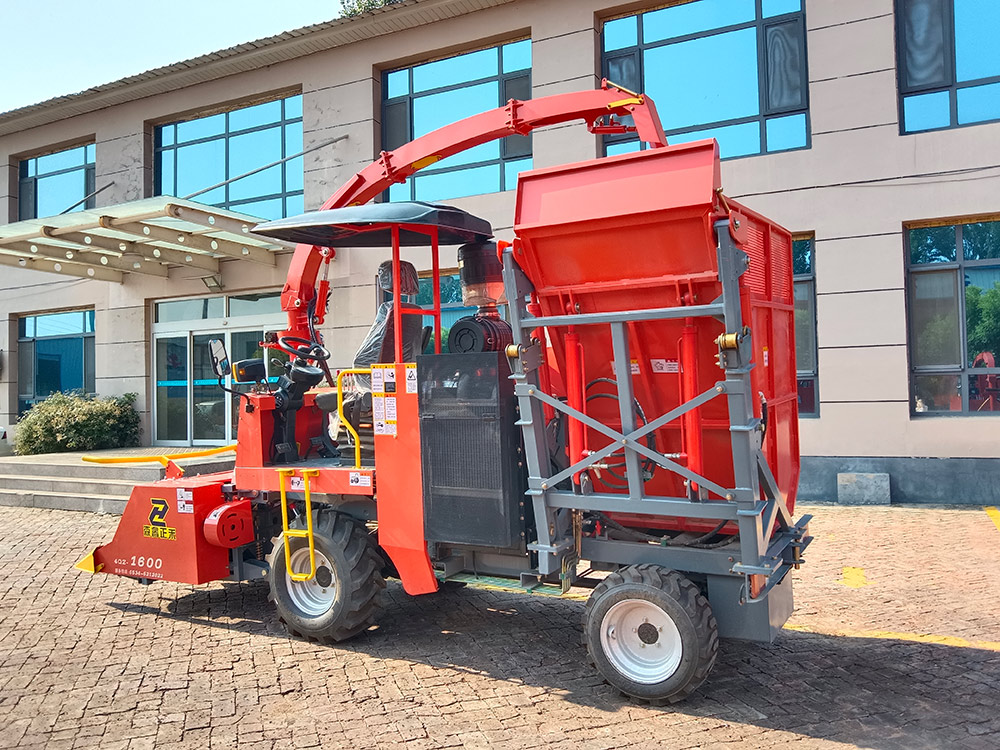

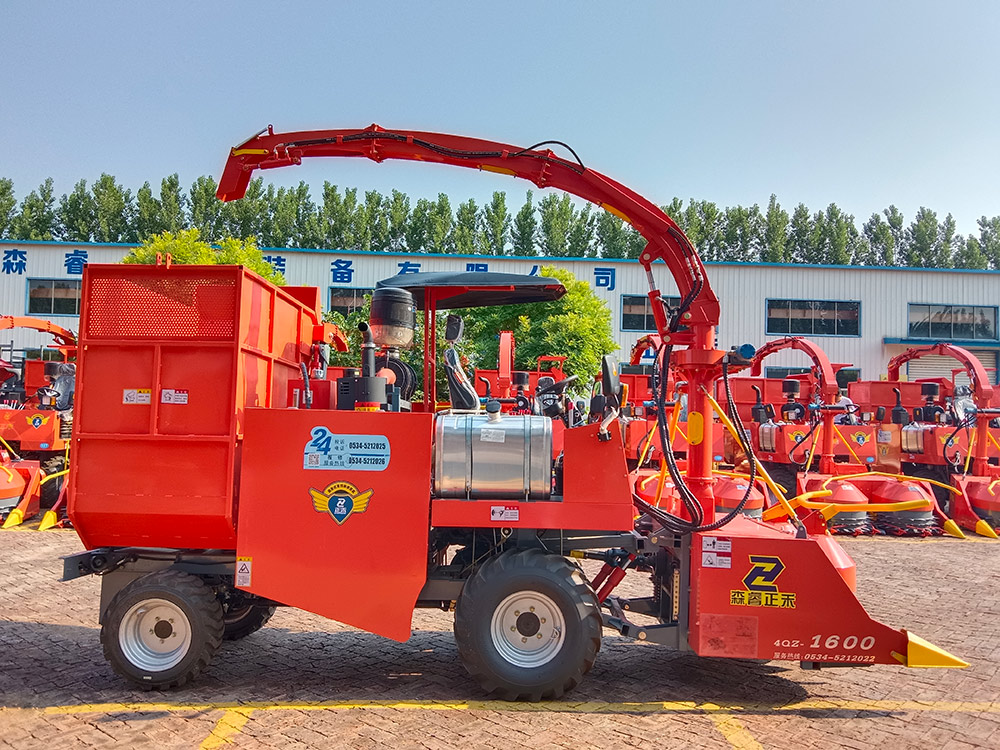

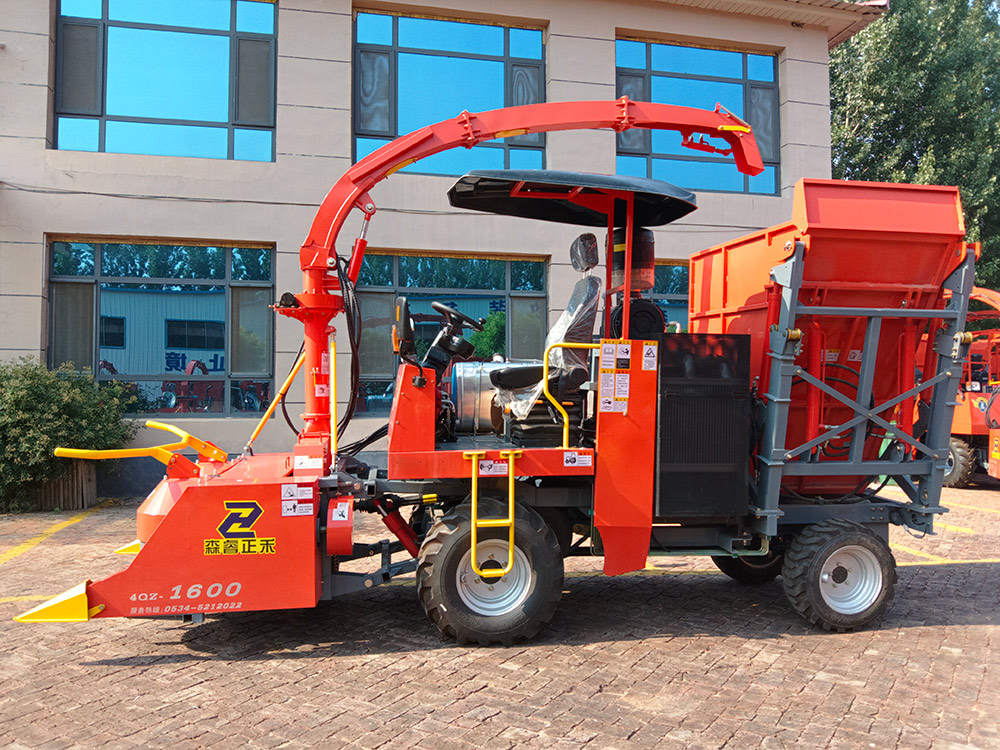

1.480m Maize Silage Harvester
Features :
● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.

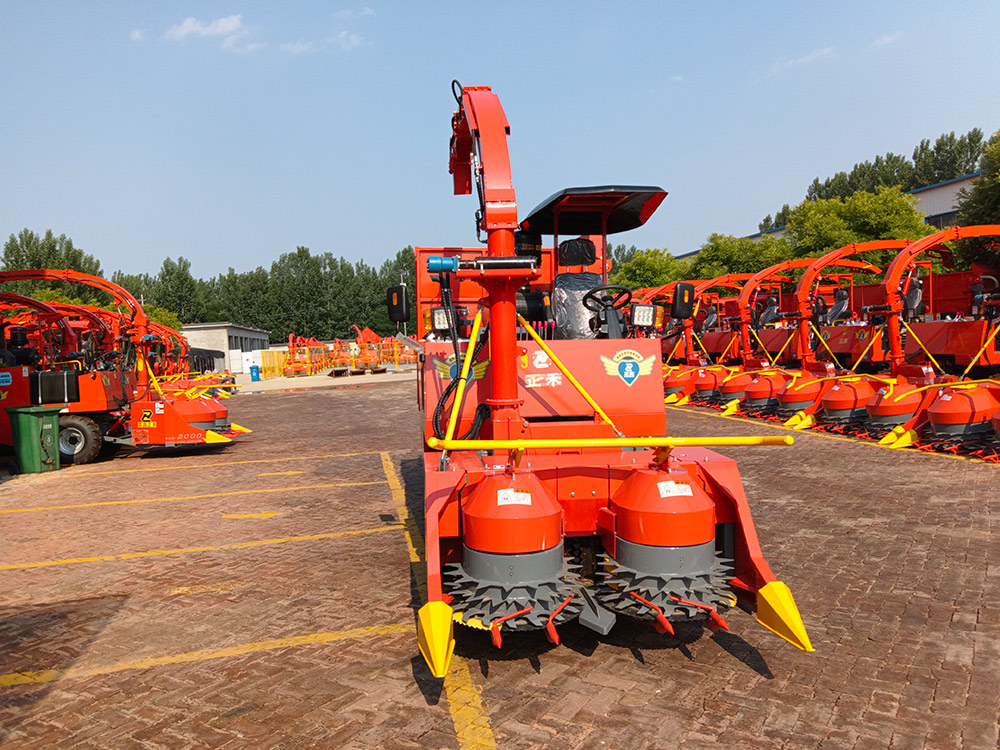

● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all culm-like forage crops work on the wrong line. ●Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 , effectively lock the spray cylinder angle, so that the spray angle is more stable.

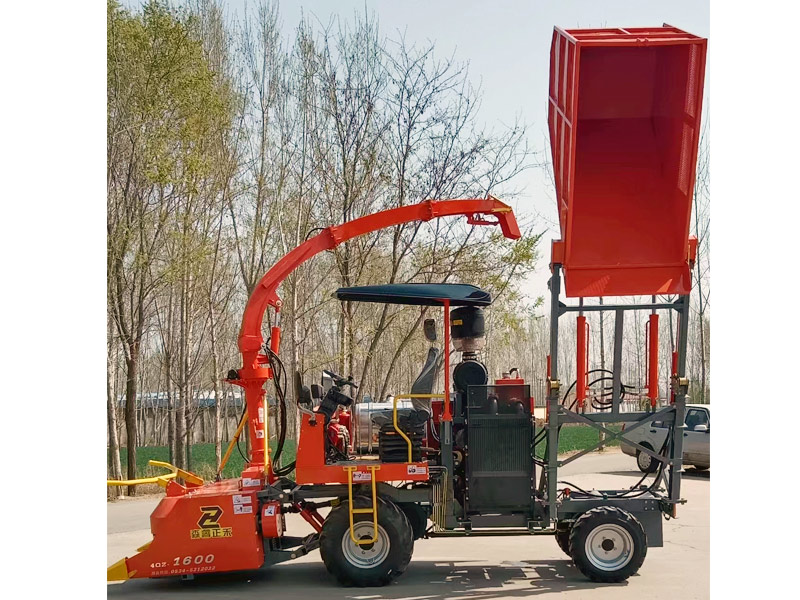

● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
Product features ：
40Z-1600 self-propelled green fodder harvester, which can be used for non-row harvesting operation, small size, high efficiency, wide use, low energy consumption, dexterity, not subject to the constraints of crop row spacing, it integrates the advantages of high working efficiency and safe and reliable performance. It can cut off the green (yellow) fodder crops, feed them in sequence, chop them evenly, throw and load them at one time.
Product characteristics
● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.

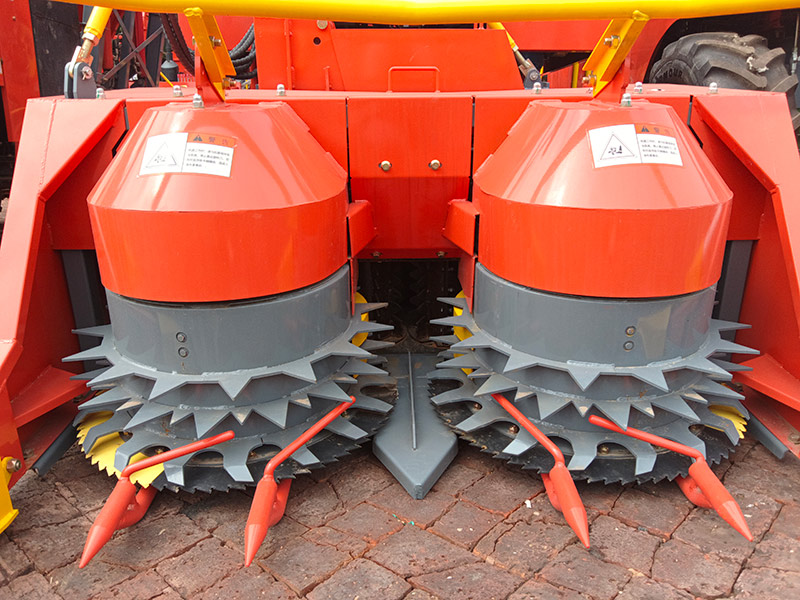

● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all culm-like forage crops work on the wrong line.
●Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.
● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-1600 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*1950*4000 |
Structural quality | kg | 3650 |
Matching Engine Rated Power | kw | 103 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 6.00-14 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 9.50-16 |
Wheelbases | mm | 2040 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
