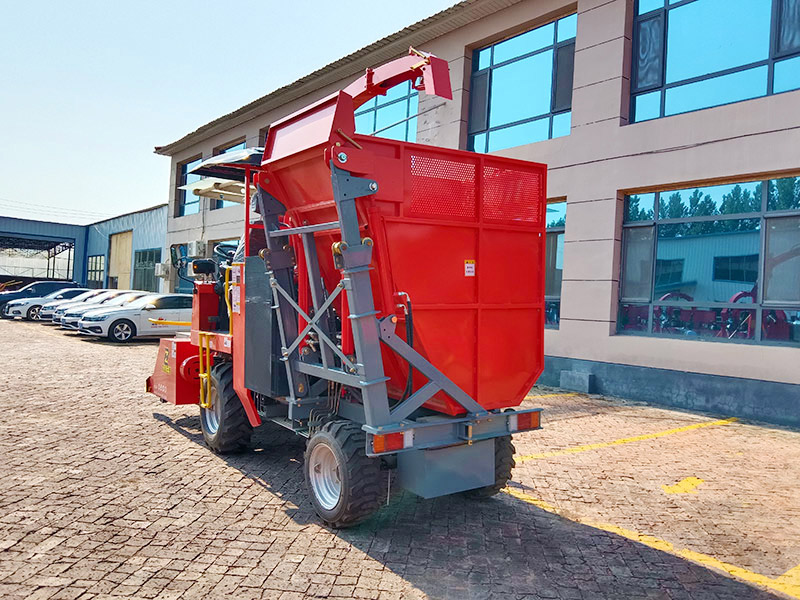

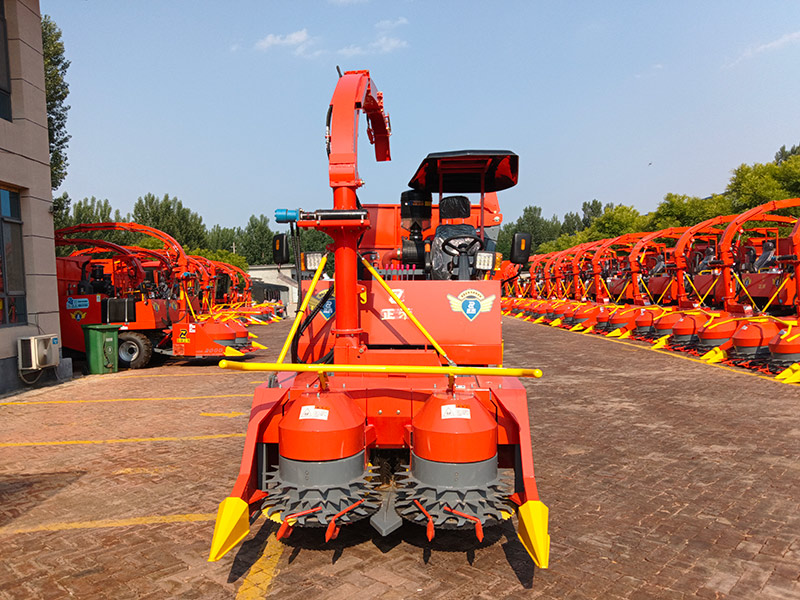

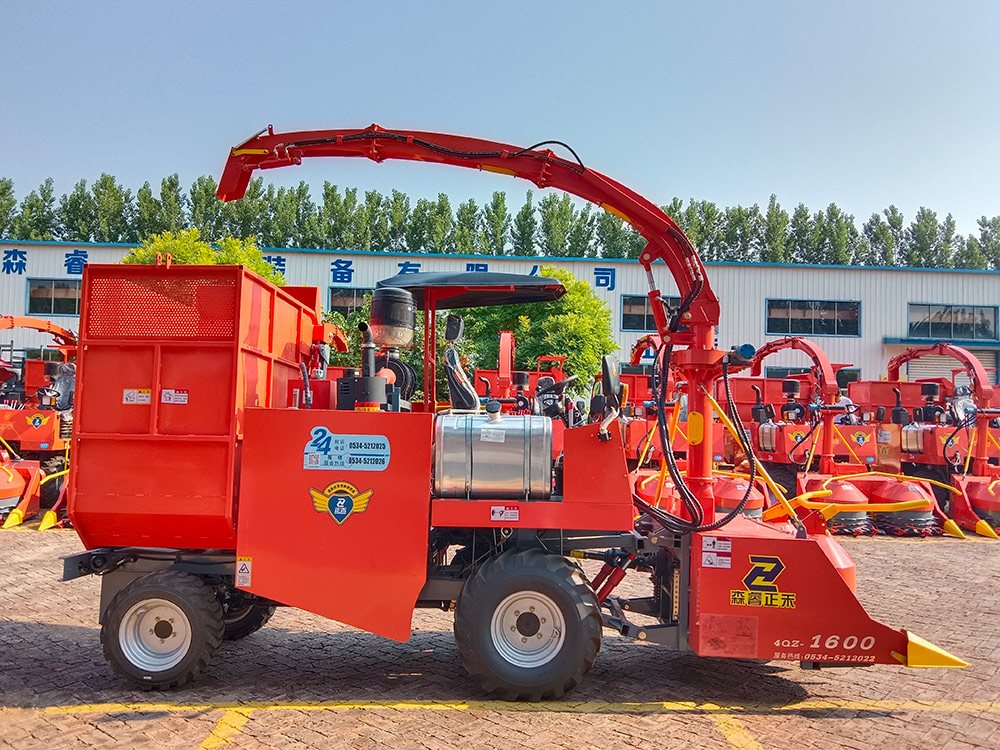

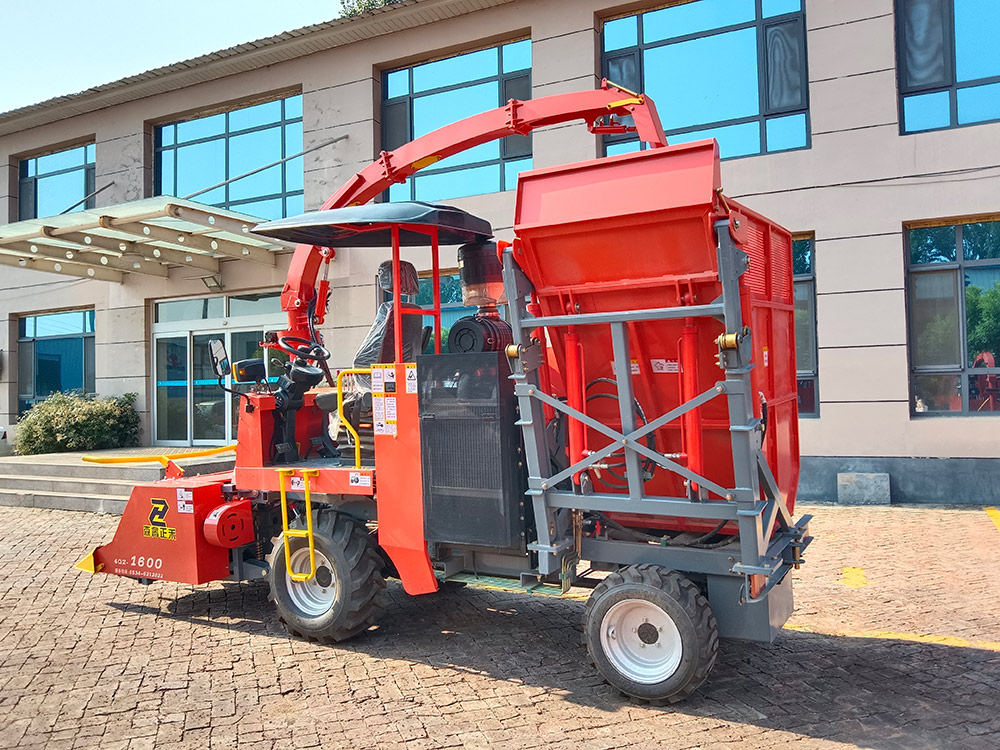

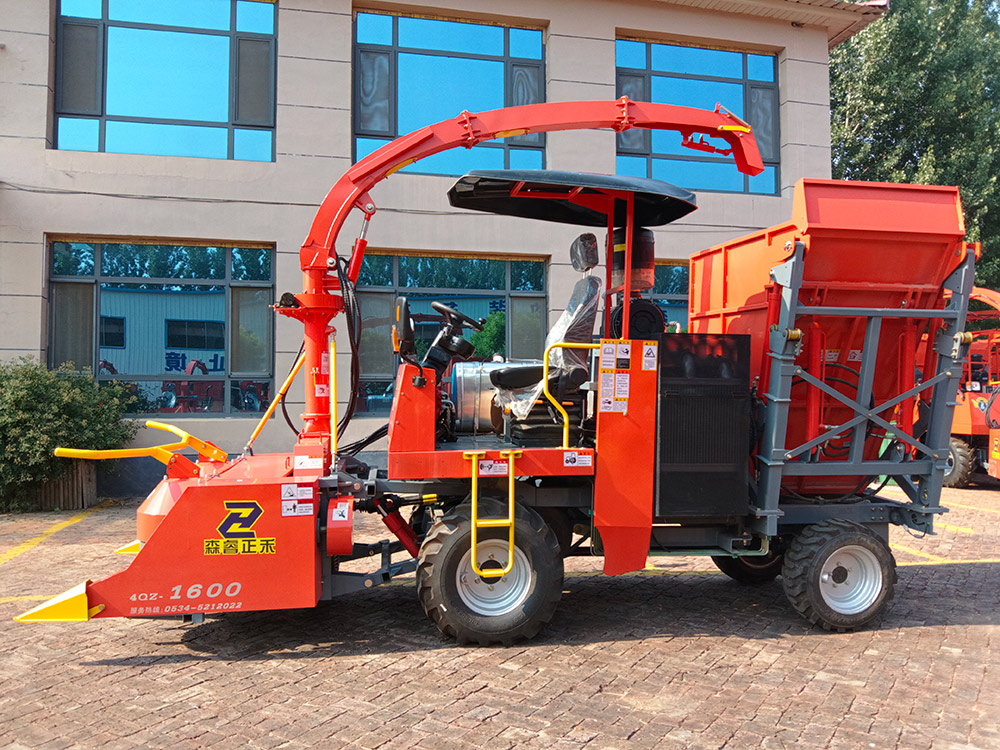

1.480m Self Propelled Harvester For Sale
Product advantages:
● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.

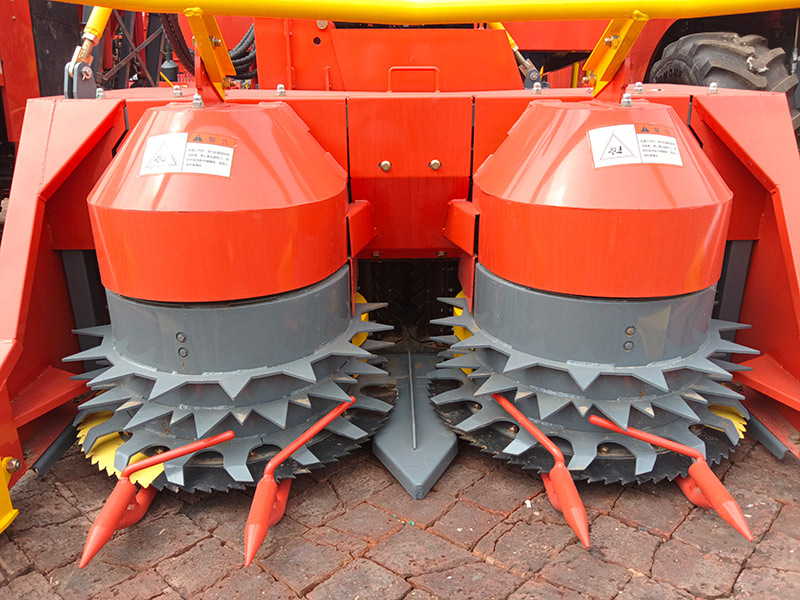

● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all straw-like forage crops not on the line operation. : : Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.

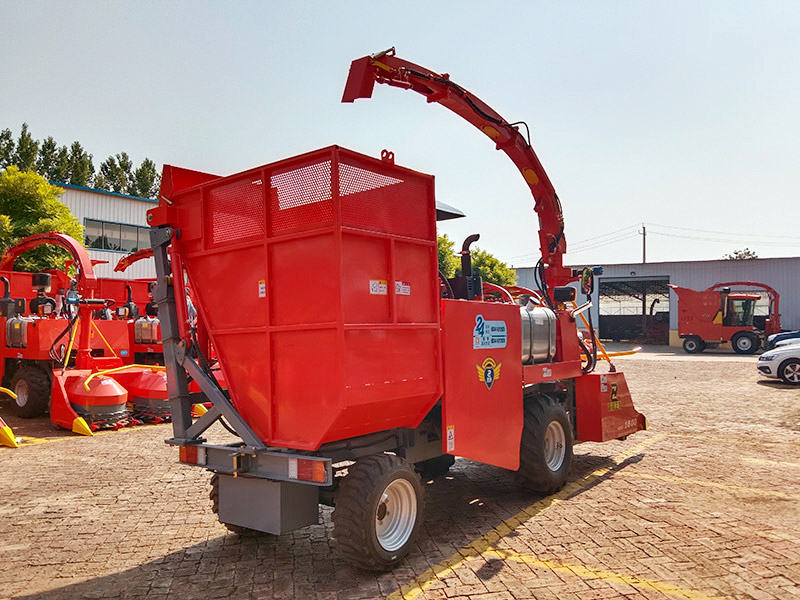

● Spray cylinder assembly: the spray cylinder is rotated by worm gear and worm mechanism, and can rotate ± 180 ° , effectively locking the spray cylinder angle, making the spray cylinder angle more stable. ● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
● Powertrain: 140 horsepower engine, horsepower foot, strong power, four-wheel drive system, Mountain Hills and other areas through high.

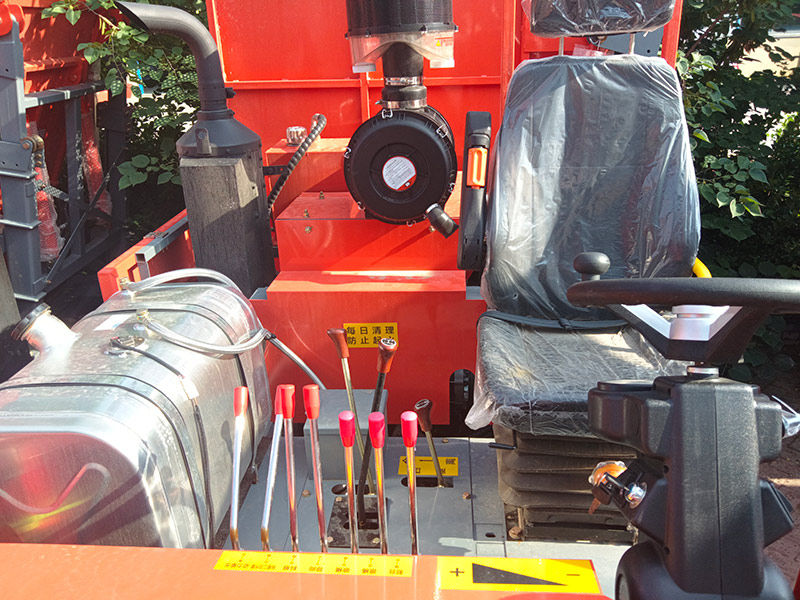

● control: suspension seat, driving more comfortable.
Product details:
● increased efficiency: compared to traditional manual harvesting, corn green fodder harvesters can significantly improve the efficiency of the harvest, shorten the harvest cycle and save farmers significant time and labour costs.
● Quality Assurance: the corn green fodder harvested by machine is evenly chopped, which is beneficial to the digestion and absorption of animals and improves the utilization rate of fodder.
● Green Environmental Protection: the use of corn green fodder harvesters has reduced the generation of agricultural wastes and is conducive to the protection of the ecological environment and the realization of green agricultural production.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-1600 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*1950*4000 |
Structural quality | kg | 3650 |
Matching Engine Rated Power | kw | 103 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
