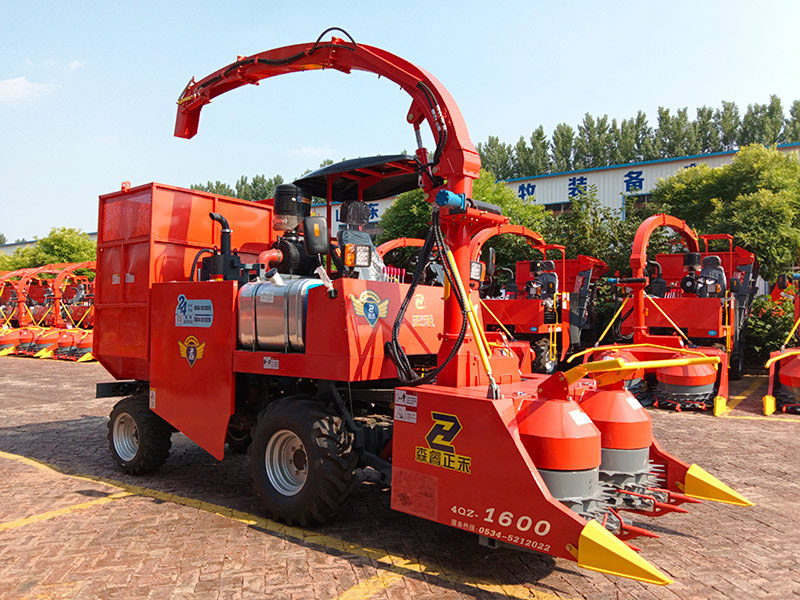

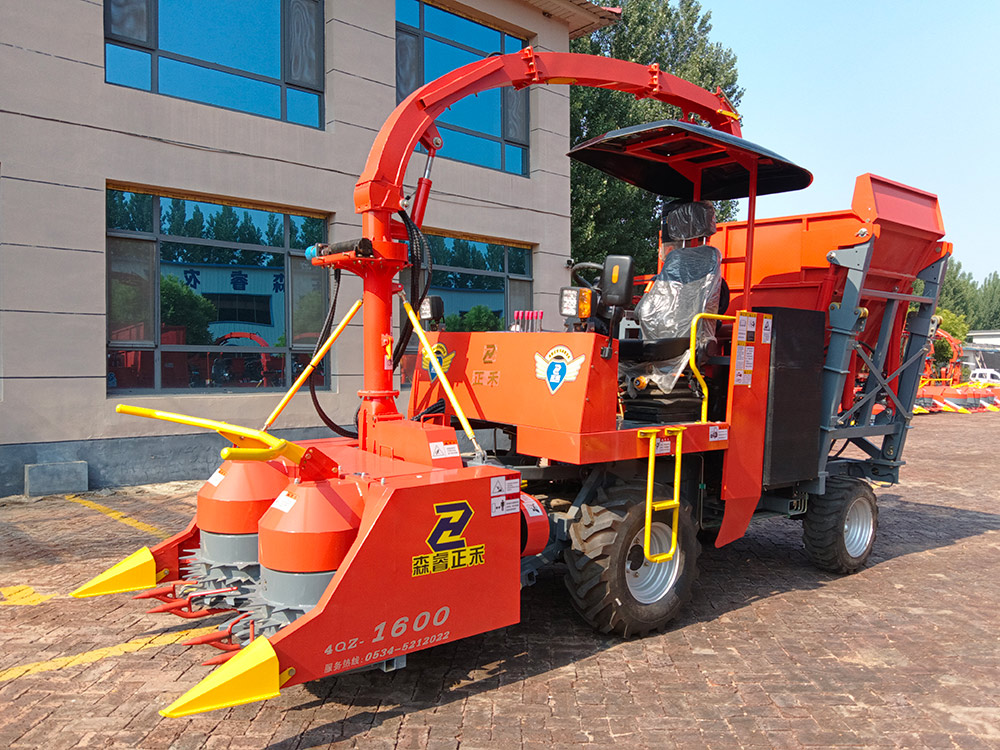

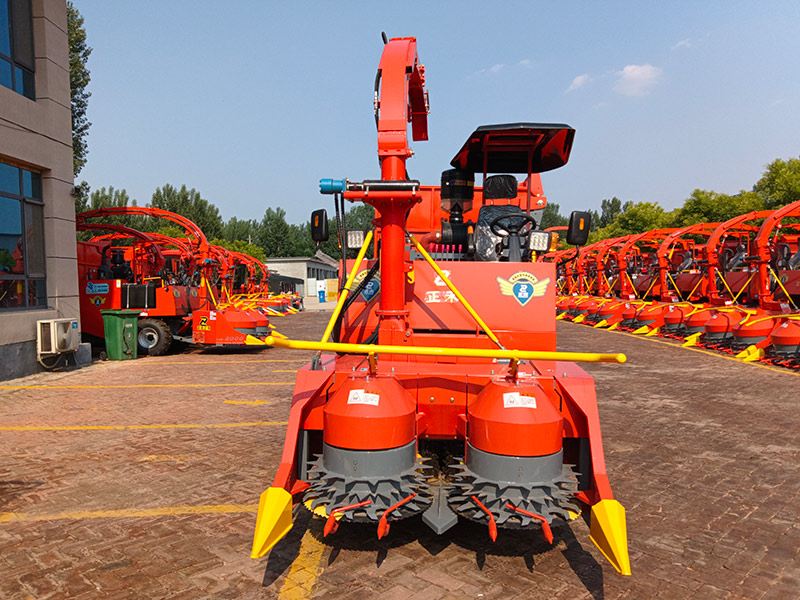

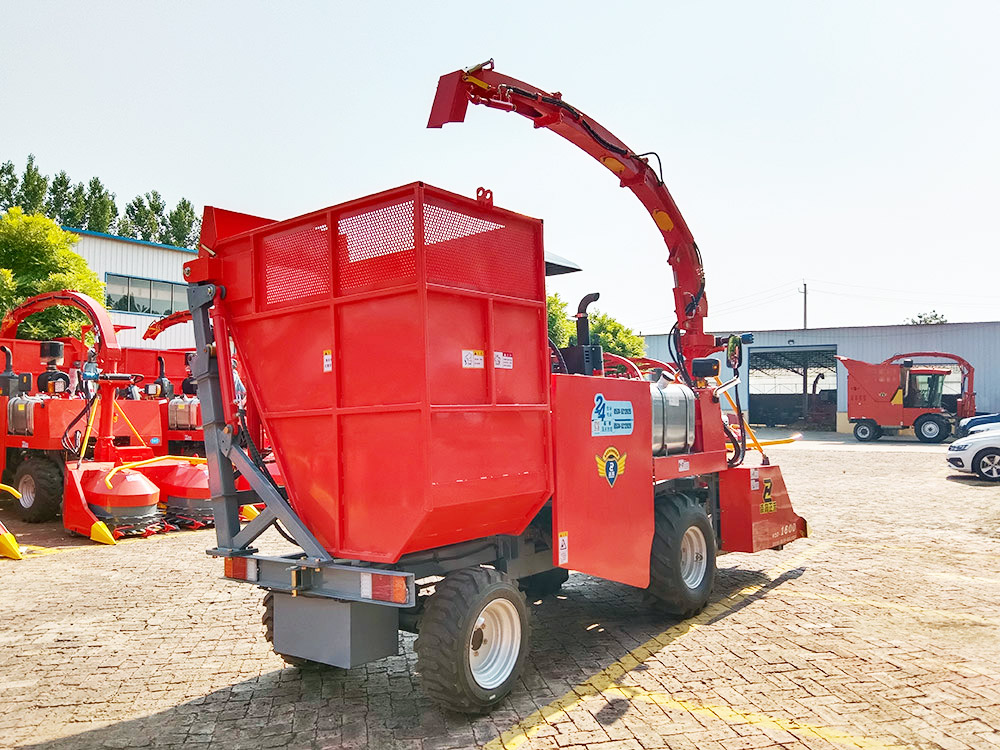

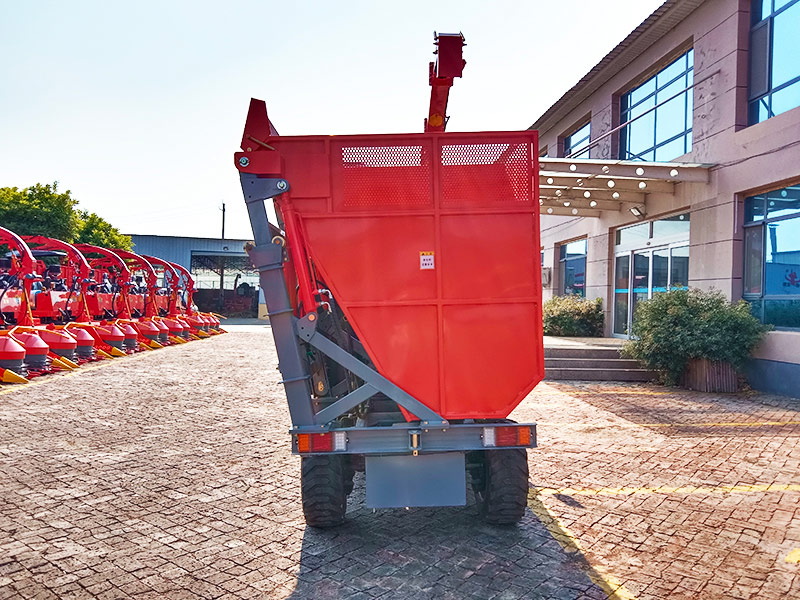

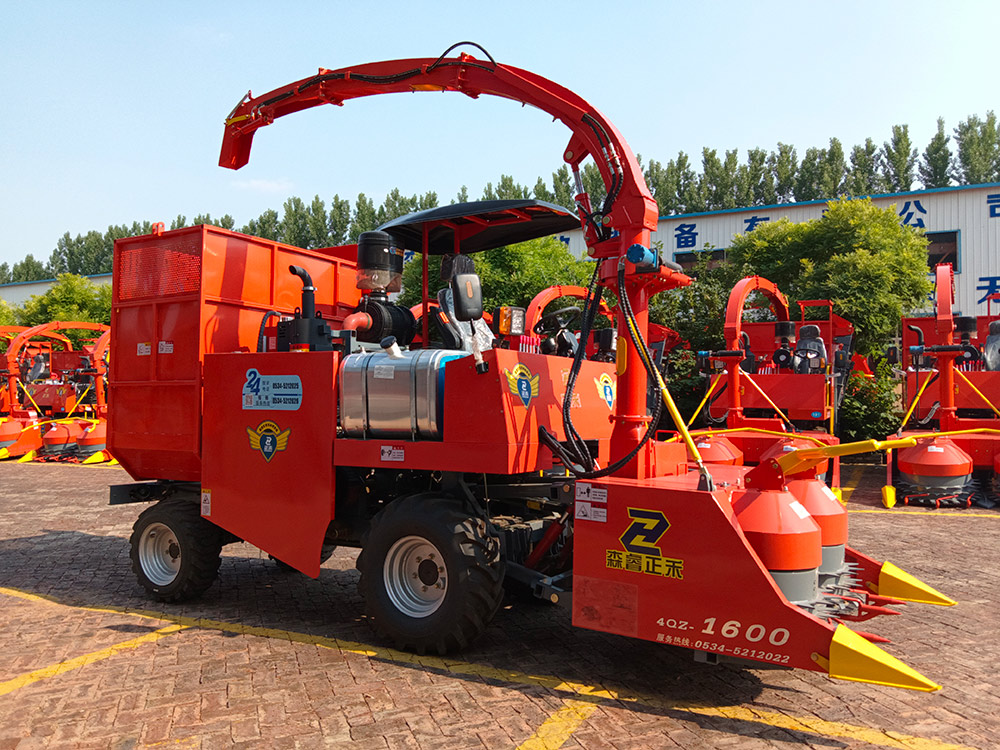

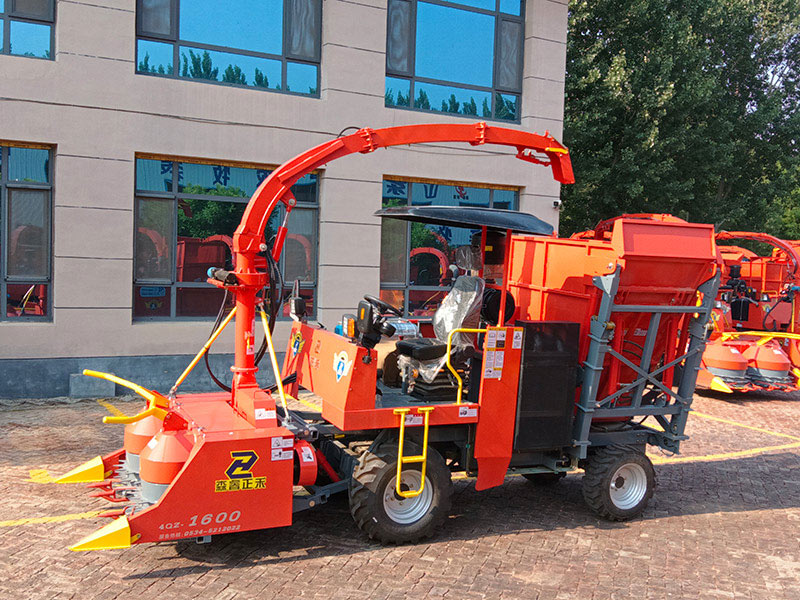

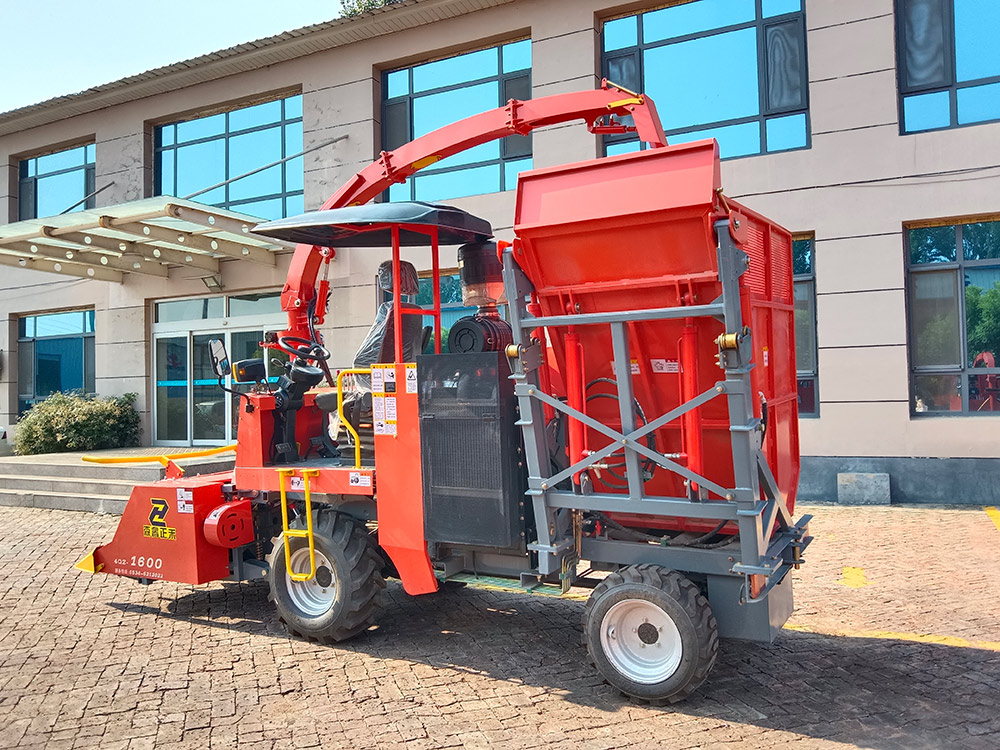

1.480m Silage Cutter
Product Advantage:
40Z-1600 green fodder harvester, can be carried out on the row harvest operations. The equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, independent of crop spacing, and integrated with high efficiency and safe and reliable performance, it can complete many operations such as cutting off from the ground, feeding in sequence, even chopping, throwing and loading the green (yellow) fodder crops in one time, better adapt to a variety of receiving models, unloading more convenient.
Product details:
●4QZ-1600 self-propelled green fodder harvester, the effective harvest width is 1.480 m, matching engine 140 horsepower, manual transmission, four-wheel drive, suitable for mountain, hilly operations
●whole machine is 5.2 m long, 1.95 m wide, 4m high, straight cutting table, disc cutter, disc straw cutter type, the number of feeding mechanism: 1 pair.
●Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all culm-like forage crops work on the wrong line.
●Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-1600 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*1950*4000 |
Structural quality | kg | 3650 |
Matching Engine Rated Power | kw | 103 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
