2.020m Self Propelled Forage Harvesters
Product Features:
●Short body, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other areas.

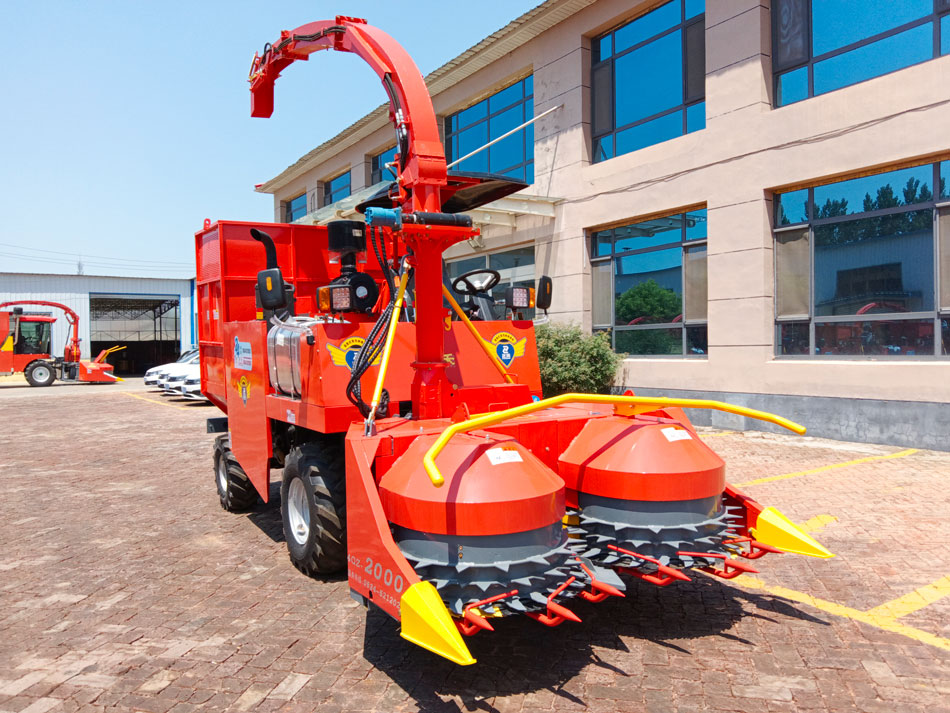

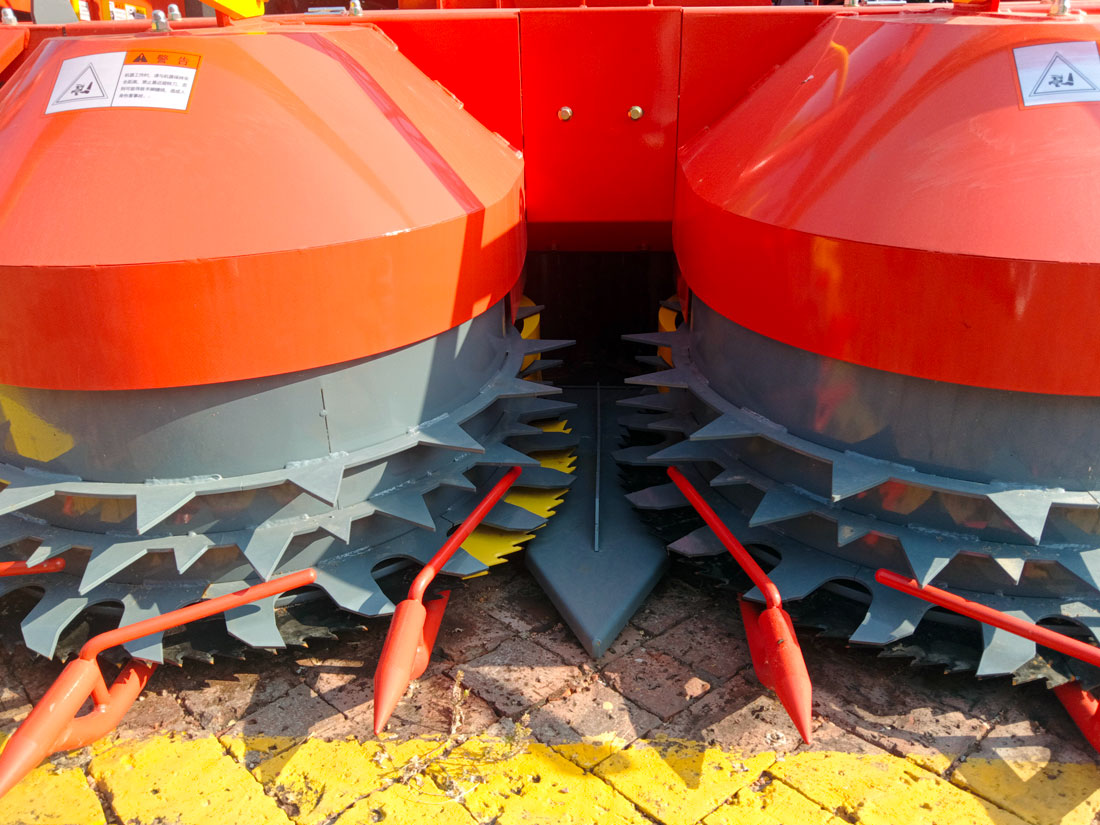

●Cutting and feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, adopting double disc saw blade type cutter, which can adapt to the non-aligned operation of all culm forage crops.
●Cutting assembly: disc knife cutting device, to achieve multi-stage adjustable length of forage cutting.
●Sprayer cylinder assembly: The spray cylinder adopts worm gear mechanism, which can rotate ±180°, effectively locking the spray cylinder angle and making the spraying angle more stable.

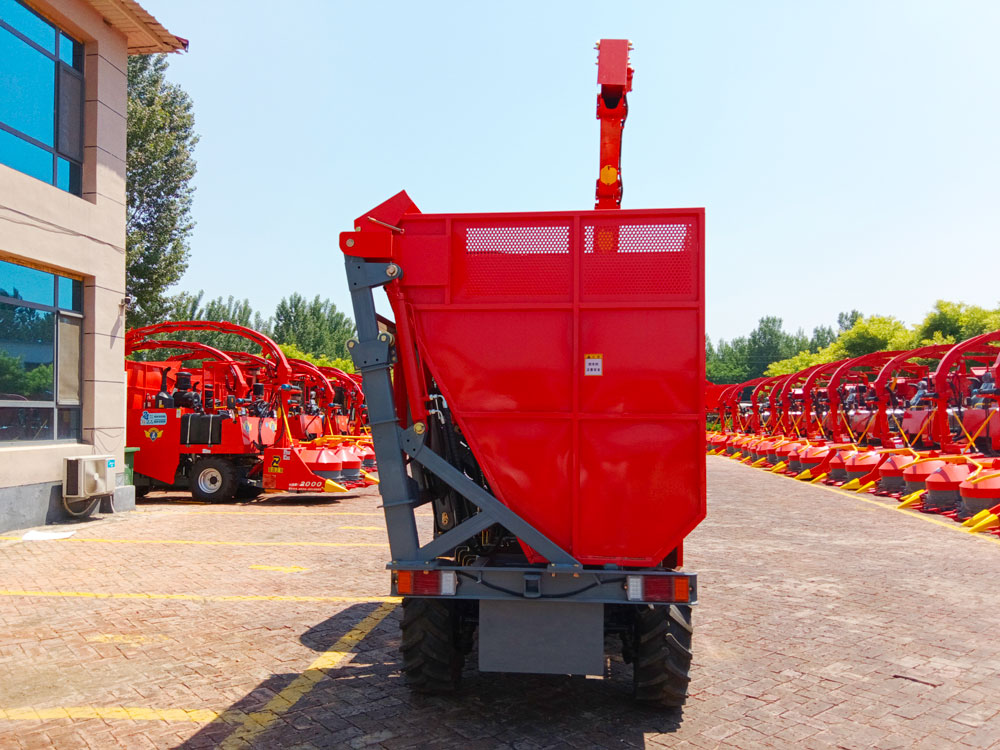

●Feeding box assembly: with its own loading box, easy operation of side-turning unloading, increase the secondary lifting function, better adapted to a variety of receiving models, unloading is more convenient.
Power assembly: 160 hp engine, sufficient horsepower, strong power, four-wheel drive system, high passability in mountainous and hilly areas.

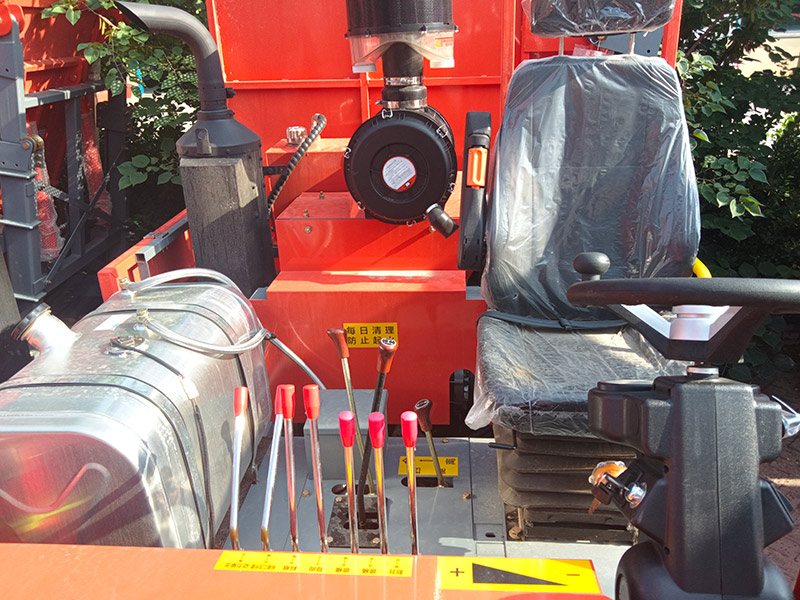

●Control: suspension seat, more comfortable driving.
Product description:
4QZ-2000 self propelled forage harvester, cutting width of 2.020m, not subject to crop spacing constraints, can be carried out without rows of work, set the advantages of high operating efficiency and safe and reliable performance in one, can be a one-time on the green (yellow) silage crops to complete the cut off the ground, the order of feeding, uniform chopping, throwing and loading a number of operations.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2000 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*2200*4000 |
Structural quality | kg | 3950 |
Matching Engine Rated Power | kw | 118 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
