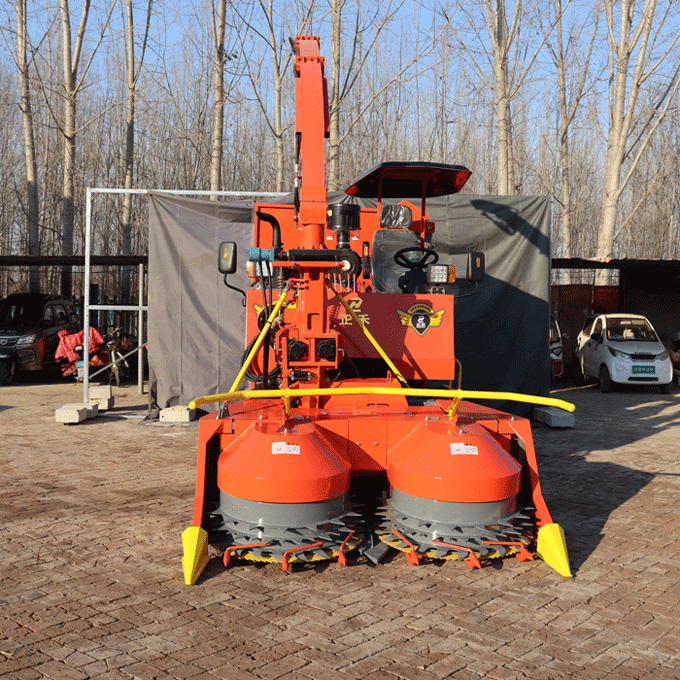

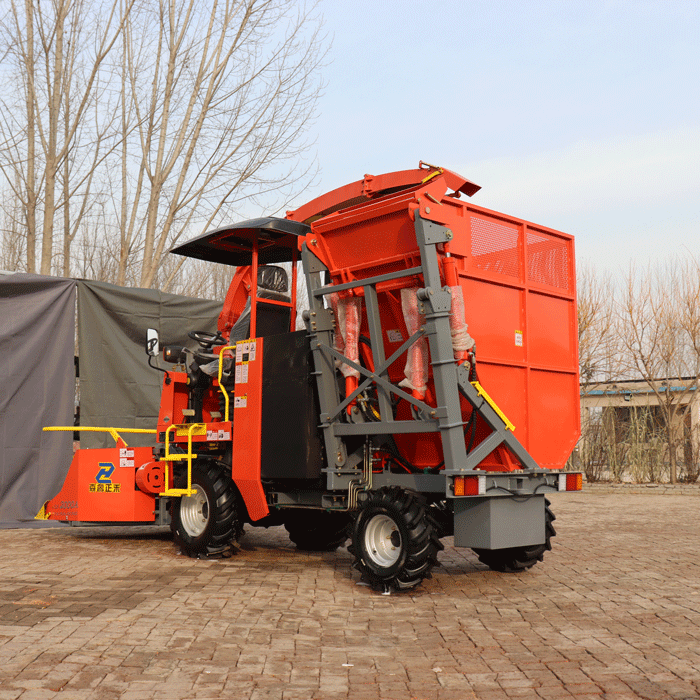

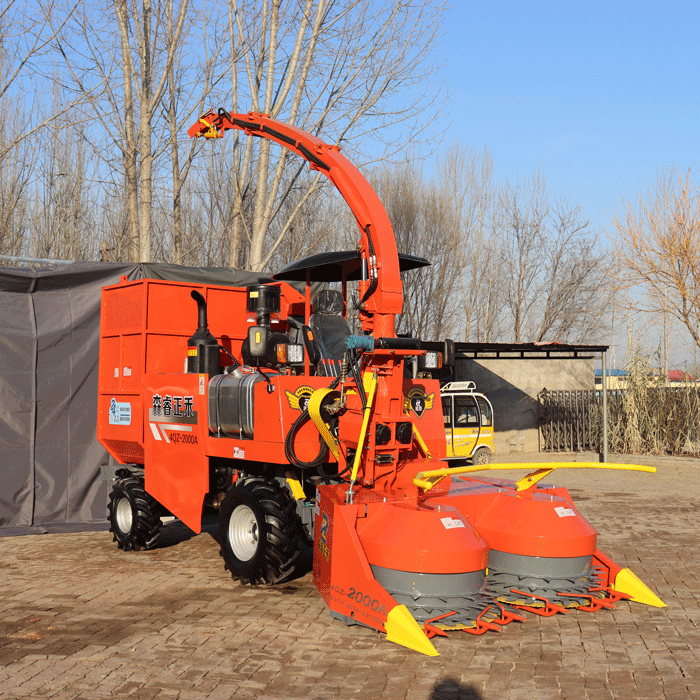

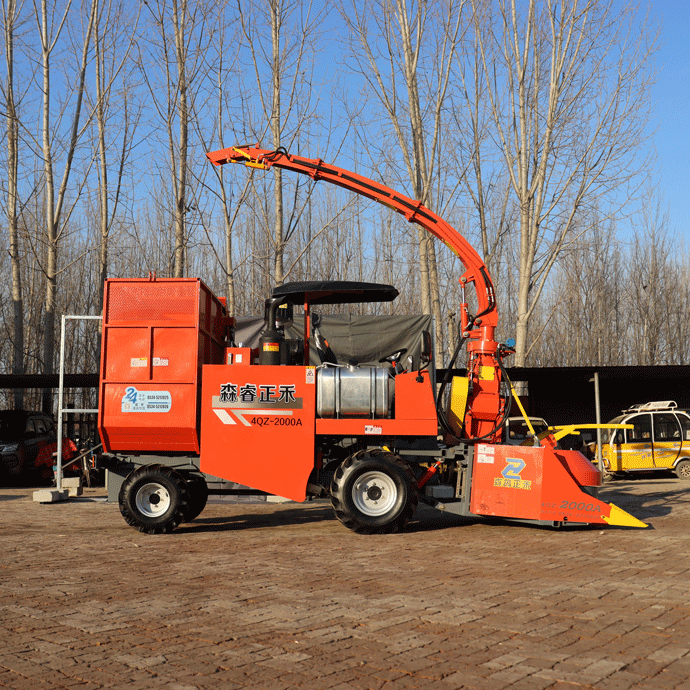

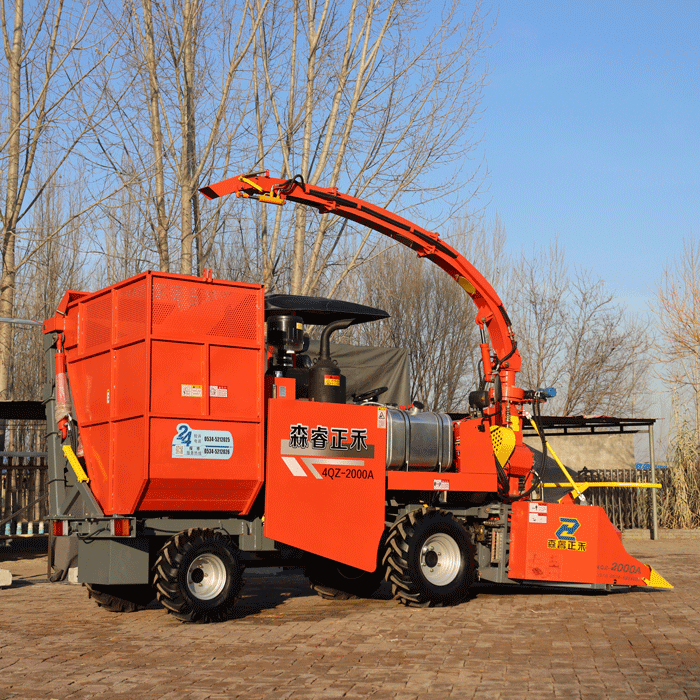

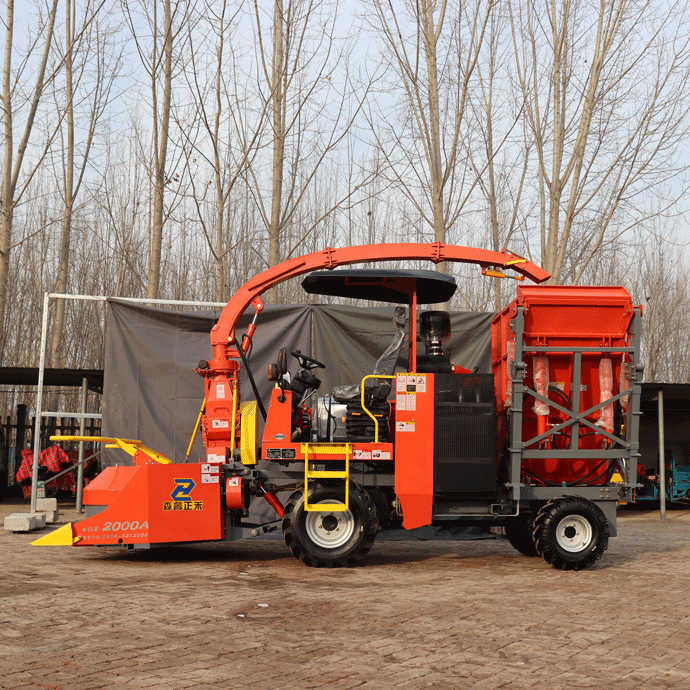

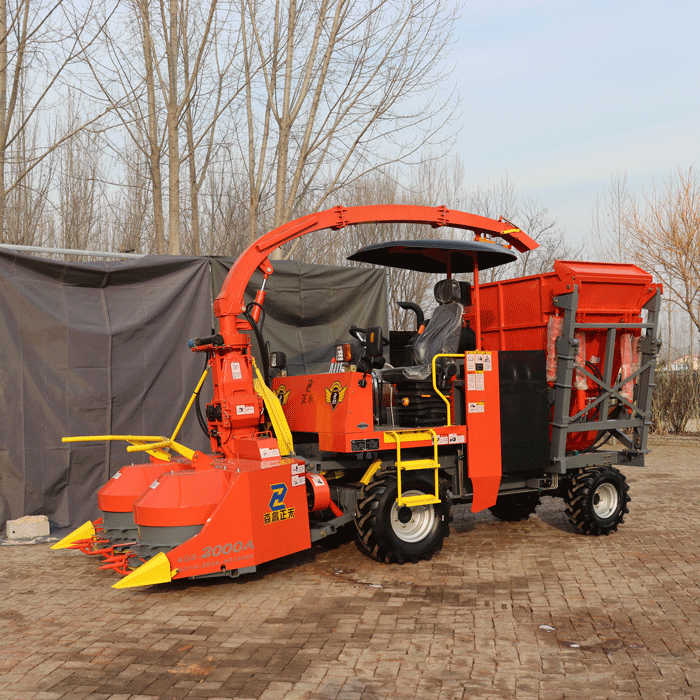

2.020m Wheeled Storage Harvester
Features
● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.
● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all culm-like forage crops work on the wrong line.
●Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
● grain crushing: the high-strength grain crushing roller of the roller, rapid replacement, grain crushing rate of more than 97% , improved the palatability and feed intake rate of livestock.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.

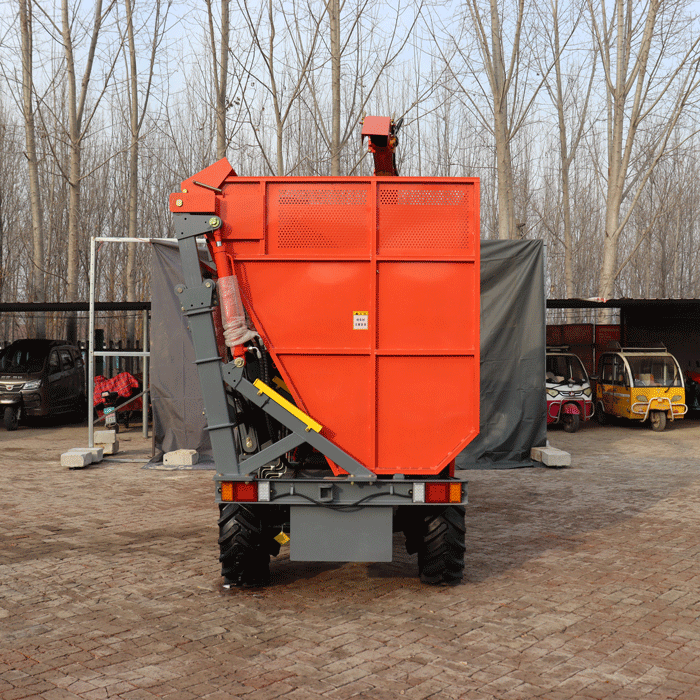

● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
● Powertrain: 175 horsepower engine, horsepower foot, strong power, four-wheel drive system, mountain hills and other areas through high.
Product introduction
Senrui 40Z-2000A self-propelled green fodder harvester, Harvester, novel design, unique, professional quality to create good products, strong power, selected accessories, sincere service, we will solve the problems for you, such as the problem of scattered transportation of fodder and the space wasted by messy accumulation. The fuselage is short, the turning radius is small, and the operation is flexible and convenient, suitable for small and medium-sized plots, mountains, hills, terraces and other areas of operation, with its own container, overturning and unloading operation is simple, increase the secondary lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
Projects | Unit | Design value |
Model Name | / | 4QZ-2000A self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*2200*3950 |
Structural quality | kg | 4160 |
Matching Engine Rated Power | kw | 129(country 4) |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc type(Roller type) |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechanical Drive |
Brake type | / | Drum |
Guide wheel spacing | mm | 1200 |
Guide wheel tyre specifications | / | 26x10-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
