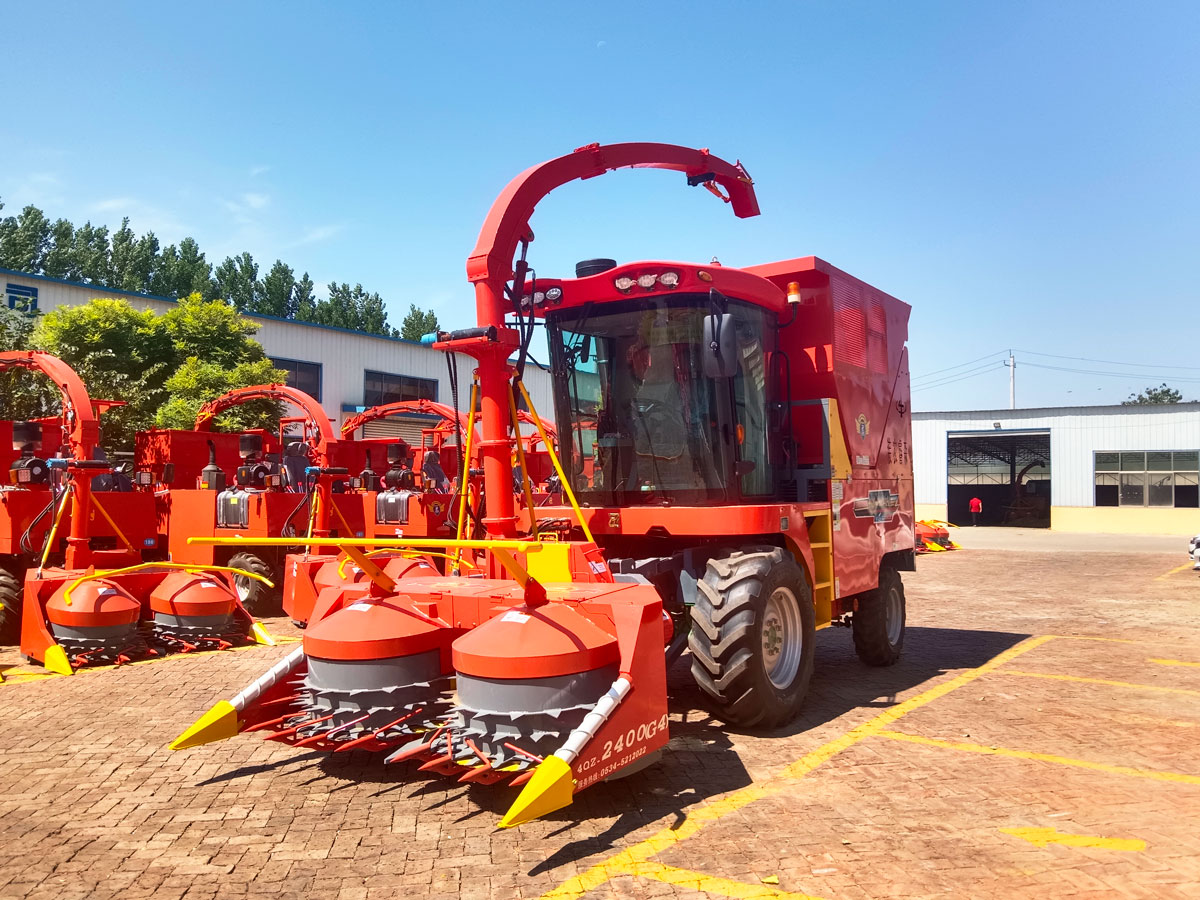

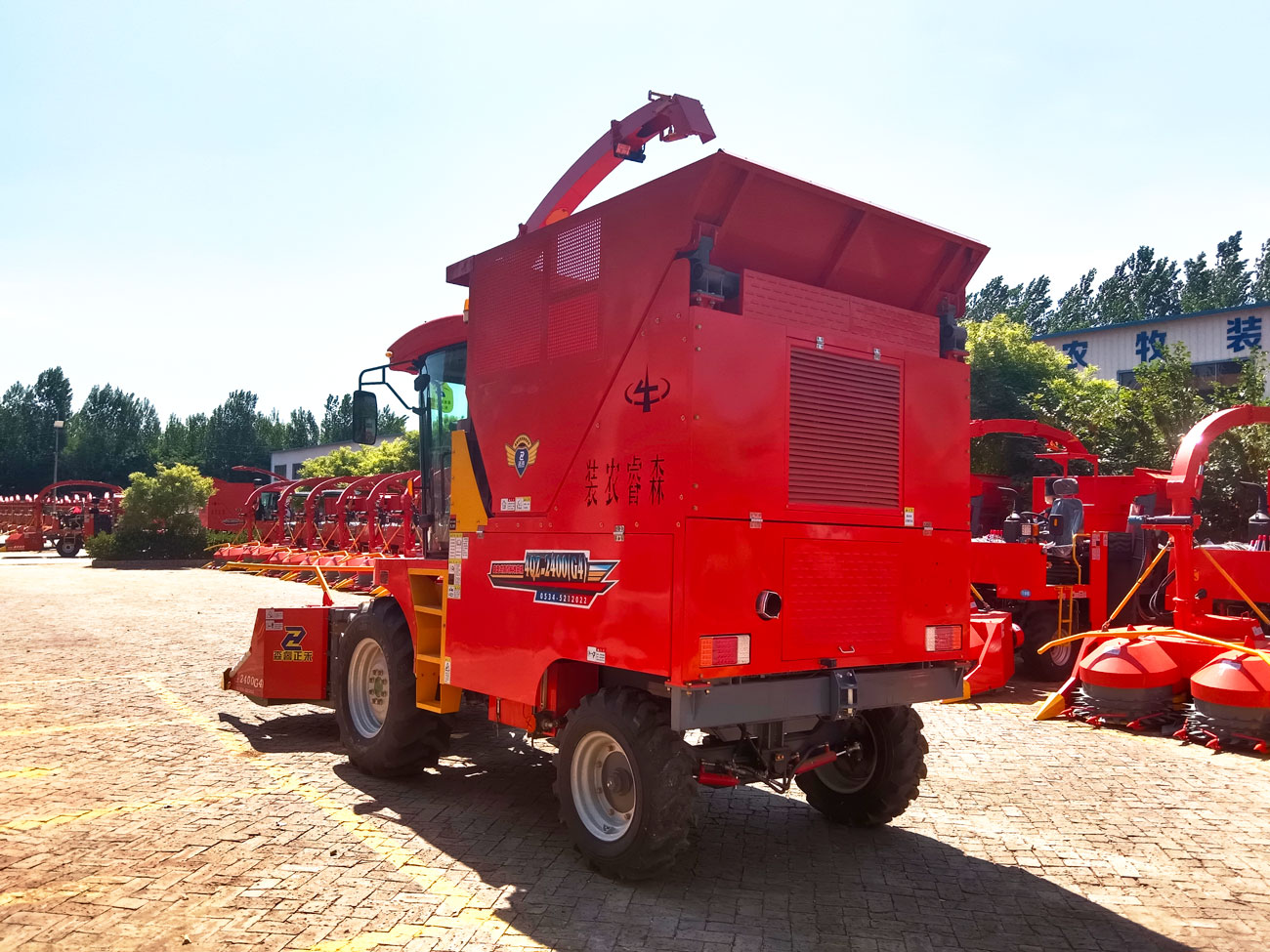

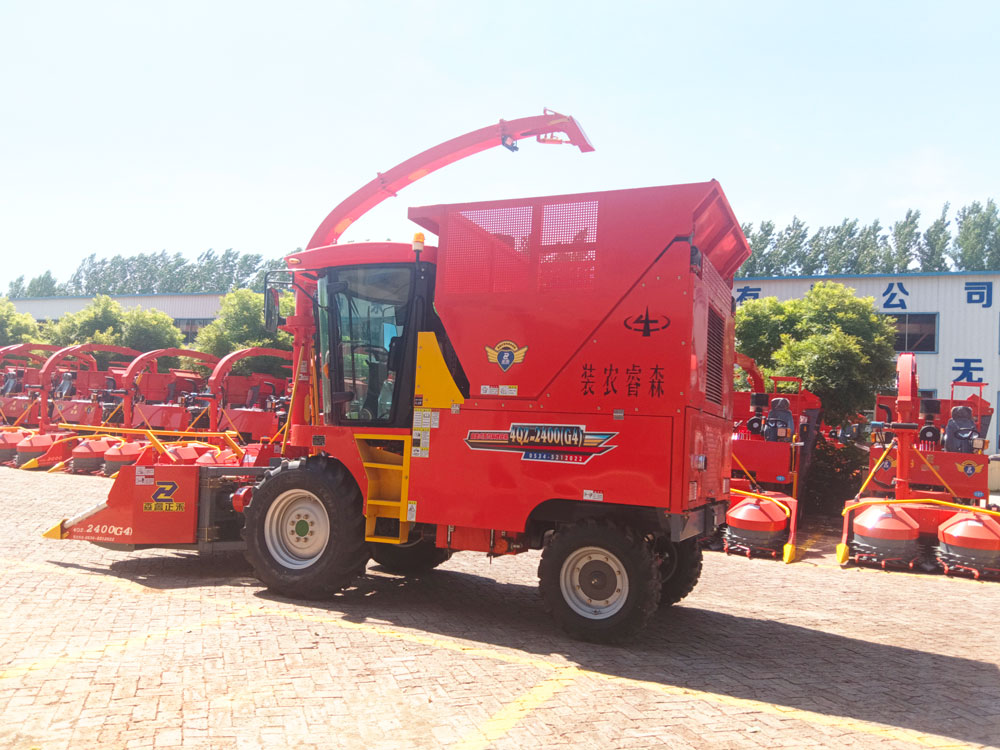

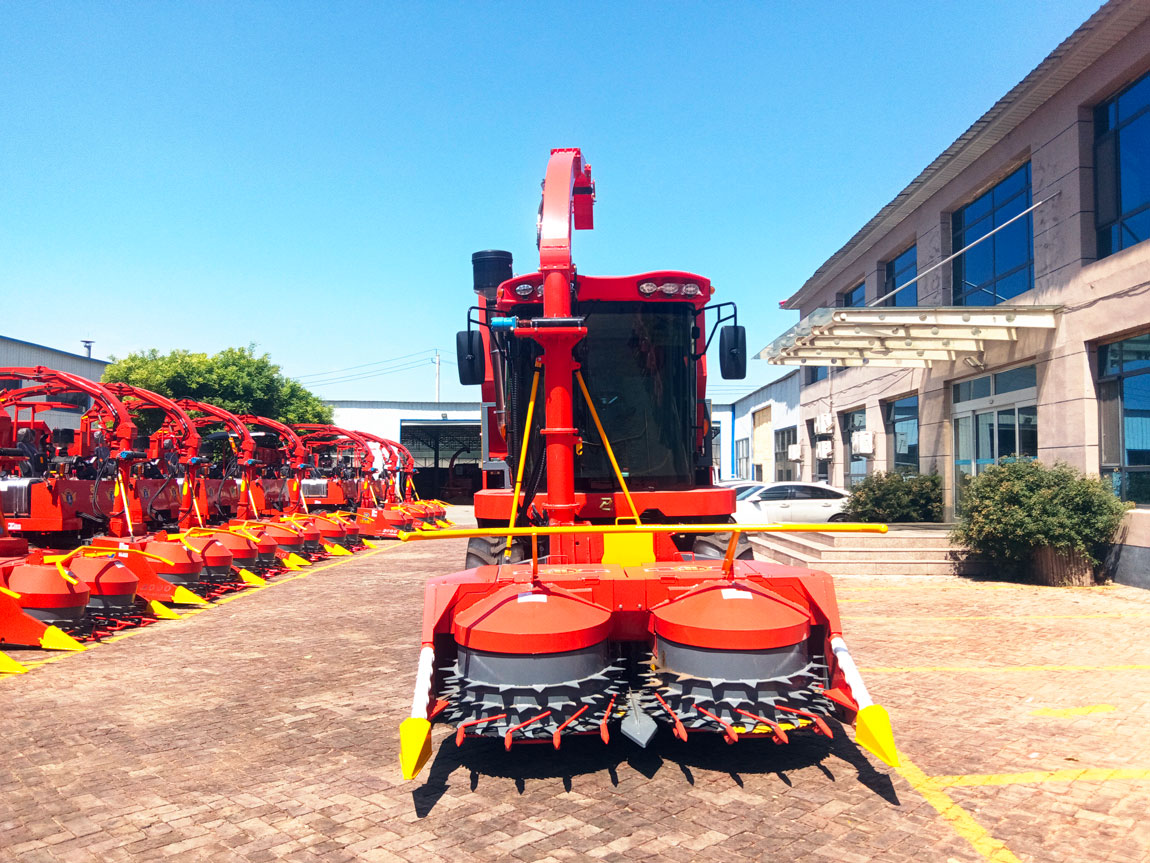

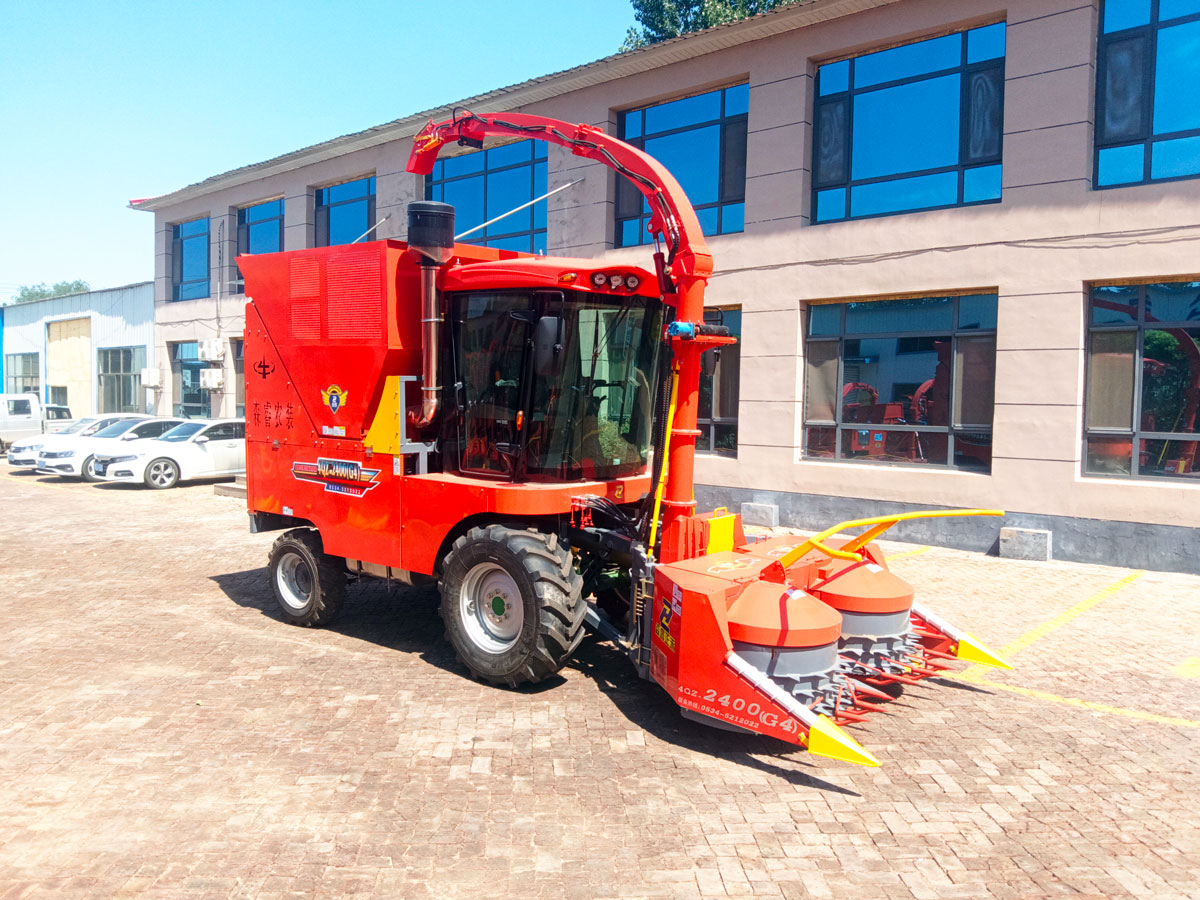

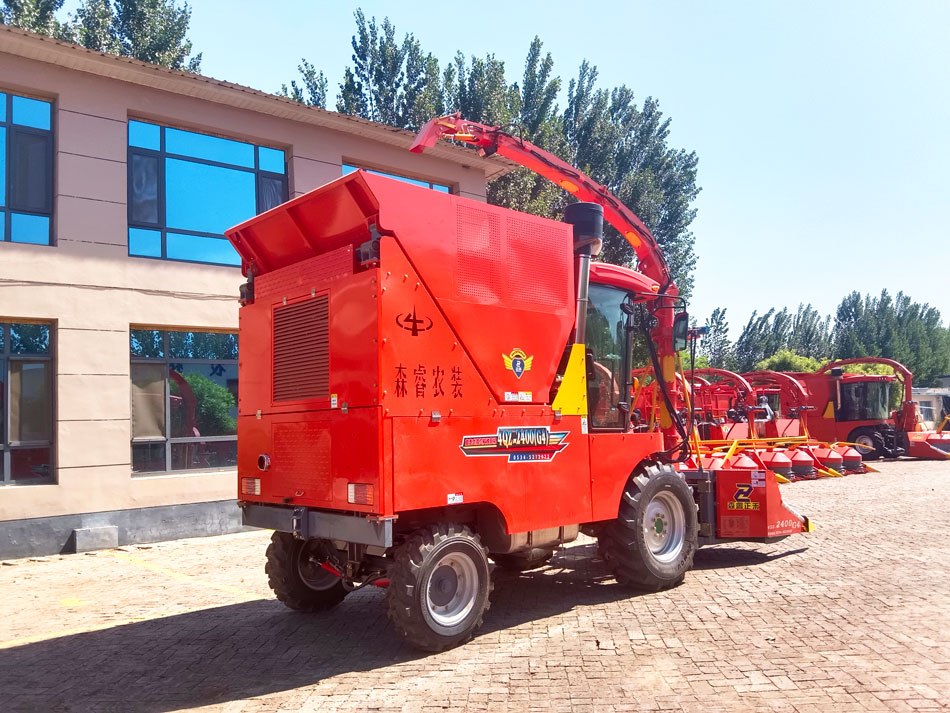

2.220m Large Straw Harvester

Product introduction:

This machine is the most efficient green feed harvester developed by our company, which is mainly used for corn straw silage and yellow storage (without ear) harvest, and can complete many operations such as cutting, conveying, flattening, shredding, throwing and loading corn plants at one time.

Product characteristics

● Compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots.

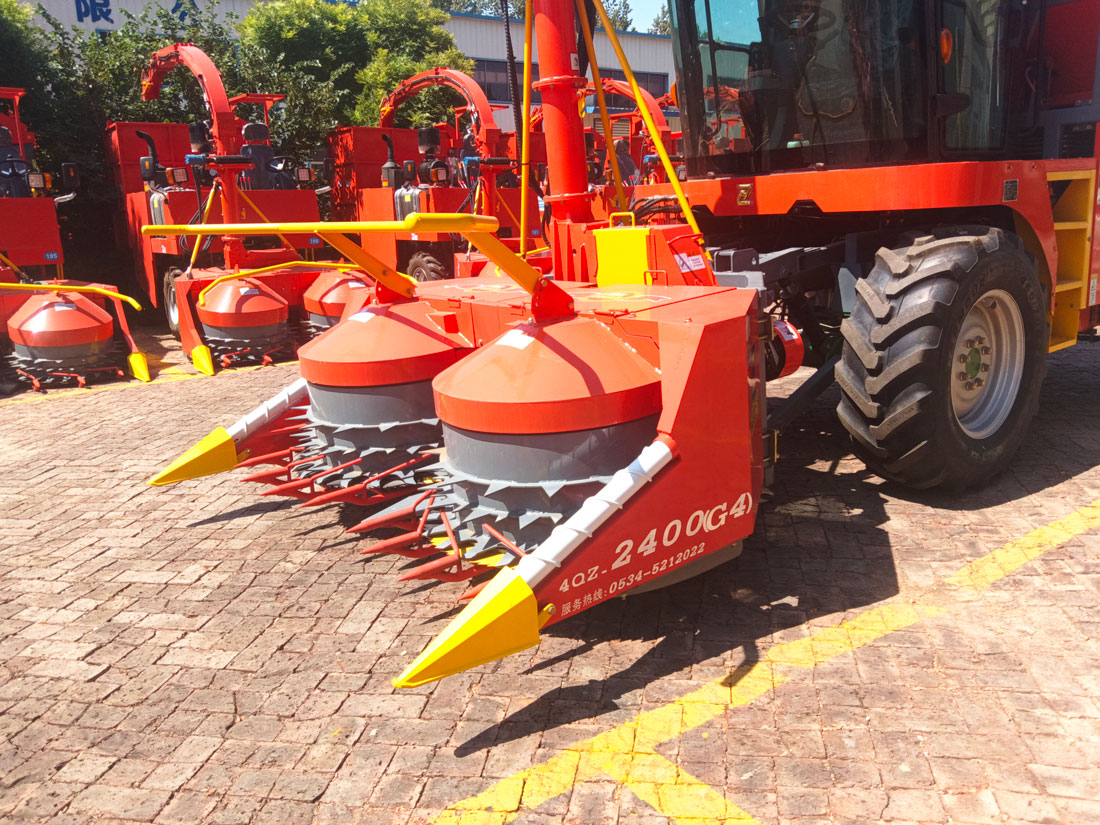

● Feed assembly: four-roll feed chamber, sectional design, more convenient maintenance, vertical clamping feeding device, improve the reliability of the whole machine, feeding wheel equipment positive and negative rotation function, can reverse the material when blocking, work efficiency is greatly improved.

● Shredding assembly: disc cutter shredding device, using double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line operation, with automatic sharpening function, to solve the user's time-consuming and laborious problem of sharpening, greatly shorten the maintenance time and improve efficiency.

● Spray cylinder assembly: the rotation of the spray cylinder adopts worm gear mechanism, which can be rotated ±180°, effectively locking the Angle of the spray cylinder, making the spray Angle more stable.

● Material box assembly: comes with a large volume loading box, the operation is simple, increase the secondary lifting function, better adapt to a variety of receiving models, unloading more convenient.

● Powertrain: full diesel 220 HP engine, PTO intelligent fuel saving control, with light load, medium load, heavy load switching function, according to the application terrain, optional four-wheel drive.

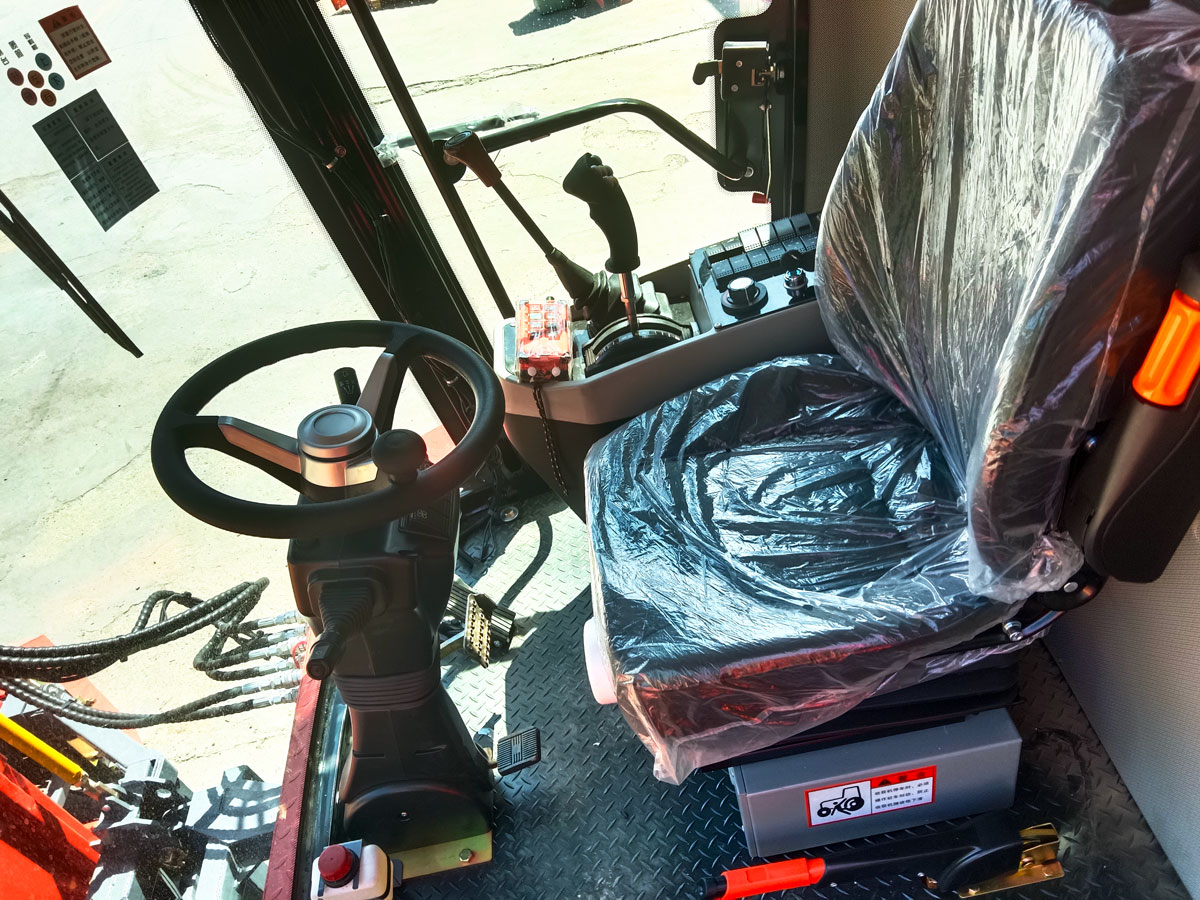

● Control/hydraulic: standard air conditioning, electronic operation handle, suspension seat, driving more comfortable, cab main engine standard with large screen LCD display and operation monitoring system, improve the operation safety, reliability, intelligence, the whole machine hydrostatic drive, driving more comfortable.
