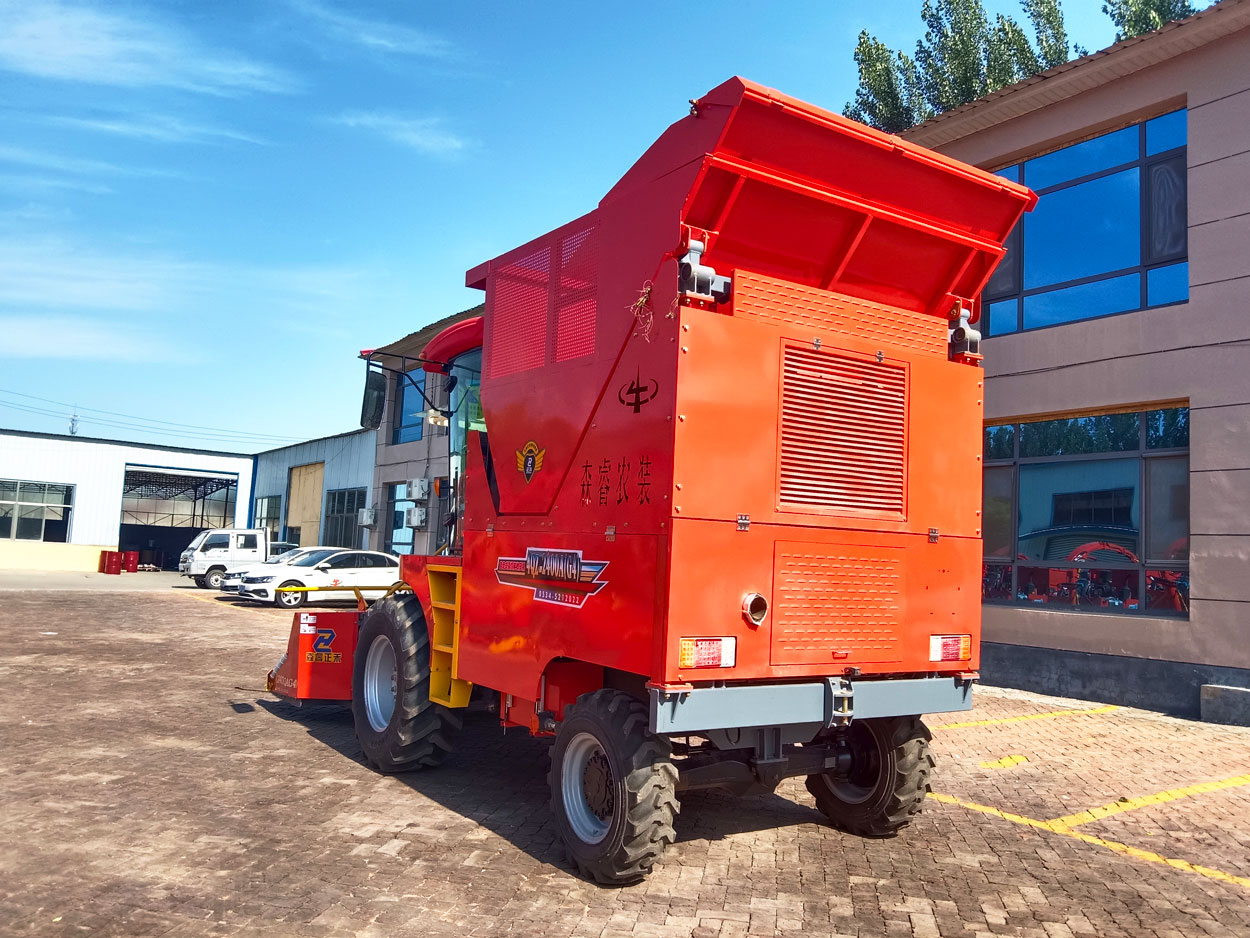

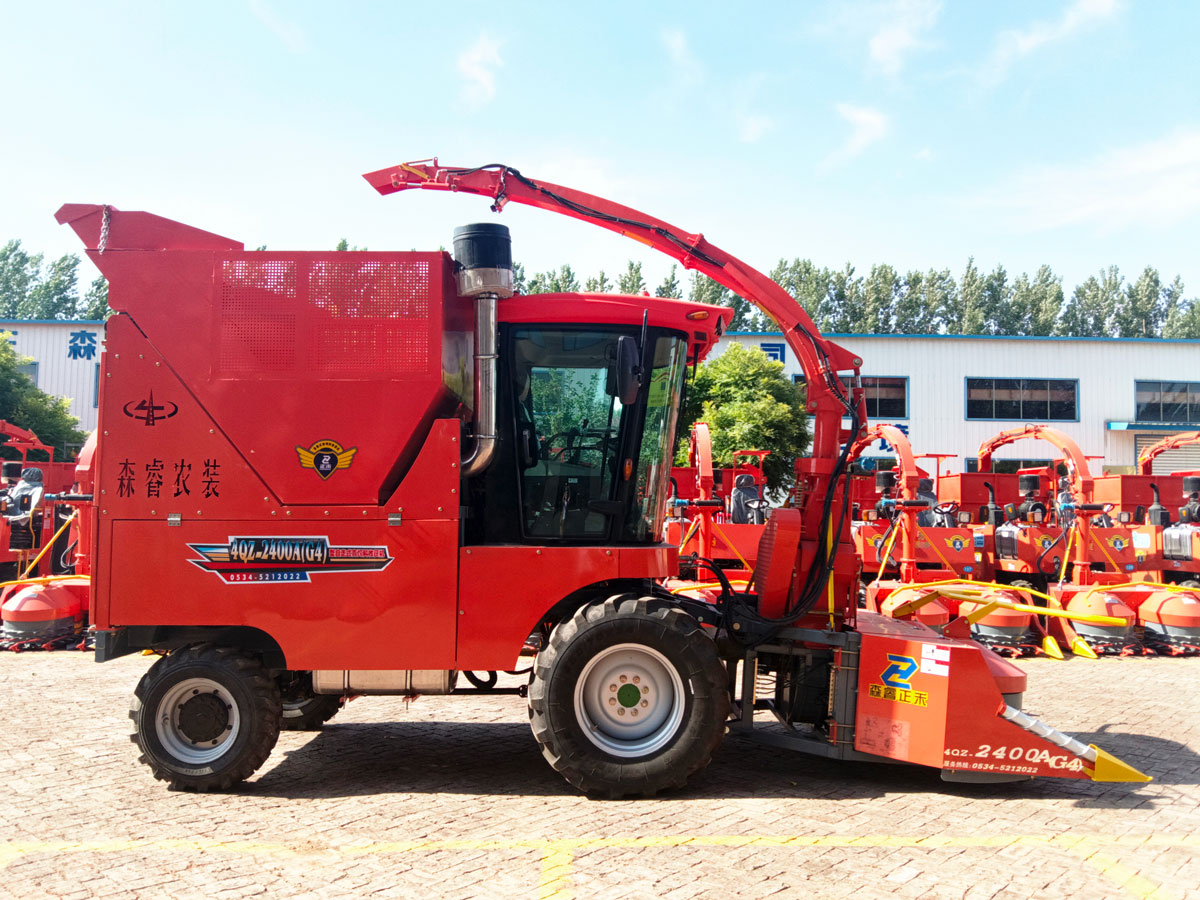

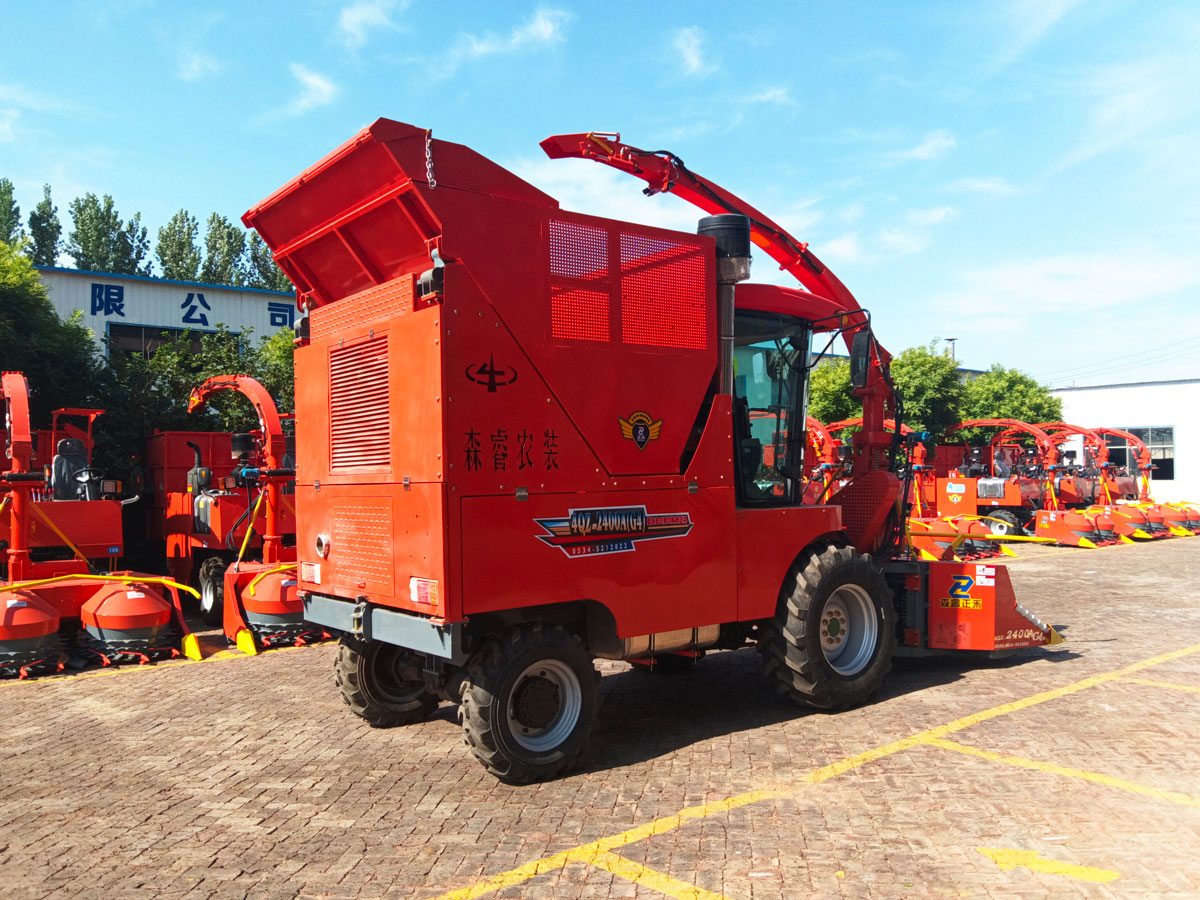

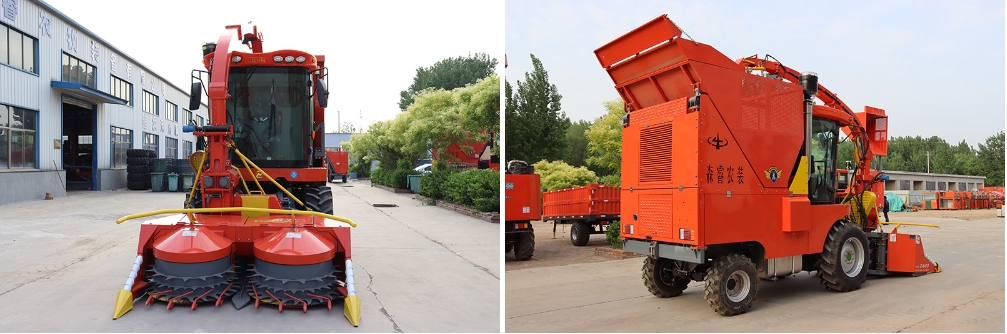

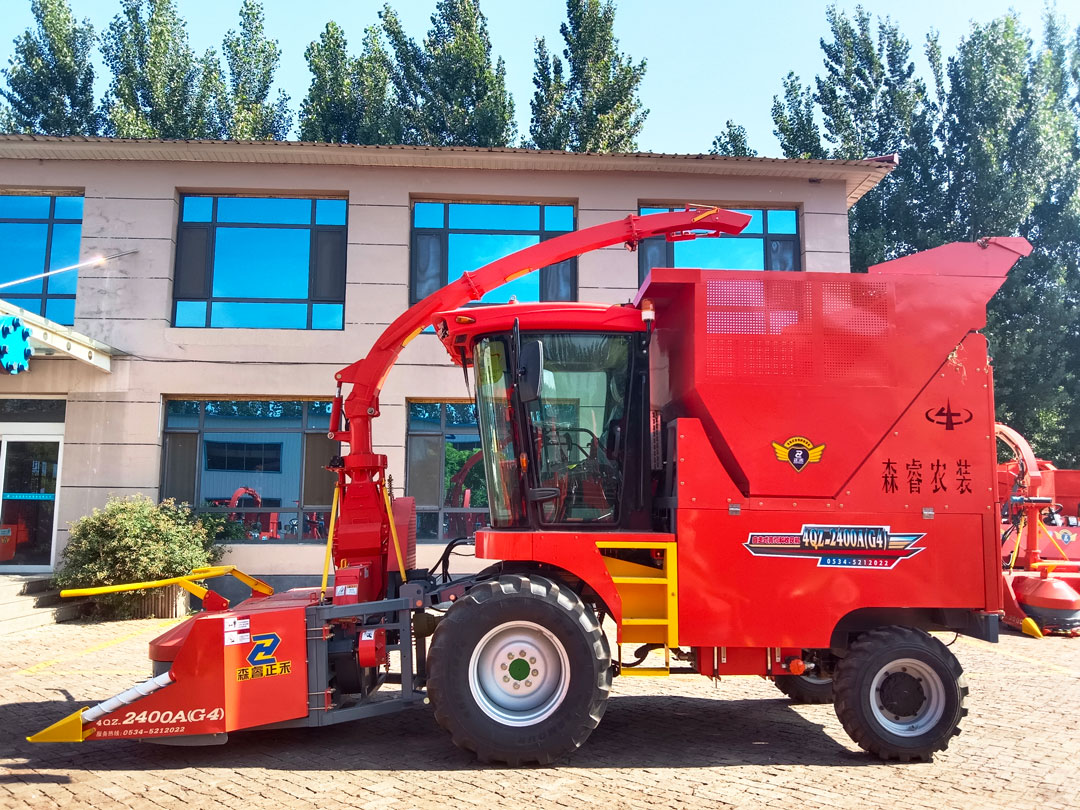

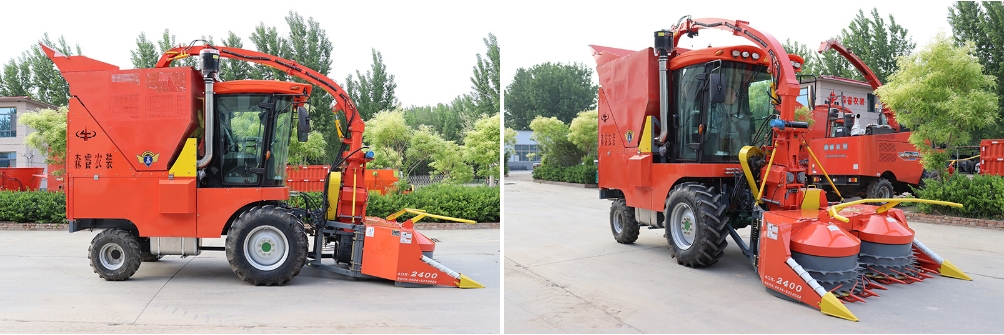

2.220m Self Propelled Forage Harvesters
Product features:

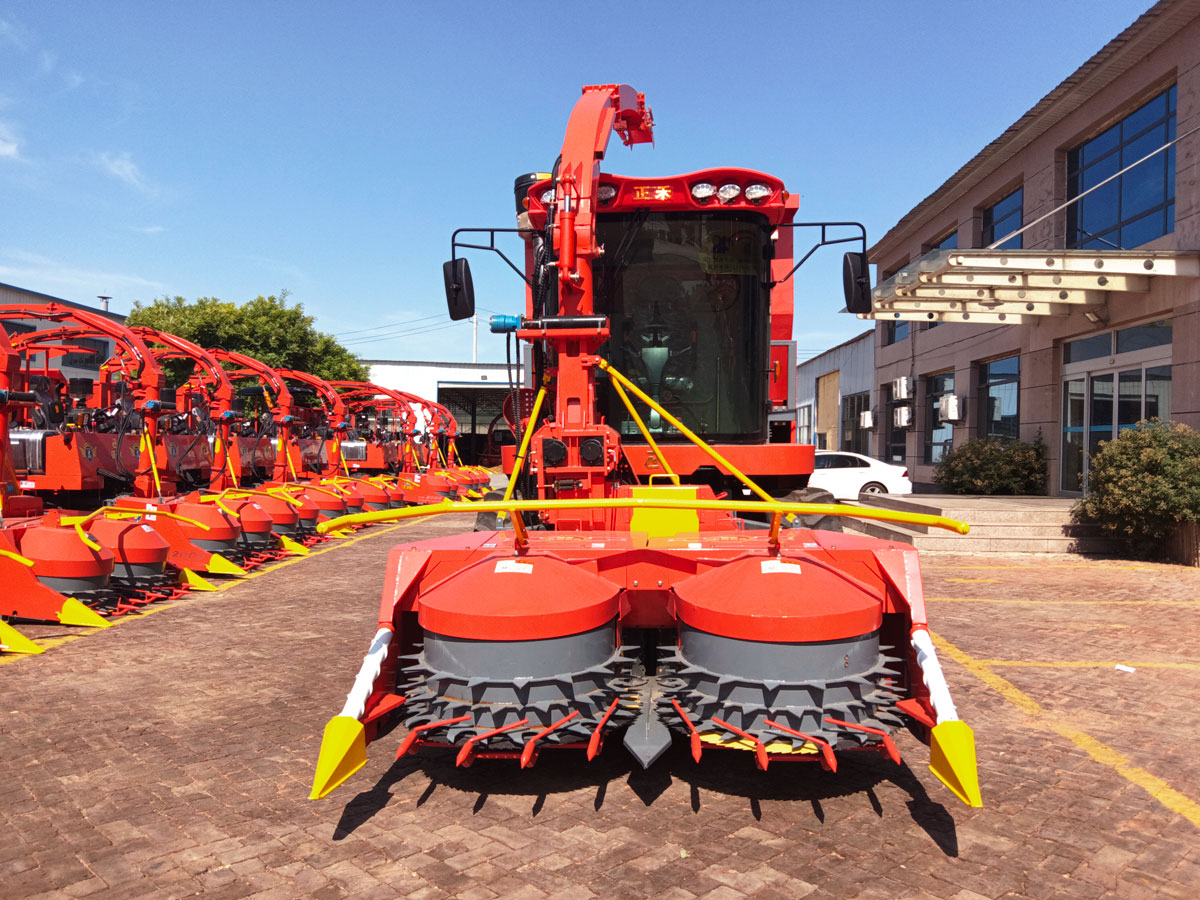

●Cutting deck assembly: 2220 double disc cutting deck, which can be quickly hooked up and is easy to maintain.
●Compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots.
●Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the whole machine, feeding wheel equipped with forward and reverse function, in the event of blockage can be reversed spitting, work efficiency is greatly improved.
●Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
Product introduction:
2.220m Self Propelled Forage Harvester is the most efficient green fodder harvester developed by our company, which is mainly used for harvesting corn stover silage and yellow silage (without cob), and it can complete a number of operations, such as cutting, conveying, flattening, chopping, throwing, loading and so on, for corn plants in one time into the ground.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400A(G4) Self Propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5300 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 176.5 |
Matching engine rated speed | r/min | 2200 |
Cut width | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pairs |
Chopping mechanism type | / | Disc |
Seed crushing mechanism type | / | Roll-on-roll |
Cab type | / | Normal type |
Variable speed | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Product features:
●Cutting deck assembly: 2220 double disc cutting deck, which can be quickly hooked up and is easy to maintain.
●Compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots.
●Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the whole machine, feeding wheel equipped with forward and reverse function, in the event of blockage can be reversed spitting, work efficiency is greatly improved.
●Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
●Seed crushing: High-strength seed crushing rollers, quick replacement, seed crushing rate of more than 97%, improving the palatability and feeding rate of livestock.
●Sprayer drum assembly: the spray drum rotates with worm gear mechanism, which can rotate ±180°, effectively locking the spray drum angle, making the spray angle more stable.
●Feeding box assembly: It comes with a loading box, easy to unload by turning it over, and the secondary lifting function is added, which is better adapted to all kinds of receiving models and makes unloading more convenient.
●Power assembly: Quanchai 240 HP engine, PTO intelligent fuel-saving control, with light load, medium load, heavy load switching function, according to the application of terrain, optional four-wheel drive.
●Control/Hydraulic: Standard air-conditioning, electronic operating handle, suspension seat, driving more comfortable, cab host standard with a large LCD screen and operation monitoring system, improve the operation safety, reliability and intelligence of the machine, the whole machine hydrostatic drive, driving more comfortable.

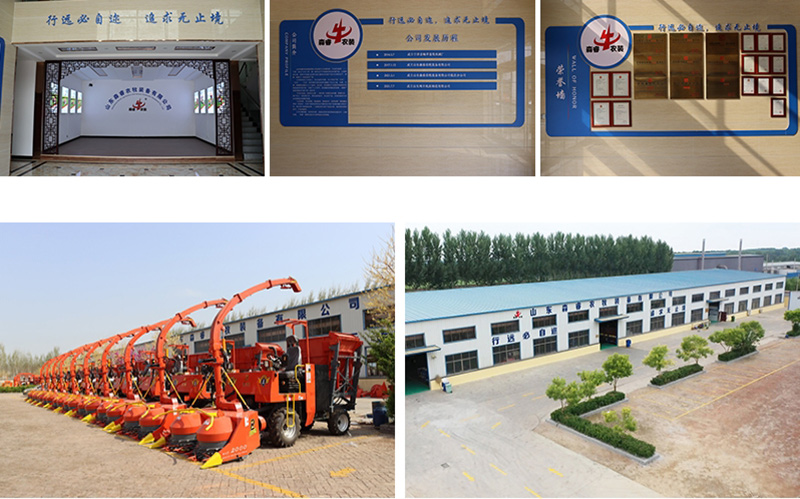

Factory:
