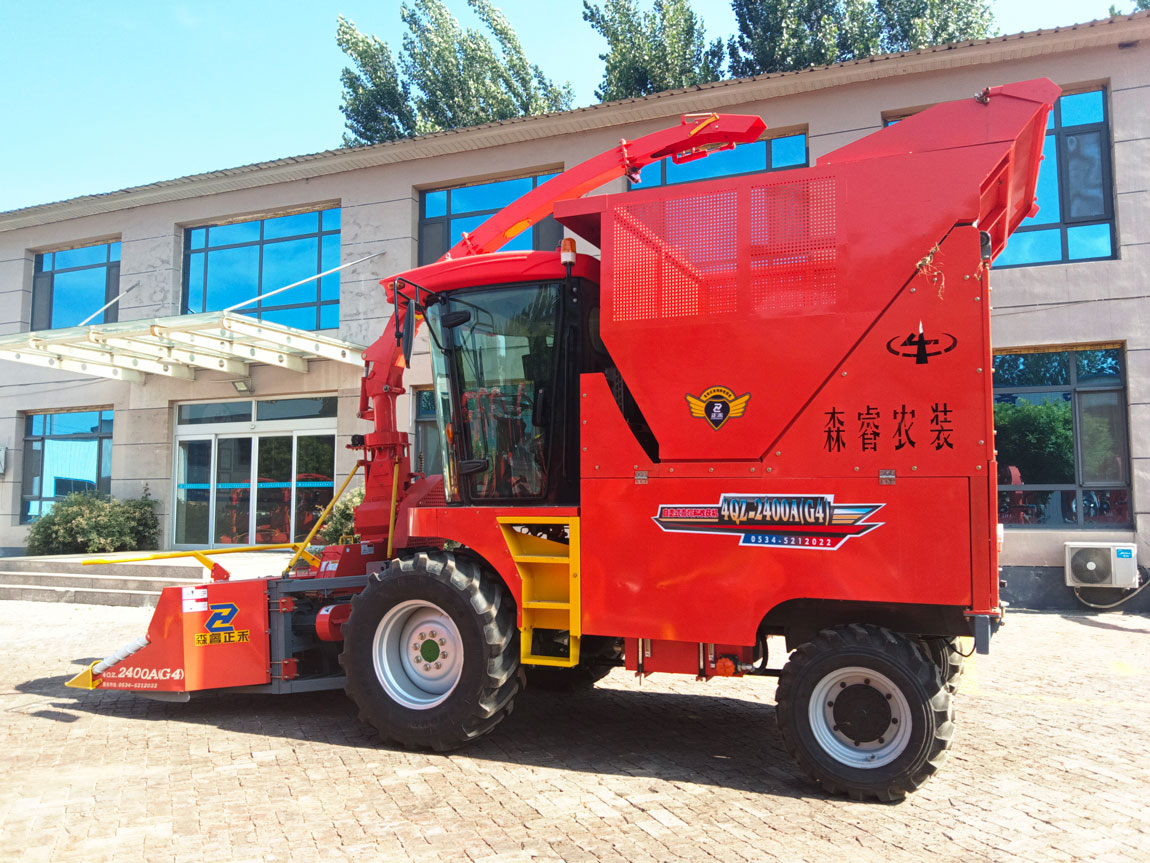

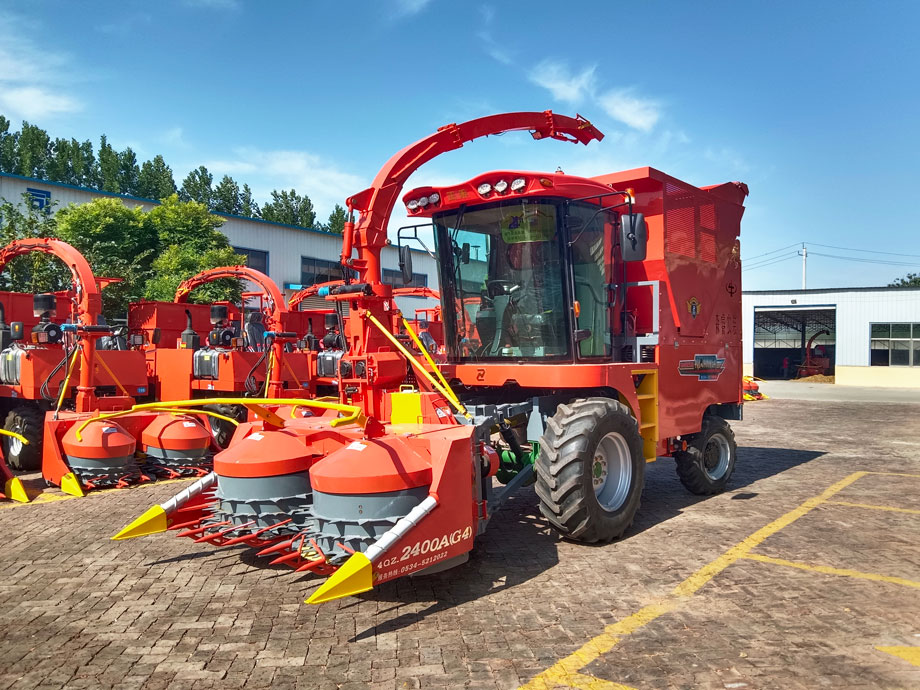

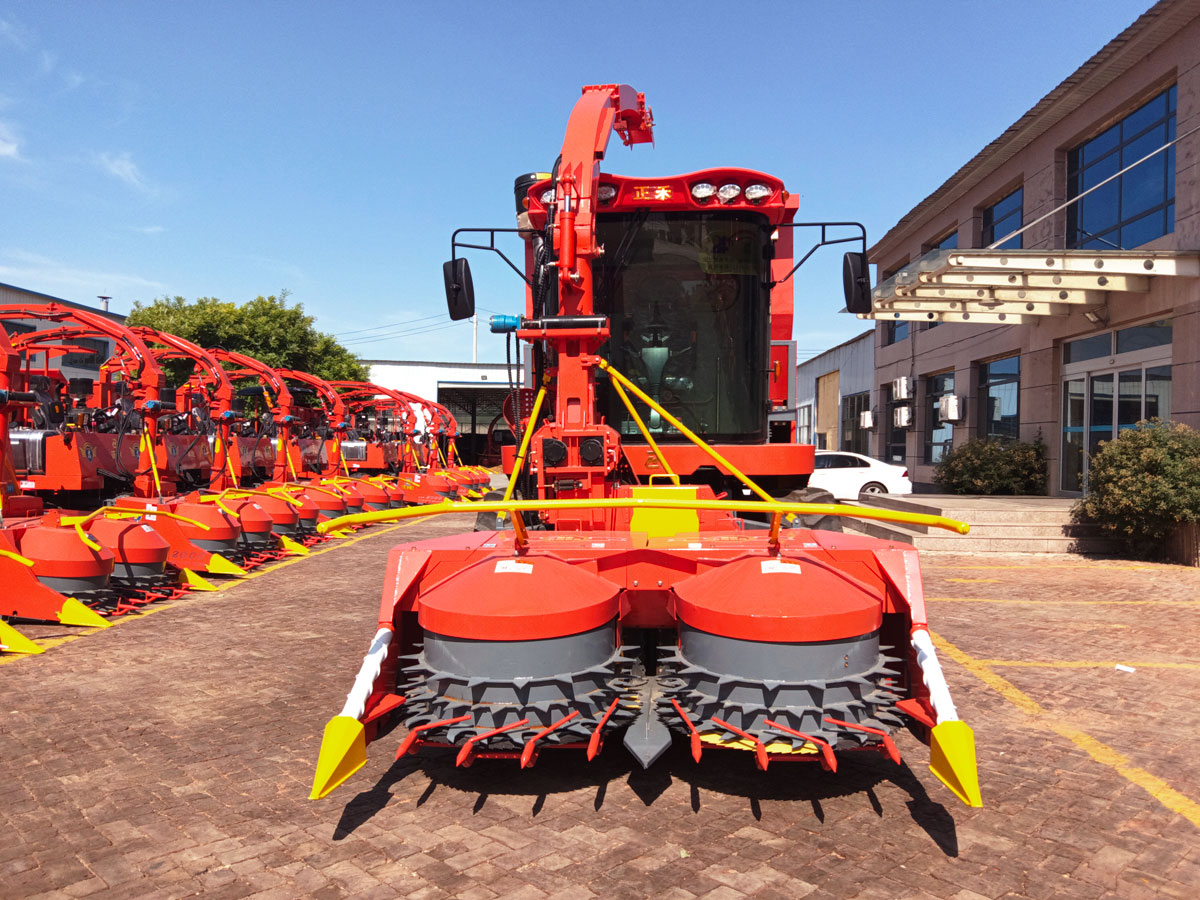

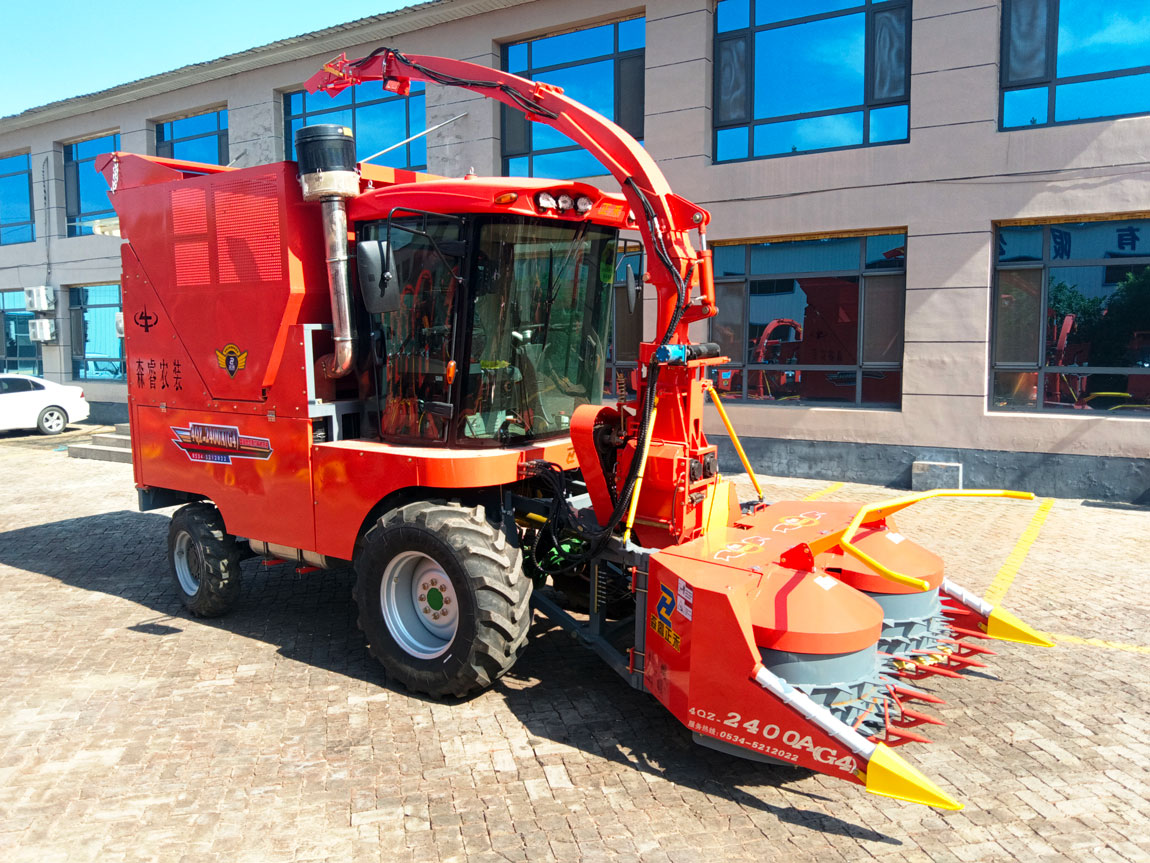

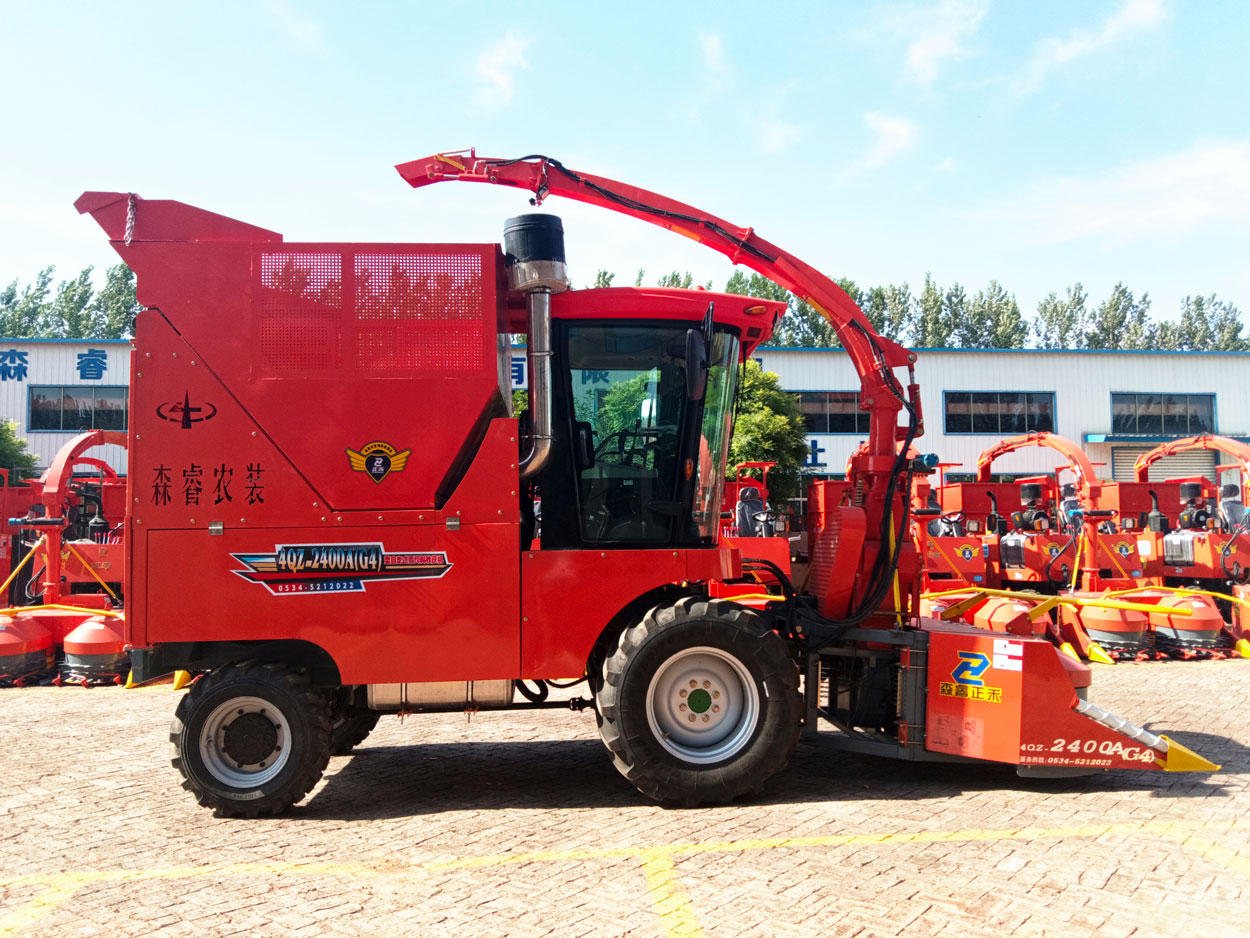

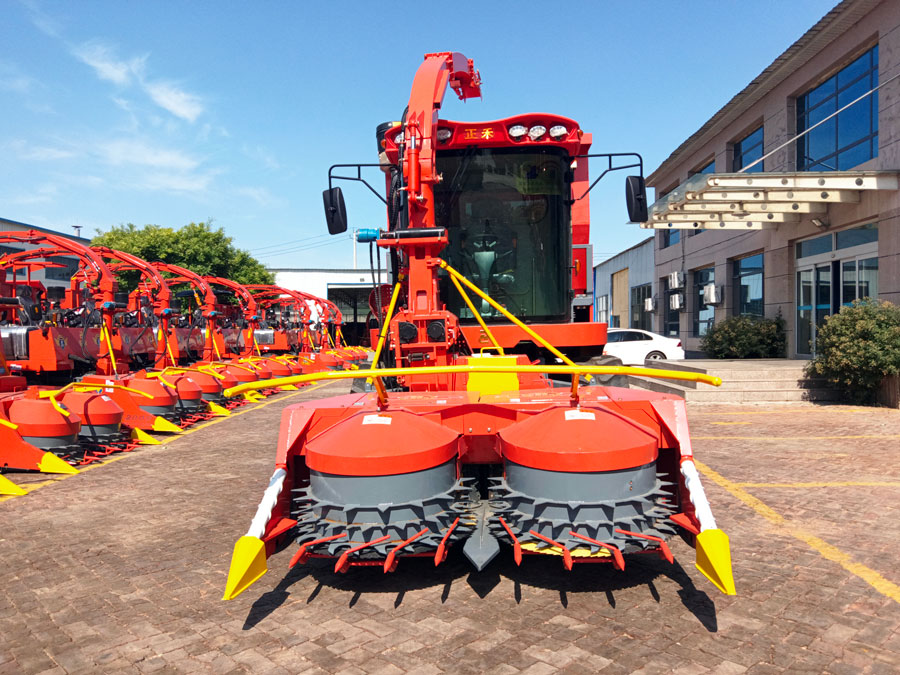

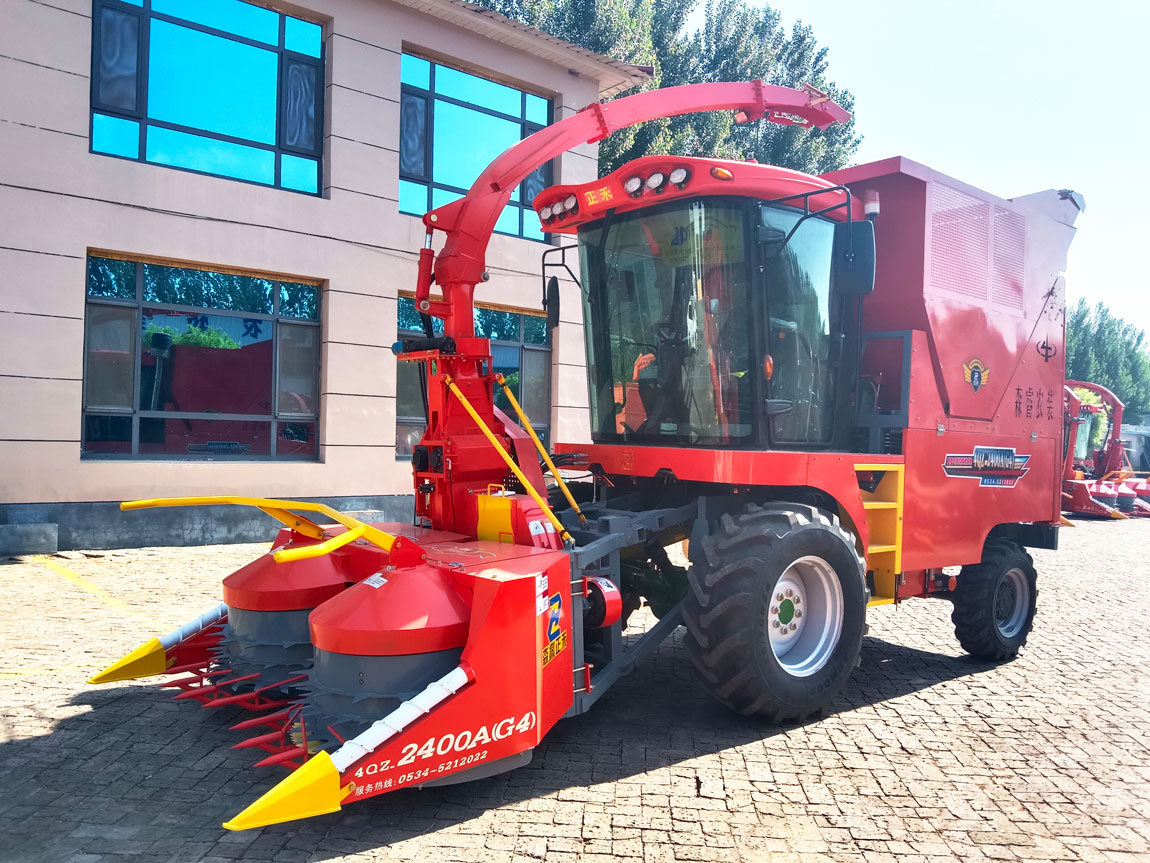

2.220m Self-Propelled Forage Harvesting Machinery
Features
● compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots of work.
● Feeding Assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improve the reliability of the machine, feeding pulley equipment positive and reverse function, in the plug can reverse spitting material, the work efficiency is greatly improved.

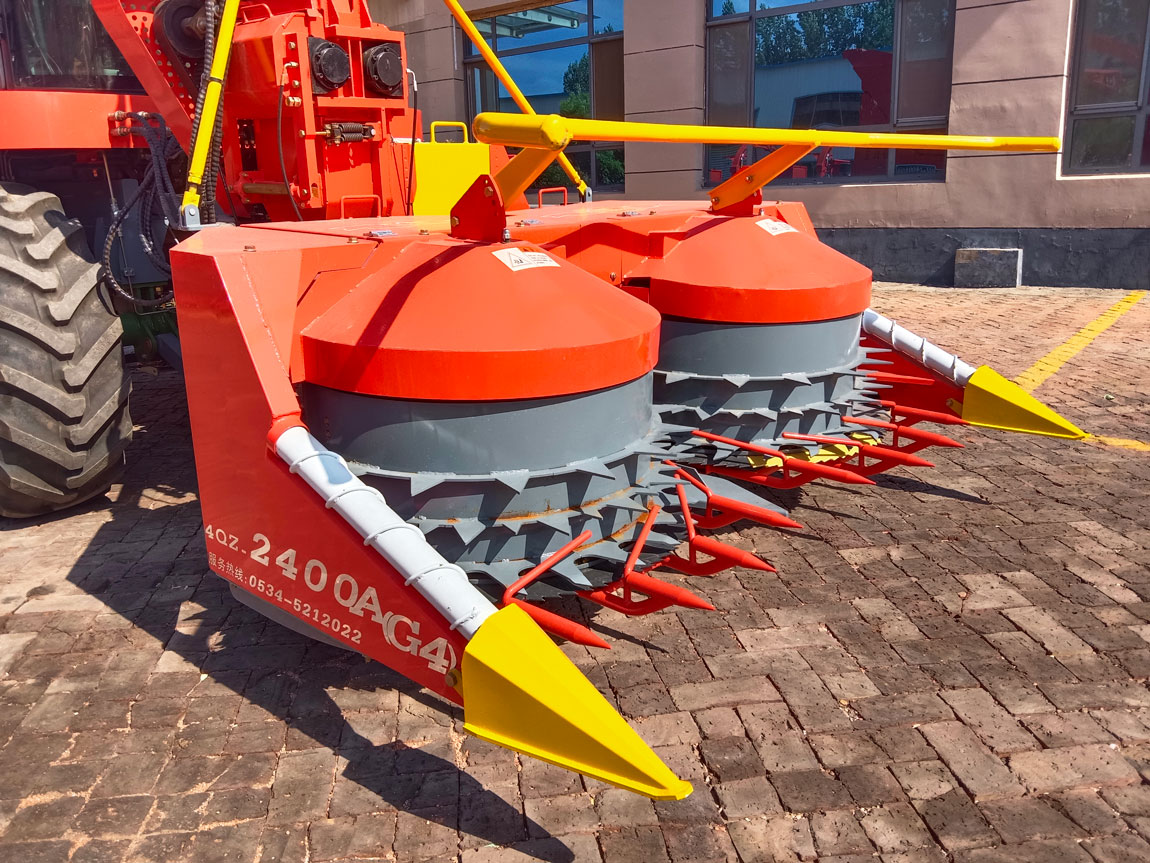

● Chopping Assembly: disc cutter chopping device, using double-disc saw blade type cutter, can adapt to all straw-like forage crops of the wrong line of work, with automatic knife grinding function, to solve the user knife time-consuming and laborious problem, greatly shorten the maintenance time to improve efficiency.
● grain crushing: the high-strength grain crushing roller of the roller, rapid replacement, grain crushing rate of more than 97% , improved the palatability and feed intake rate of livestock.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.
● Feed Box Assembly: with a charging box, after the dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
● Power Assembly: full diesel 240 horsepower engine, PTO intelligent fuel-saving control, with light, medium and heavy load switching functions, according to the application of terrain, optional four-wheel drive.
●maneuverhydraulic: air-conditioning, electronic handle, suspended seat, more comfortable driving, cab main engine with large screen liquid crystal display and Operation Monitoring System, improve the operation safety, reliability, intelligence, the whole machine hydrostatic drive, driving more comfortable.
Product introduction
In the process of agricultural modernization, the green fodder harvester is undoubtedly a significant innovation, which brings unprecedented convenience to the vast number of agricultural producers with its high efficiency, precision and reliability, the equipment adopts the most cutting-edge technology, with a powerful power system and precision cutting device, the choice of green fodder harvester, is the choice of high efficiency, choice of quality, choice of sustainable agricultural future. Let us work hand in hand, with the help of advanced science and technology, to promote agricultural production to a new peak!
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400A(G4) self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5300 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 176.5 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Guide wheel spacing | mm | 1620 |
Guide wheel tyre specifications | / | 10.0/75-15.3 |
Driving Wheel Distance | mm | 1747 |
Driving wheel tyre specifications | / | 400/70R24(16.0/70R24) |
Wheelbases | mm | 2410 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |
