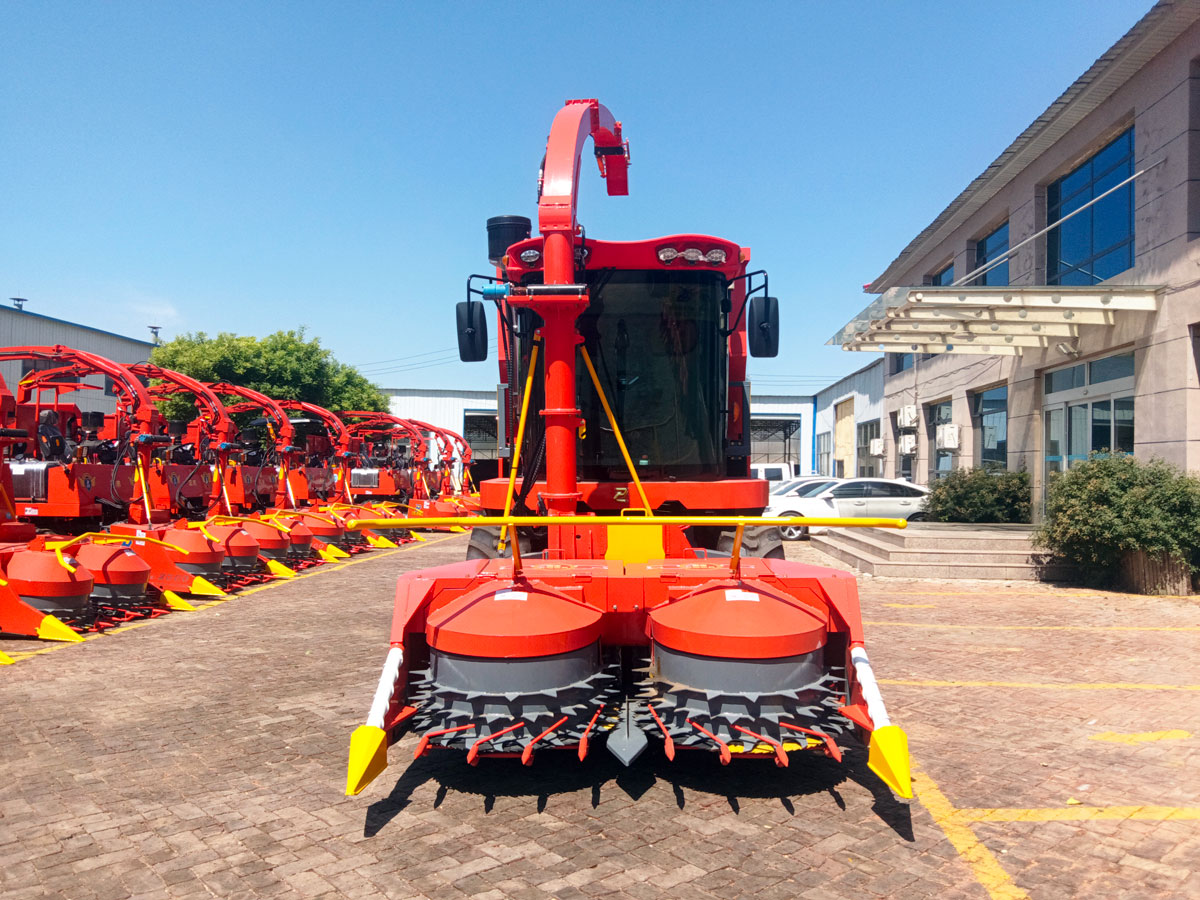

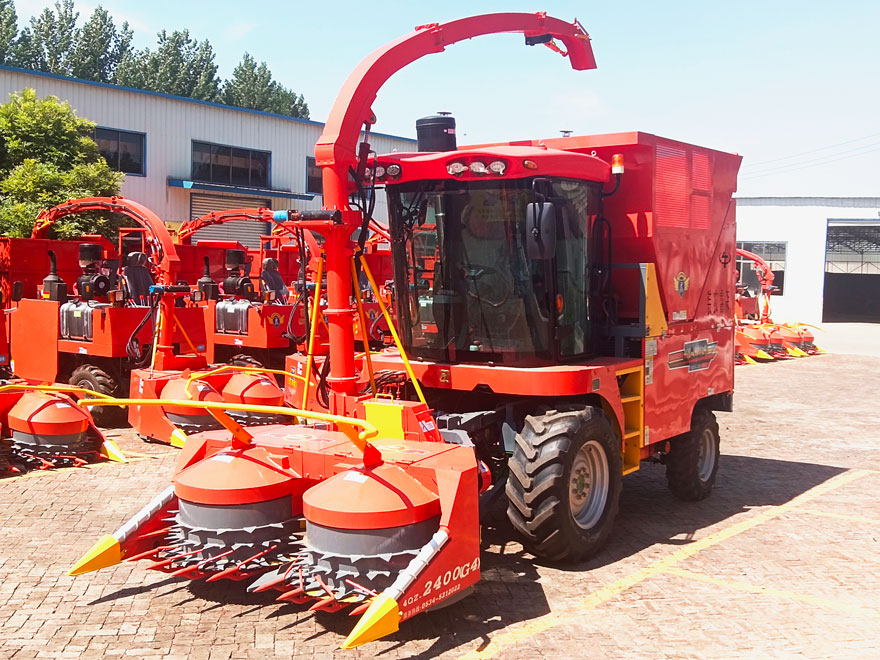

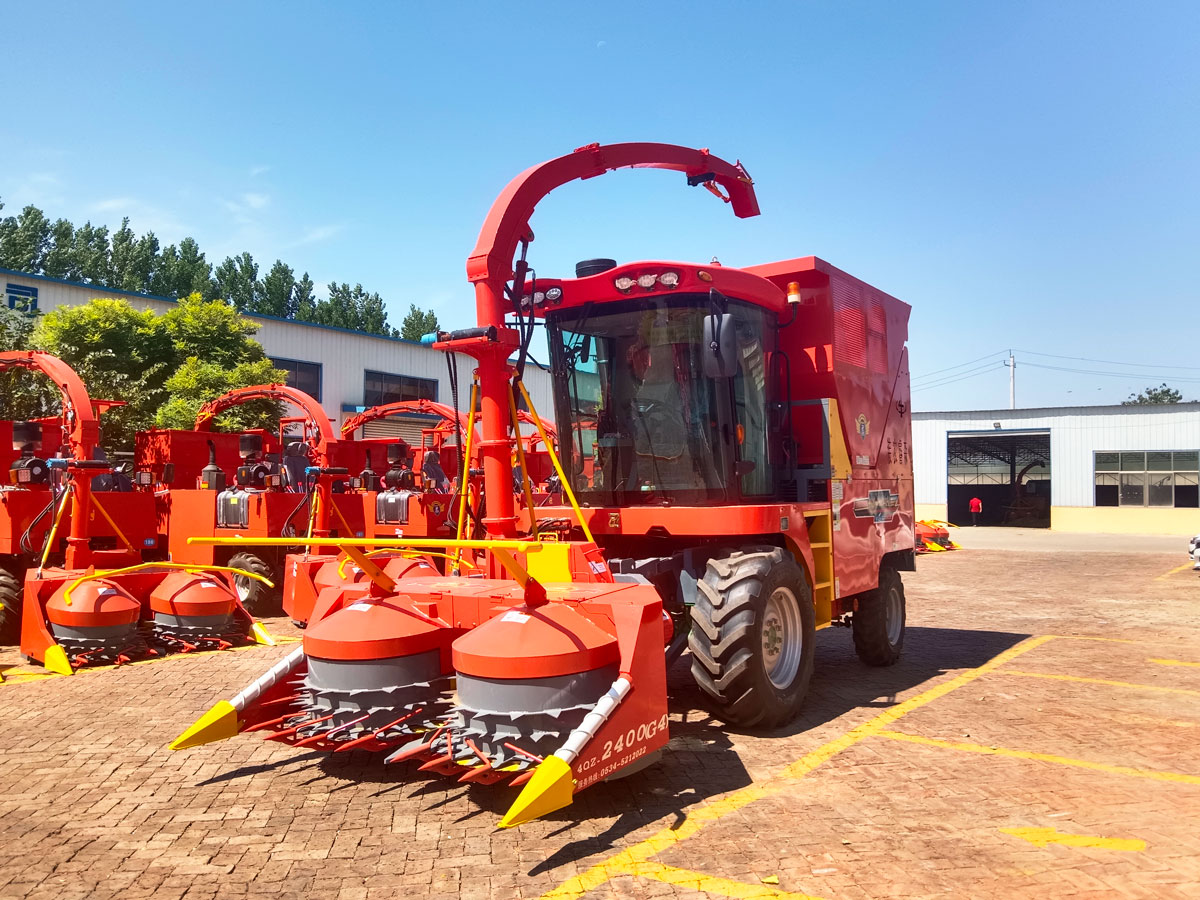

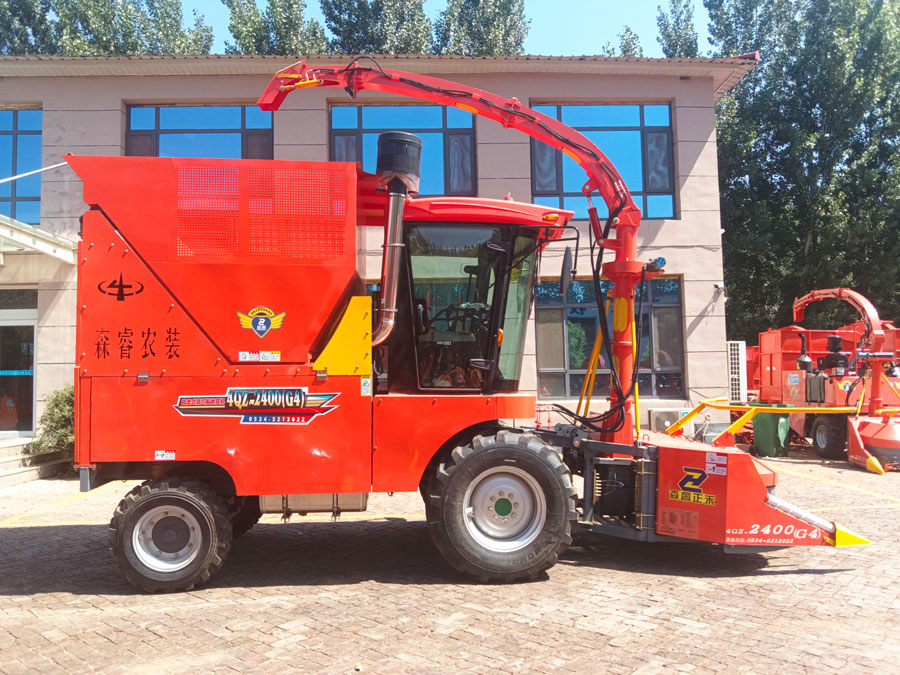

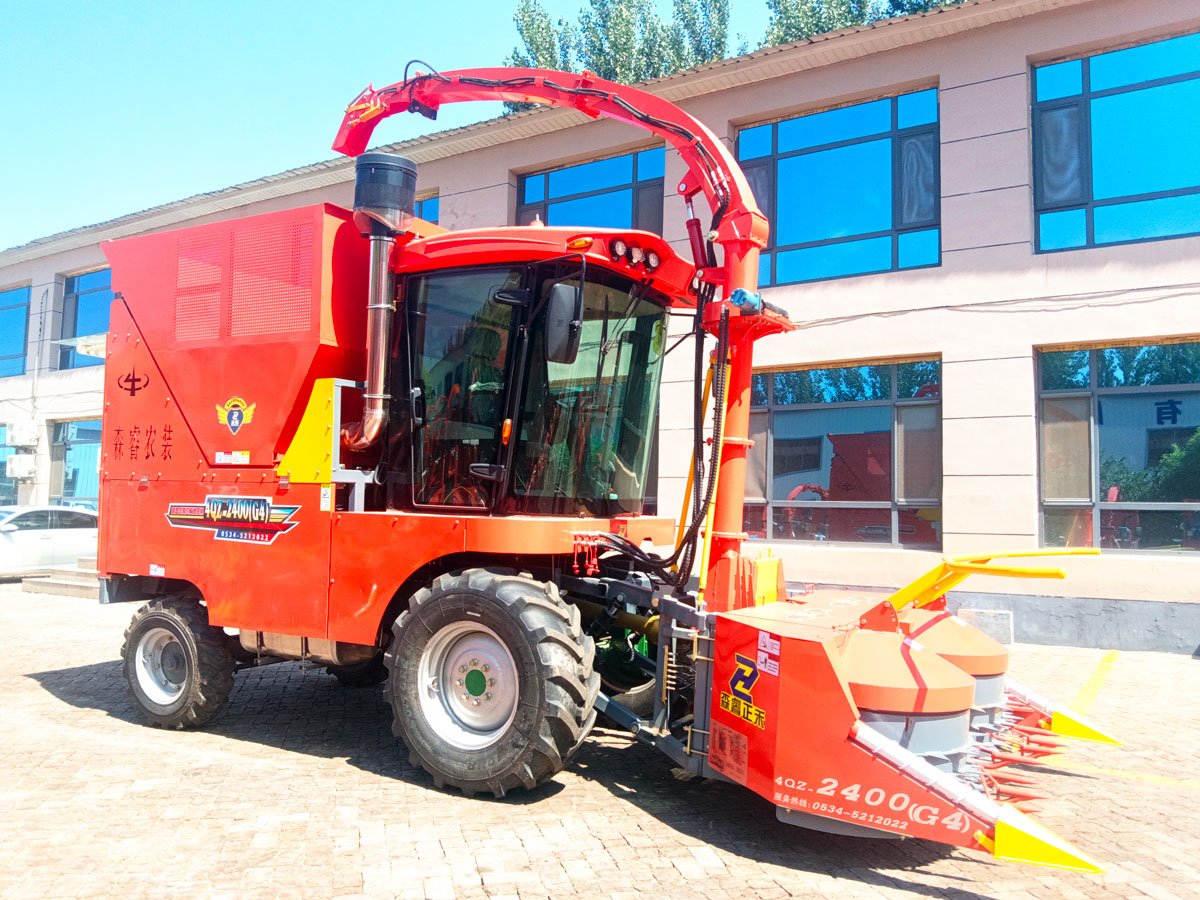

2.220m Self Propelled Forage Harvester
Product features:

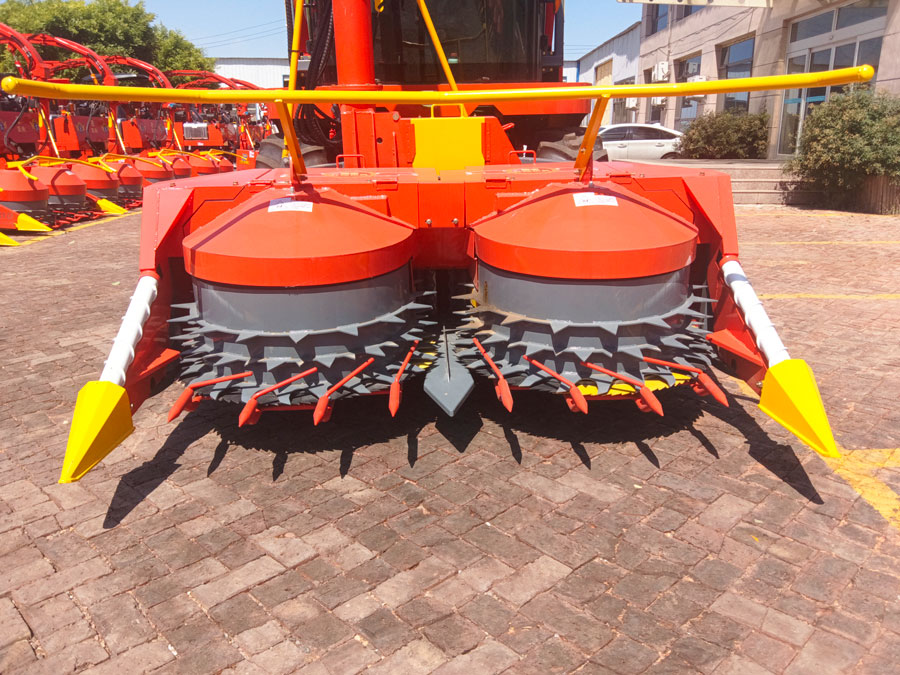

1.Cutting table assembly: 2220 double disc cutting table, which can be hooked up quickly and is easy to maintain.
2.Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the machine, the feed wheel is equipped with a forward and reverse function, in the event of blockage can be reversed spit, the work efficiency is greatly improved.
3.Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
4.Nozzle assembly: the nozzle rotates with worm gear mechanism, which can rotate ±180°, effectively locking the nozzle angle, making the spray angle more stable.
Product introduction:
2.220m self propelled forage harvester is mainly used for corn stalks silage, yellow silage (without cob) harvesting, one time into the ground can complete the corn plant cutting, conveying, flattening, shredding, throwing, loading and many other operations, the whole machine has a compact structure, a small turning radius, easy to operate, reliable quality, suitable for large, medium, and small plots of land operations.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400(G4) self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5200 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 162 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2200 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Guide wheel spacing | mm | 1620 |
Guide wheel tyre specifications | / | 10.0/75-15.3 |
Driving Wheel Distance | mm | 1747 |
Driving wheel tyre specifications | / | 400/70R24(16.0/70R24) |
Wheelbases | mm | 2410 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |
Product features:
1.Cutting table assembly: 2220 double disc cutting table, which can be hooked up quickly and is easy to maintain.
2.Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the whole machine, the feed wheel is equipped with forward and reverse function, in the case of blocking material can be reversed to spit, the work efficiency is greatly improved.
3.Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
4.Sprayer cylinder assembly: the spray cylinder rotates by worm gear mechanism, which can rotate ±180°, effectively locking the spray cylinder angle, making the spray angle more stable.

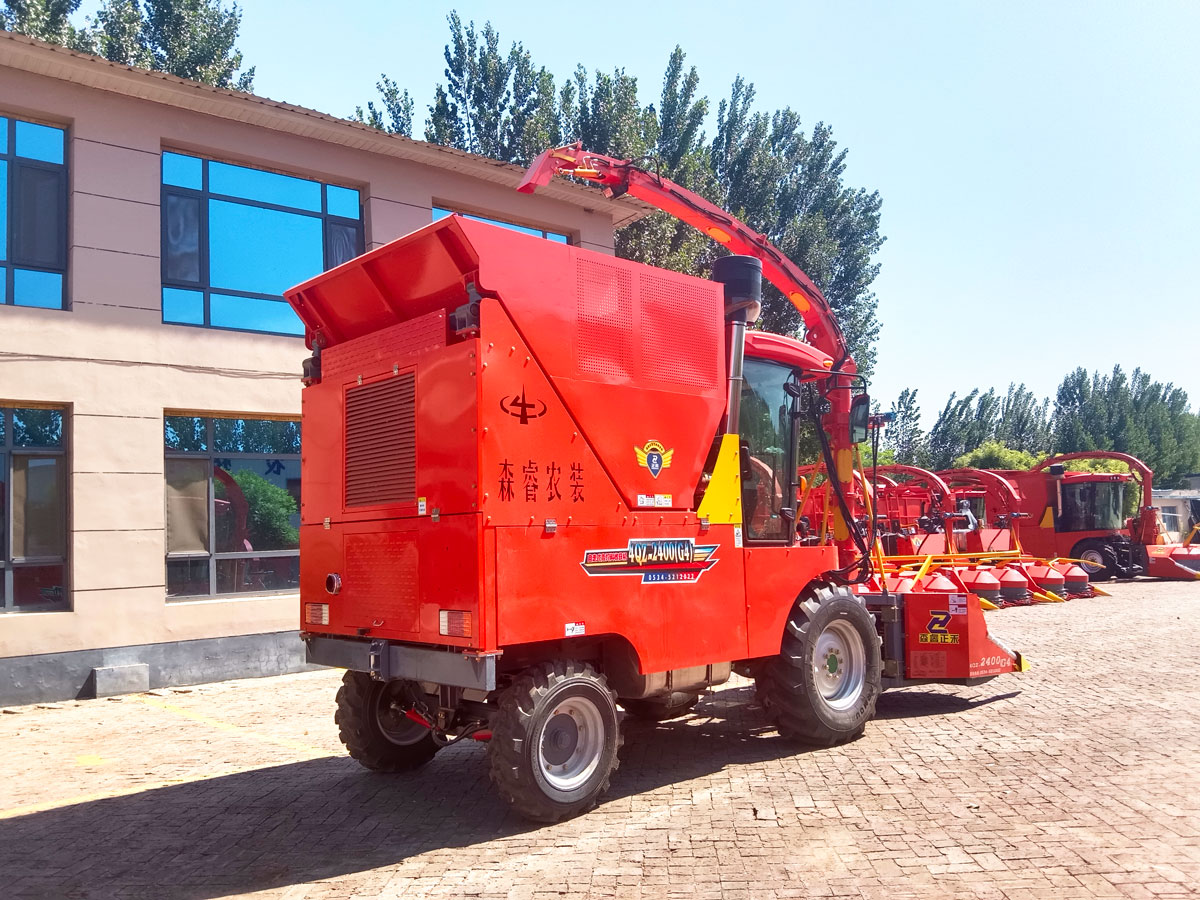

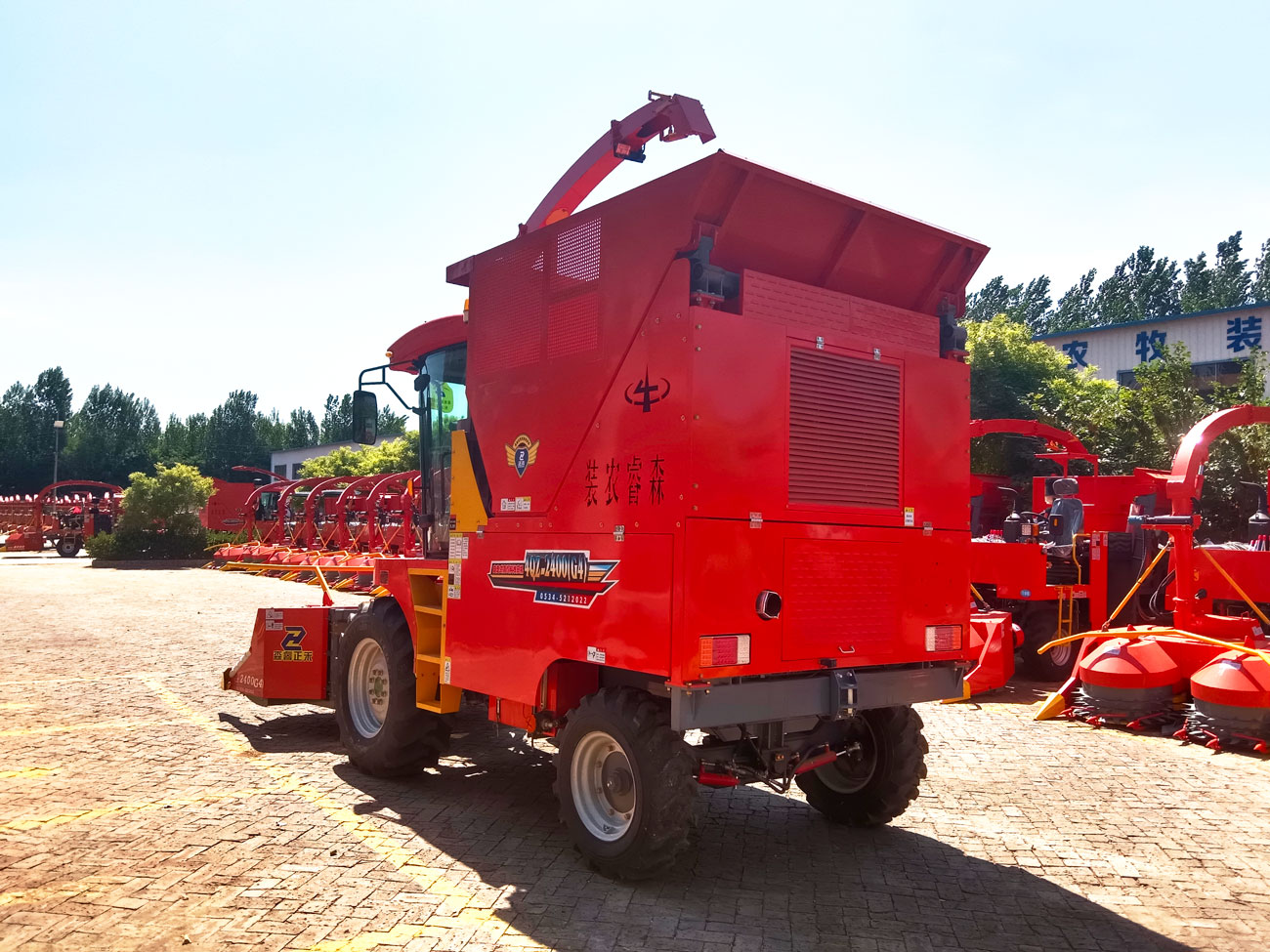

5.Feeding box assembly: It comes with a large-volume loading box, which is easy to unload by turning back and adding a secondary lifting function to better adapt to a variety of receiving models and make unloading more convenient.
6.Power assembly: Quanchai 220 hp engine, PTO intelligent fuel-saving control, with light load, medium load, heavy load switching function, according to the application of terrain, can be equipped with four-wheel drive.

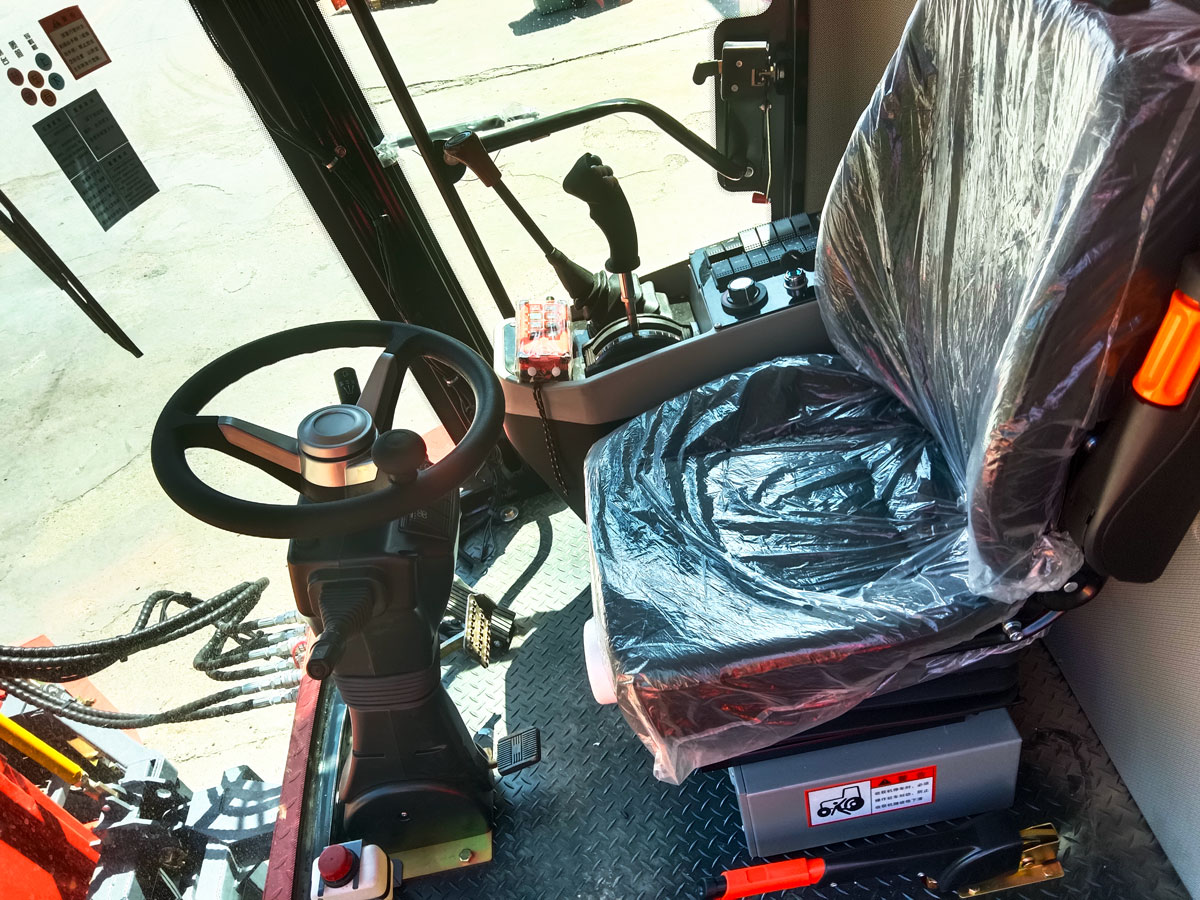

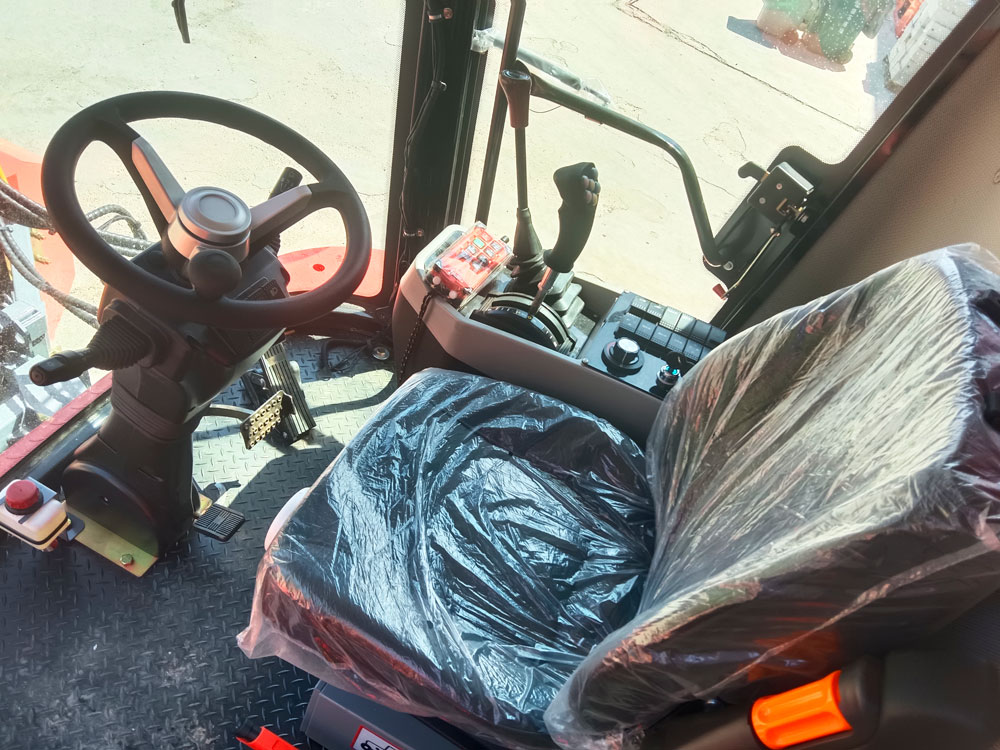

7.Control/Hydraulic: Standard air-conditioning, electronic operating handle, suspension seat, driving more comfortable, cab host standard with a large LCD screen and operation monitoring system, improve the operation safety, reliability and intelligence of the machine, the whole machine hydrostatic drive, driving more comfortable.

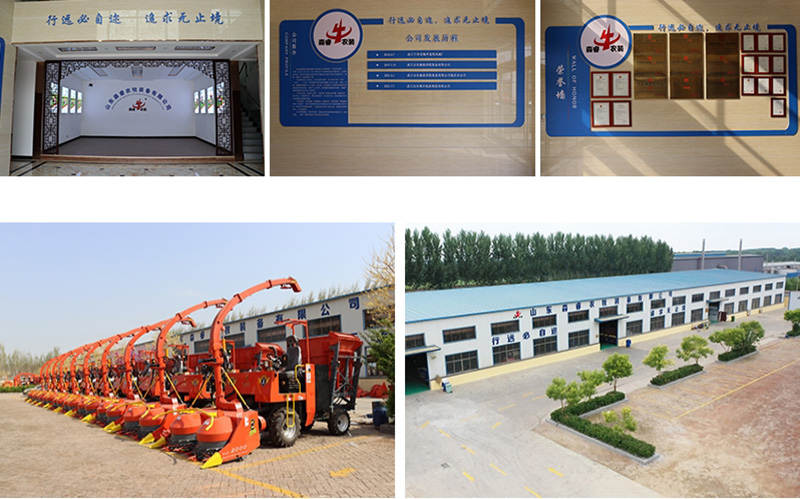

Factory:
