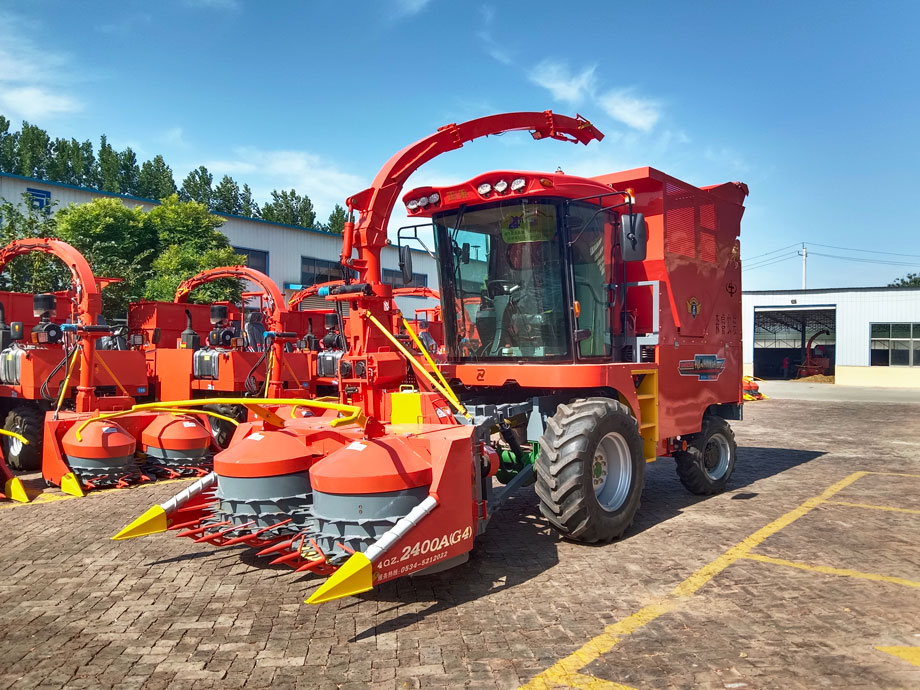

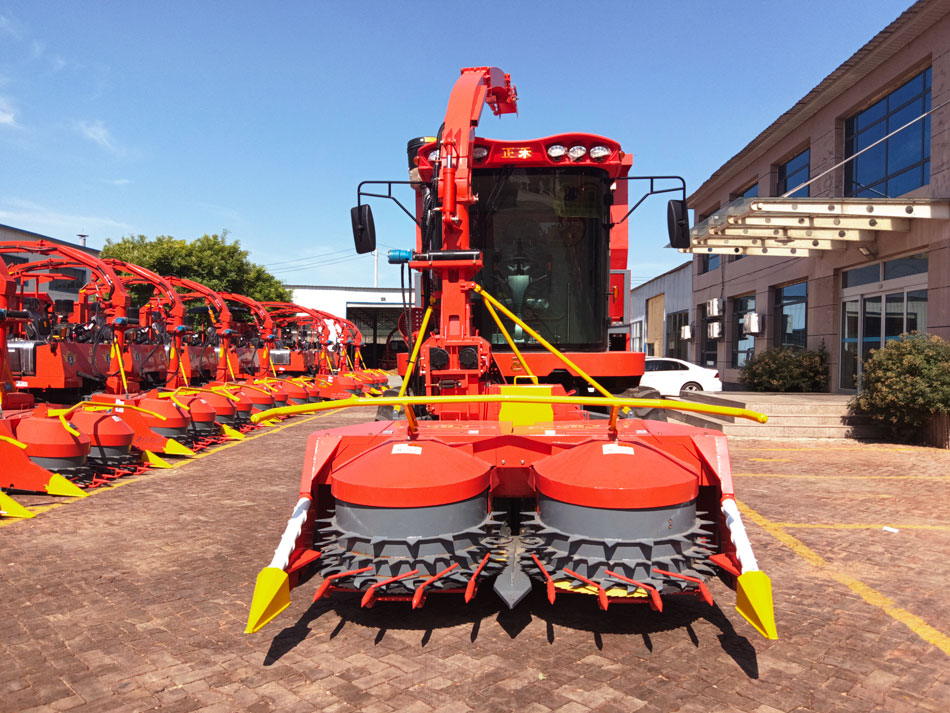

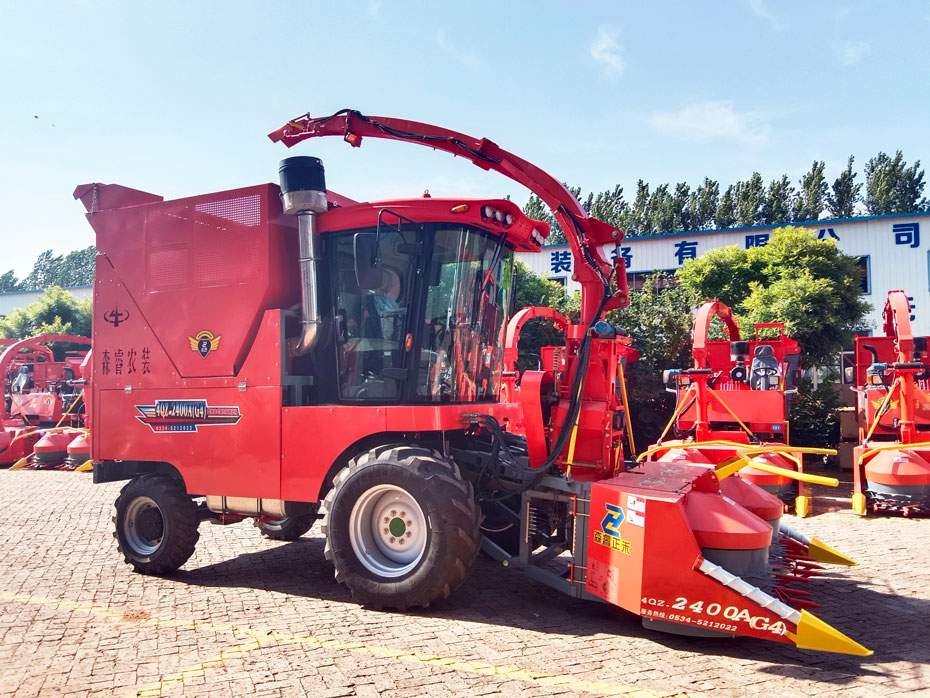

2.220m Small And Medium-Sized Corn Straw Harvester
Senrui 4QZ-2400A(G4)Product introduction:
2.220m silage harvester is the most efficient green forage harvester developed by our company. It is mainly used for silage and yellow storage (without ear) harvesting of corn stalks. It can cut, transport, flatten, chop, throw and load corn plants at one time.
Product features of senrui 2.220m self-propelled silage machine:
● Feeding assembly: Four-roller feeding room, segmented design, more convenient maintenance, vertical clamping feeding device, which improves the reliability of the whole machine, and the feeding dial wheel is equipped with forward and reverse rotation function, which can reverse the feeding of grass when blocking grass and improve work efficiency.
● Chopping assembly: a disc cutter chopping device, which uses two disc saw blades, can harvest alfalfa, winter grazing ryegrass 70, Mexican corn grass, sainfoin, agropyron cristatum, duck grass, elymus sibiricus, elymus sibiricus, sweet sorghum, ryegrass, king gaodan, yellow clover, sorghum sudanense, Chinese milk vetch.
● Spray tube assembly: The spray tube rotates with a worm gear mechanism, which can rotate 180, effectively locking the spray tube angle and making the spray angle more stable.

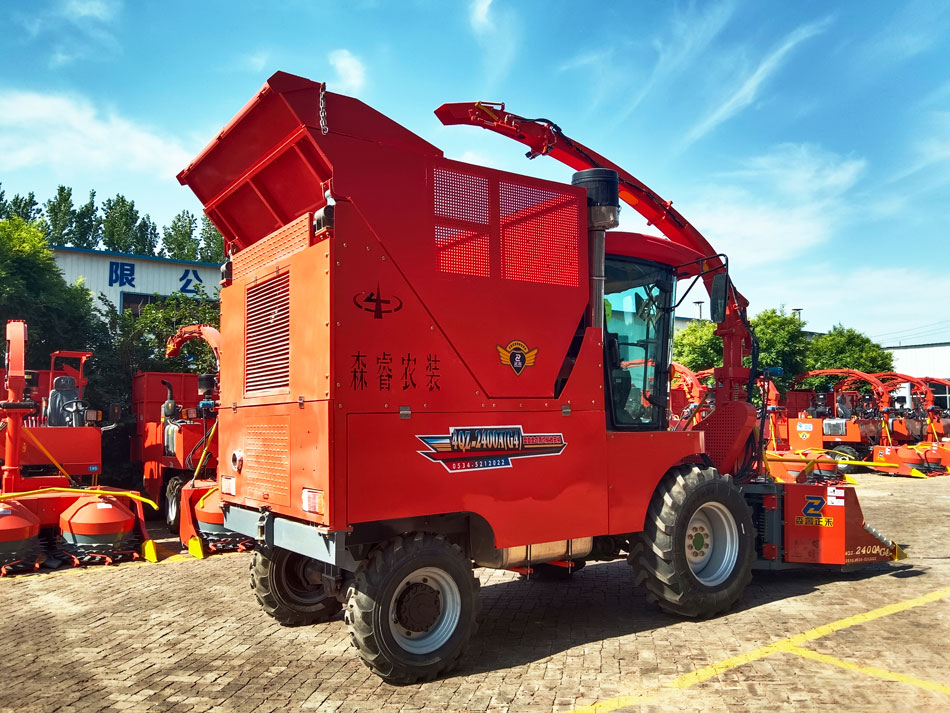

● Material box assembly: it comes with a large-volume loading box, which is easy to turn over and unload, and has the function of secondary lifting, which is more suitable for various receiving vehicles and more convenient to unload.
● Powertrain: All-diesel 176.5KW engine, PTO intelligent fuel-saving control, light load, medium load and heavy load switching function. According to the application terrain, you can choose two-wheel drive and four-wheel drive.

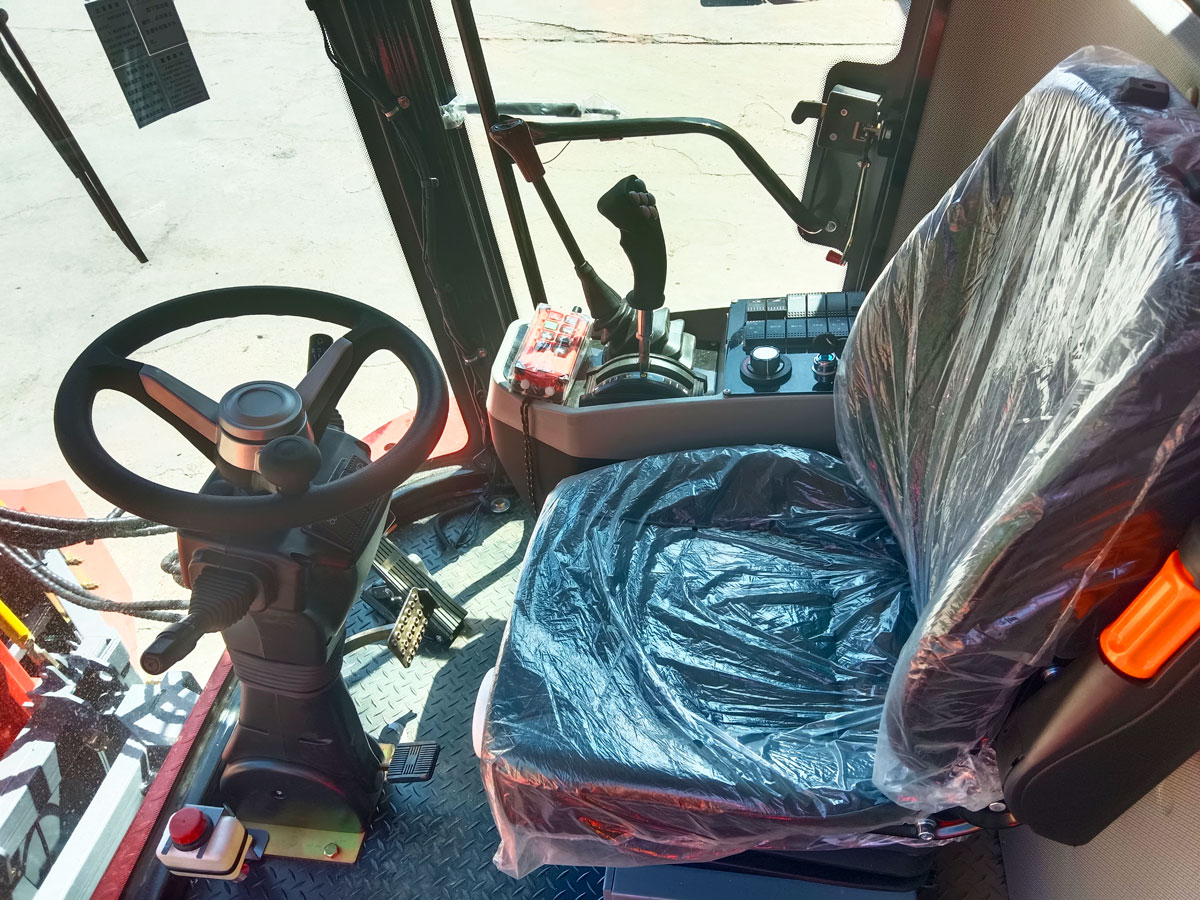

● Control/hydraulics: air conditioner, electronic operating handle and suspended seat are standard, which makes driving more comfortable. The main engine of the cab is standard with large-screen LCD screen and operation monitoring system, which improves the operation safety, reliability and intelligence of the machine. The whole machine is driven by hydrostatic pressure, which makes driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400A(G4) self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5300 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 176.5 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Guide wheel spacing | mm | 1620 |
Guide wheel tyre specifications | / | 10.0/75-15.3 |
Driving Wheel Distance | mm | 1747 |
Driving wheel tyre specifications | / | 400/70R24 |
Wheelbases | mm | 2410 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |
