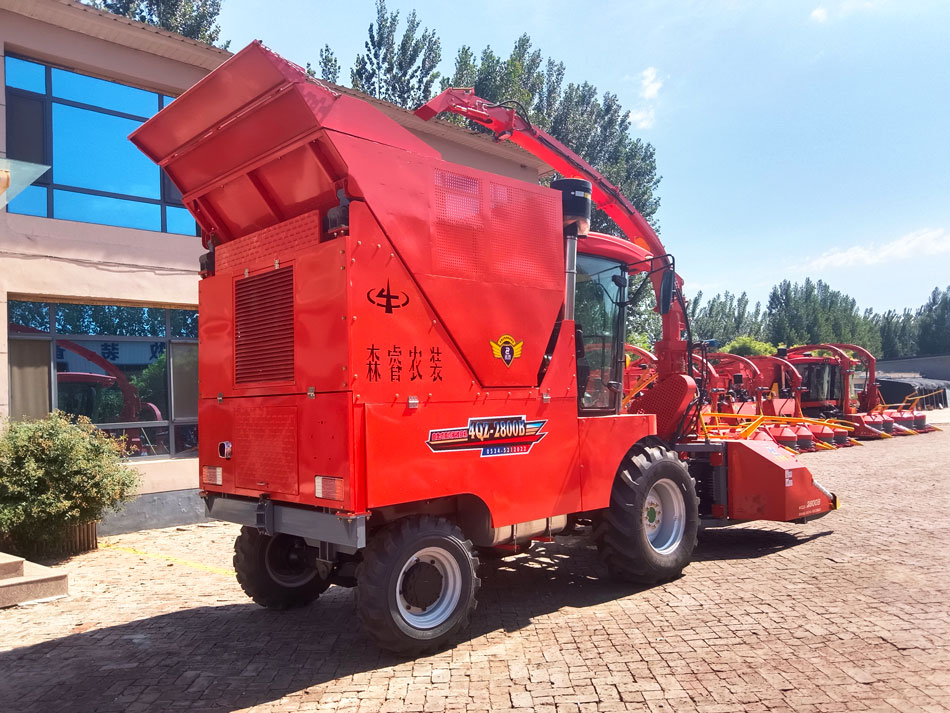

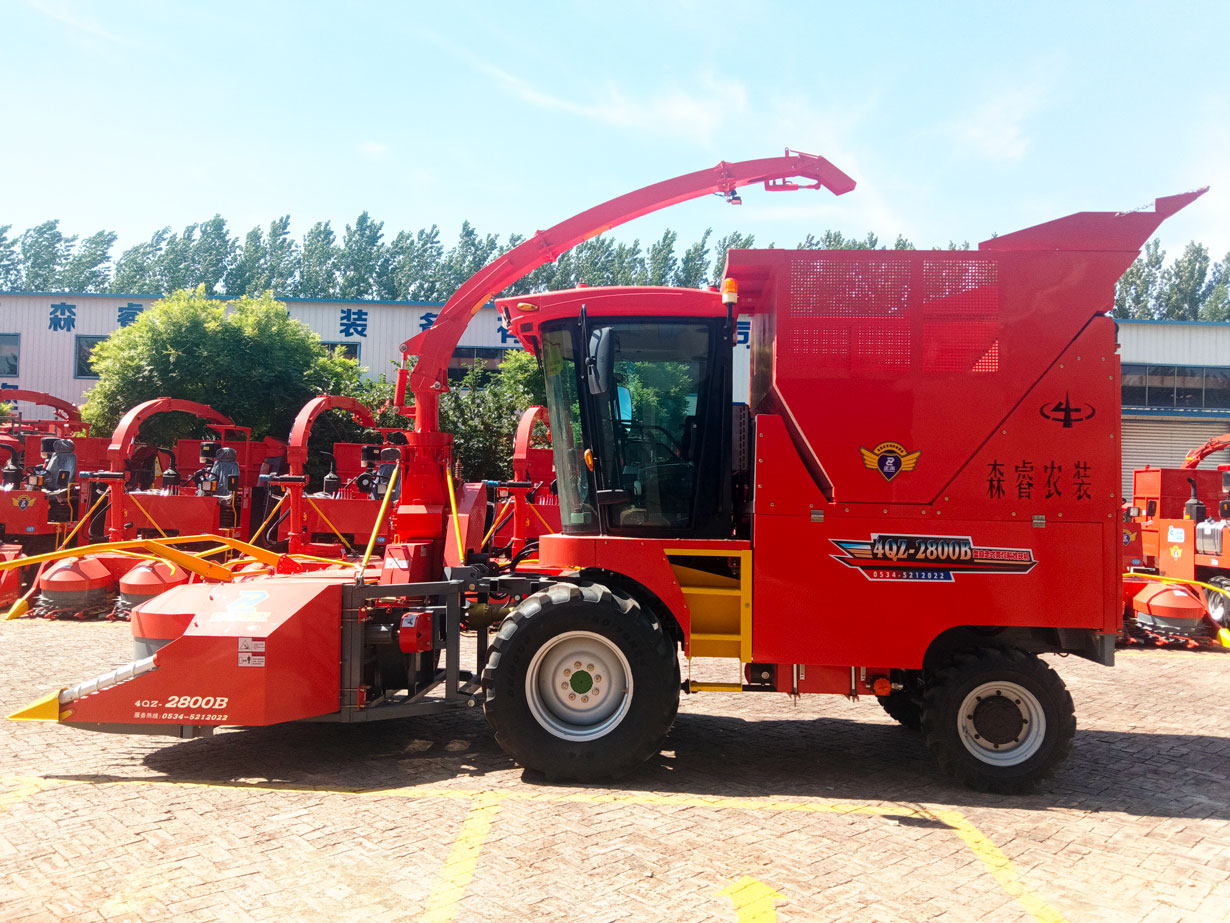

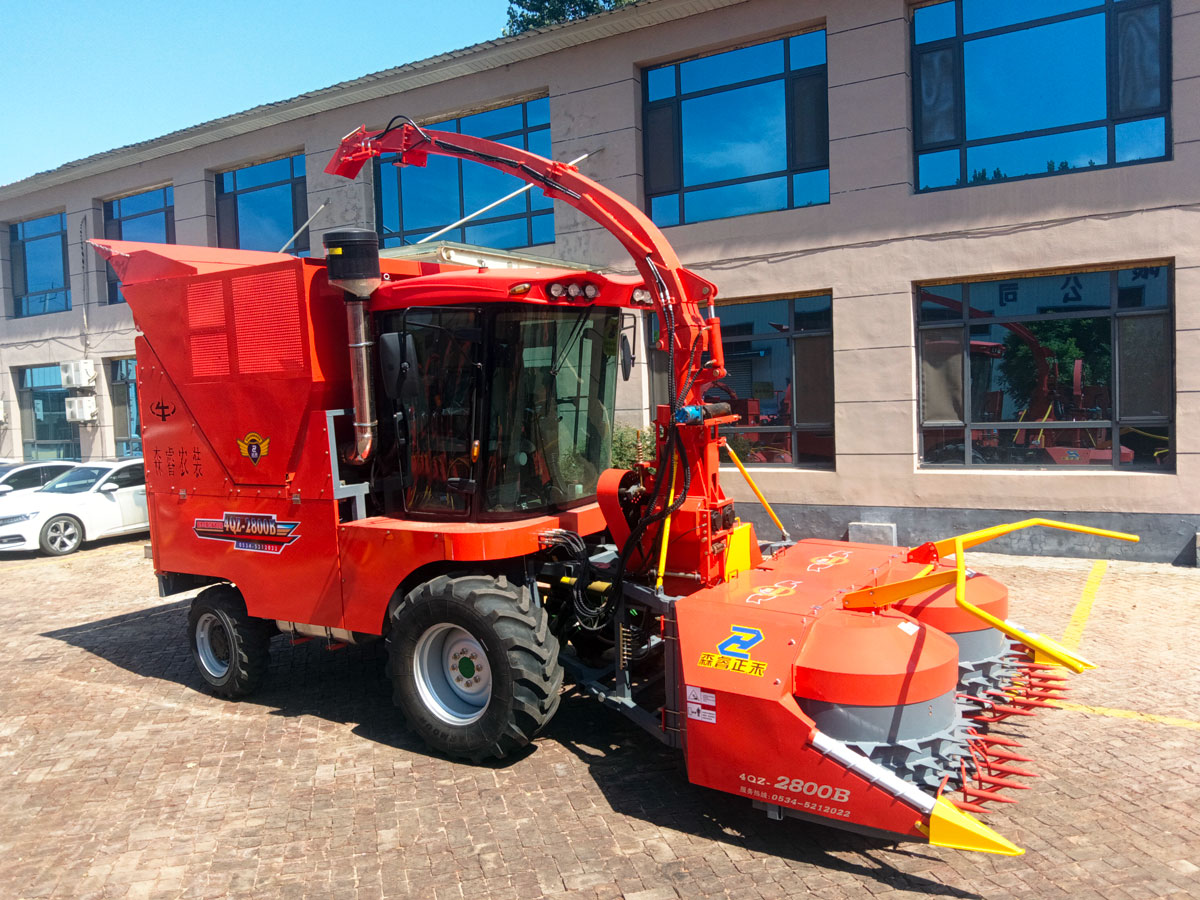

2.620m Wheeled Feed Harvesting Machinery

Features

● compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots of work.

● Feeding Assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improve the reliability of the machine, feeding pulley equipment positive and reverse function, in the plug can reverse spitting material, the work efficiency is greatly improved.

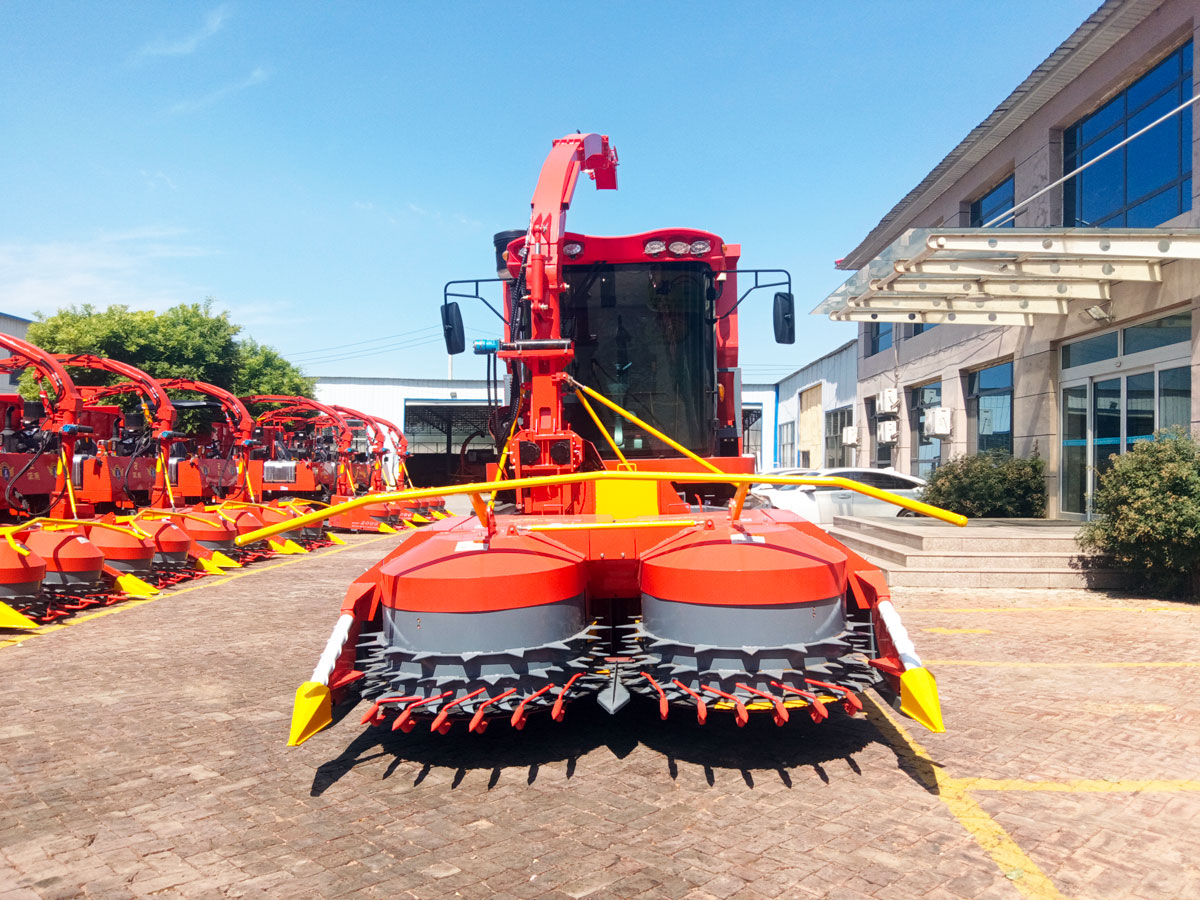

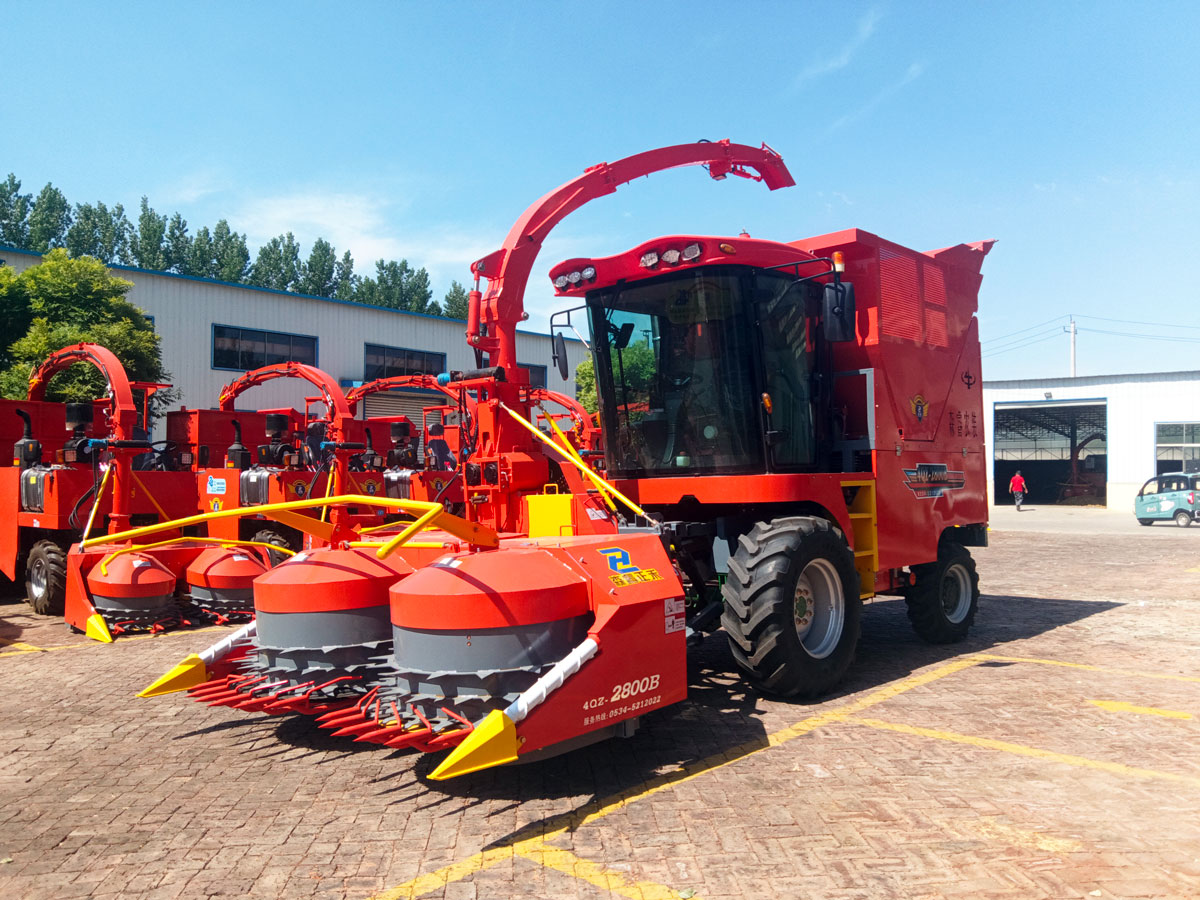

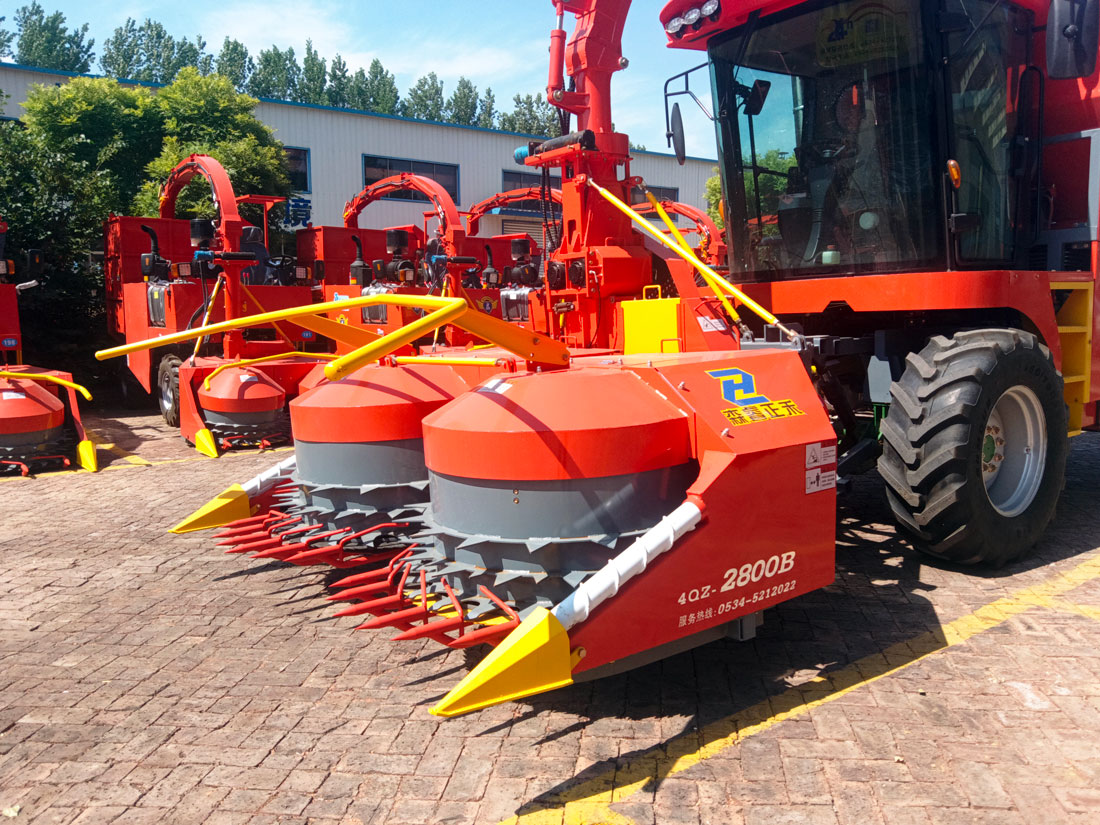

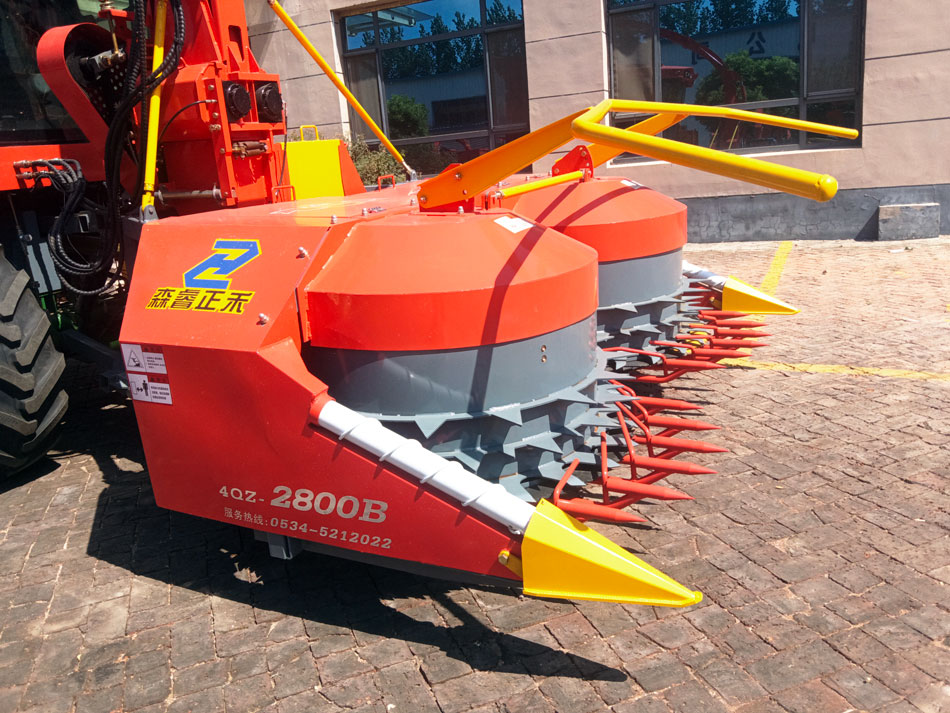

● Chopping Assembly: disc cutter chopping device, using double-disc saw blade type cutter, can adapt to all straw-like forage crops of the wrong line of work, with automatic knife grinding function, to solve the user knife time-consuming and laborious problem, greatly shorten the maintenance time to improve efficiency.

● grain crushing: the high-strength grain crushing roller of the roller, rapid replacement, grain crushing rate of more than 97% , improved the palatability and feed intake rate of livestock.

● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.

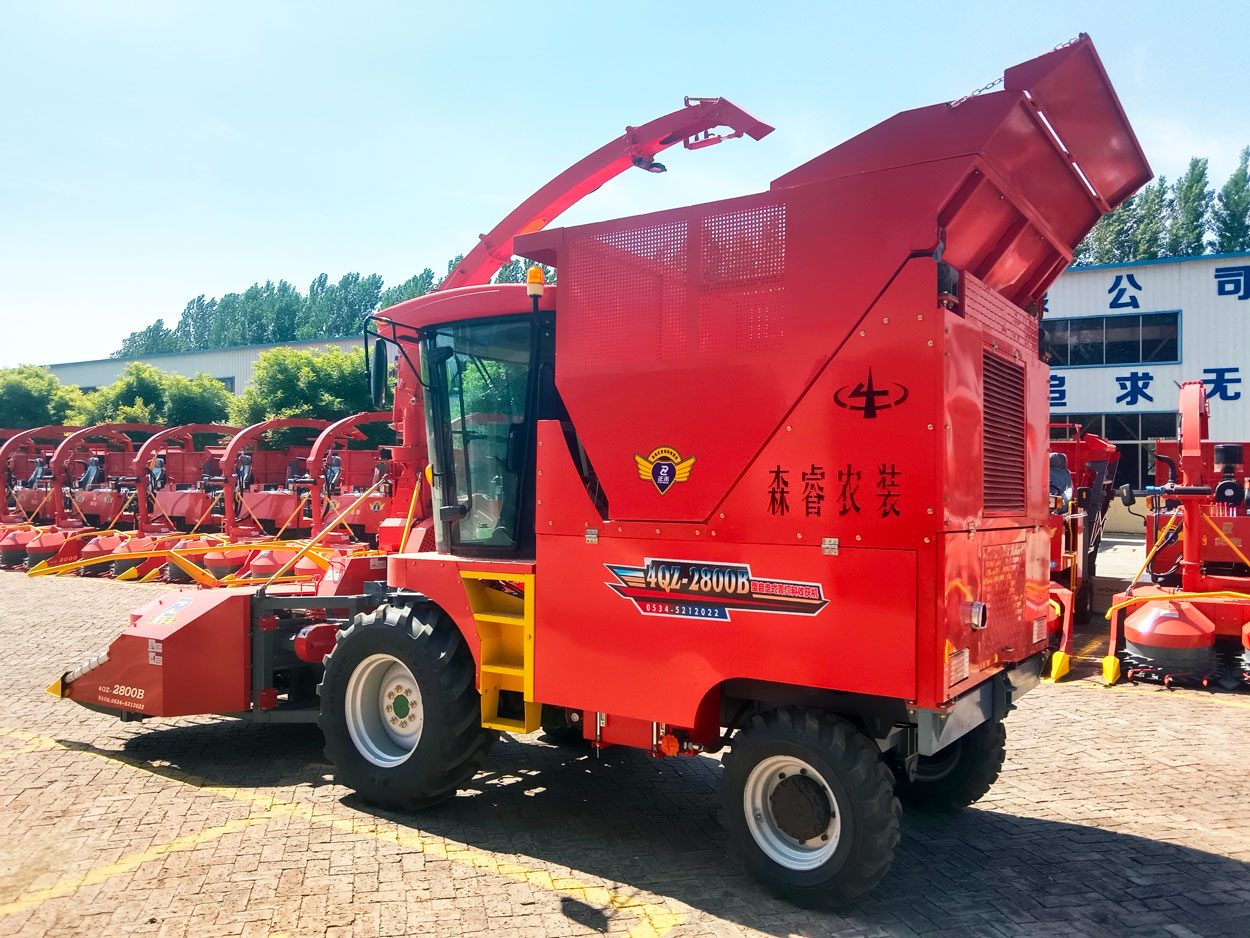

● Feed Box Assembly: with a charging box, after the dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.

● Power Assembly: Yuchai 300 horsepower engine, PTO intelligent fuel-saving control, with light load, medium load, heavy load switching function, according to the application of terrain, optional four-wheel drive. ●maneuverhydraulic: air-conditioning, electronic handle, suspended seat, more comfortable driving, cab main engine with large screen liquid crystal display and Operation Monitoring System, improve the operation safety, reliability, intelligence, the whole machine hydrostatic drive, driving more comfortable
