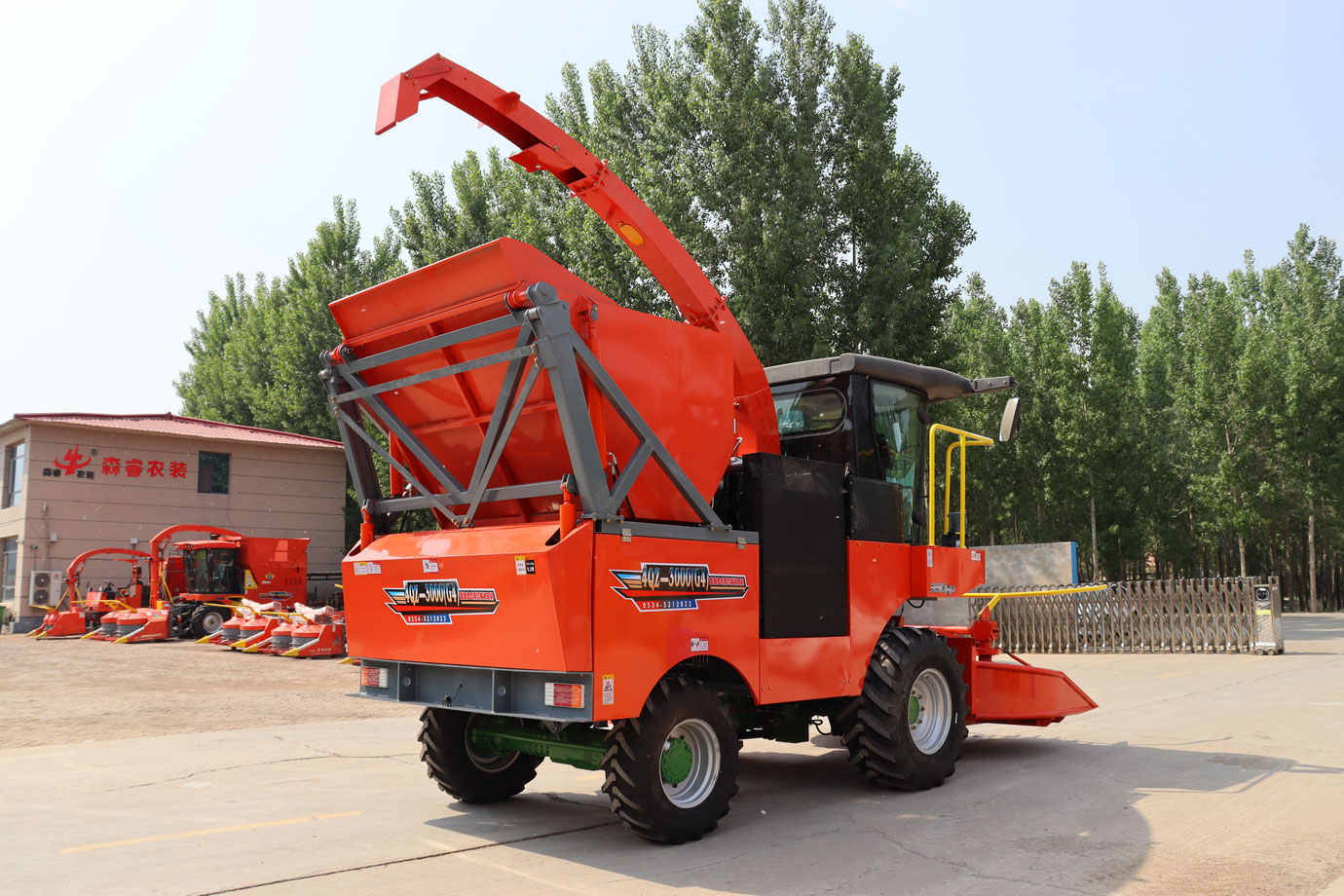

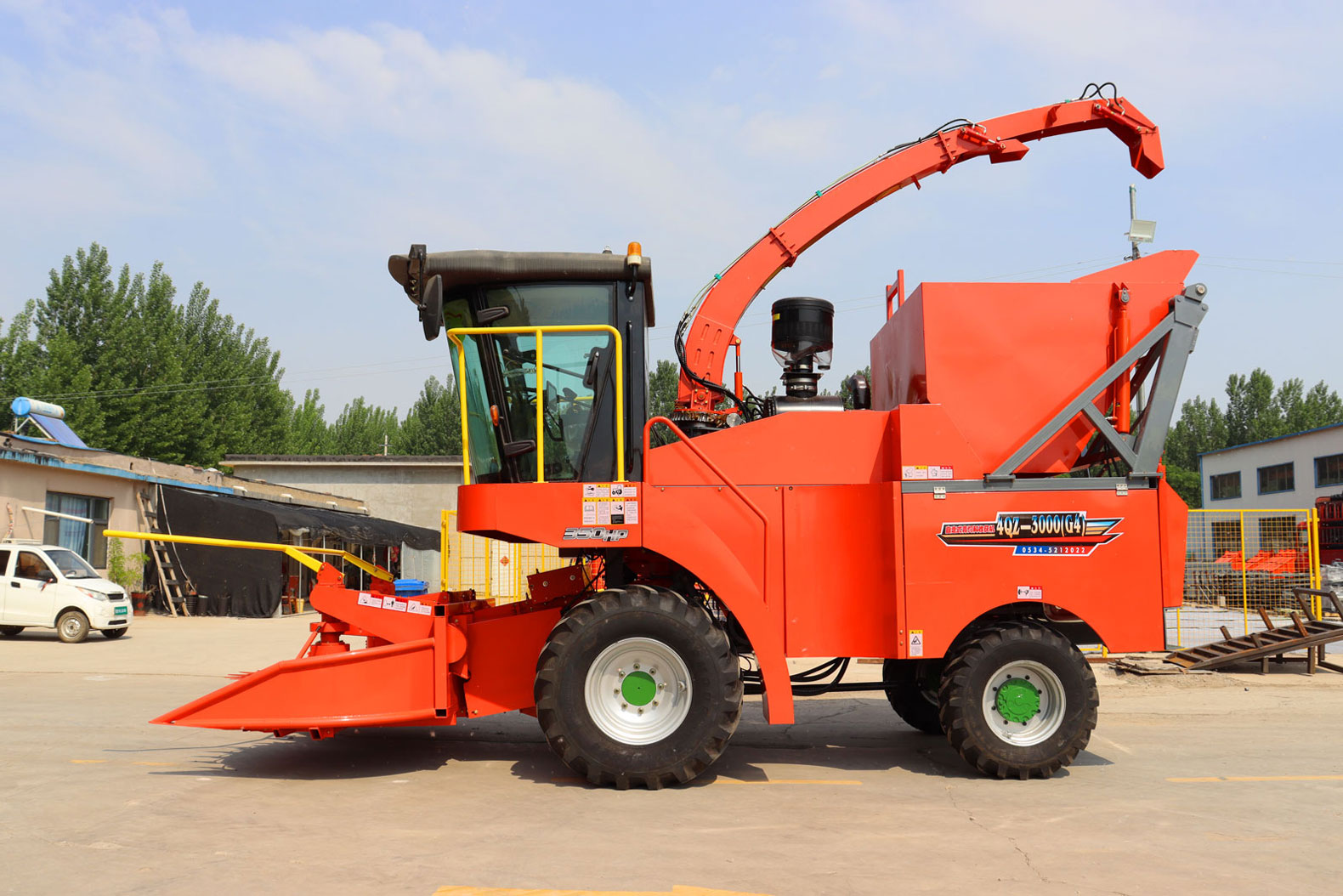

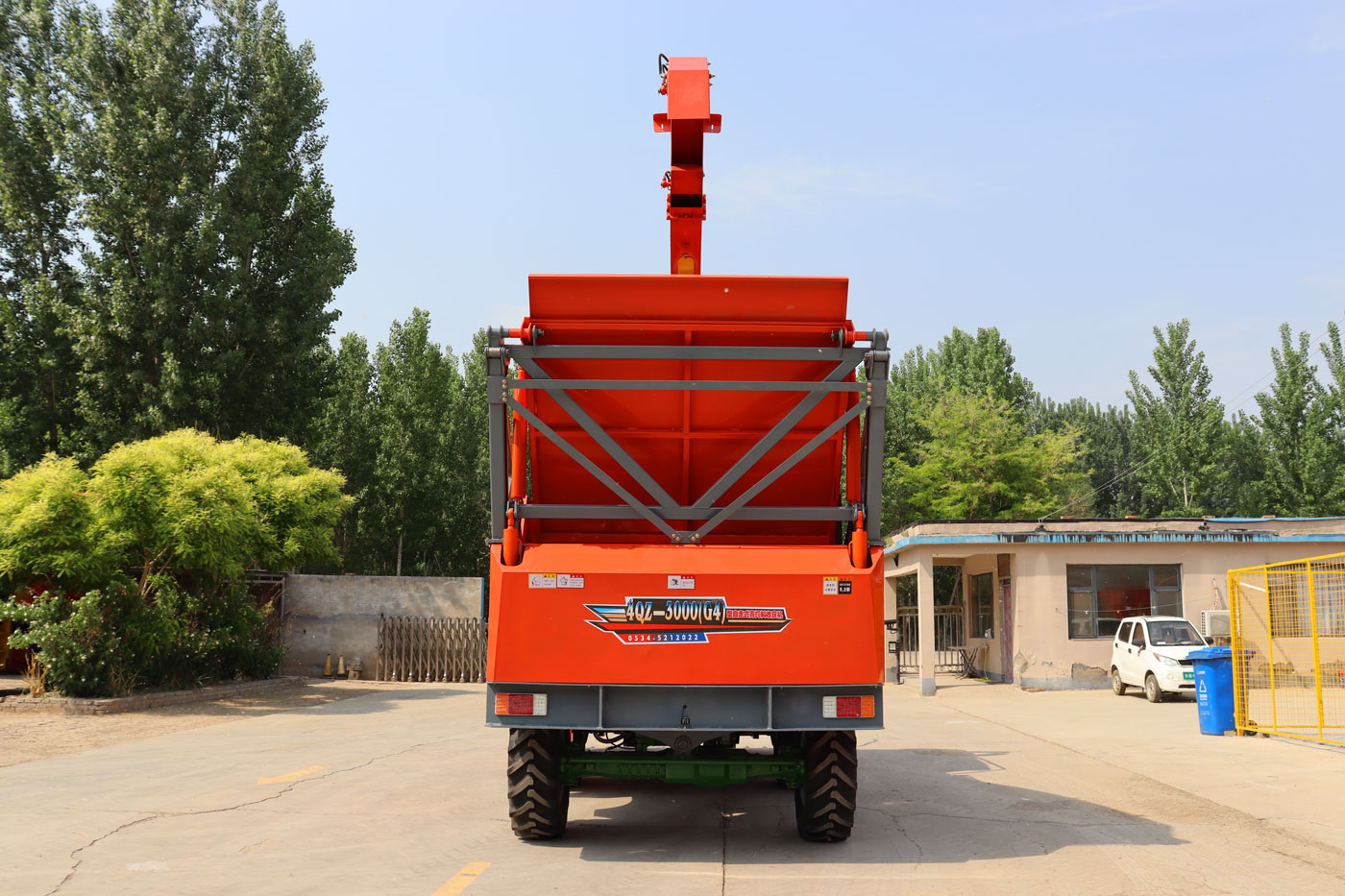

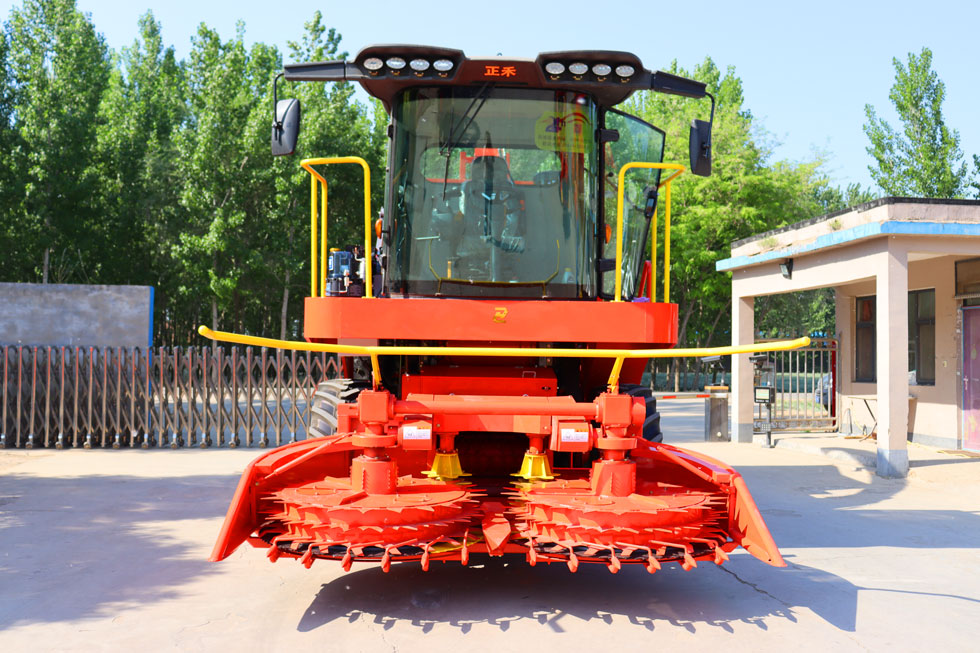

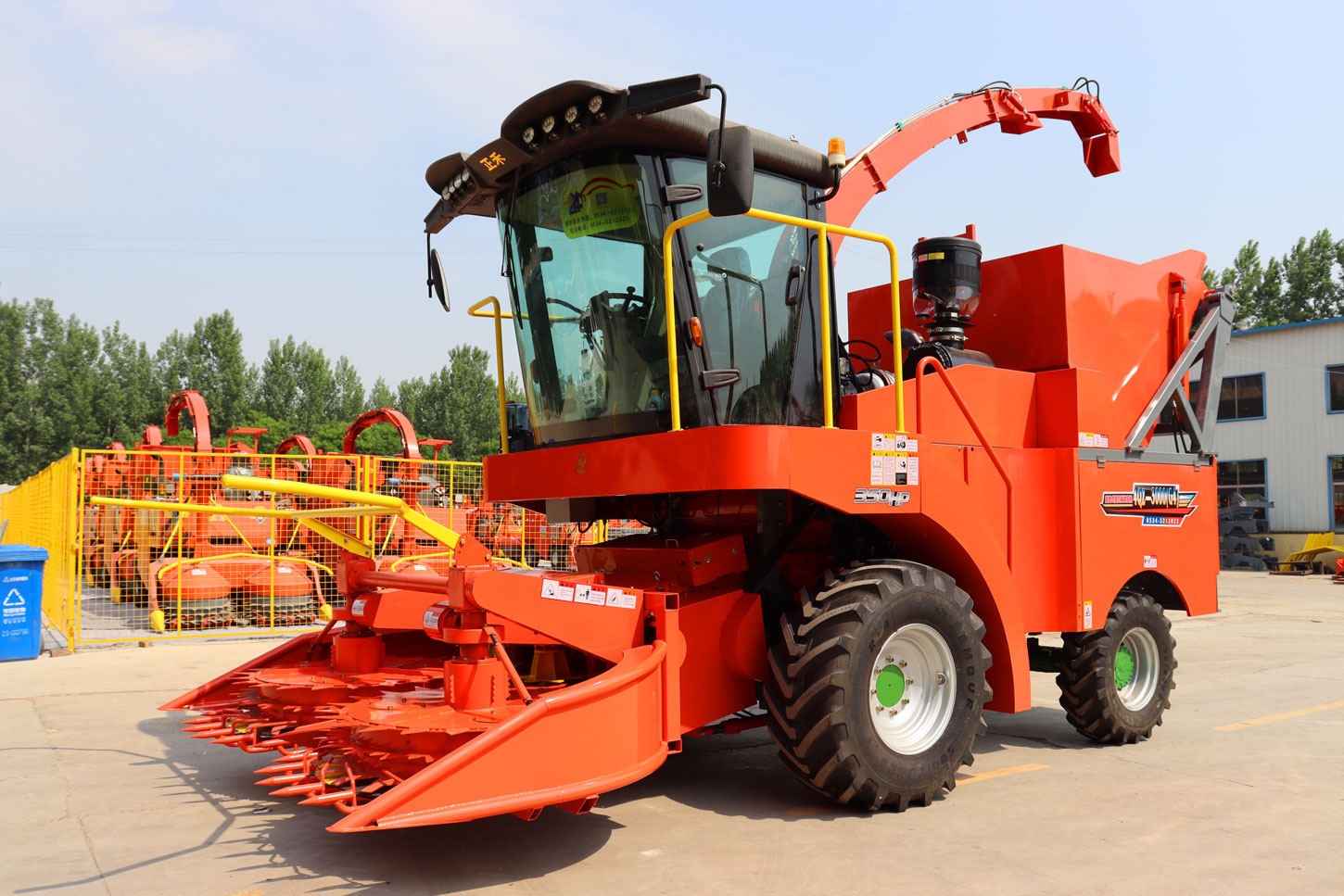

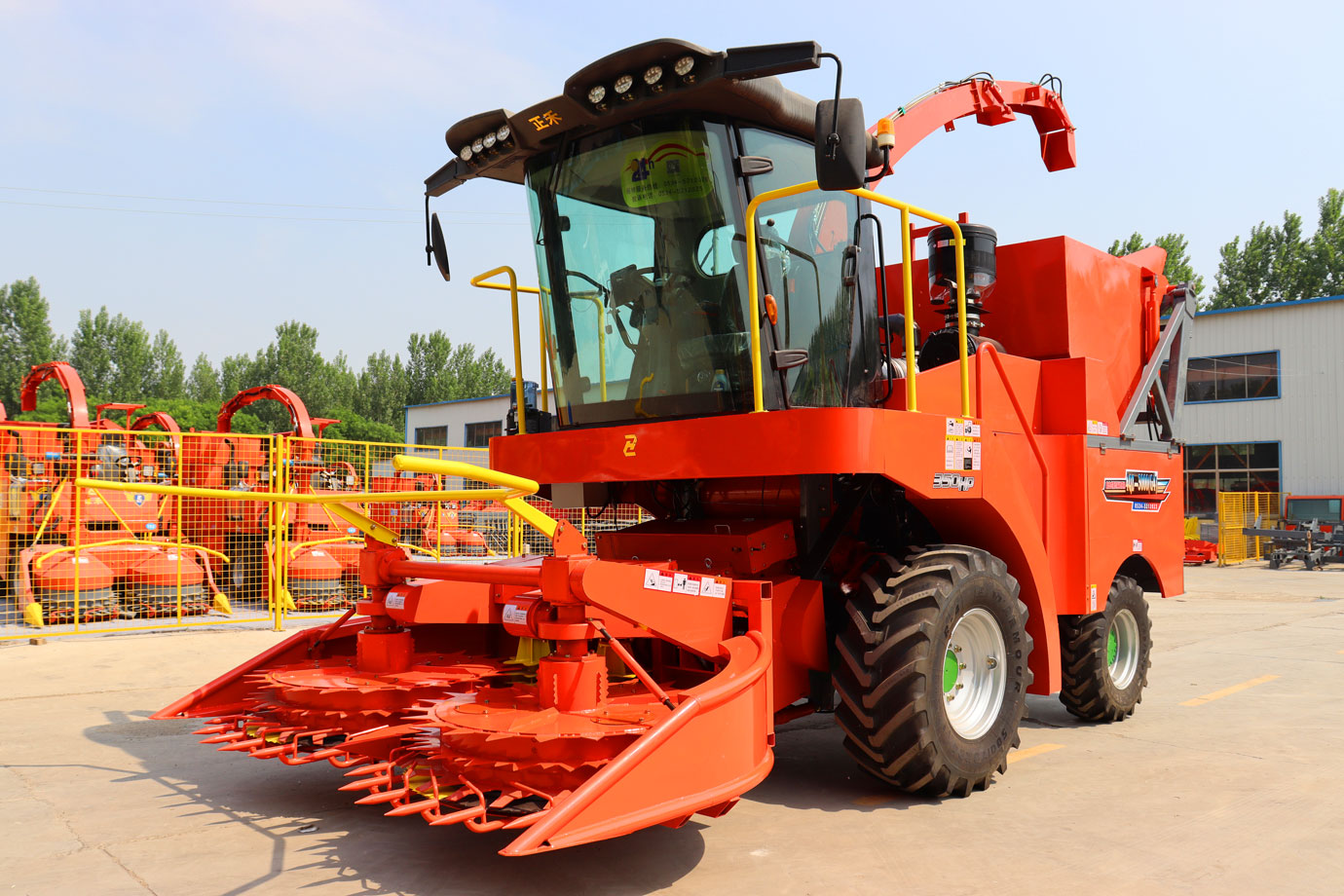

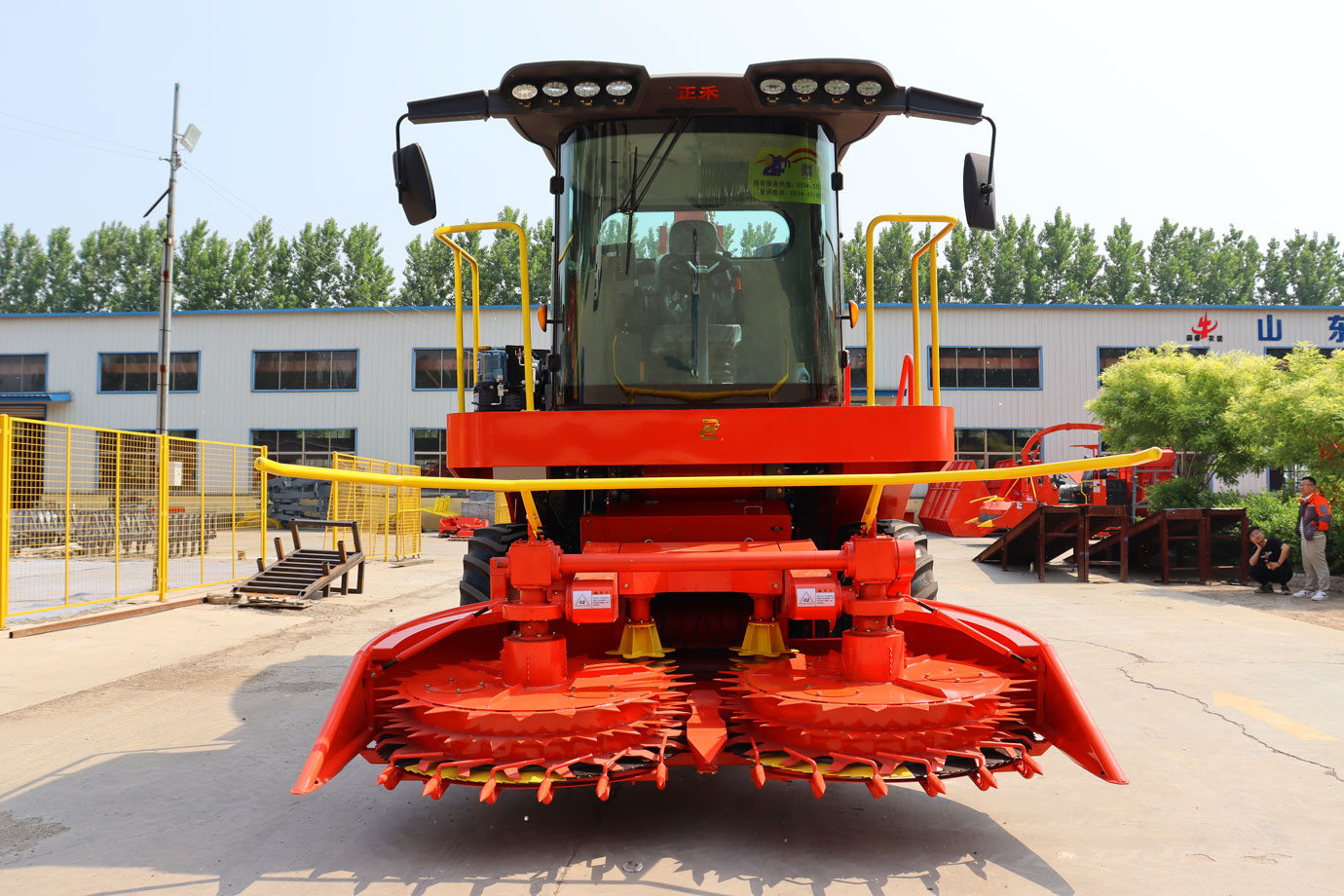

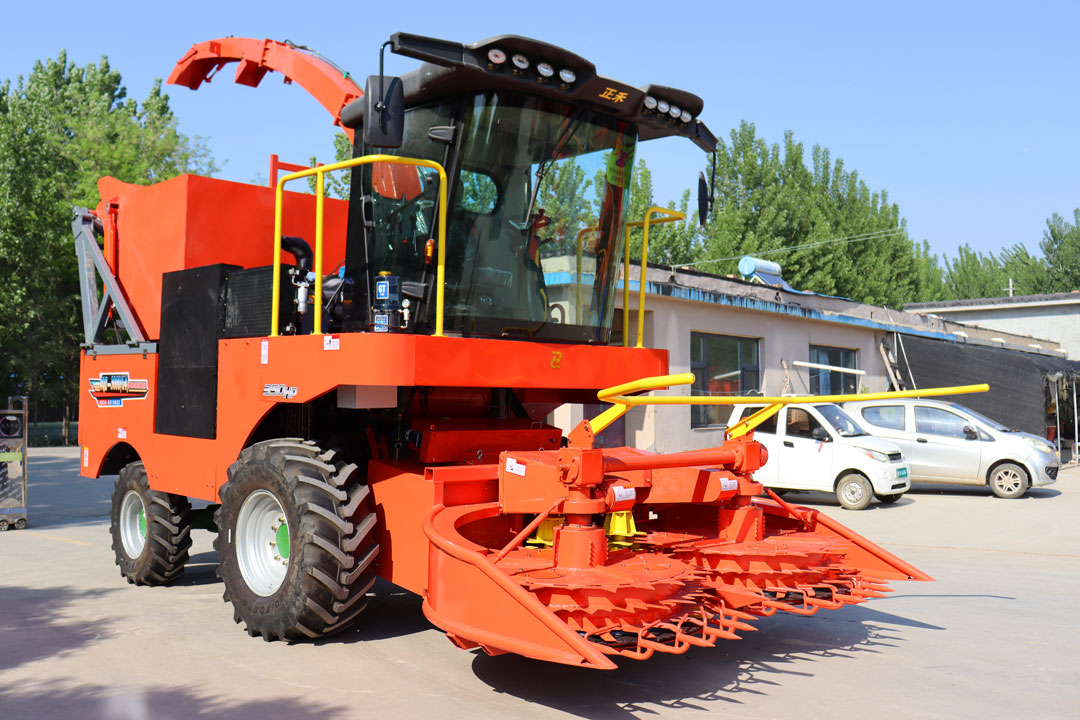

2.840m Self-Propelled Corn Feed Harvester
Product advantages:
machine is our company independent research and development and production of green (yellow) storage harvester, after years of practice and the perfect combination of the latest technology, the machine design is novel, completely realize the wrong harvest operation. At present, it has become a leading and fully functional green (yellow) storage harvester in China. The green (yellow) storage crops can be cut off the ground, sequential feeding, uniform crushing, grain crushing, throwing and loading and other operations.
Product advantages:
machine is our company independent research and development and production of green (yellow) storage harvester, after years of practice and the perfect combination of the latest technology, the machine design is novel, completely realize the wrong harvest operation. At present, it has become a leading and fully functional green (yellow) storage harvester in China. The green (yellow) storage crops can be cut off the ground, sequential feeding, uniform crushing, grain crushing, throwing and loading and other operations.
Product characteristics:
● Whole machine has a compact structure, a small turning radius, an easy operation, and a reliable quality.
● Feeding assembly: four-roll feeding into the room, segmented design, can achieve fast hanging, horizontal clamping feeding device, improve the reliability of the whole machine, maintenance is more convenient.
● Sped assembly: 24 double column herringbone layout knife, integrated spindle design, fixed knife adopts double blade design, can be reversed and replaced, standard automatic grinding knife.
● Grain crushing: the roller high strength grain crushing roller, grain crushing rate of more than 97%, improve the livestock palatability and feeding rate.
● Delivery device assembly: adopt the worm wheel and worm mechanism, which can realize ± 180 rotation, effectively lock the nozzle Angle, and make the spray Angle more stable.
● Box assembly: with the loading box, after the unloading operation is simple, increase the secondary lifting function, better adapt to a variety of receiving models, unloading more convenient.
● Powertrain: Yuchai 350 horsepower engine, PTO intelligent fuel saving control, with light load, medium load, heavy load switching function, according to the application terrain, optional four-wheel drive, etc.
Control / hydraulic: standard equipped with air conditioning, electronic operating handle, suspension seat, driving more comfortable, the cab host is standard equipped with large screen LCD screen and operation monitoring system, improve the operation safety, reliability, intelligence of the machine, the whole machine static hydraulic drive, driving more comfortable.
Job video：
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-3000 (G4) type self-walking green feed harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 7300*2950*5200 |
Structural quality | kg | 9720 |
Matching Engine Rated Power | kw | 257 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2840 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feed into the institutional type | / | Feed into the roller |
Number of institutions fed | / | 2 pair |
Chopping mechanism type | / | drum-type |
Cab type | plain type | |
Transmission mode | / | Manual gearbox |
Drive method | / | fluid drive；fluid power drive |
Brake type | / | drum-type |
Guide wheel spacing | mm | 1980 |
Guide wheel tyre specifications | / | 340/80R20 |
Driving Wheel Distance | mm | 2280 |
Driving wheel tyre specifications | / | 500/70R24 |
Wheelbases | mm | 2500 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |

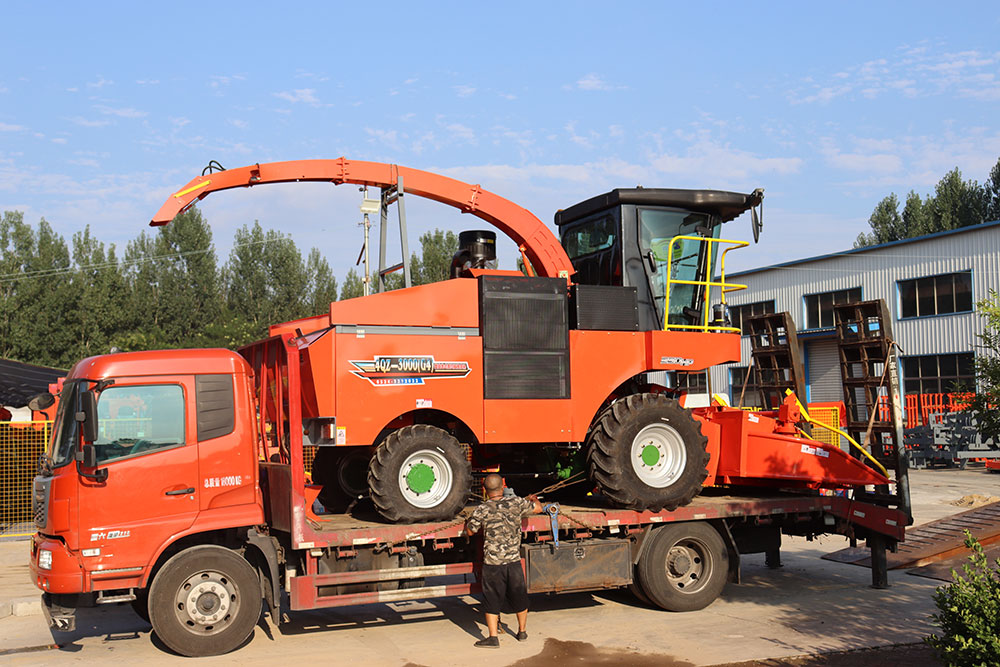

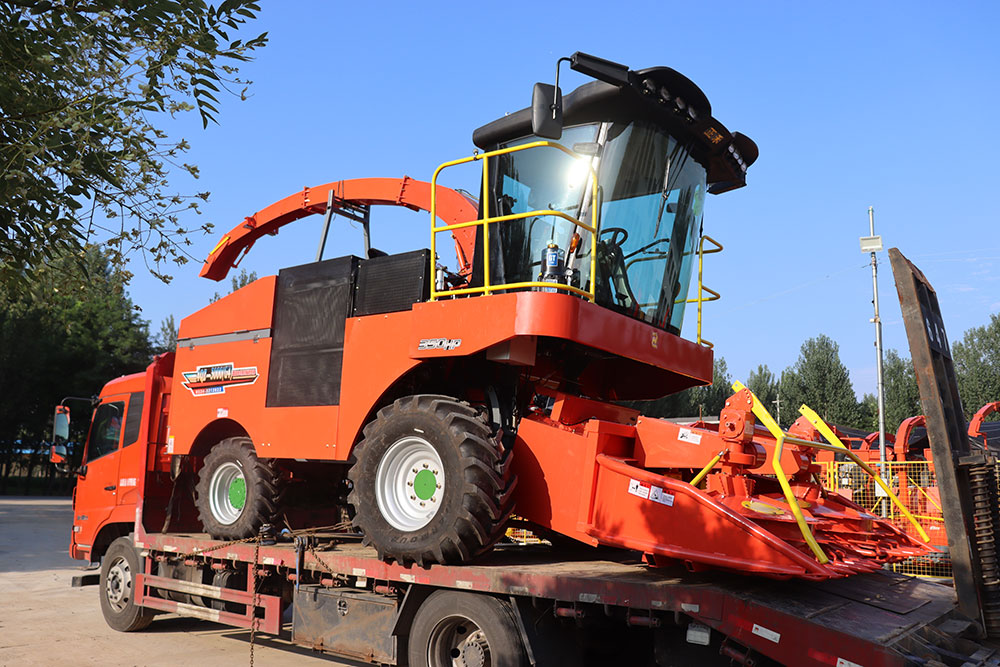

Delivery site:

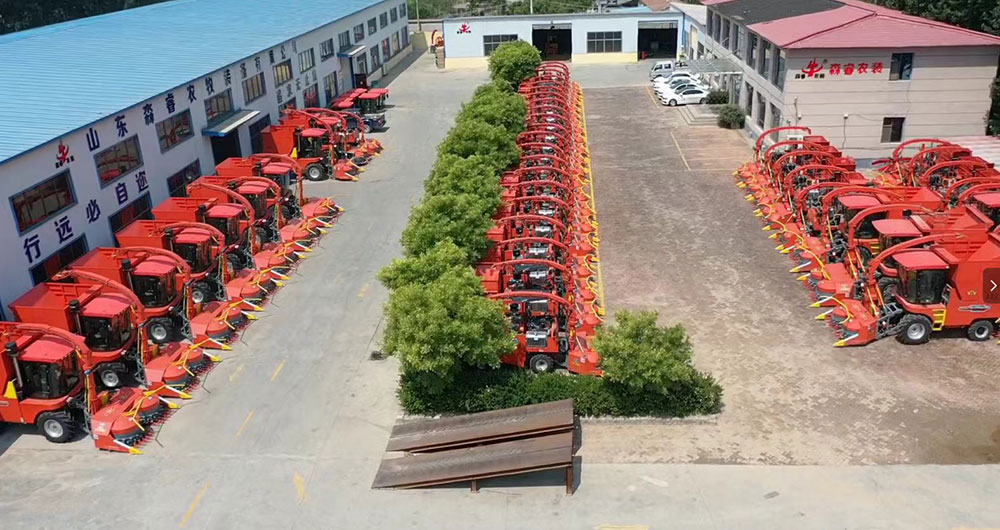

Factory:
