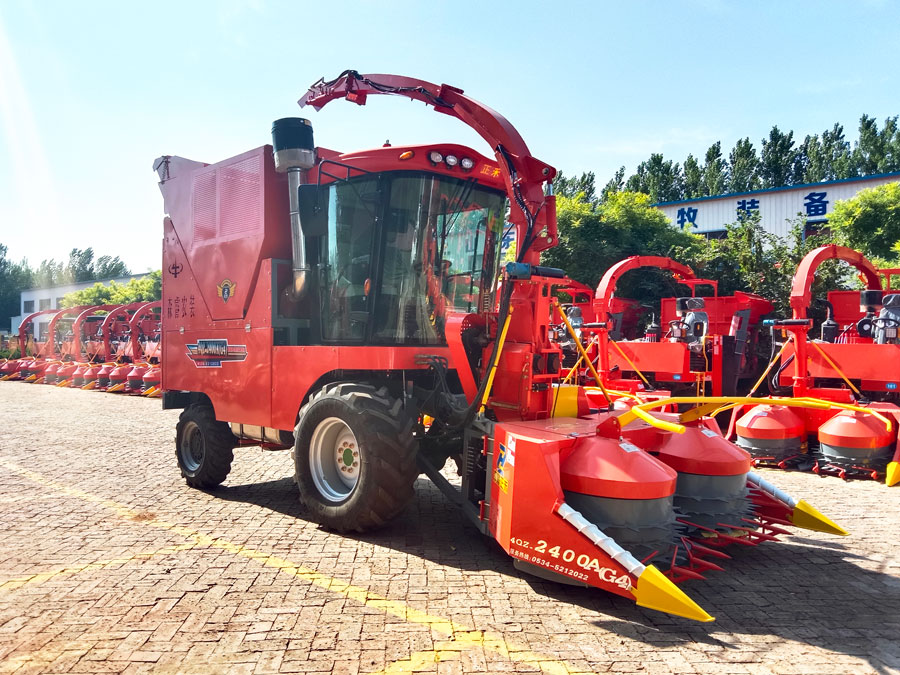

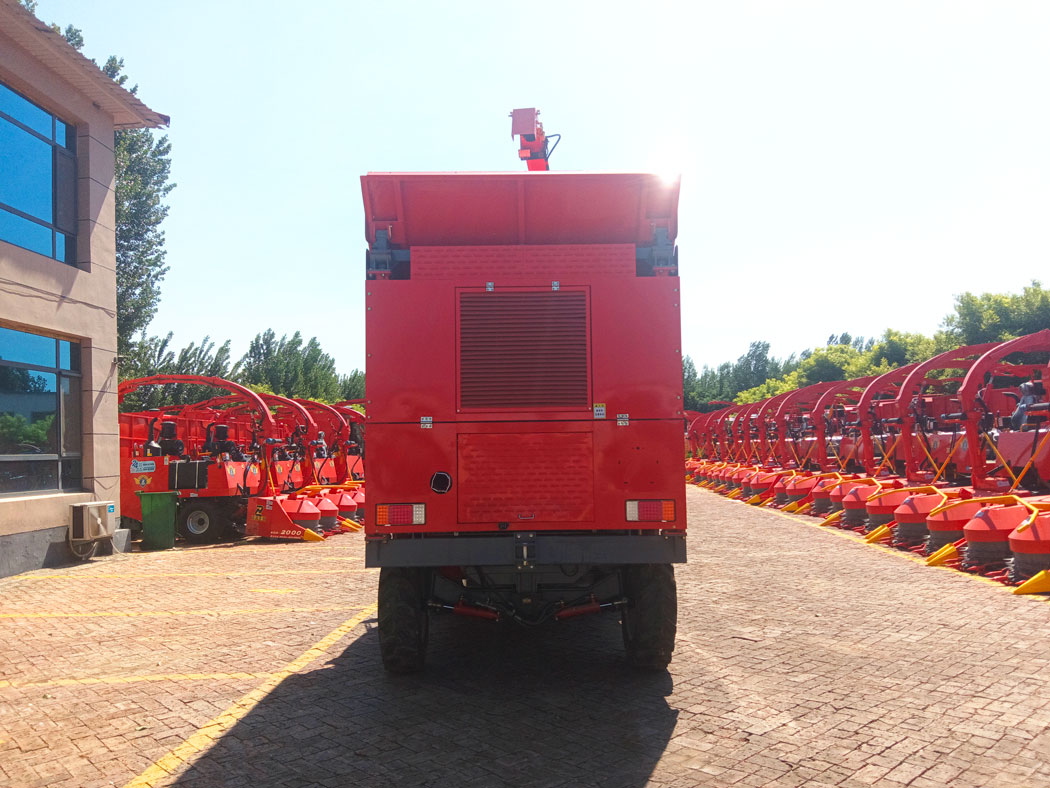

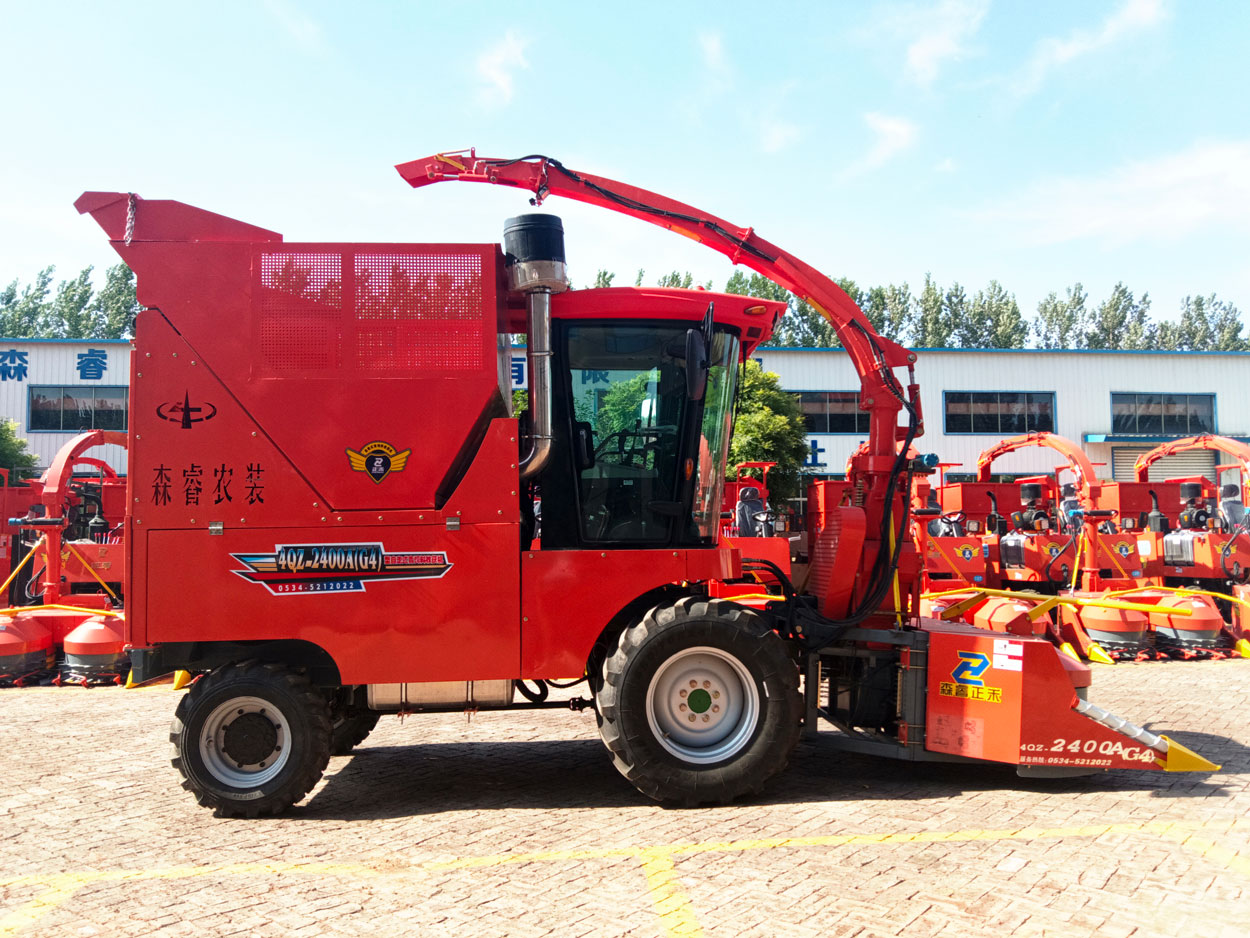

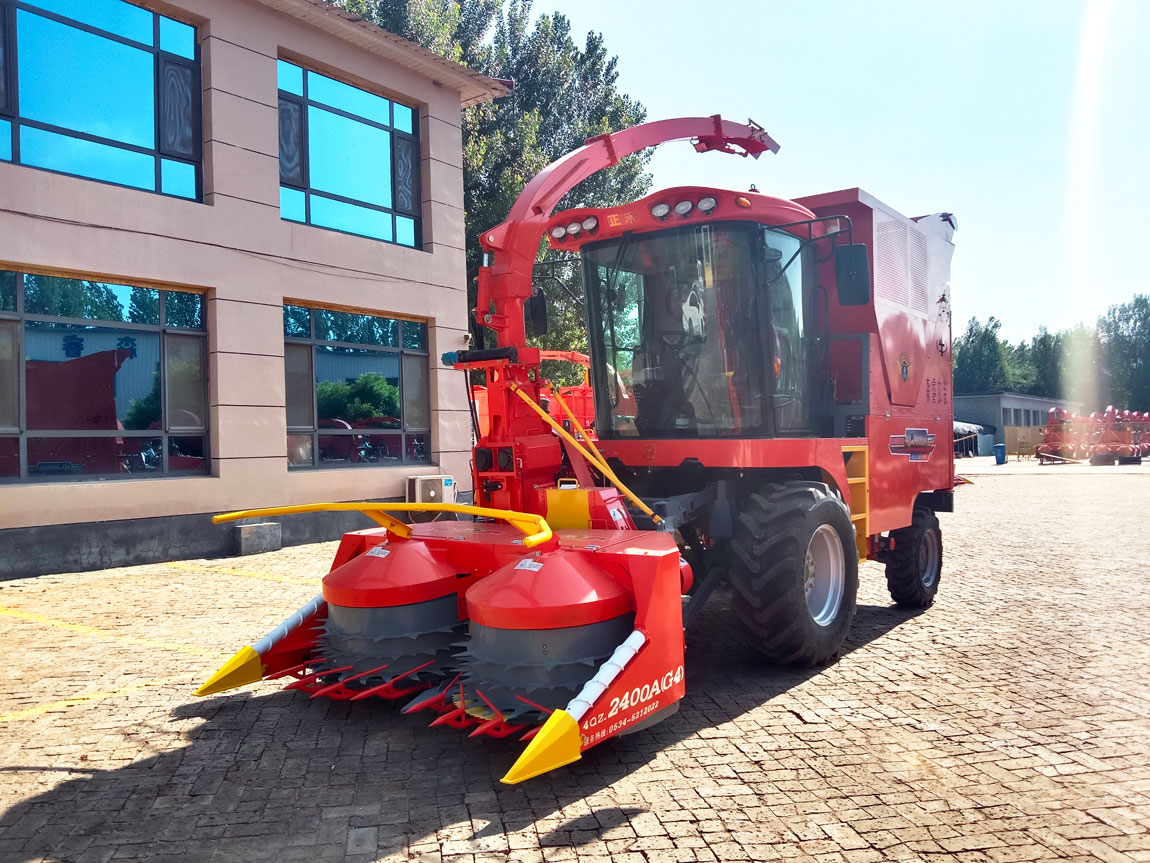

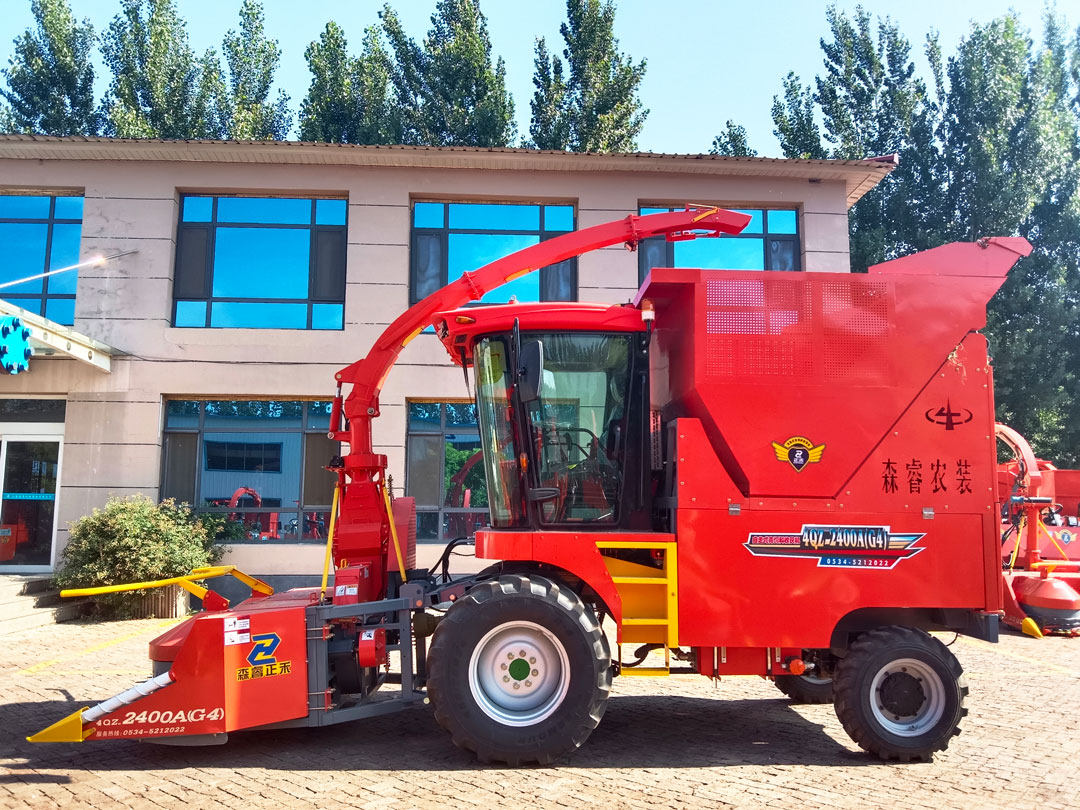

Best Self Propelled Forage Harvester
Product features:

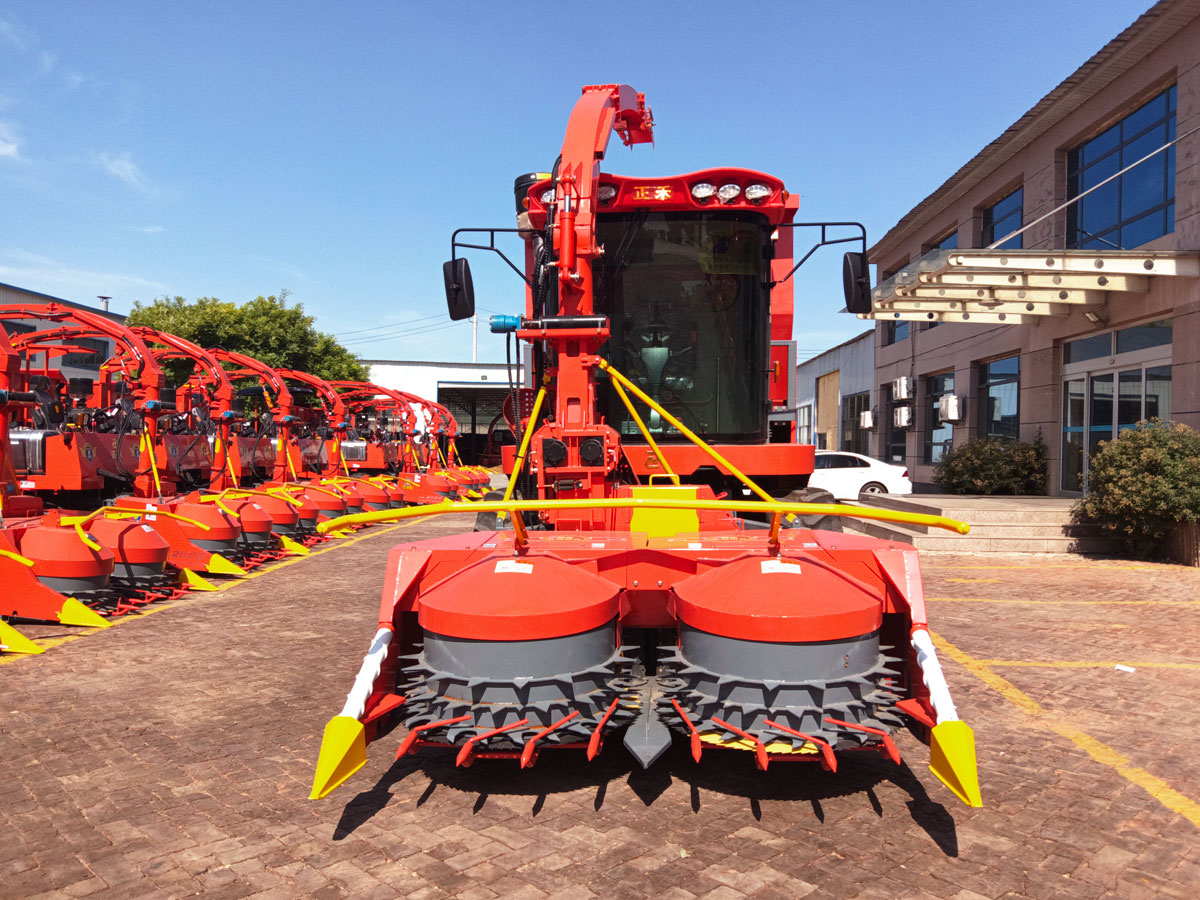

●Cutting deck assembly: 2220 double disc cutting deck, which can be quickly hooked up and is easy to maintain.
●Compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots.
●Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the whole machine, feeding wheel equipped with forward and reverse function, in the event of blockage can be reversed spitting, work efficiency is greatly improved.
●Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
Product features:
4QZ-2400A Best Self Propelled Forage Harvesteralso faces some challenges in its operation. For example, machines are more expensive to acquire, require higher skill levels from operators, and require specialized knowledge and skills to maintain and maintain equipment. In response to these problems, relevant departments and enterprises should increase r & D investment, continuously optimize product performance and reduce production costs; at the same time, strengthen the training and technical guidance to operators, improve the efficiency and life of the equipment.
In short, the large-scale self-propelled green fodder harvester, as an important representative of modern agricultural machinery, has brought revolutionary changes to the harvest of green fodder and the development of animal husbandry. In the future agricultural production, with the continuous progress and innovation of technology, I believe that this kind of advanced machinery and equipment will play an even more important role, to make greater contributions to the process of agricultural modernization and the implementation of the rural revitalization strategy
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400A(G4) Self Propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5300 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 176.5 |
Matching engine rated speed | r/min | 2200 |
Cut width | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pairs |
Chopping mechanism type | / | Disc |
Seed crushing mechanism type | / | Roll-on-roll |

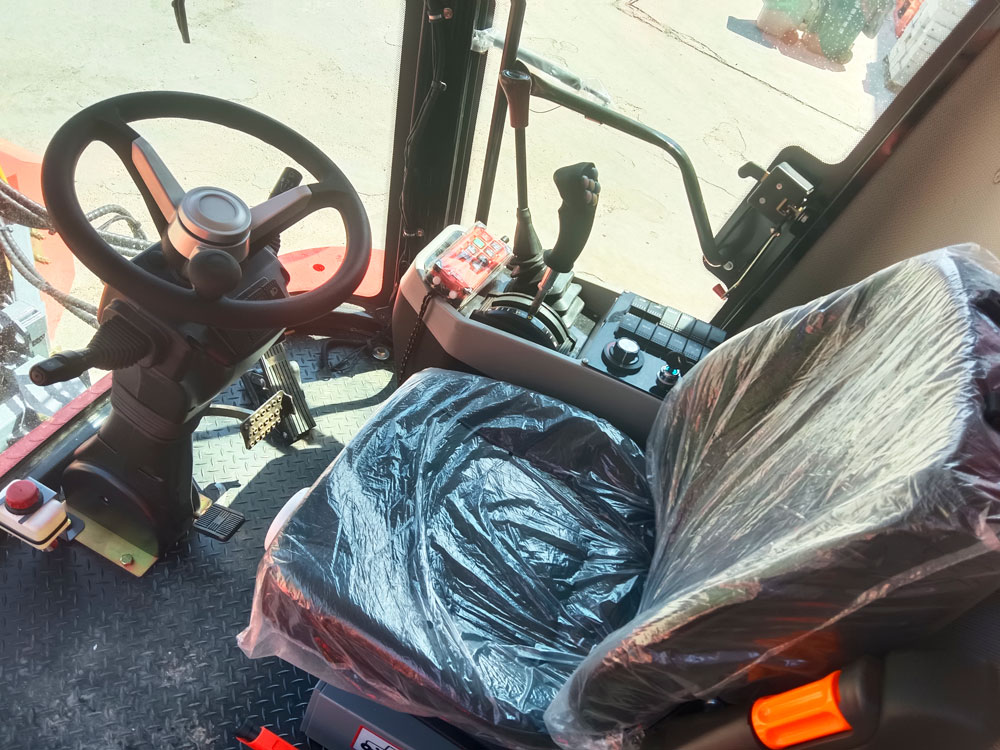

Cab type | / | Normal type |
Variable speed | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
