Biggest Forage Harvester
Product introduction:

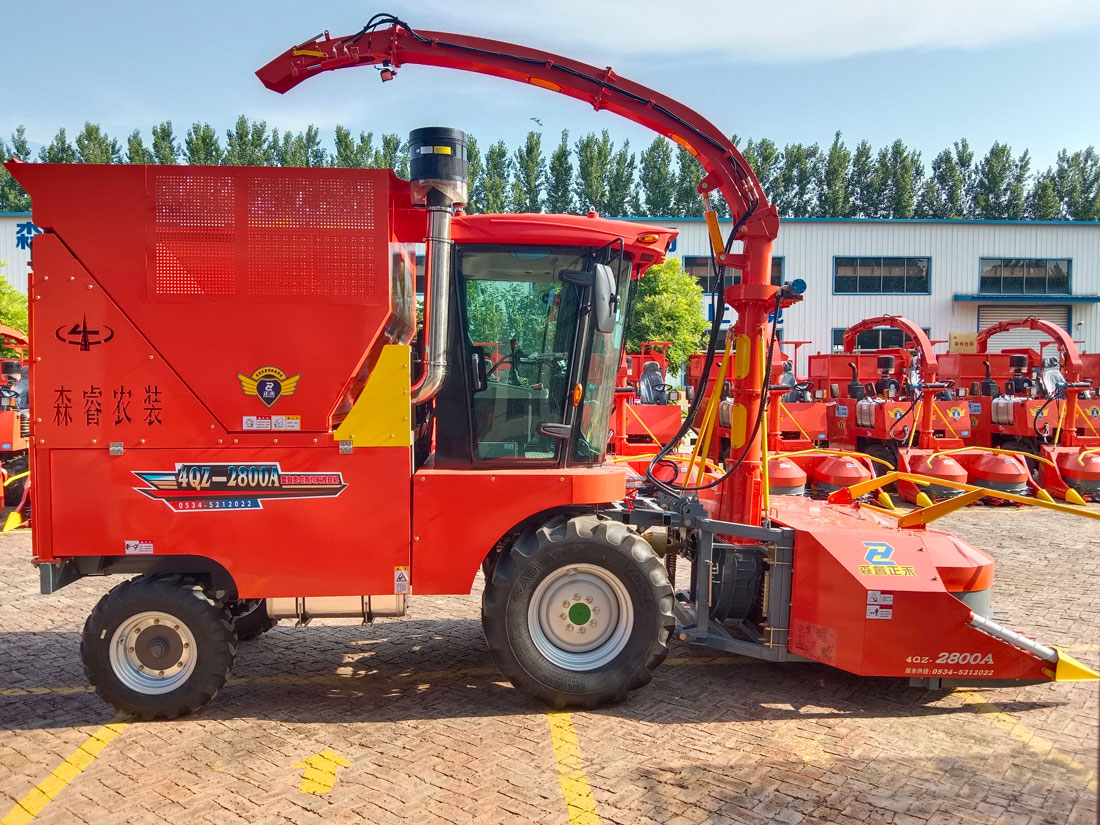

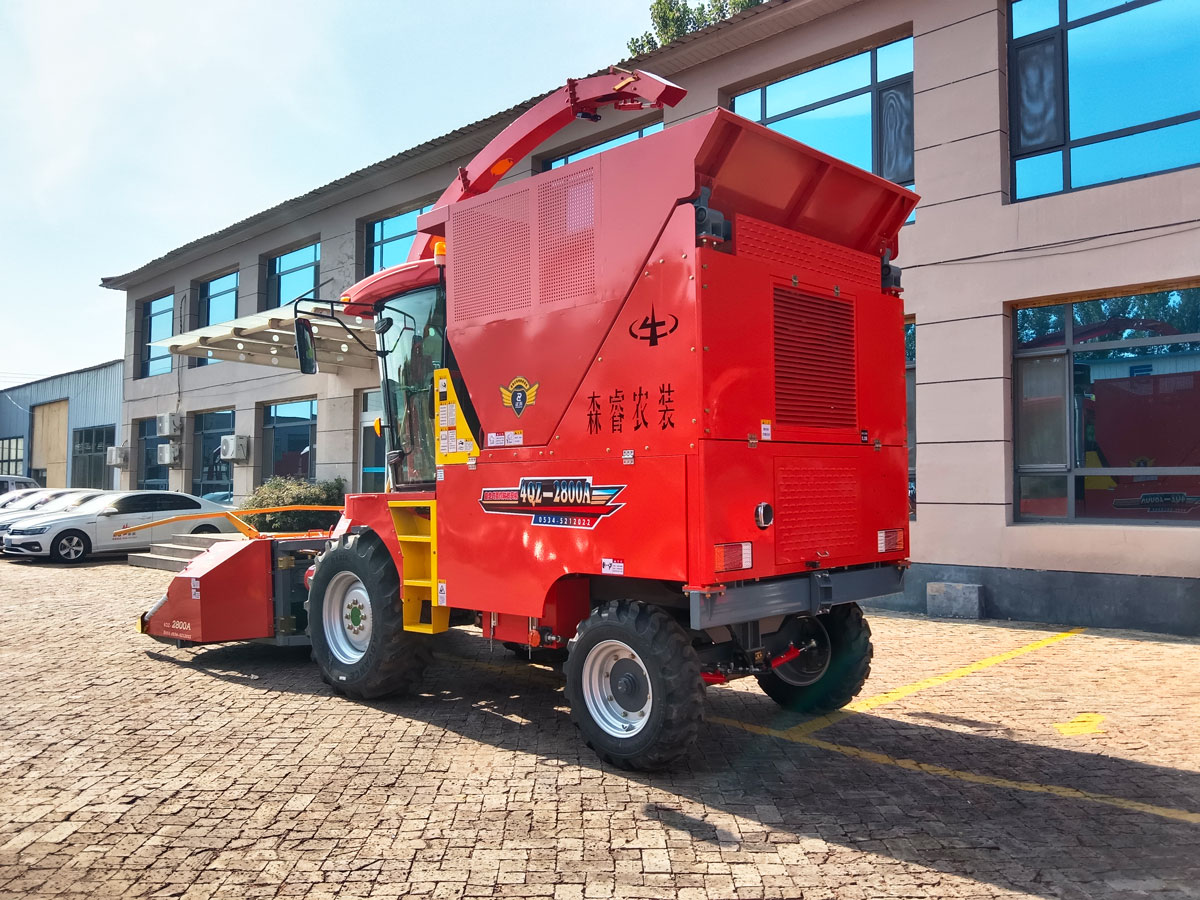

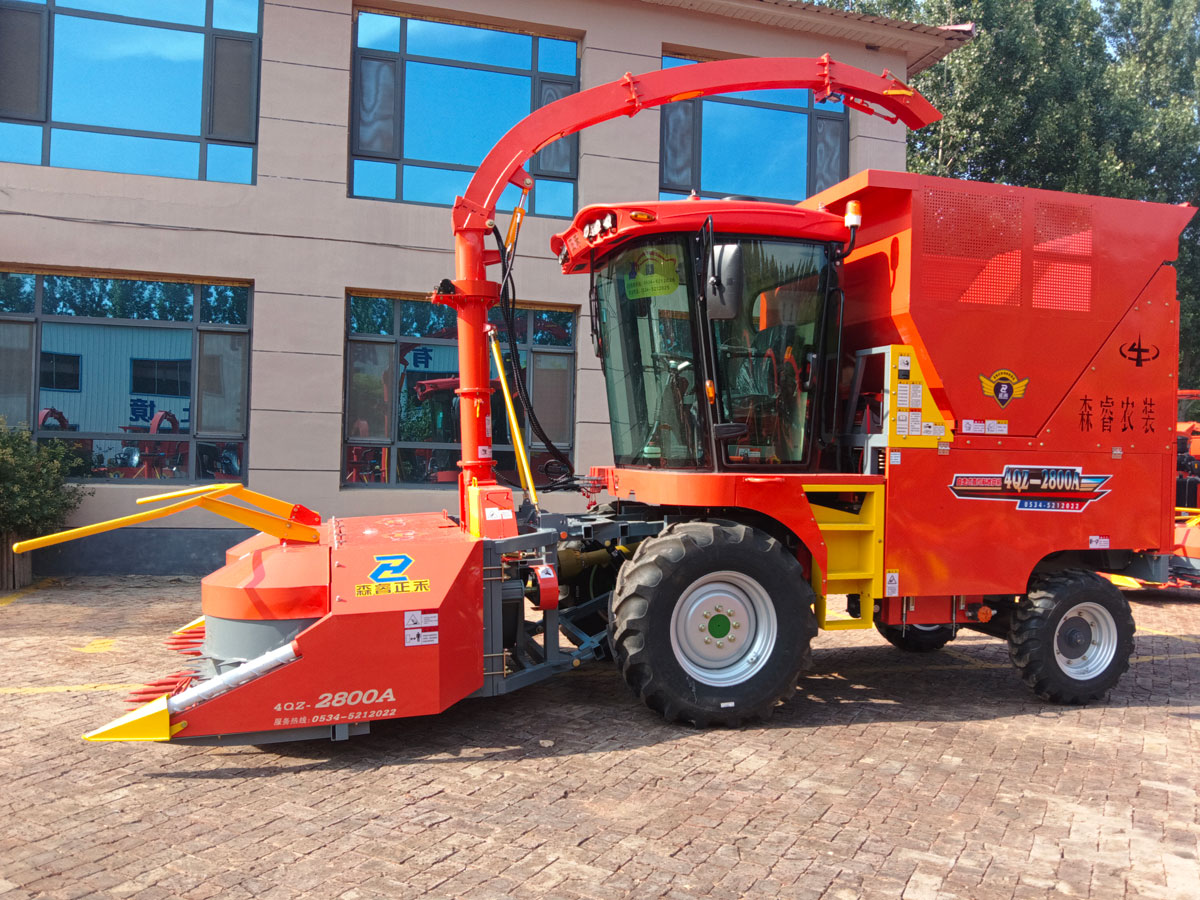

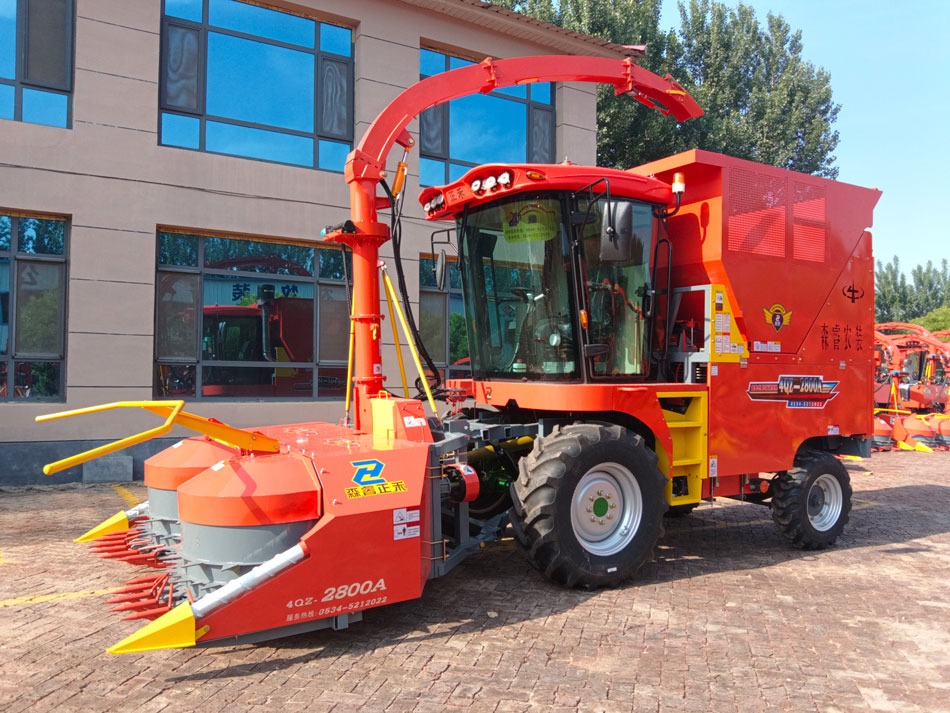

Model 4QZ-2800A Self Propelled Silage Harvester is a green (yellow) fodder harvester independently developed and produced by our company. After years of practice and the perfect combination of the latest technology, this machine is novel in design and completely realizes the harvest operation without row. At present, it has become the leading technology and complete function of the green (yellow) feed harvester. Green (yellow) can be a one-time storage feed crops to complete cutting off the ground, sequential feeding, even cutting, throwing loading and other operations.
Product Details:
Self Propelled Silage Harvester of modern agricultural machinery, the large-scale self-propelled forage harvester has brought revolutionary changes to the forage harvest and the development of animal husbandry. In the future agricultural production, with the continuous progress and innovation of technology, I believe that this advanced machinery and equipment will play an even more important role. To make greater contributions to the process of agricultural modernization and the implementation of the rural revitalization strategy.
Product characteristics:
● width of harvester is 2.620 m , whole machine has a compact structure, a small turning radius, easy operation, reliable quality, suitable for large, medium and small plot operation.

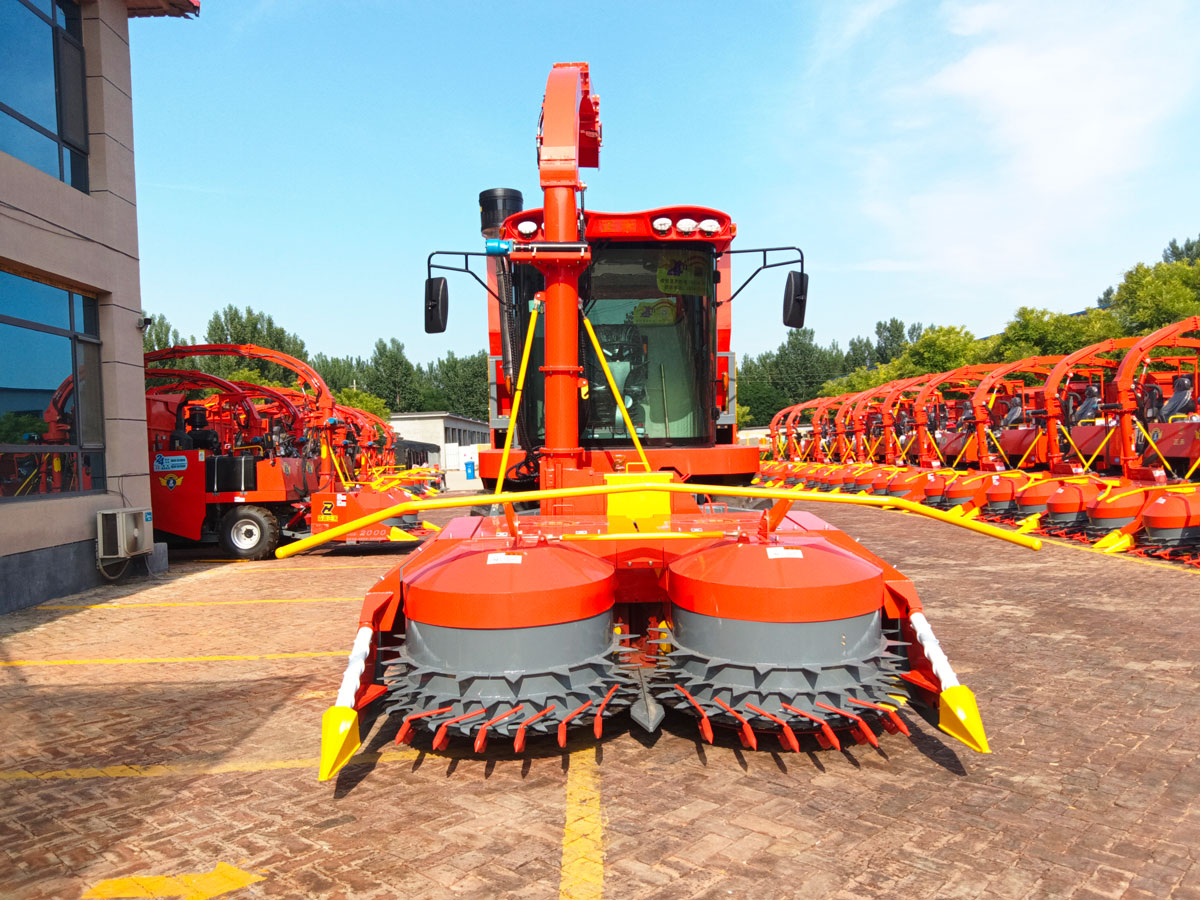

● Feeding assembly: four roller feeding room, segmented design, more convenient maintenance, vertical clamp feeding device, improve the reliability of the whole machine, feeding wheel equipment positive and reverse function, in the plugging can reverse vomit, work efficiency is greatly improved.
● Shear assembly: cutter cutter device, using double disc saw cutter, can adapt to all straw forage crops improper operation, with automatic sharpening function, solve the user knife time-consuming and laborious problem, greatly shorten the maintenance time to improve efficiency.
● nozzle assembly: nozzle rotation using the worm wheel worm mechanism, can ± 180 rotation, effectively lock the nozzle Angle, make the spray Angle more stable.

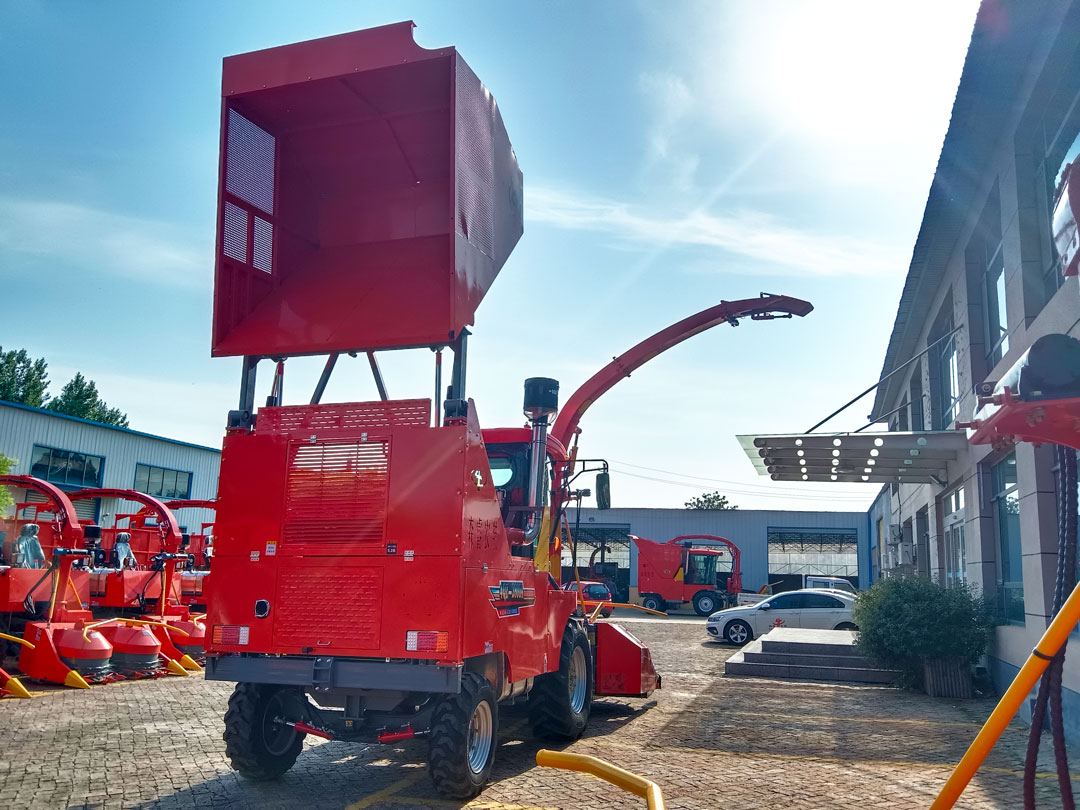

● Box assembly: with the loading box, after the unloading operation is simple, increase the secondary lifting function, better adapt to a variety of receiving models, unloading more convenient.
● Powertrain: Yuchai 280 horsepower engine, PTO intelligent fuel saving control, with light load, medium load, heavy load switching function, according to the application terrain, optional four-wheel drive.

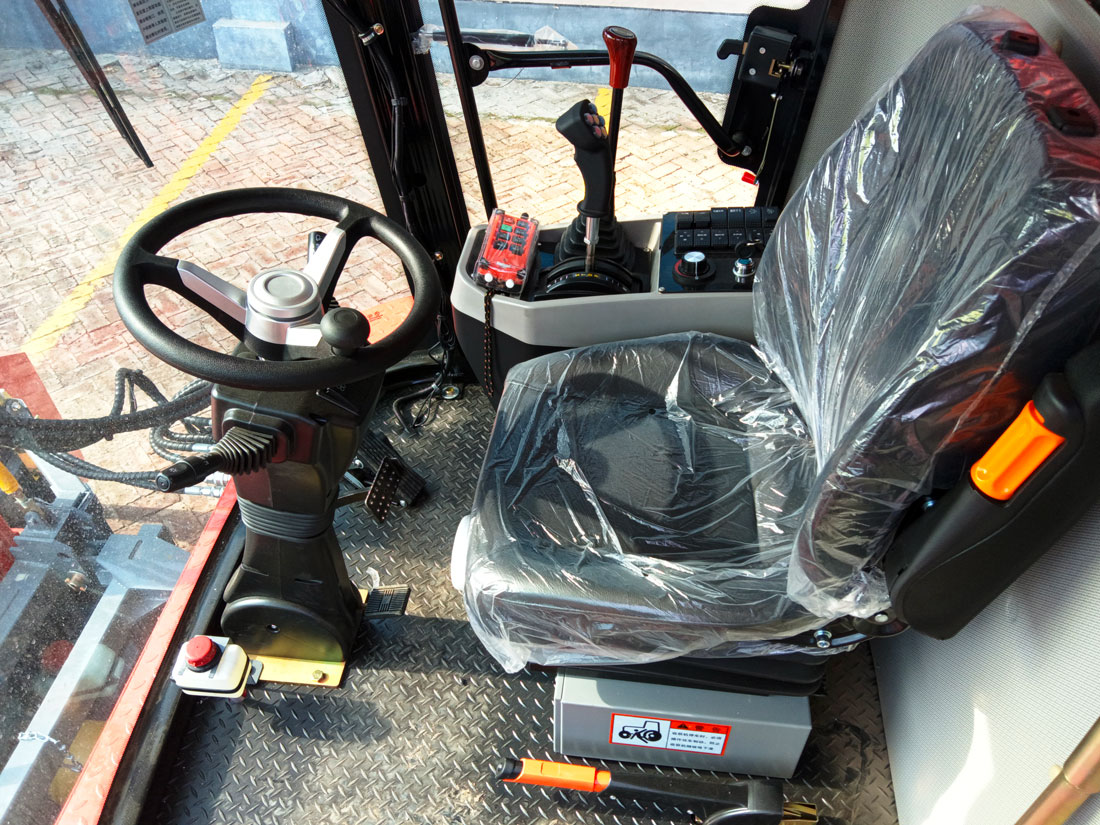

● Control / hydraulic: standard with air conditioning, electronic handle, suspension seat, driving more comfortable, the cab host standard with large screen LCD screen and operation monitoring system, improve the operation safety, reliability, intelligence of the machine, the whole machine static hydraulic drive, driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2800A self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6940*2870*5200 |
Structural quality | kg | 7700 |
Matching Engine Rated Power | kw | 206 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2620 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Guide wheel spacing | mm | 1705 |
Guide wheel tyre specifications | / | 10.0/80-18 |
Driving Wheel Distance | mm | 1753 |
Driving wheel tyre specifications | / | 460/70R24 |
Wheelbases | mm | 2596 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |

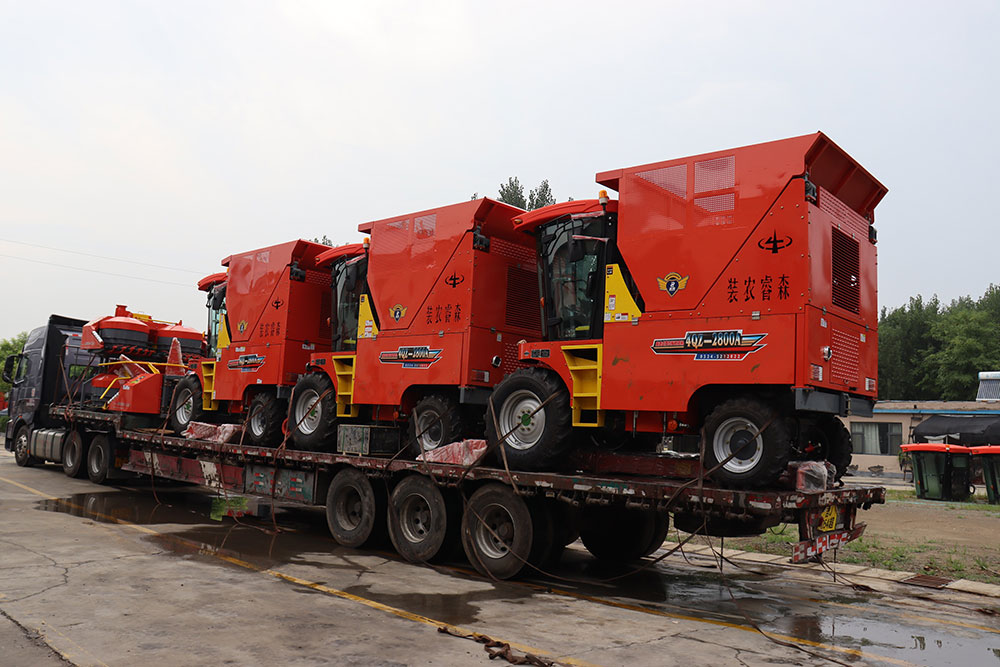

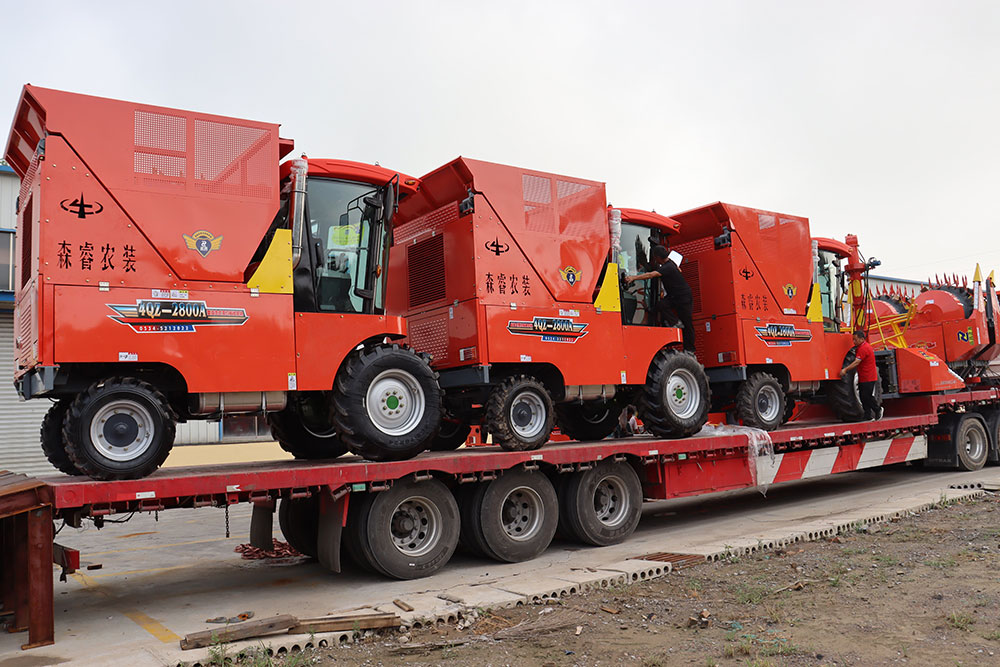

Delivery site:
