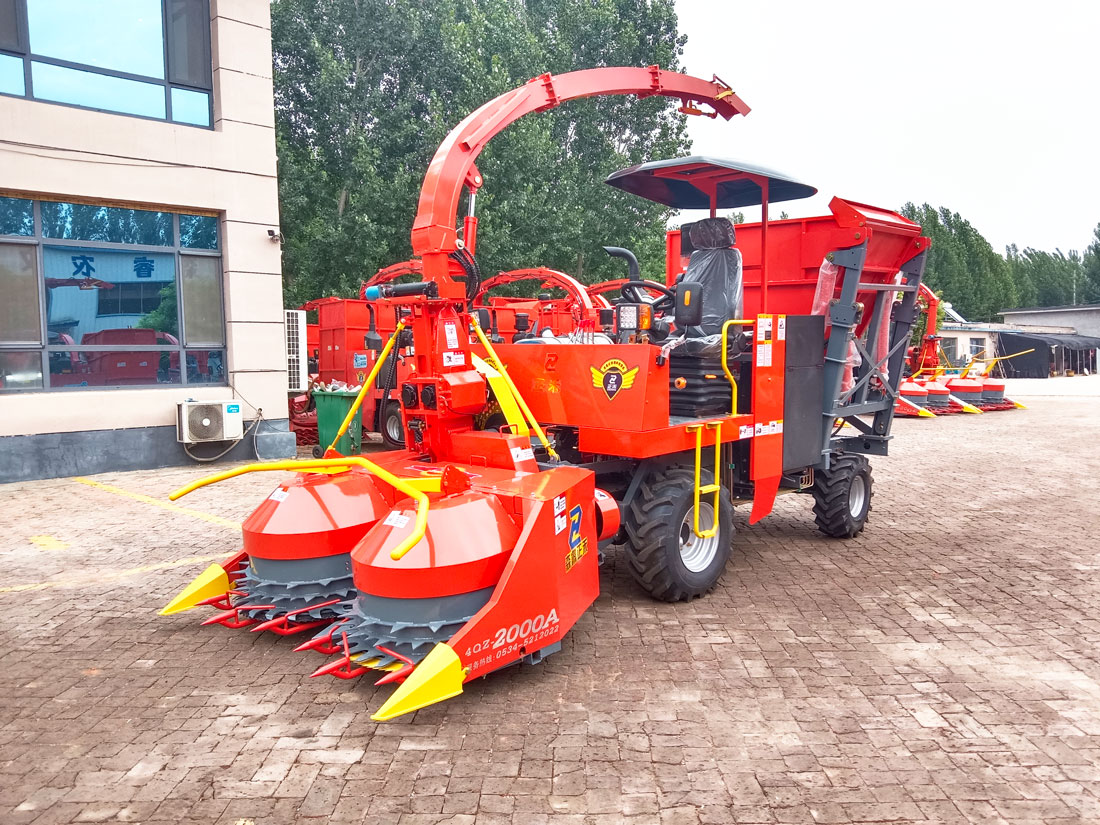

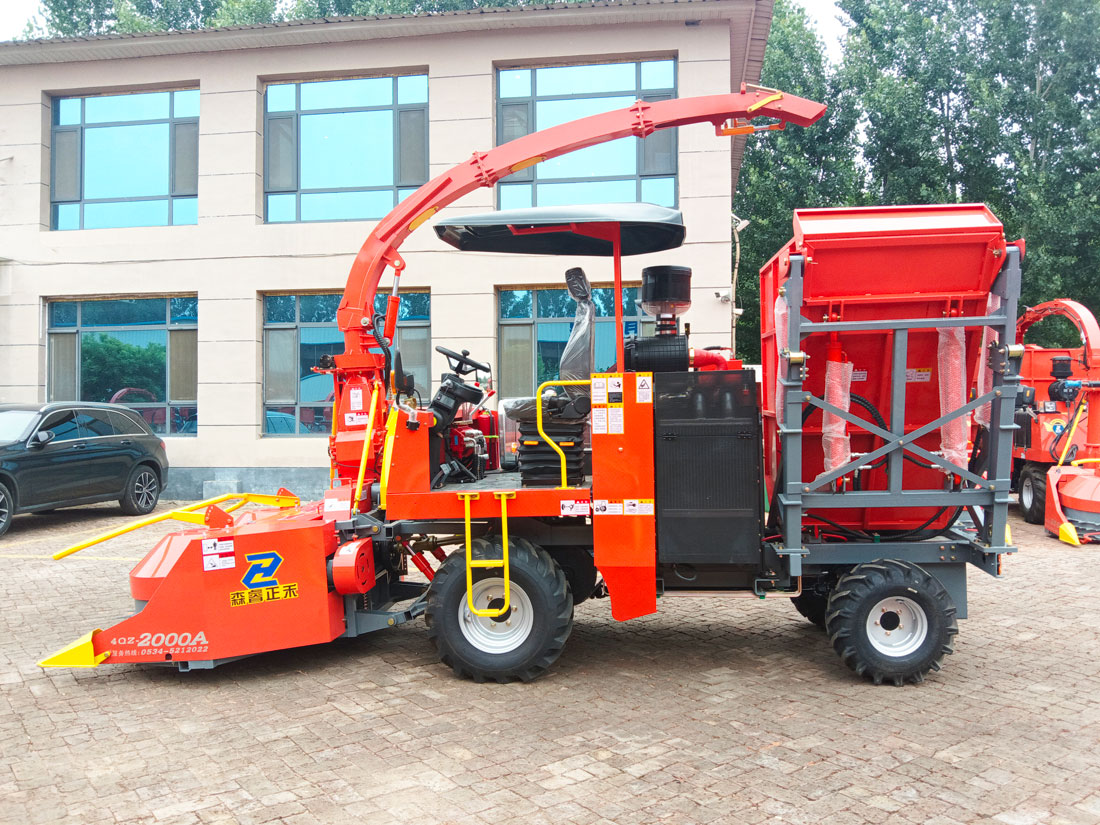

Mini Silage Harvester
Product description:

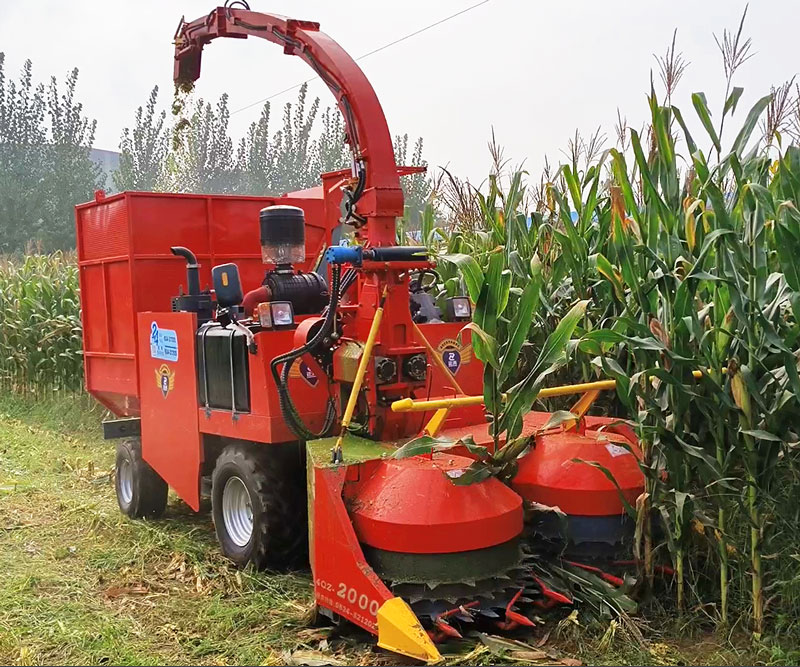

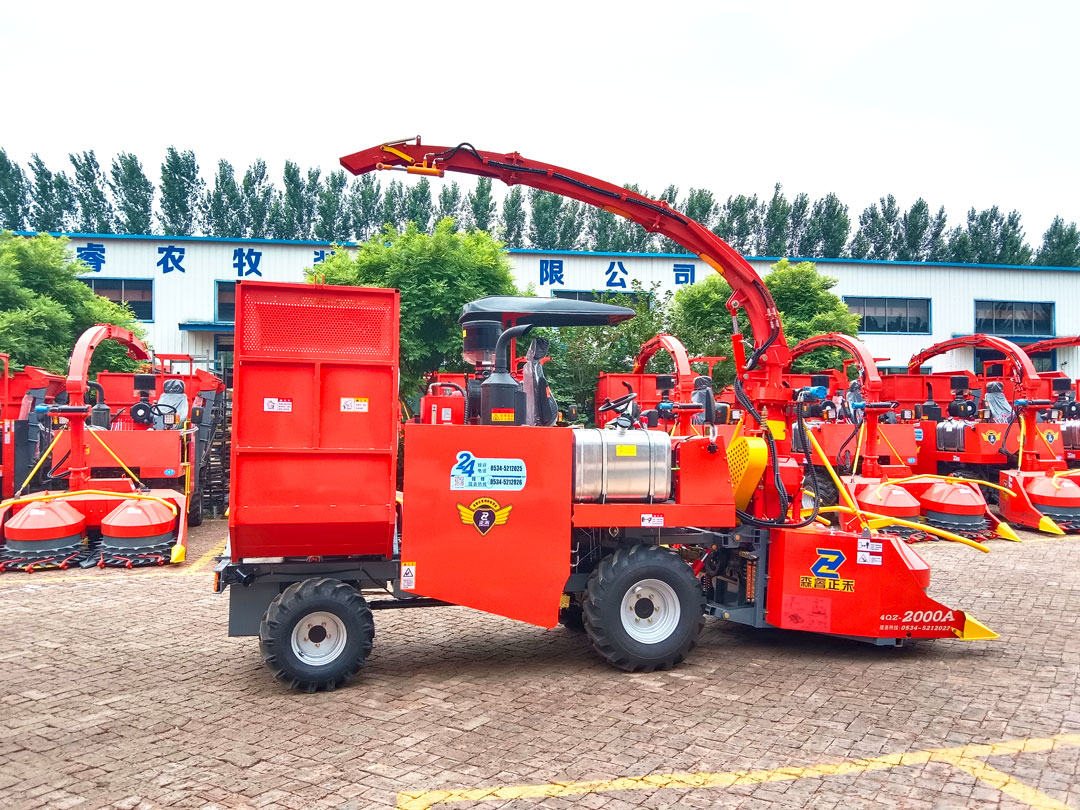

4QZ-2000A Mini Silage Harvester, cutting width of 2.020m, not subject to crop spacing constraints, can be carried out without rows of work, set the advantages of high operating efficiency and safe and reliable performance in one, can be a one-time on the green (yellow) silage crops to complete the cut off the ground, the order of feeding, uniform chopping, throwing and loading a number of operations.
Product description:
4QZ-2000A Best Forage Harvester has high working efficiency and can harvest several MU of green fodder per hour, which greatly saves manpower and time cost. At the same time, due to the use of advanced cutting and shredding technology, the quality of harvested green fodder, less loss of nutrients, can provide high-quality feed sources for livestock. In addition, the device is easy to operate, after a simple training of the operator can be easily used, reducing the professional skills of the operator requirements
Features:● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.

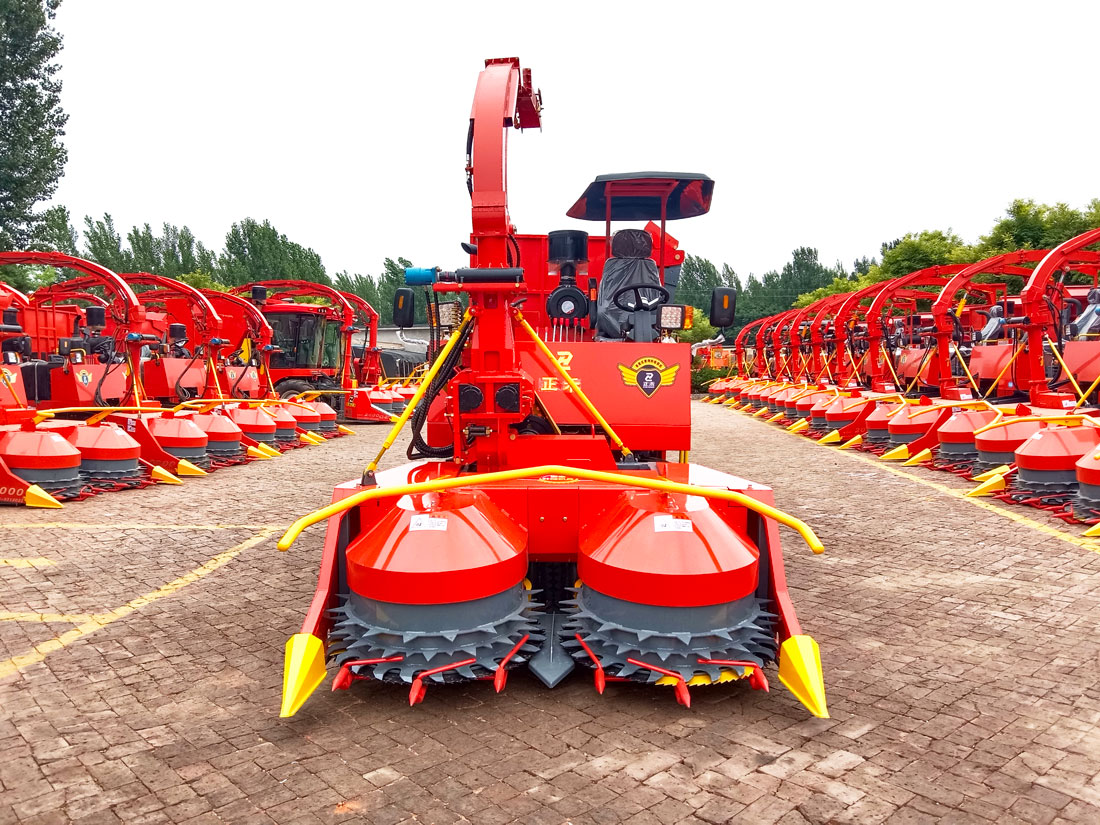

● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all straw-like forage crops not on the line operation. : : Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder. ● grain crushing: the high-strength grain crushing roller of the roller, rapid replacement, grain crushing rate of more than 97% , improved the palatability and feed intake rate of livestock.
● Spray cylinder assembly: the spray cylinder is rotated by worm gear and worm mechanism, and can rotate ± 180 ° , effectively locking the spray cylinder angle, making the spray cylinder angle more stable.

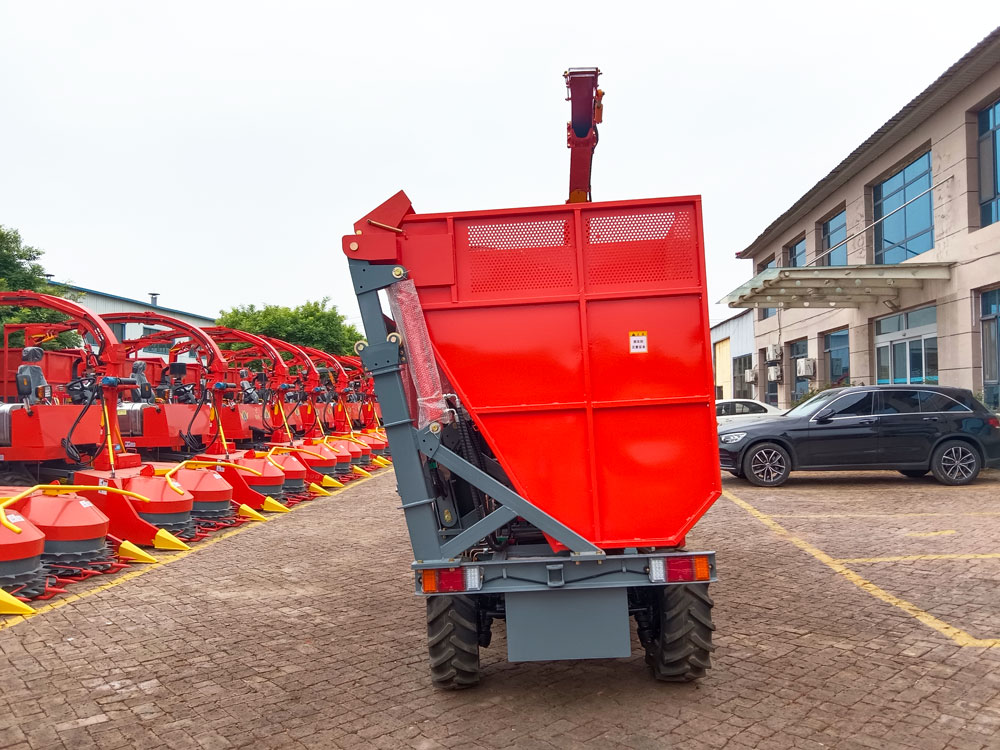

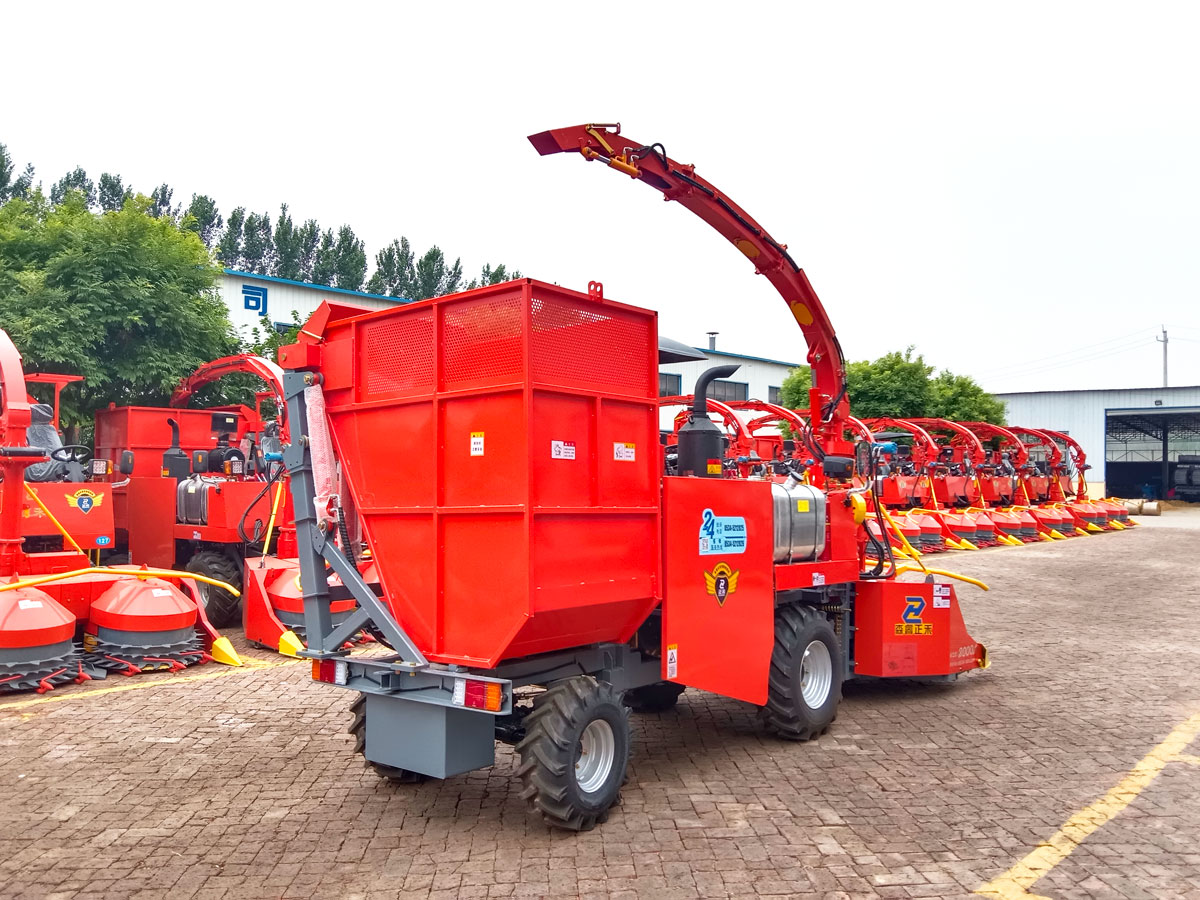

● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
● Powertrain: 175 horsepower engine, horsepower foot, strong power, four-wheel drive system, Mountain Hills and other areas through high.
● control: suspension seat, driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2000A self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*2200*3950 |
Structural quality | kg | 4160 |
Matching Engine Rated Power | kw | 129(country 4) |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc type(Roller type) |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechanical Drive |
Brake type | / | Drum |
Guide wheel spacing | mm | 1200 |
Guide wheel tyre specifications | / | 26x10-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |

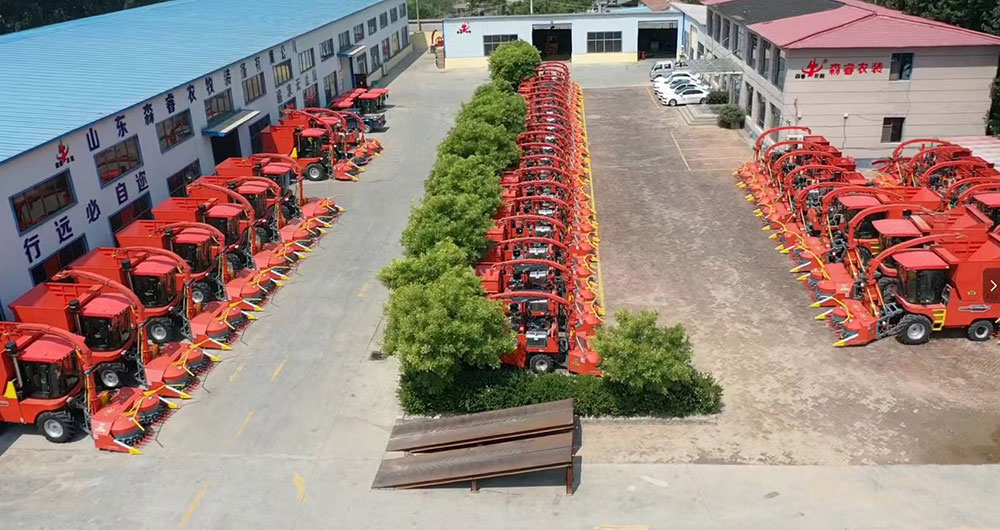

Company factory area:
