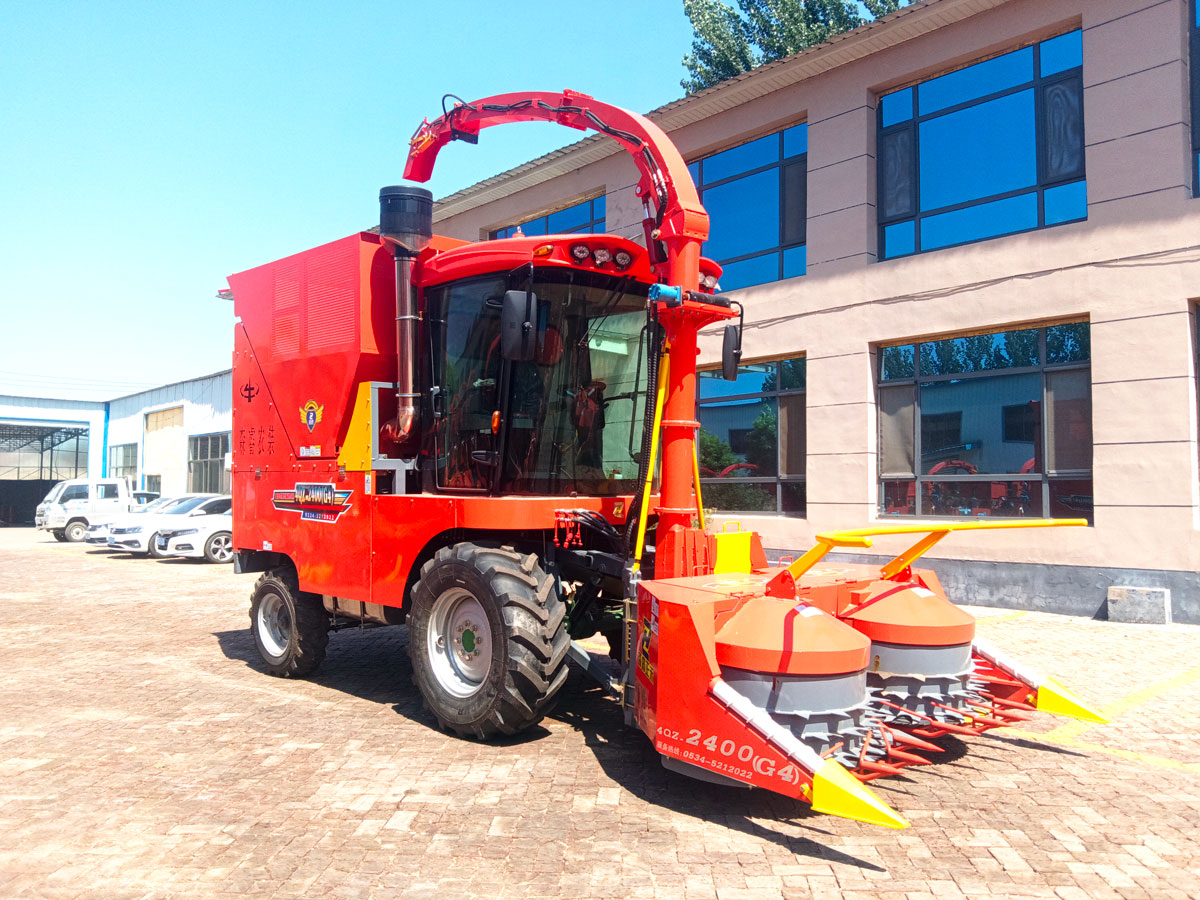

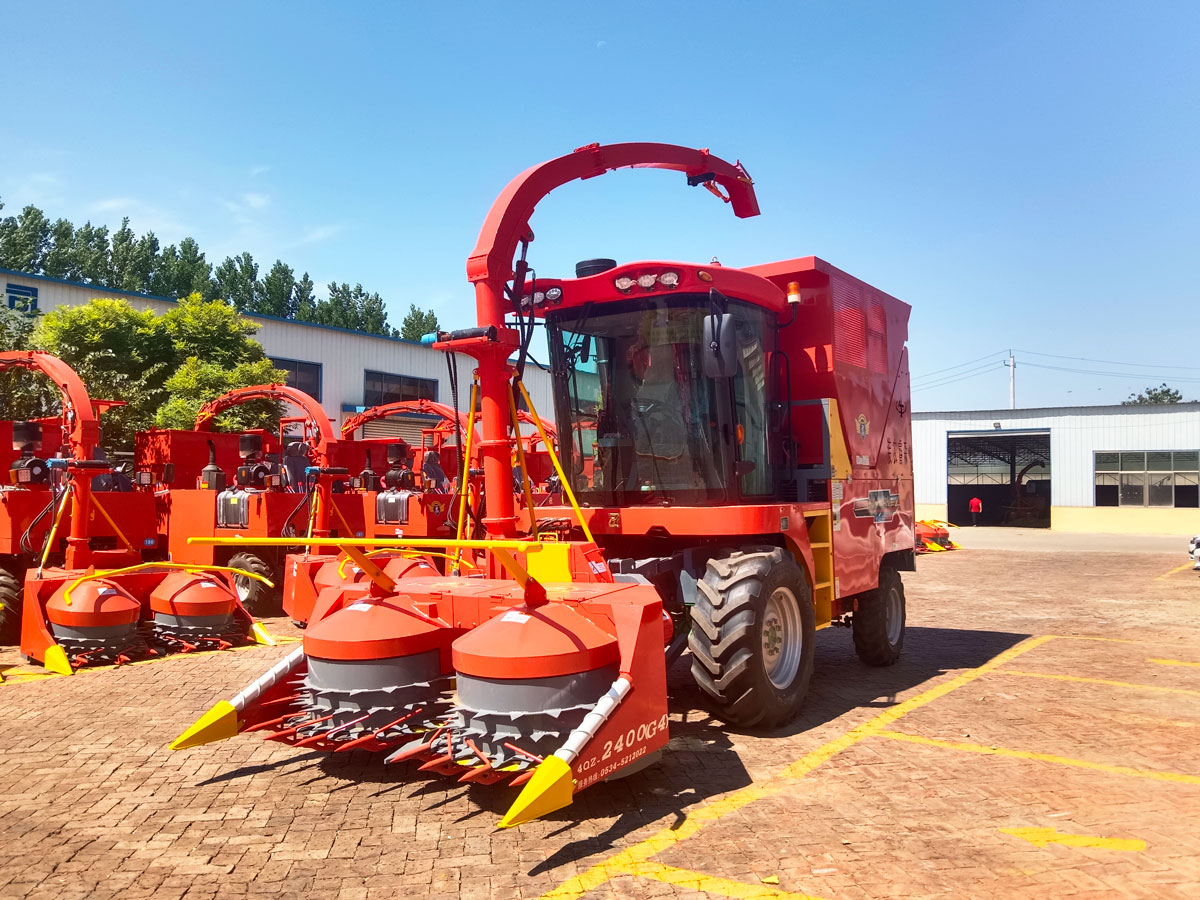

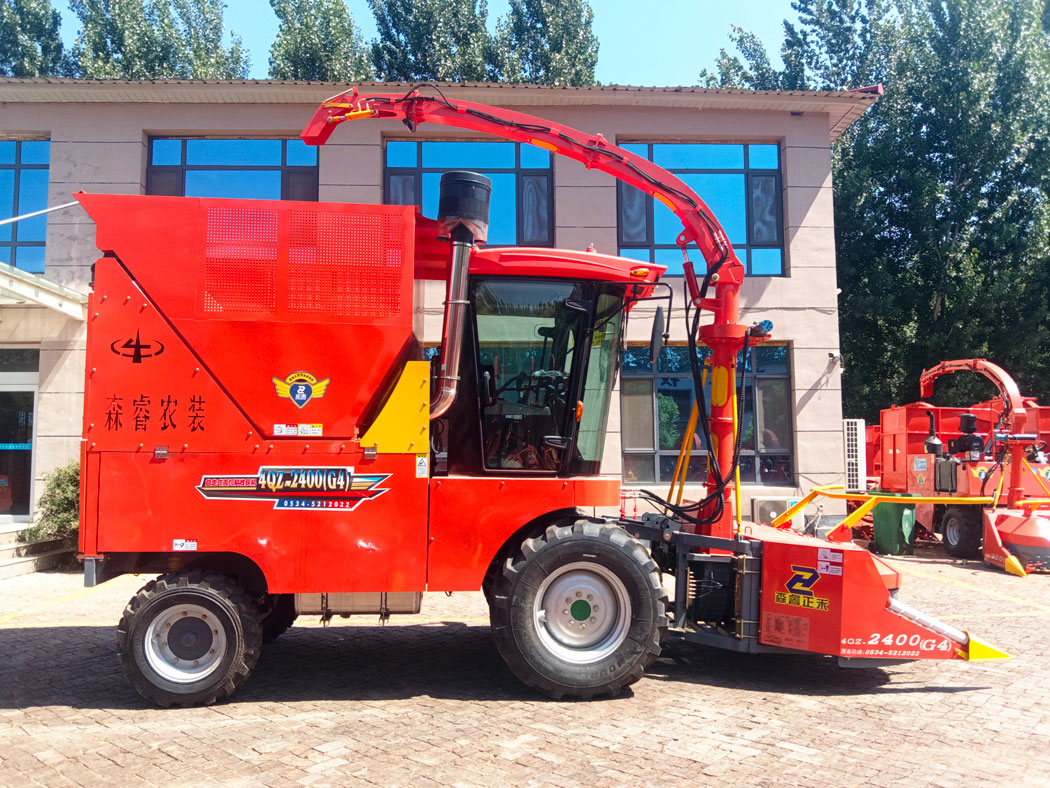

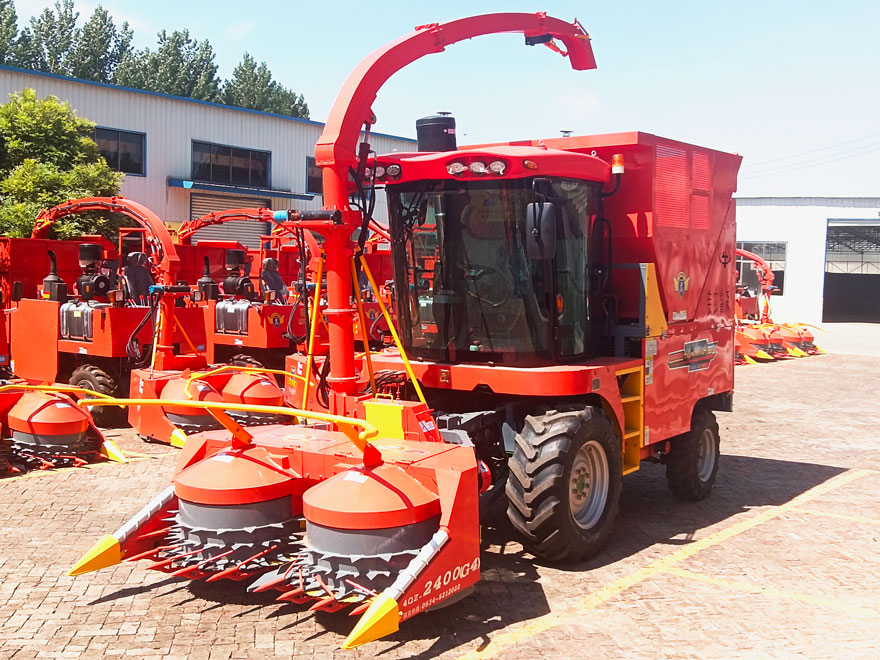

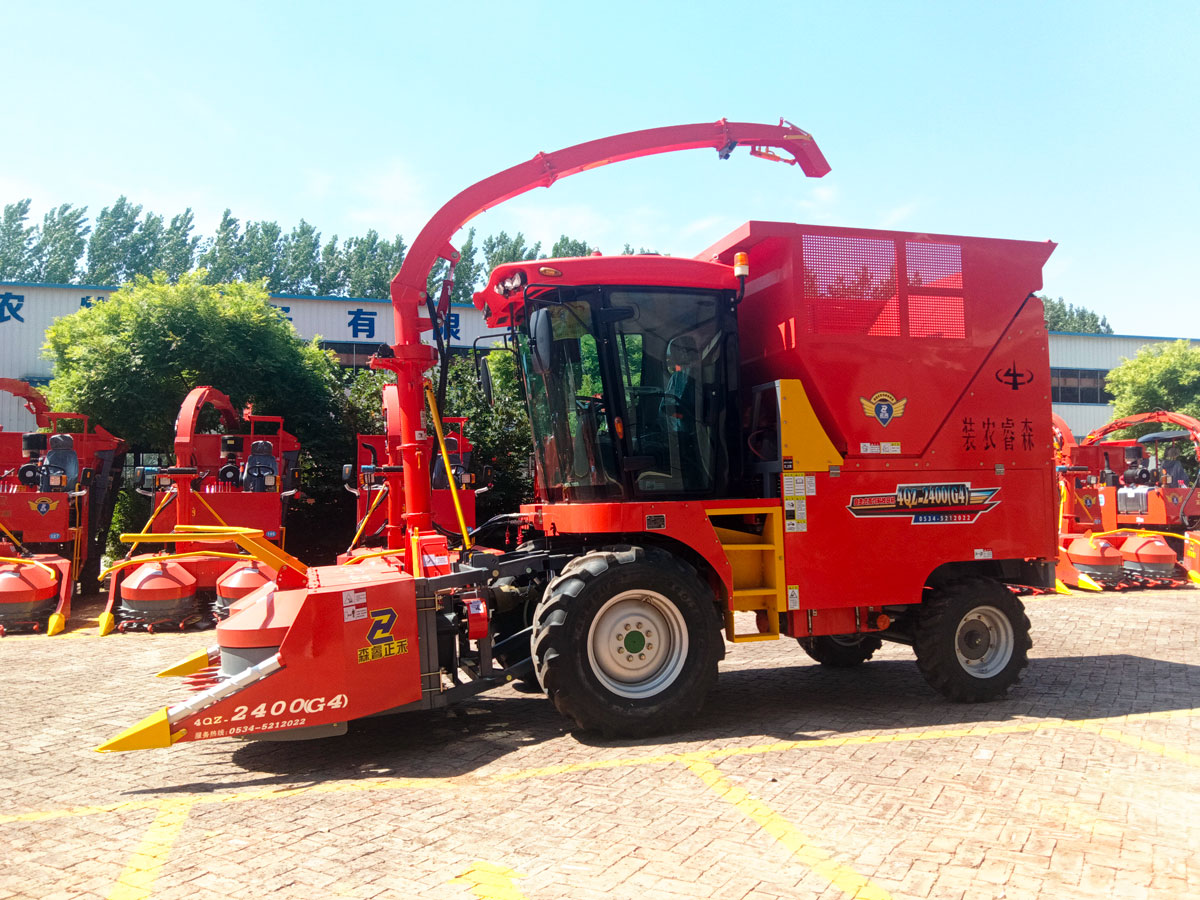

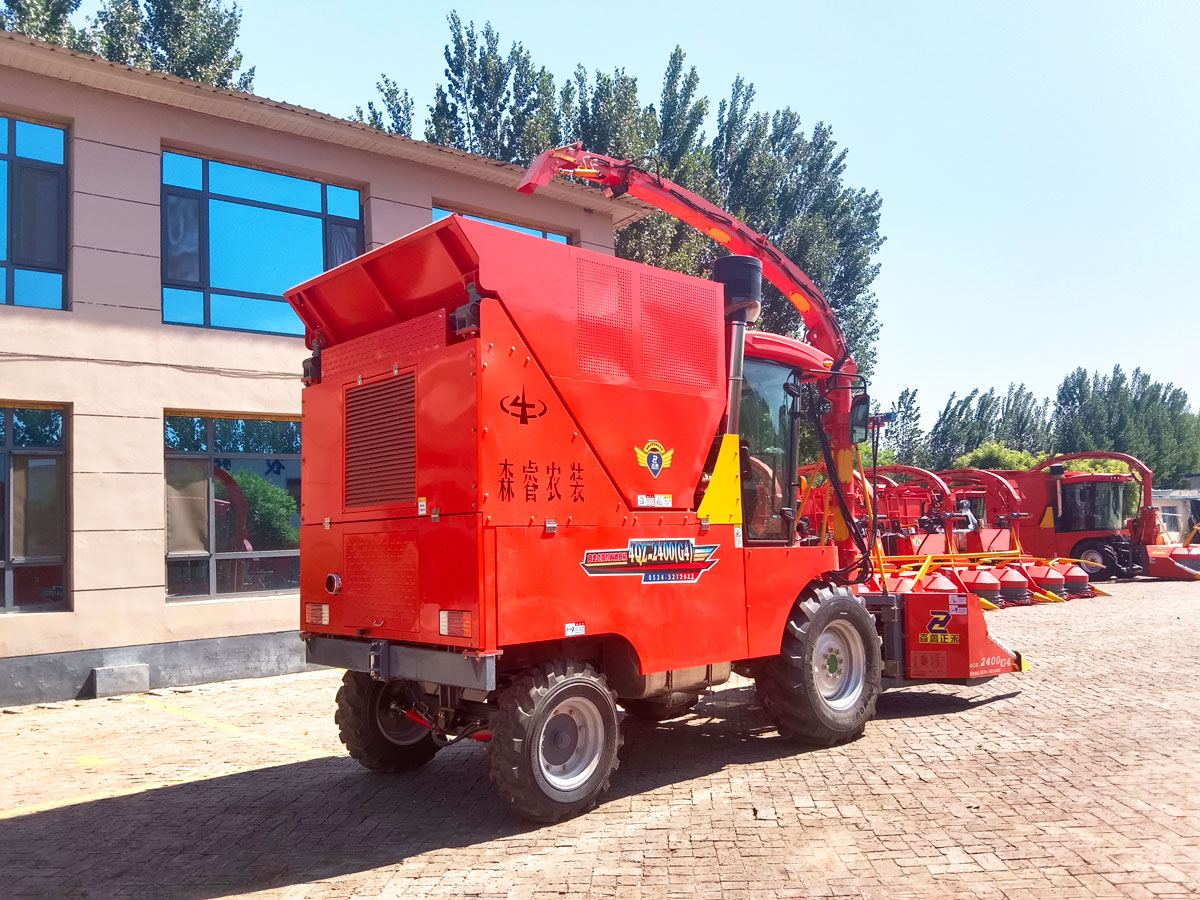

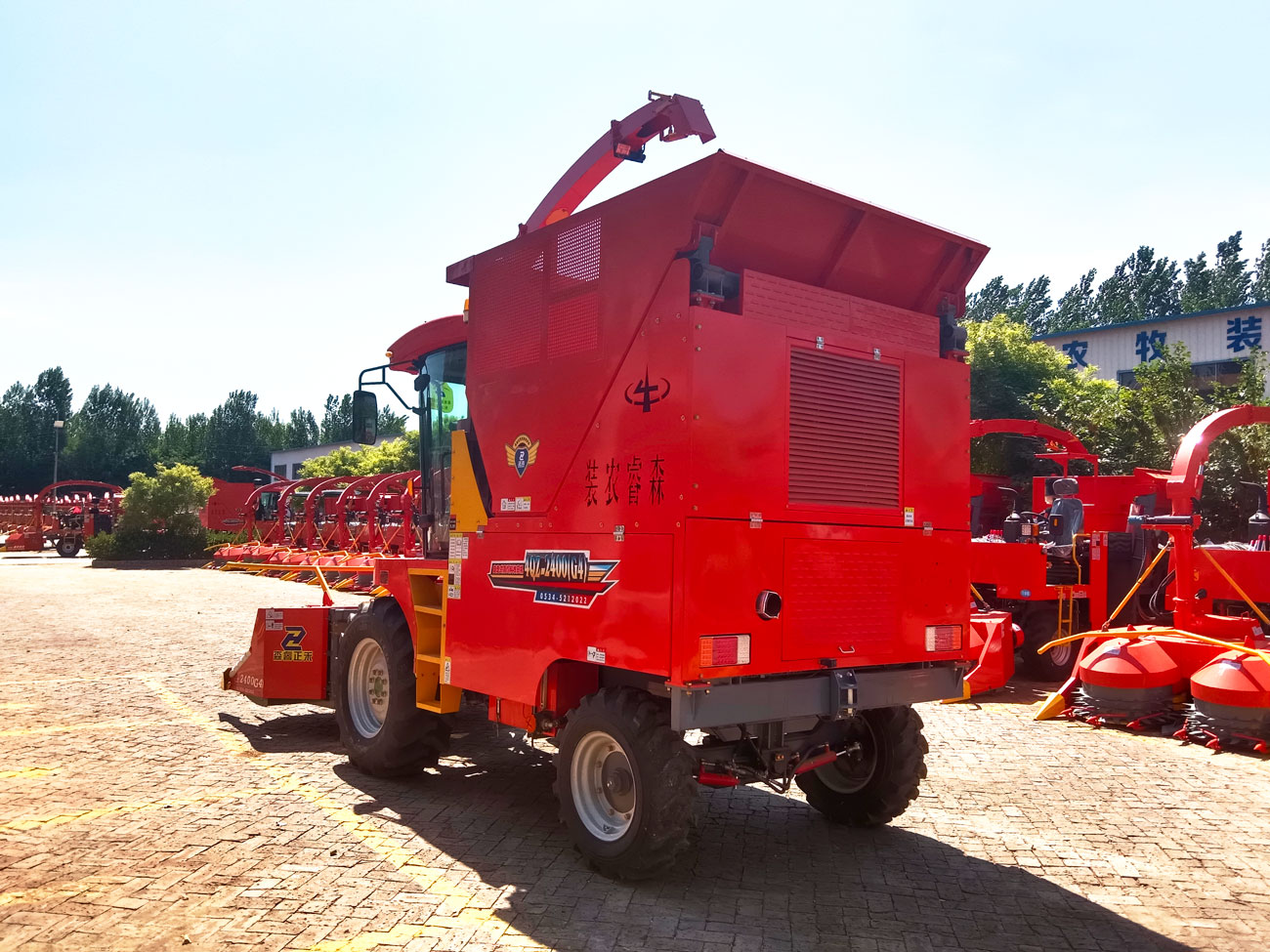

Self Propelled Forage Harvester
Product features:

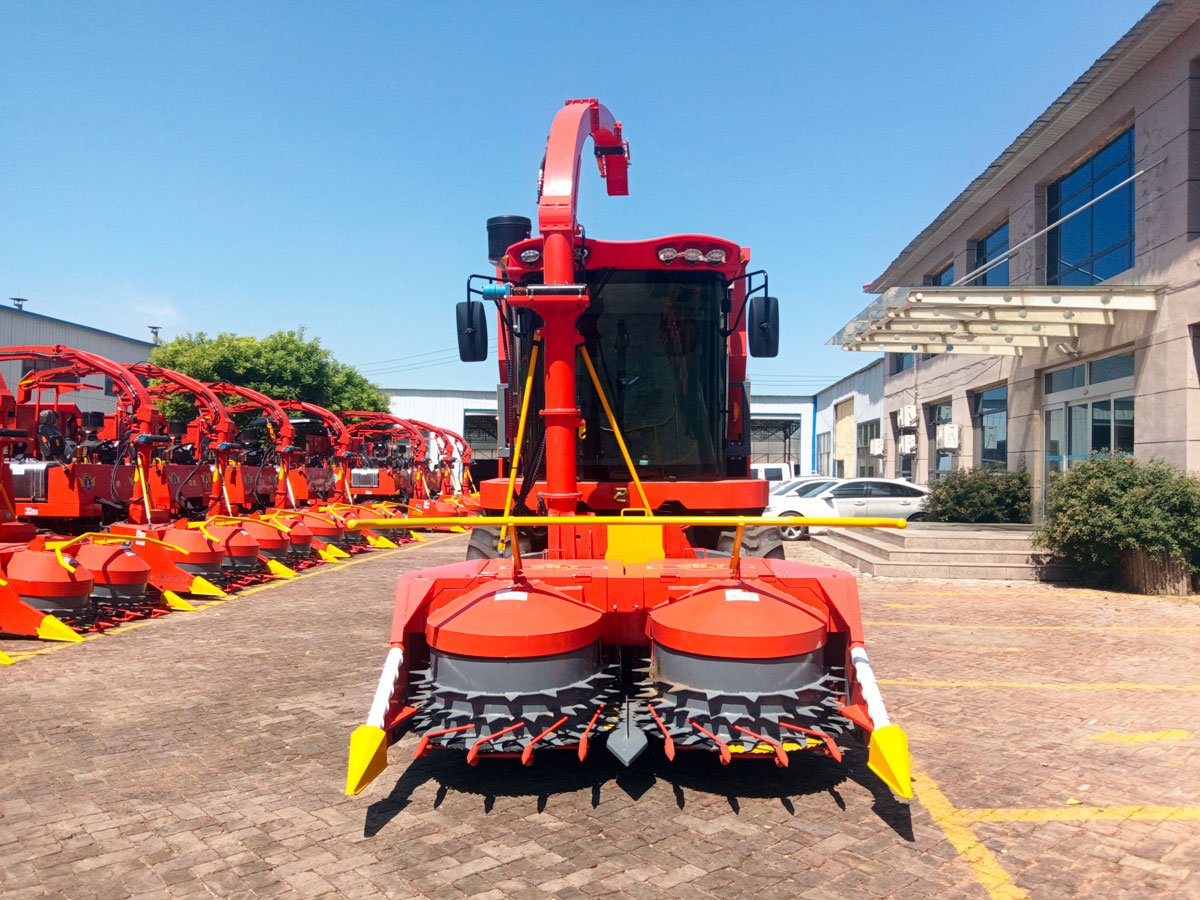

1.Cutting table assembly: 2220 double disc cutting table, which can be hooked up quickly and is easy to maintain.
2.Feeding assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improving the reliability of the machine, the feed wheel is equipped with a forward and reverse function, in the event of blockage can be reversed spit, the work efficiency is greatly improved.
3.Chopping assembly: disc knife chopping device, adopting double disc saw blade type cutter, which can adapt to all culm forage crops not opposite rows, with automatic knife grinding function, solving the problem of time-consuming and labour-intensive knife grinding for the users, and greatly shortening the maintenance time and improving the efficiency.
4.Nozzle assembly: the nozzle rotates with worm gear mechanism, which can rotate ±180°, effectively locking the nozzle angle, making the spray angle more stable.
Product introduction:
4QZ-2400 large self-propelled green Forage harvester with powerful power system and advanced harvesting, shredding, transportation and other integration functions. It can work quickly and efficiently in the field to harvest silage corn, forage grass and other green fodder crops, and process them into high-quality silage in a short time. Compared with the traditional manual harvesting and small-scale mechanical harvesting, the operating efficiency of large self-propelled forage harvester can be improved by tens or even h undreds of times.
Features :
● compact structure, small turning radius, easy operation, reliable quality, suitable for large, medium and small plots of work.
● Feeding Assembly: four-roller feeding chamber, segmented design, more convenient maintenance, vertical clamping feeding device, improve the reliability of the machine, feeding pulley equipment positive and reverse function, in the plug can reverse spitting material, the work efficiency is greatly improved.
● Chopping Assembly: disc cutter chopping device, using double-disc saw blade type cutter, can adapt to all straw-like forage crops of the wrong line of work, with automatic knife grinding function, to solve the user knife time-consuming and laborious problem, greatly shorten the maintenance time to improve efficiency.
● Spray cylinder assembly: the spray cylinder is rotated by worm gear and worm mechanism, and can rotate ± 180 ° , effectively locking the spray cylinder angle, making the spray cylinder angle more stable.
● Feed Box Assembly: with a large volume of charging box, after the dump operation is simple, increase the second lifting function, better adapt to a variety of receiving models, unloading more convenient.
● Power Assembly: full diesel 220 horsepower engine, PTO intelligent fuel-saving control, with light, medium and heavy load switching functions, according to the application of terrain, optional four-wheel drive.
● maneuverhydraulic: air-conditioning, electronic handle, suspended seat, more comfortable driving, cab main engine with large screen liquid crystal display and Operation Monitoring System, improve the operation safety, reliability, intelligence, the whole machine hydrostatic drive, driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2400(G4) self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6390*2430*5200 |
Structural quality | kg | 6300 |
Matching Engine Rated Power | kw | 162 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2200 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulically driven |
Brake type | / | Disc |
Guide wheel spacing | mm | 1620 |
Guide wheel tyre specifications | / | 10.0/75-15.3 |
Driving Wheel Distance | mm | 1747 |
Driving wheel tyre specifications | / | 400/70R24(16.0/70R24) |
Wheelbases | mm | 2410 |
Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |

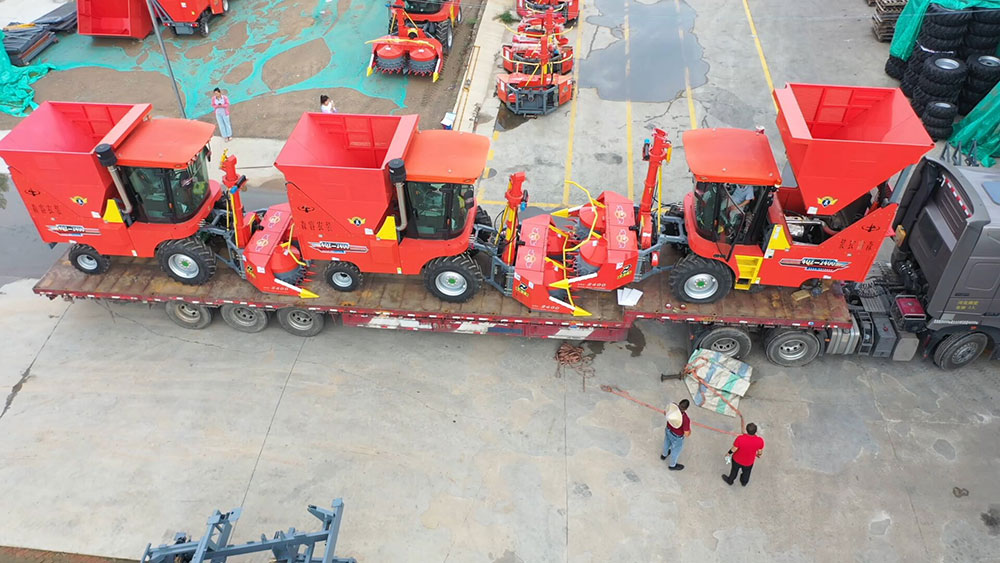

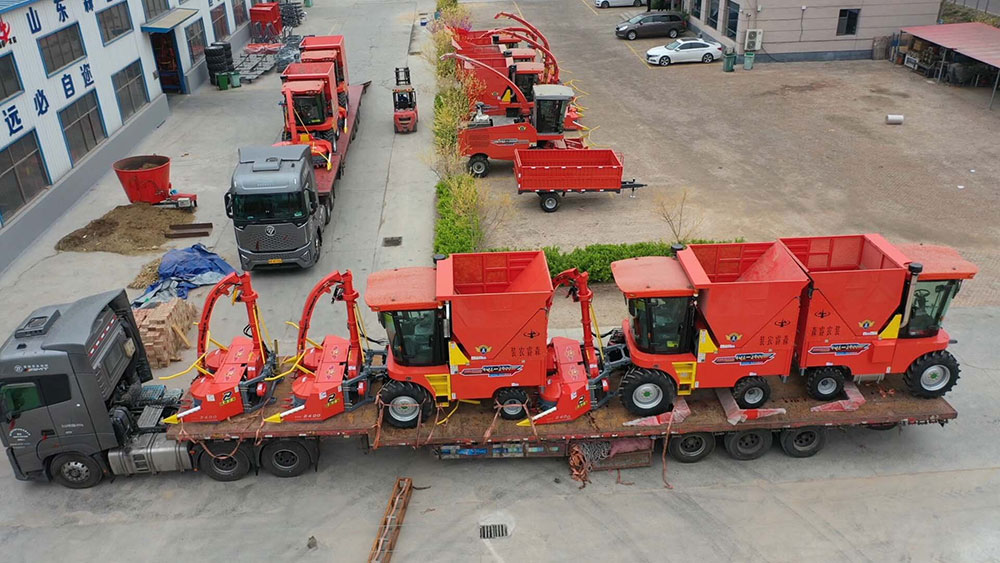

Delivery site:
