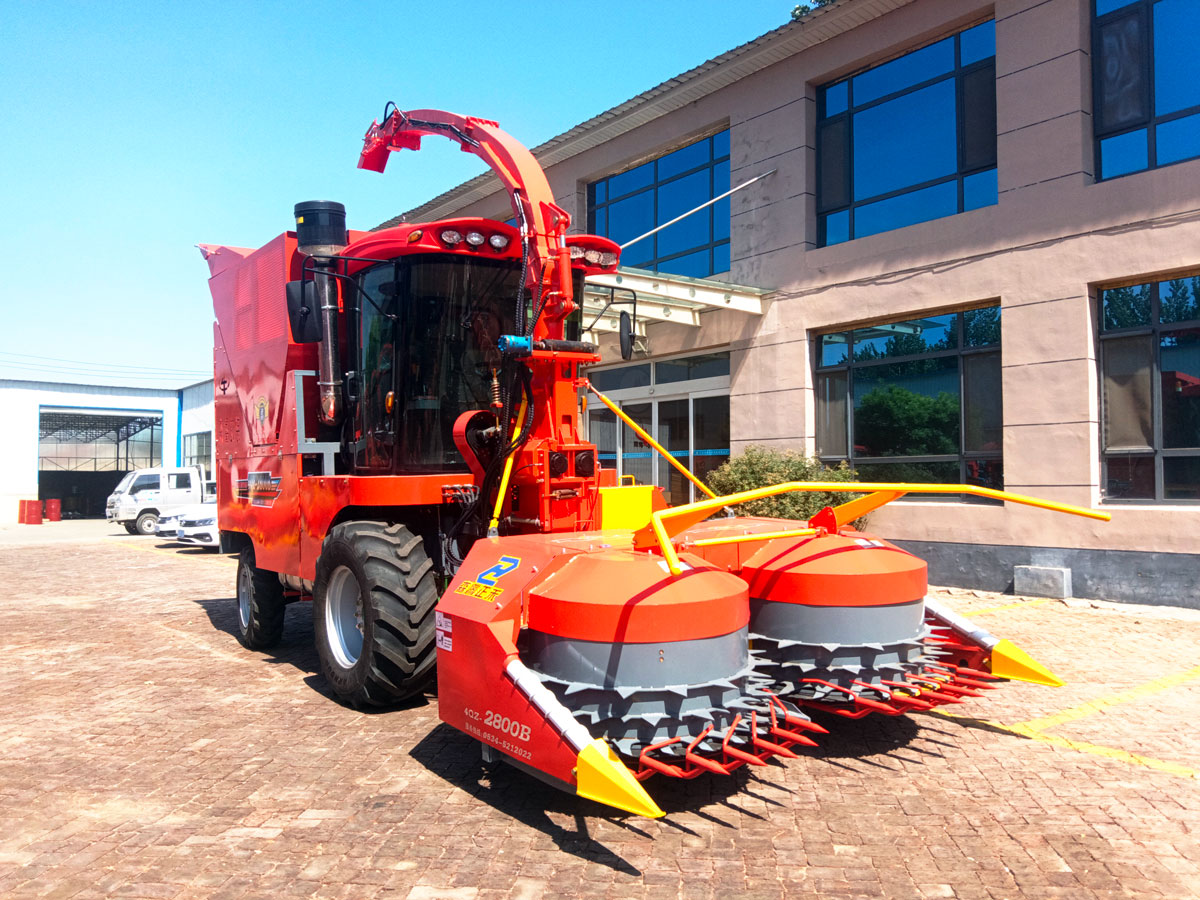

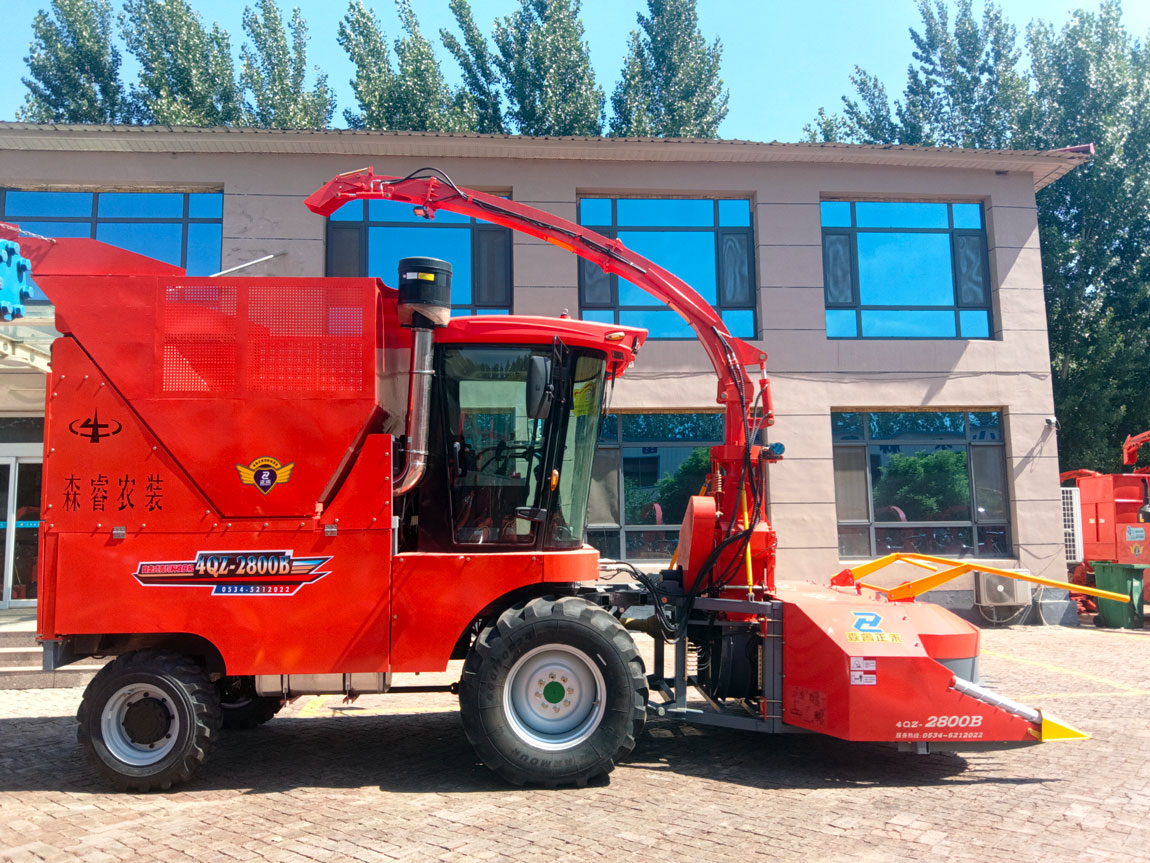

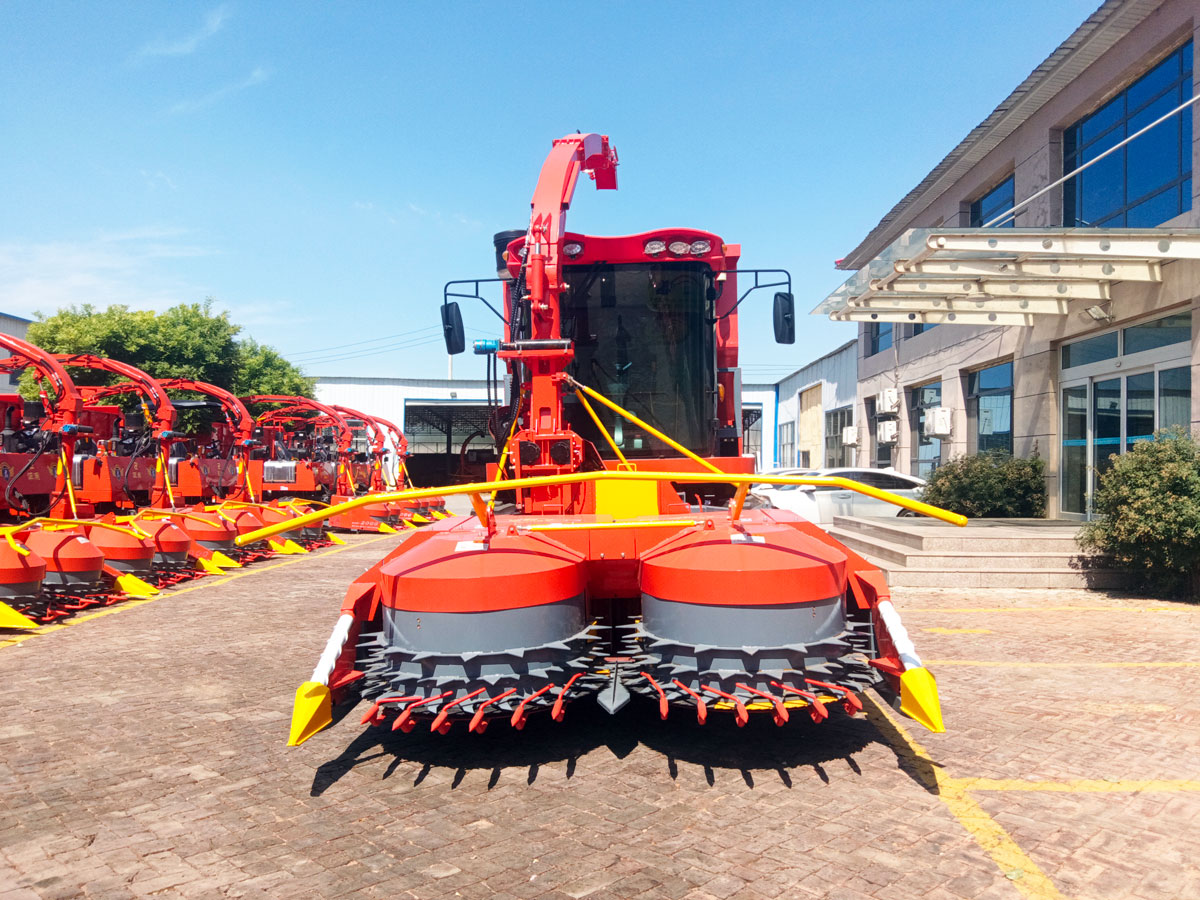

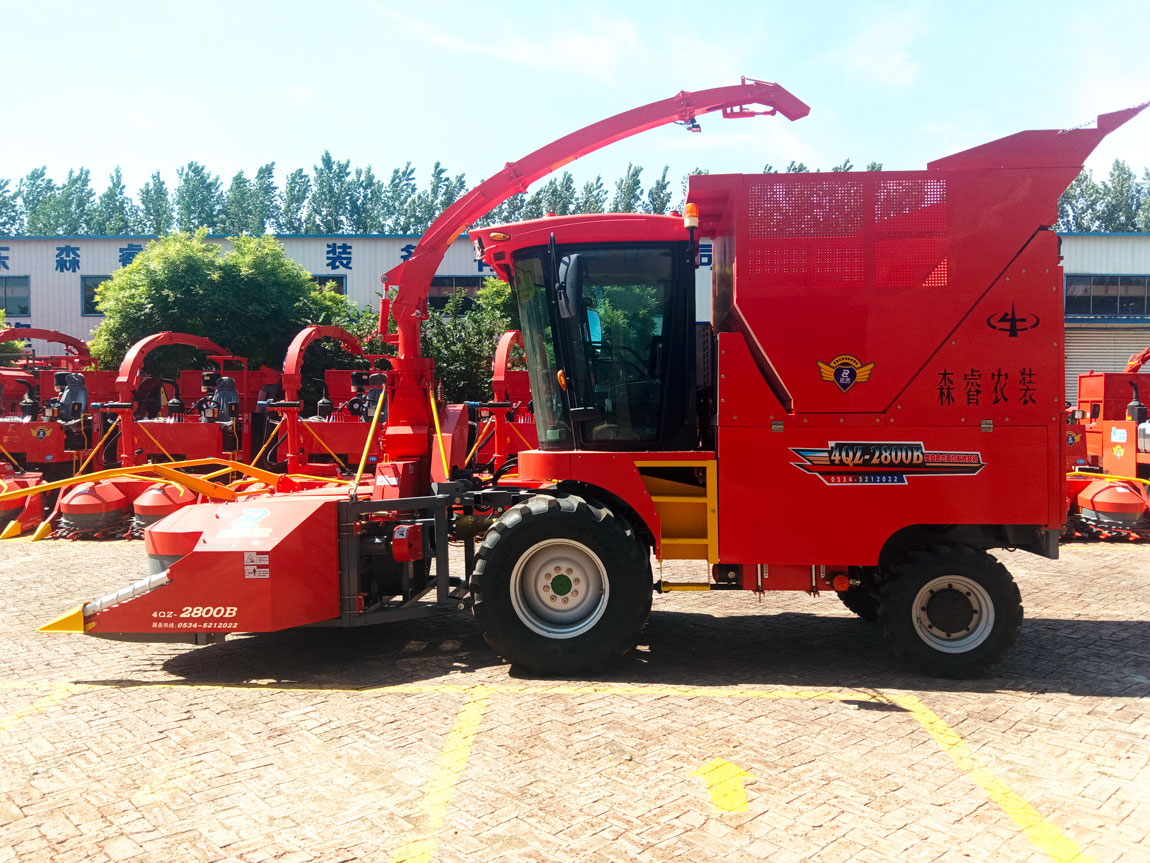

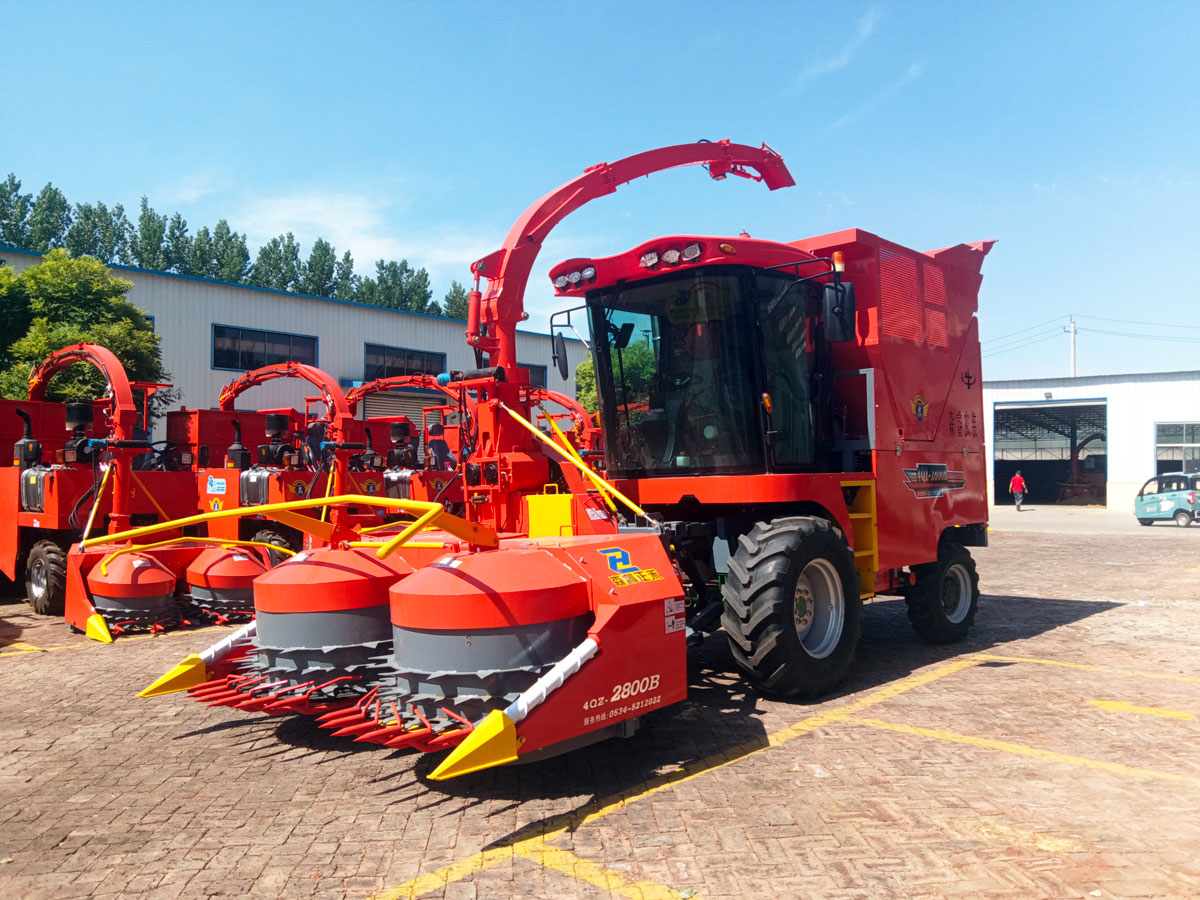

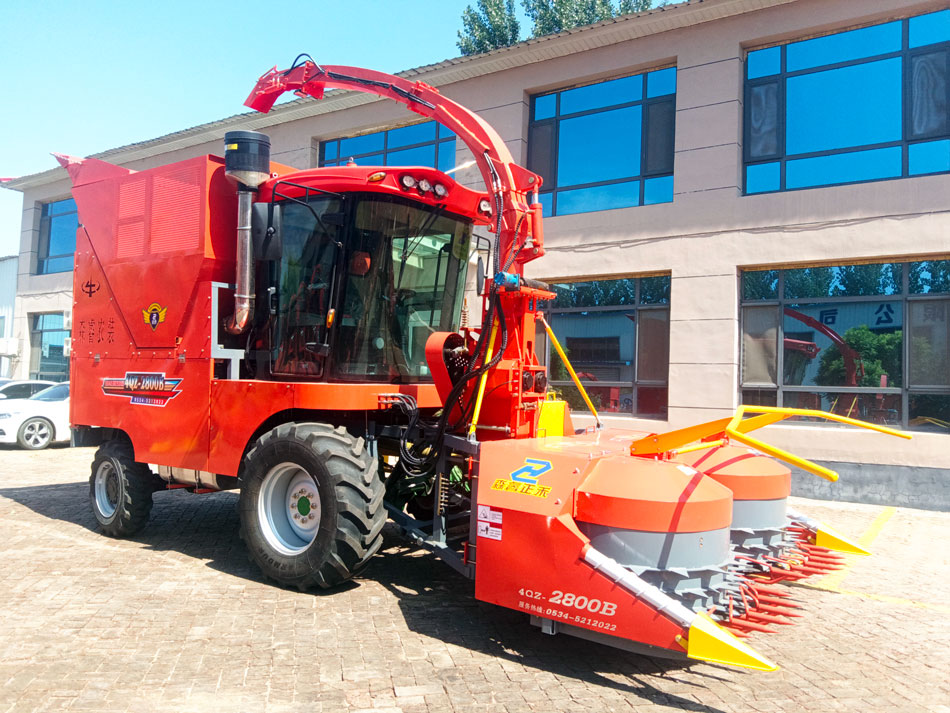

Self Propelled Fodder Harvester

Product characteristics:

● The whole machine has a compact structure, a small turning radius, easy operation, reliable quality, suitable for large, medium and small plot operation.

● Feeding assembly: four roller feeding room, segmented design, more convenient maintenance, vertical clamp feeding device, improve the reliability of the whole machine, feeding wheel equipment positive and reverse function, in the plugging can reverse vomit, work efficiency is greatly improved.

● Shear assembly: cutter cutter device, using double disc saw cutter, can adapt to all straw forage crops improper operation, with automatic sharpening function, solve the user knife time-consuming and laborious problem, greatly shorten the maintenance time to improve efficiency.

● Grain crushing: the roller high strength grain crushing roller, rapid replacement, grain crushing rate of more than 97%, improve the palatability and feeding rate of livestock.

● nozzle assembly: nozzle rotation using the worm wheel worm mechanism, can ± 180 rotation, effectively lock the nozzle Angle, make the spray Angle more stable.

● Box assembly: with the loading box, after the unloading operation is simple, increase the secondary lifting function, better adapt to a variety of receiving models, unloading more convenient.

● Powertrain: Yuchai 300 horsepower engine, PTO intelligent fuel saving control, with light load, medium load, heavy load switching function, according to the application terrain, optional four-wheel drive.

● Control / hydraulic: standard with air conditioning, electronic handle, suspension seat, driving more comfortable, the cab host standard with large screen LCD screen and operation monitoring system, improve the operation safety, reliability, intelligence of the machine, the whole machine static hydraulic drive, driving more comfortable.

Product parameter:

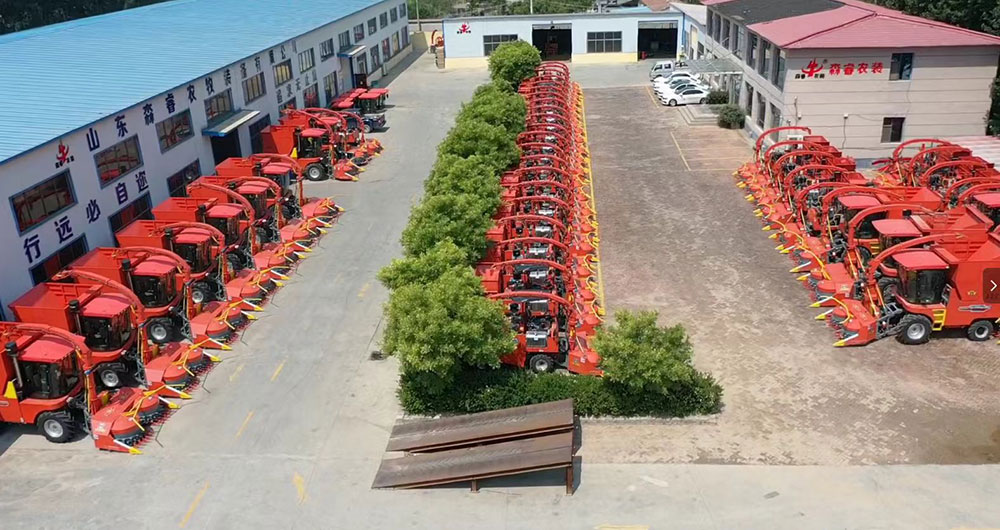

Factory:
