2.220m Automatic Silage Making Machine
Product introduction:

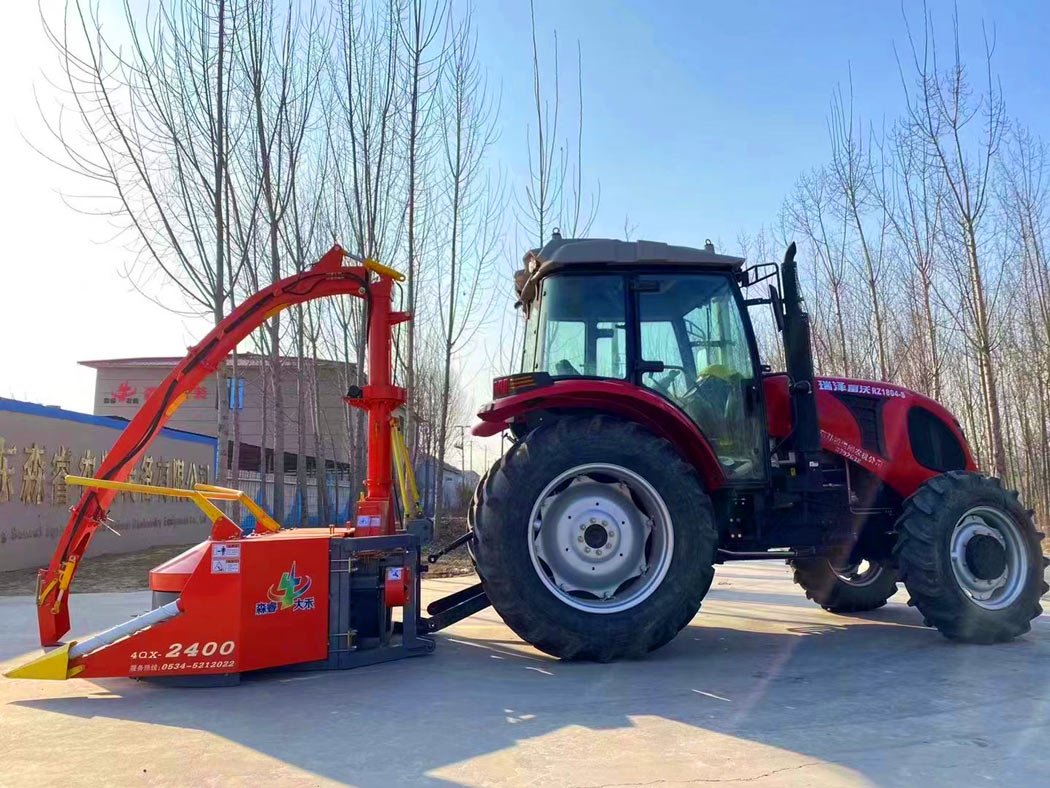

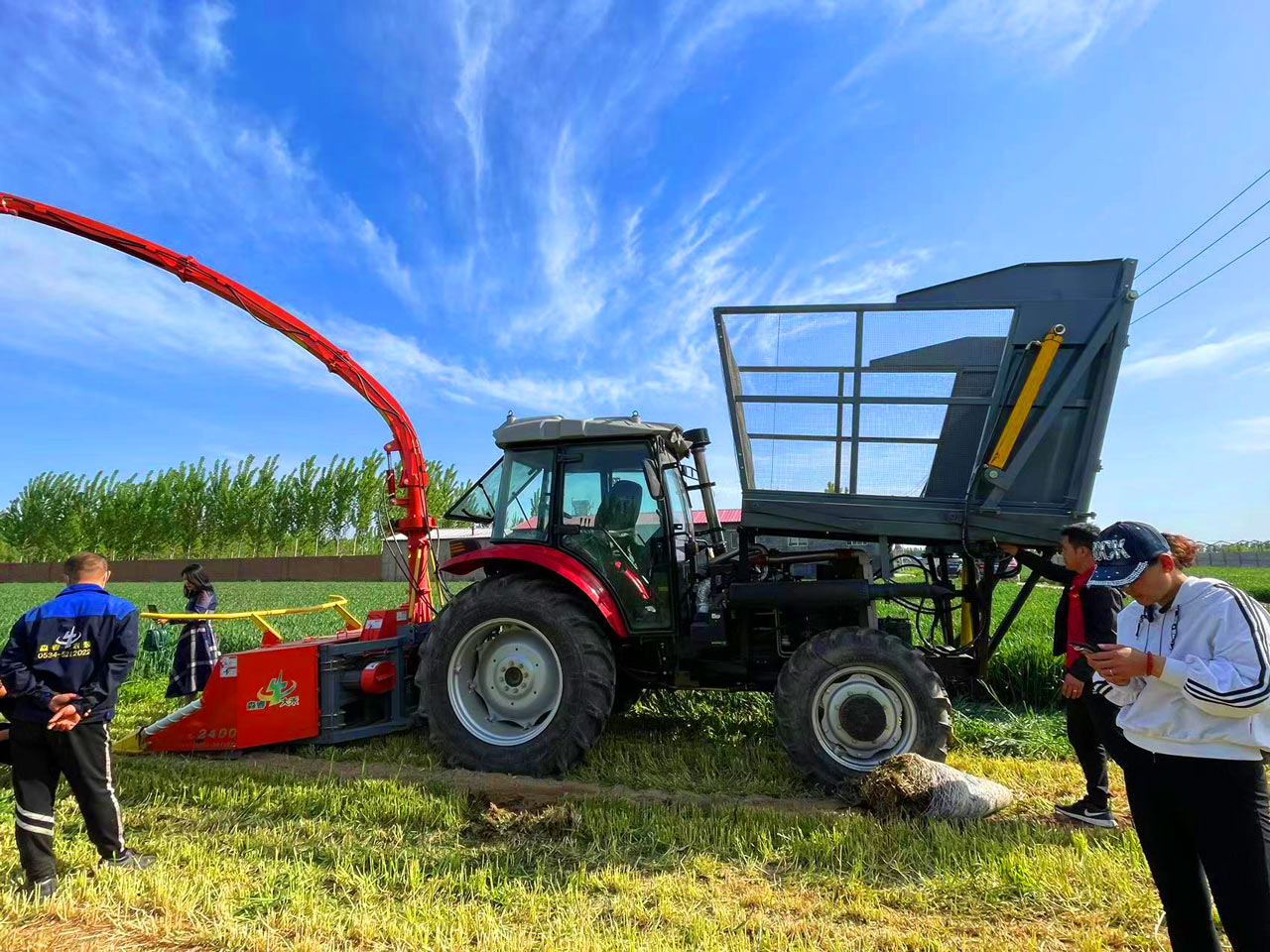

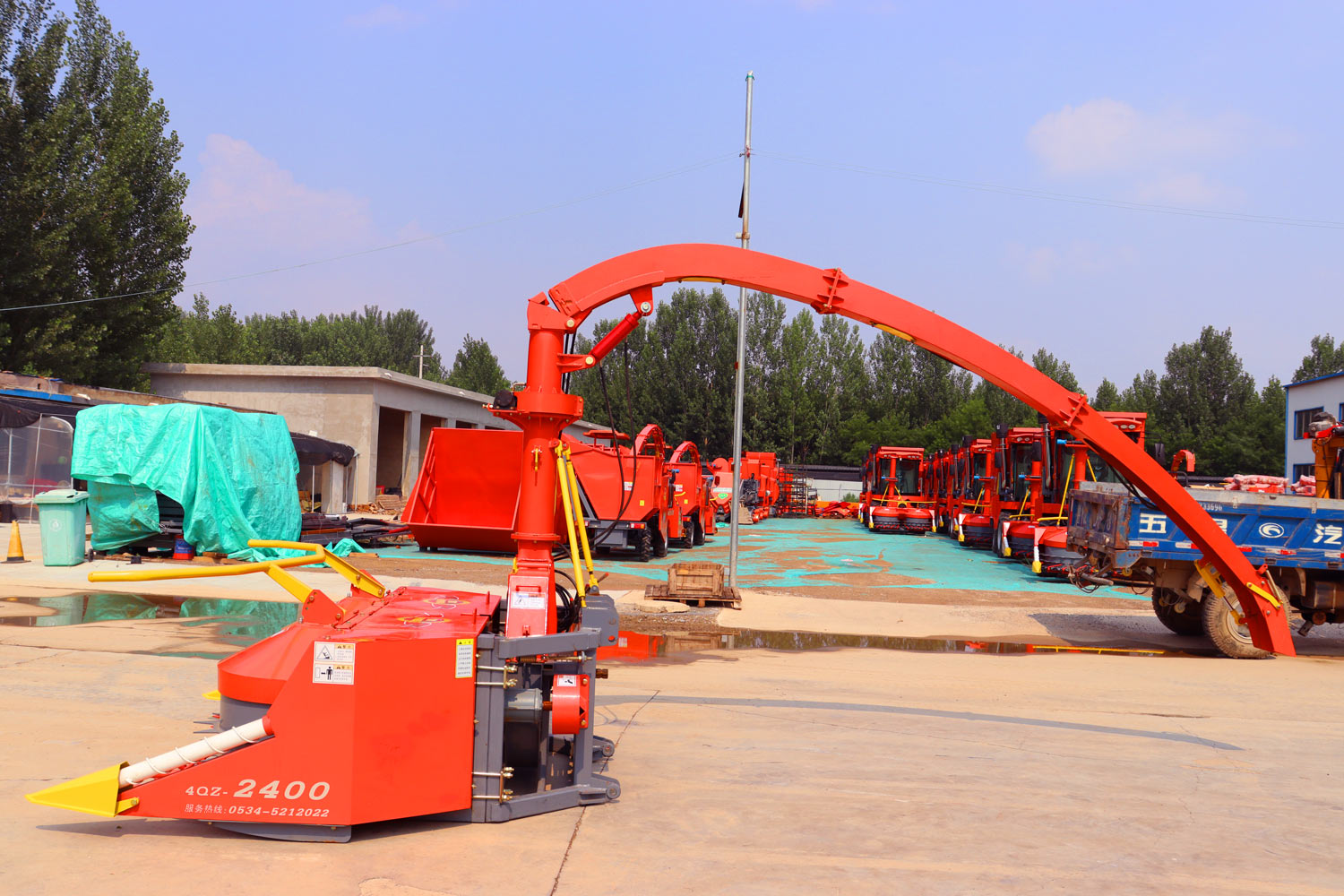

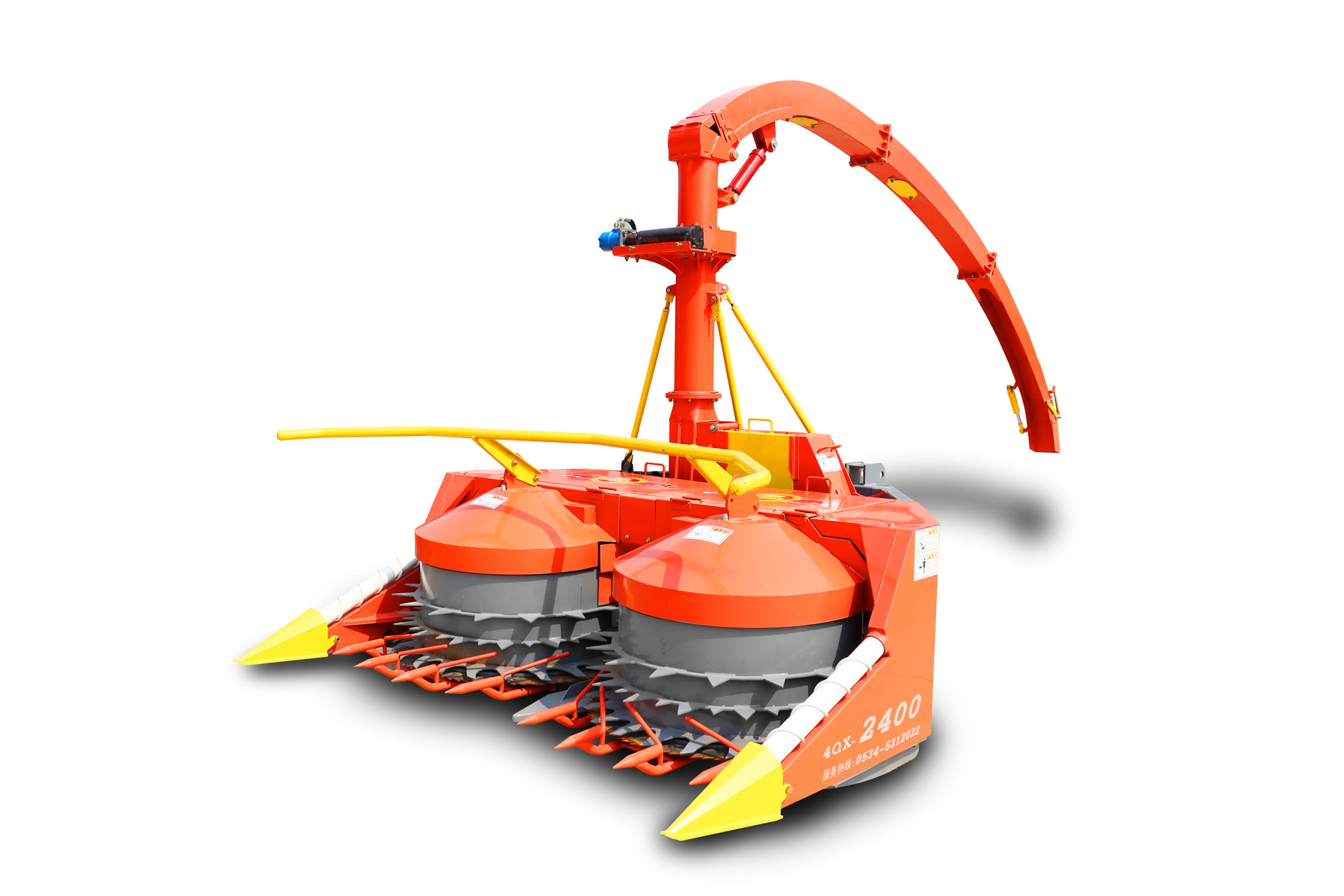

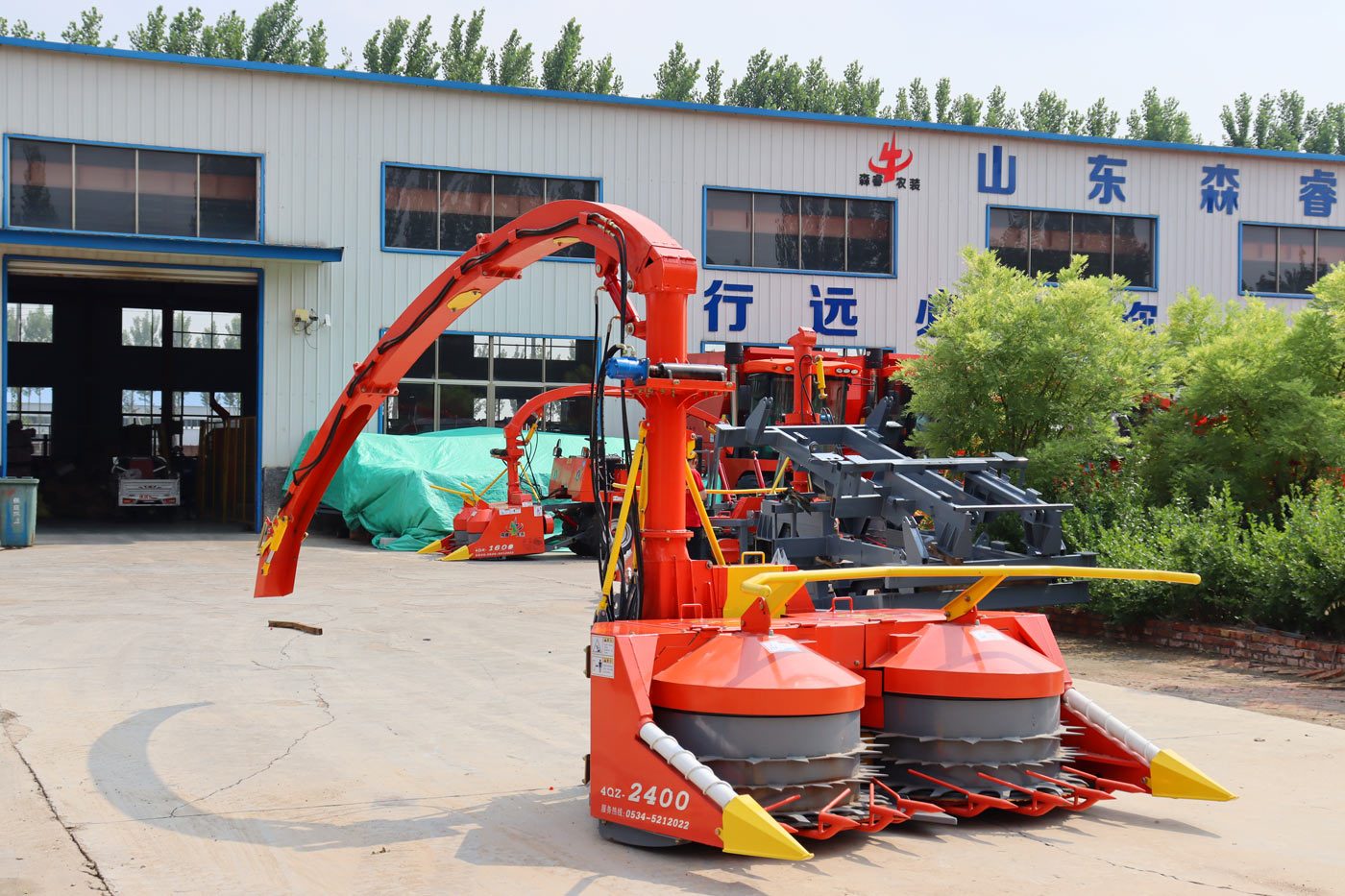

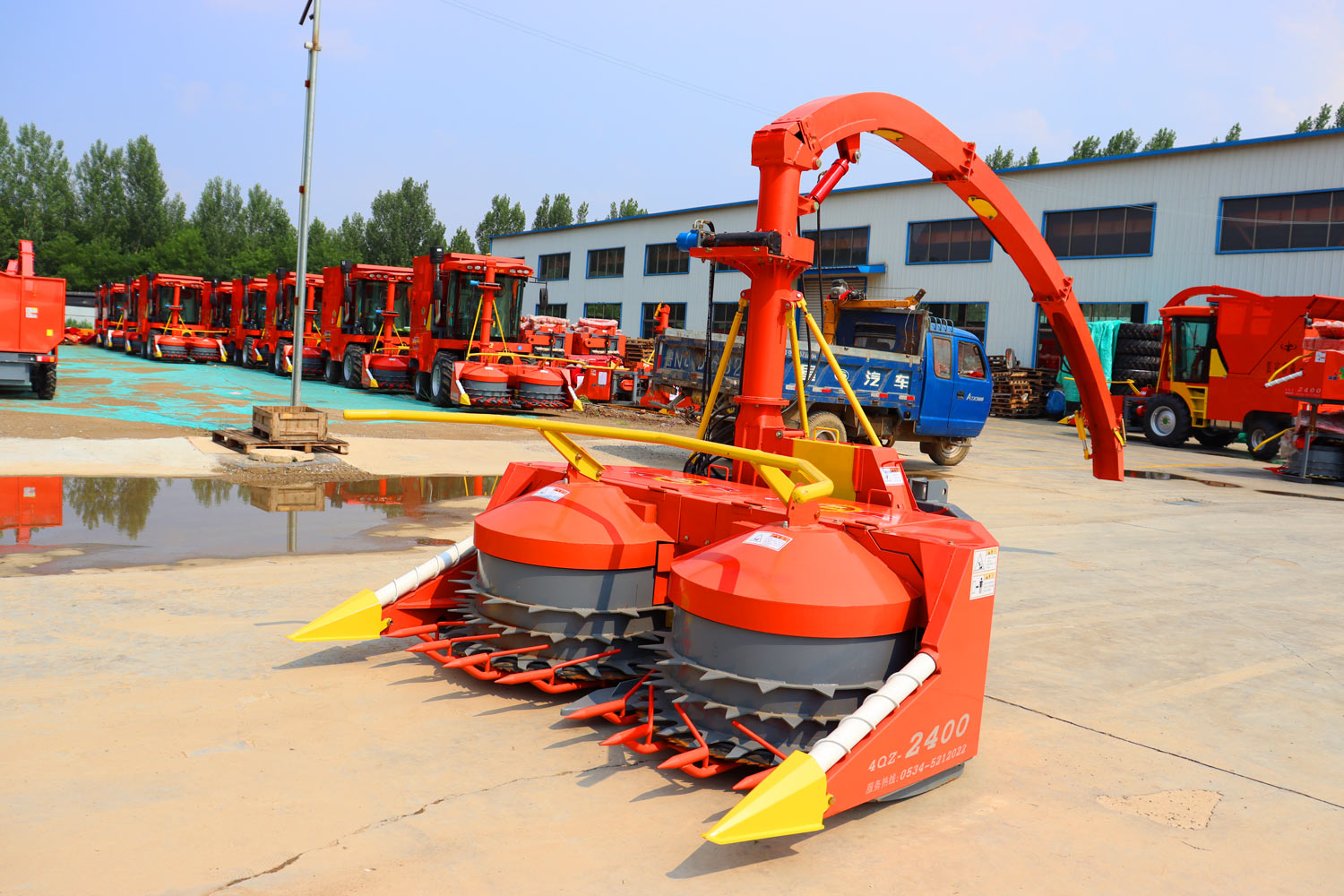

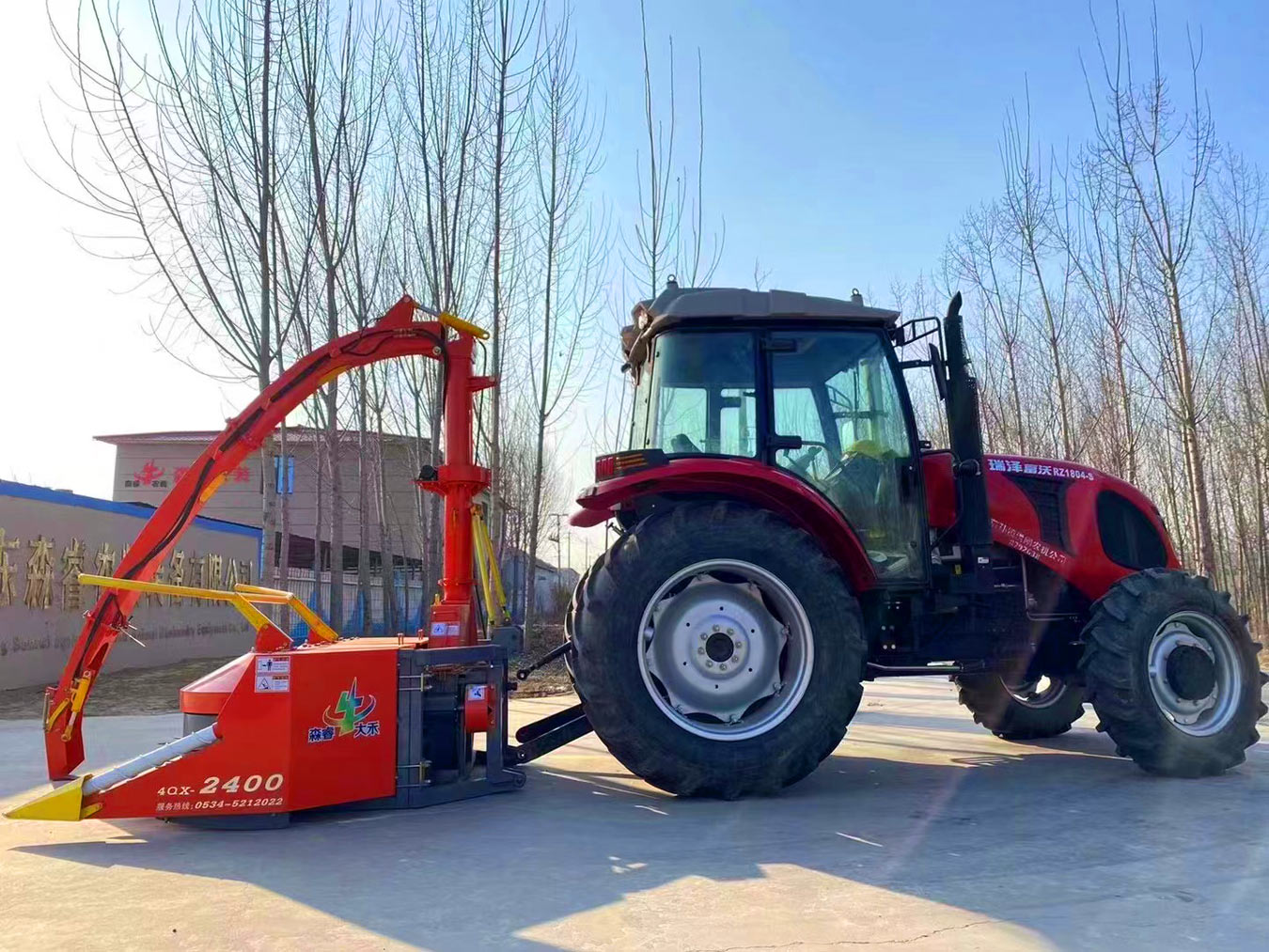

Senrui 4QX-2400 green forage harvester is novel in design, and completely realizes the wrong harvesting operation. The equipment has the advantages of small size, high efficiency, wide application, low energy consumption, dexterous action, no restriction of crop row spacing, high working efficiency, safe and reliable performance, etc. It can be matched with tractors and harvesters of various brands that meet the requirements, and can perform many operations such as cutting off the ground, sequentially feeding, evenly chopping, throwing and loading green (yellow) stored feed crops.
"Automatic Silage Making Machine has the function of automatic sharpening, which solves the problem of time-consuming and laborious sharpening for users, greatly shortens the maintenance time and improves the efficiency": It shows that the device has the characteristics of automatic sharpening, which has the advantage of saving the energy and time for users to sharpen their knives, thus improving the maintenance efficiency."The vertical cylinder feeding device can adapt to the non-aligned harvesting of high-stalk crops such as corn and sorghum": The adaptability of this vertical cylinder feeding device is emphasized, and it can cope with high-stalk crops such as corn and sorghum, and crops do not need to be arranged in specific rows for harvesting."Four-roller feeding forced sequential feeding device can feed the cut materials into the material chopping device evenly in sequence": It shows that the four-roller feeding device can feed the cut materials into the material chopping device evenly in a certain order."The rotation of the spray barrel adopts the worm gear and worm mechanism, which can rotate and effectively lock the spray barrel angle, making the spray angle more stable": It shows that the rotation mechanism of the spray barrel is the worm gear and worm mechanism, which can rotate and effectively lock the angle, thus making the spray angle more stable."The material shredding device can adjust the length of material shredding to meet the needs of different forage harvesting": it means that the material shredding device can adjust the length of material shredding according to different needs."Double-disc saw blade is used in the cutting device, so that the material is cut accurately and stably, and the stubble is even and consistent": It is pointed out that the cutting device uses double-disc saw blade, and its effect is that the material can be cut accurately and stably, and the stubble is even and consistent."The throwing device can quickly and accurately throw the chopped materials into the accompanying bin, and the throwing direction, angle and position can be adjusted": It shows that the throwing device can quickly and accurately throw the chopped materials into the accompanying bin, and the throwing direction, angle and position can be adjusted.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
