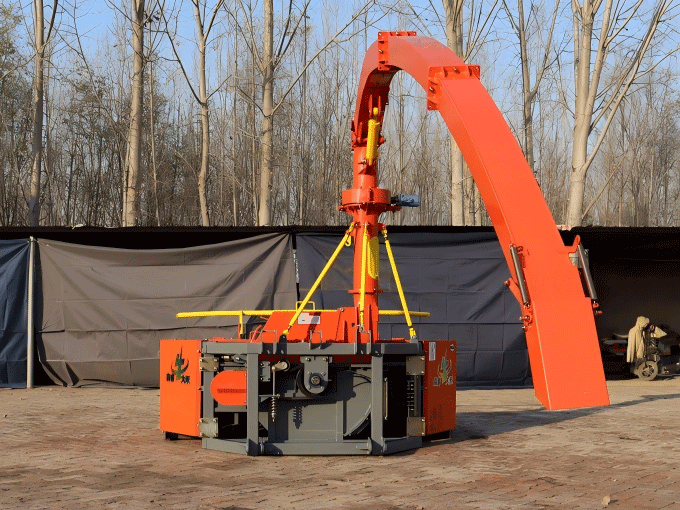

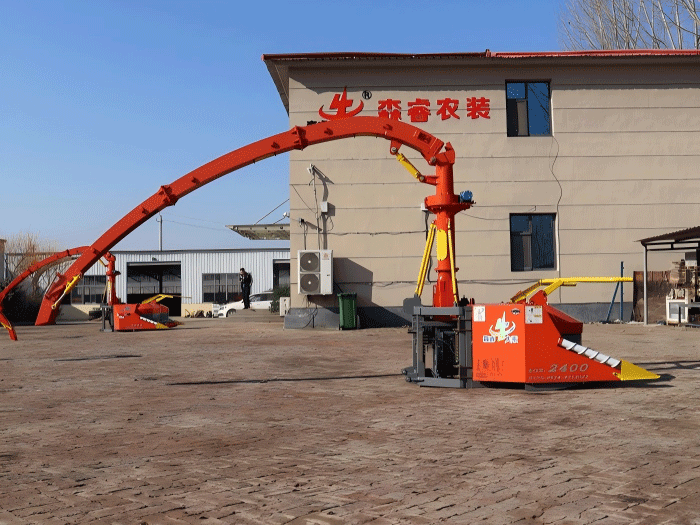

2.220m Maize Silage Machine
Product introduction:
The header of Senrui 2.220m silage harvester has a novel design, which completely realizes the off-line harvesting operation. The equipment has the advantages of small size, high efficiency, wide application, low energy consumption, dexterous action, no restriction of crop row spacing, high working efficiency, safe and reliable performance, etc. It can be matched with tractors and harvesters of various brands that meet the requirements, and can perform a number of harvesting operations on green (yellow) stored feed crops once and for all, such as cutting off the ground, sequentially feeding, uniformly chopping, throwing and loading.
Product features:
★ The header of Senrui 2.220m harvesting and crushing silage machine needs 103~117.6kw tractor installation. The header has automatic sharpening function.
★ The vertical cylinder feeding device can adapt to the different harvesting operations of high and low straw crops such as corn, sorghum, pasture, barley, oats, alfalfa, etc. with the height of 400 mm ~ 5000 mm..
★ Four-roller feeding forced sequential feeding device can feed the cut materials evenly into the material chopping device.
★ The nozzle rotates with worm gear and worm mechanism, which can rotate 180, effectively locking the nozzle angle and making the spraying angle more stable.
★ The material chopping device can realize that the chopping length of materials can be adjusted to meet the requirements of different forage harvests.
★ The cutting device adopts a double-disc saw blade, so that the material is cut accurately and stably, and the stubble is even and consistent.
★ The throwing device can quickly and accurately throw chopped materials into the accompanying bin, and the throwing direction, angle and position can be adjusted.
Product parameter:
Projects | unit | design value |

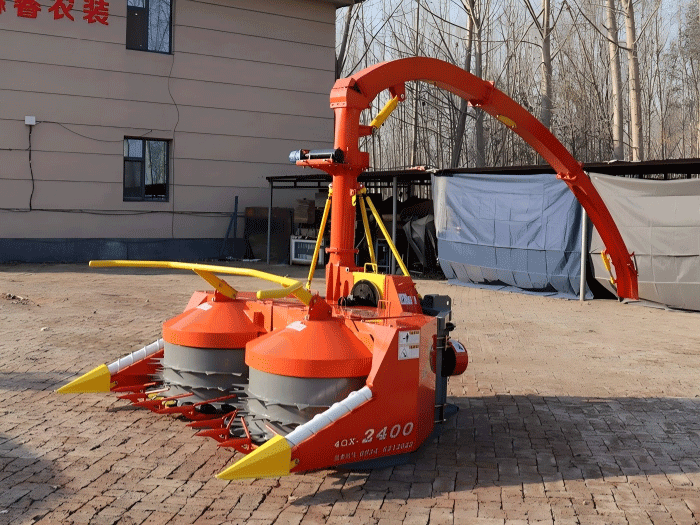

Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
