2.220m Diy Silage Chopper
Product description:

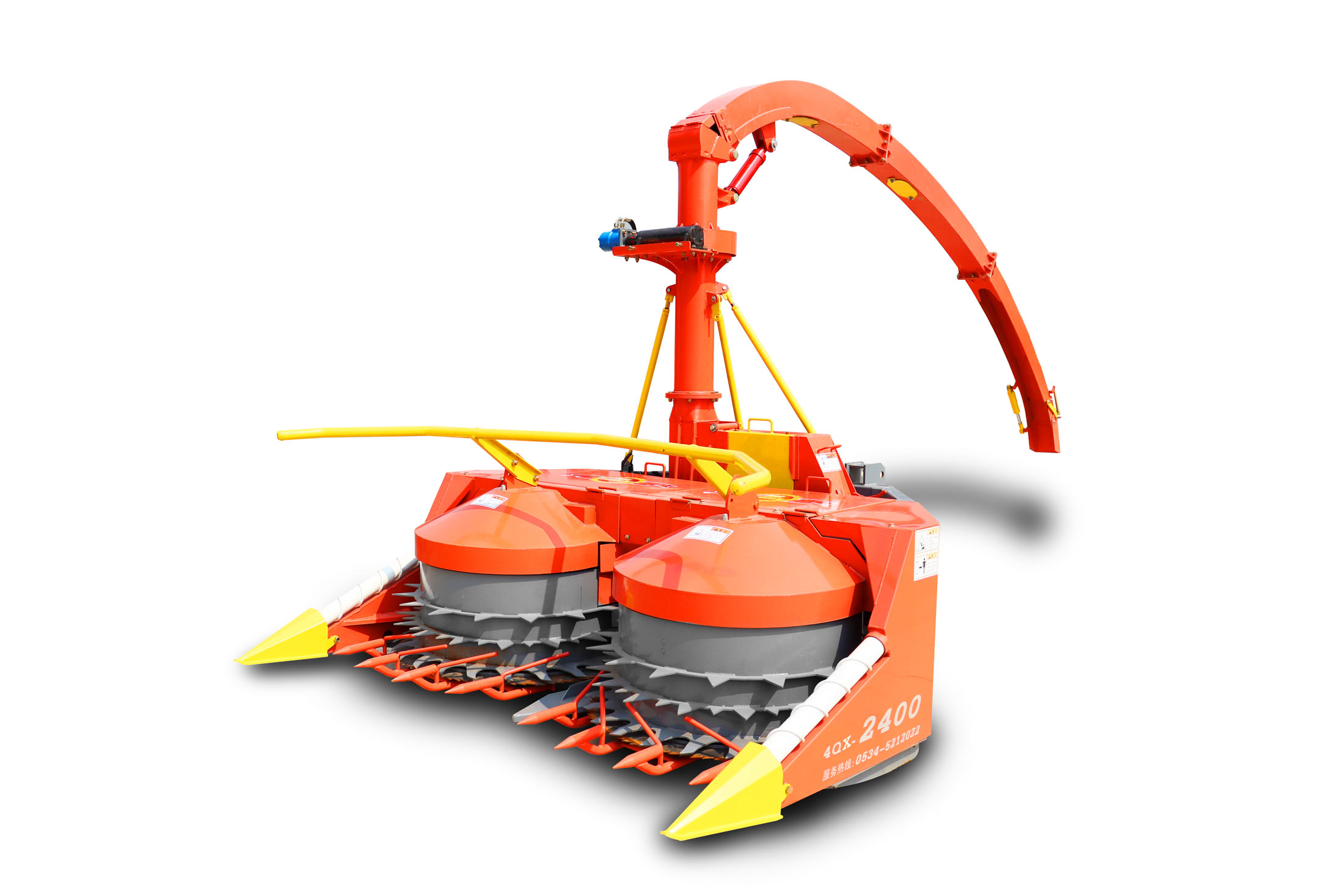

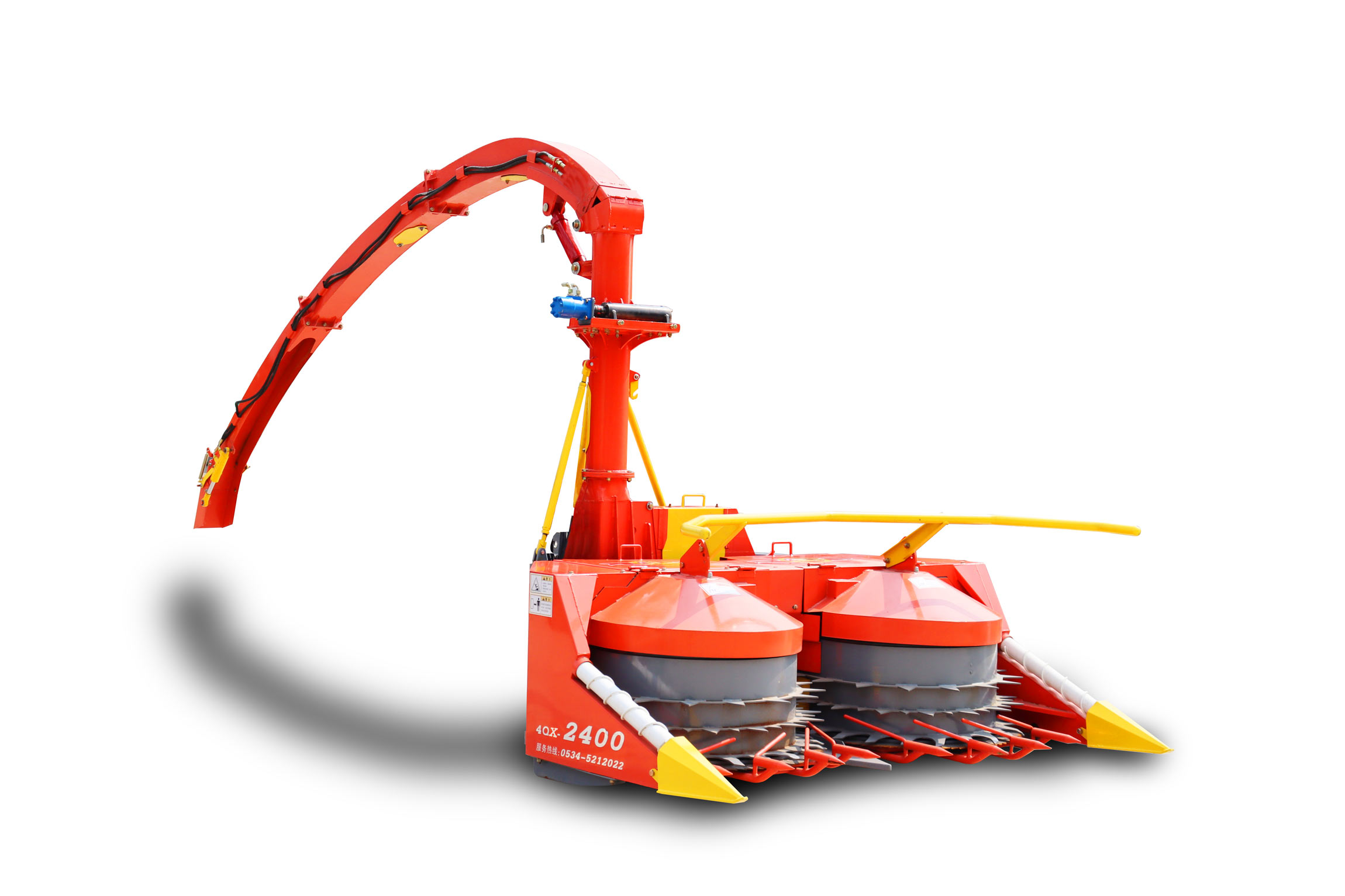

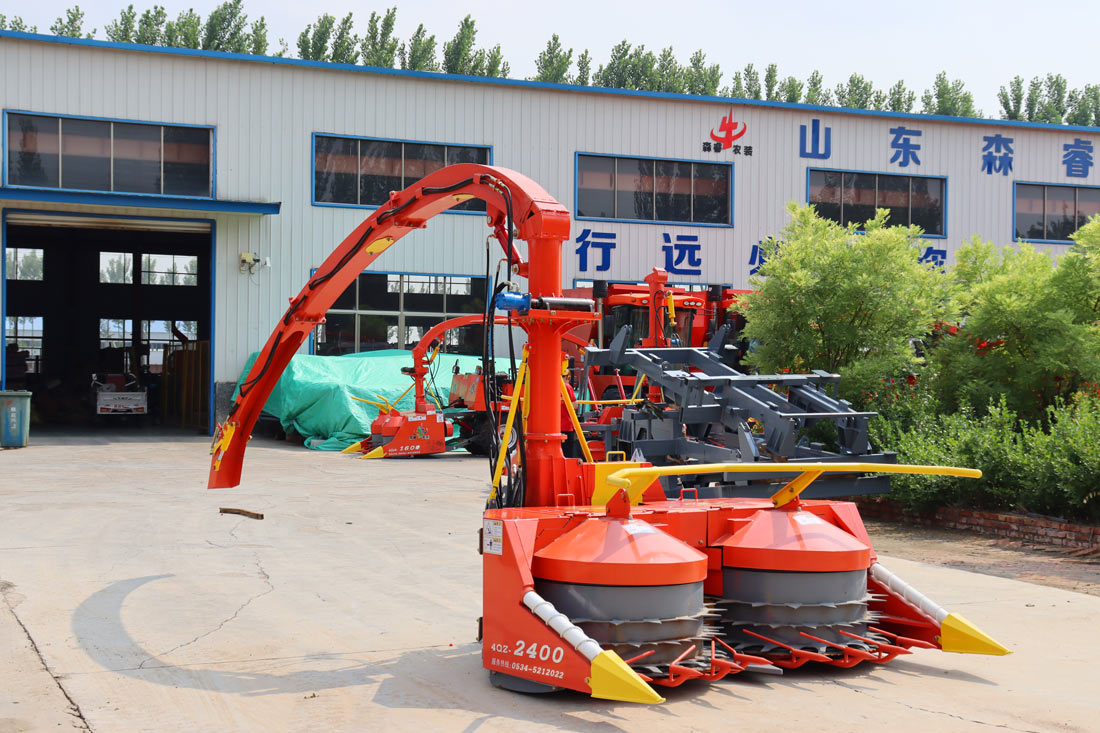

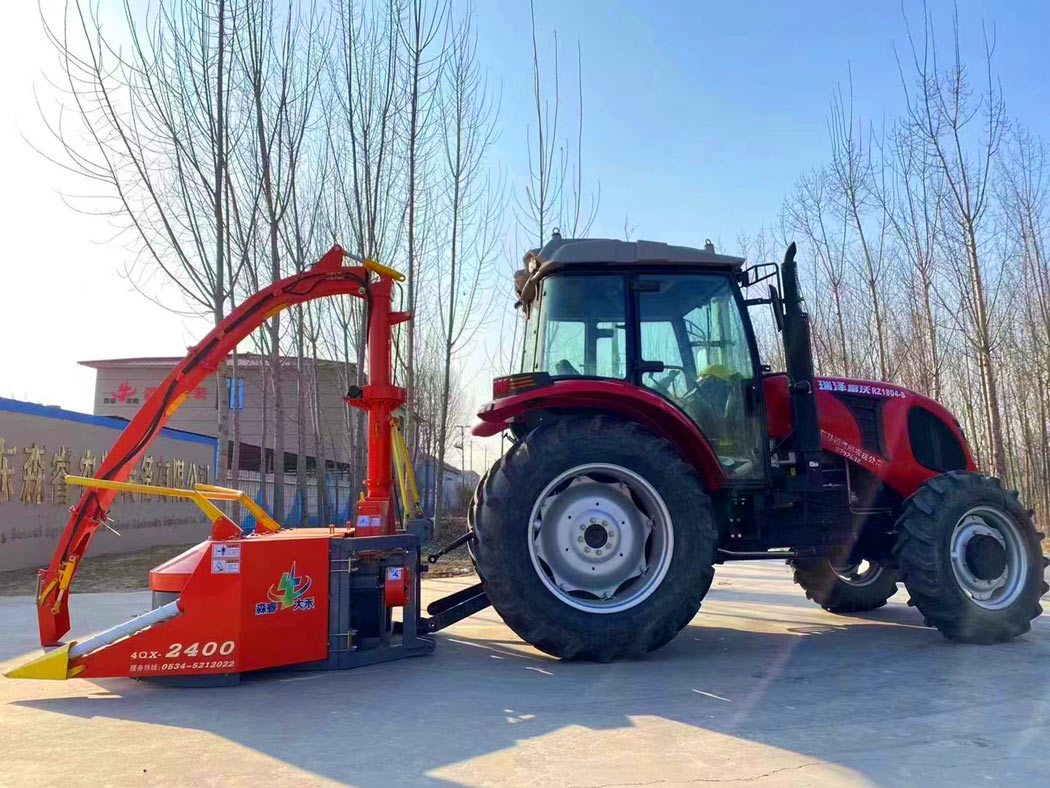

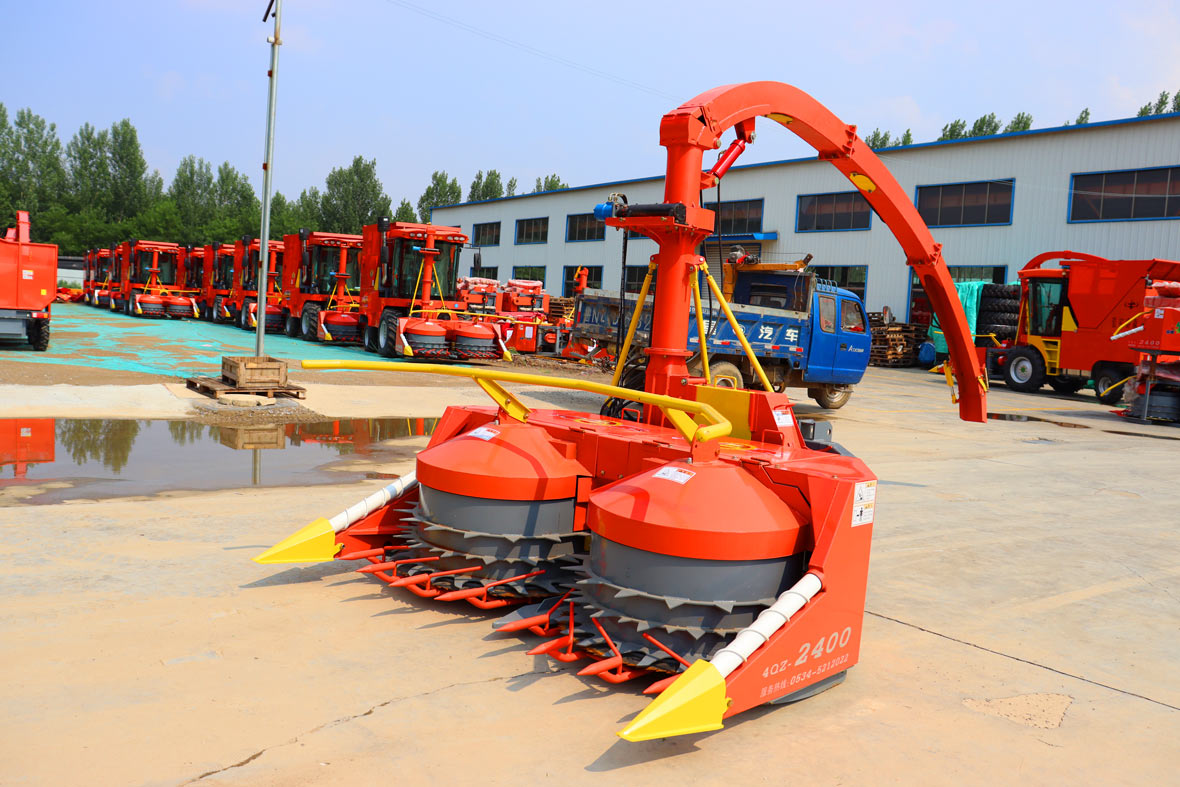

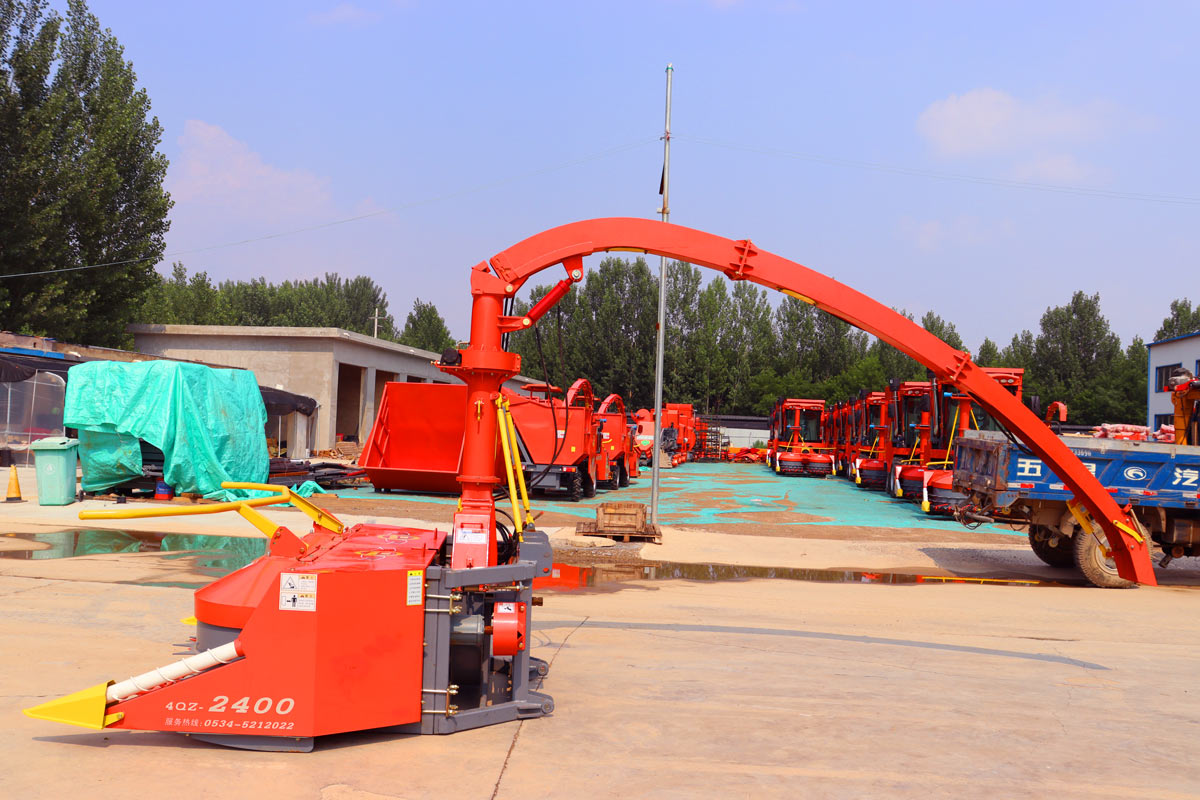

Senrui 2.220m green fodder harvester enables non-row harvesting operations. This feed harvester is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, and not restricted by crop row spacing. It combines the advantages of high operating efficiency and safe and reliable performance. It is suitable for 103~117.6KW tractor installation and suspension. -Complete cutting green (yellow) feed crops off the ground, sequential feeding, uniform chopping, throwing and loading, and other operations at one time.
Product Details:
2. 220m silage cutter machine itself has an automatic knife sharpening function, which solves your problem of time-consuming and laborious knife sharpening, shortens maintenance time, and improves efficiency. Vertical cylinder feeding device can adapt to uneven harvesting of tall straw crops such as corn and sorghum. The four-roller forced sequential feeding device can feed the cut materials evenly and sequentially into the material chopping device. The spray barrel rotation adopts a worm gear mechanism, which can rotate ±180°, effectively locking the spray barrel angle and making the spray angle more stable. The feed crop chopping device can adjust the length of material chopping to meet the needs of harvesting different feed plants. The cutting device adopts two disc saw blades, which can cut feed crops accurately and smoothly, leaving even and consistent stubble. The throwing barrel throwing device can throw the chopped materials quickly and accurately into the accompanying material box.
The throwing direction, angle and position are adjustable.

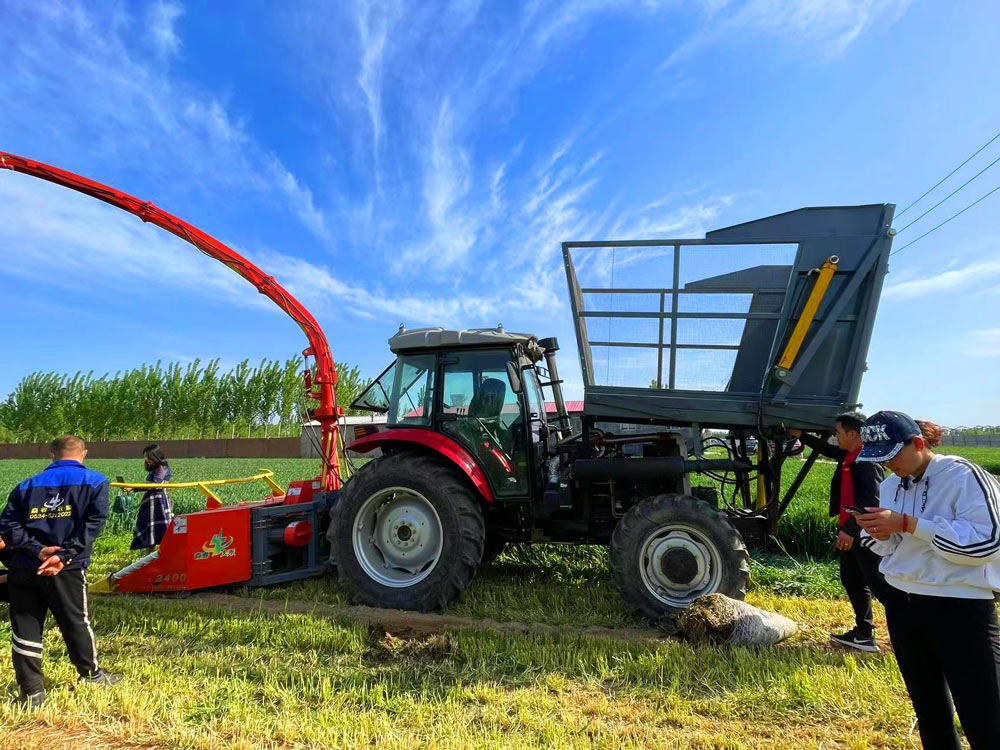

Homework video：
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
