Feed Crusher Machine
Product characteristics:

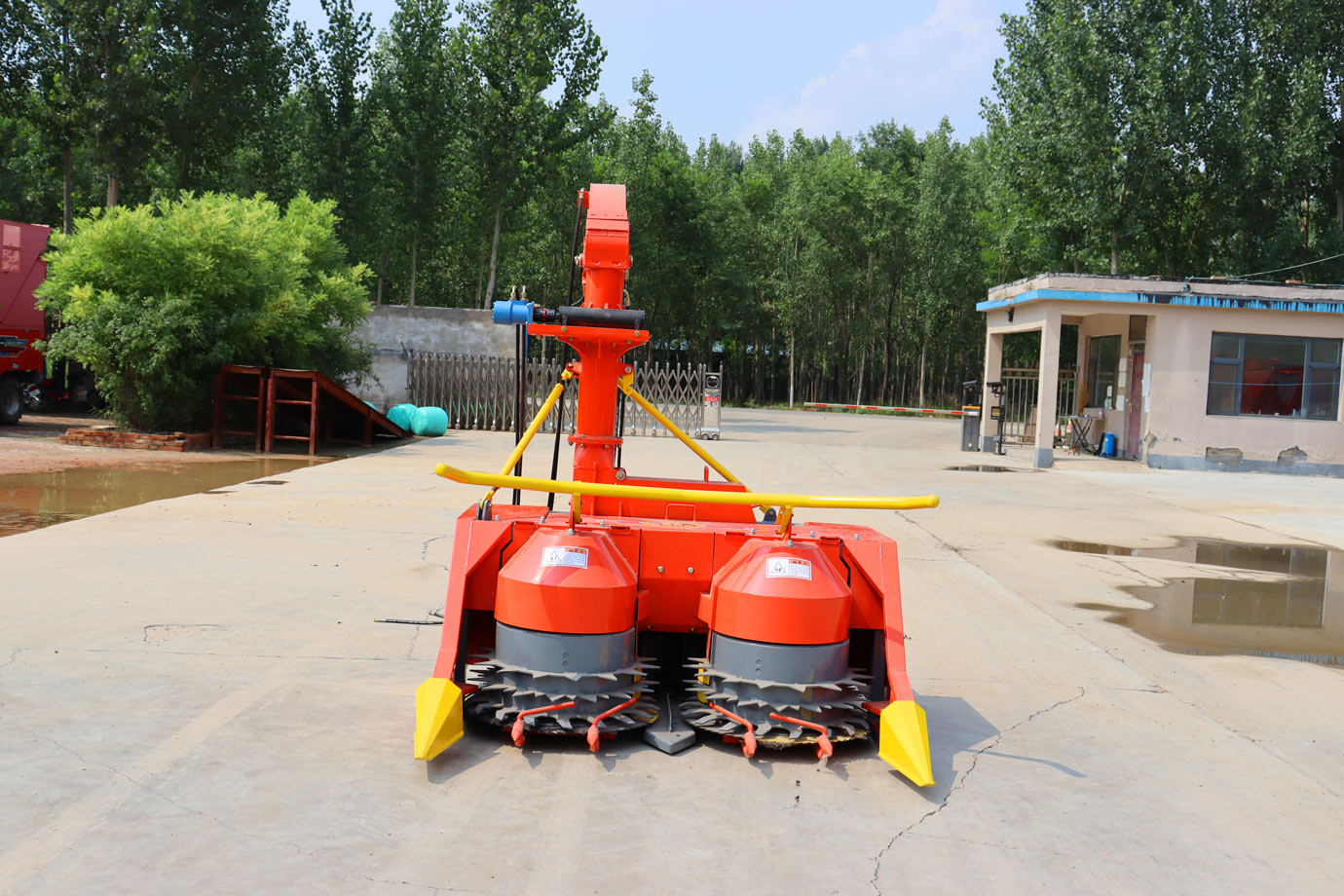

★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.
★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.
★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product advantages:

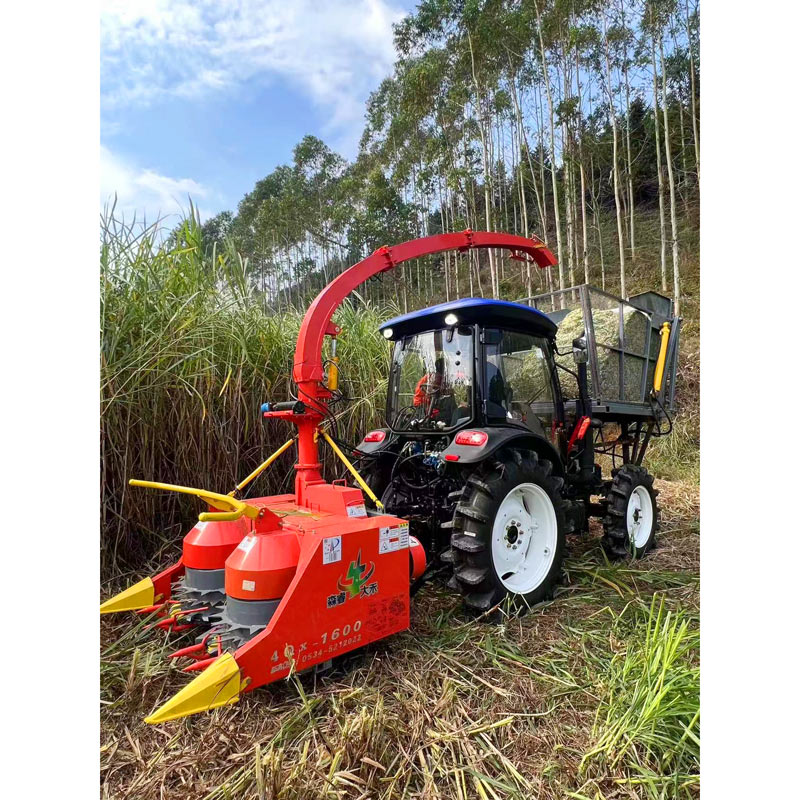

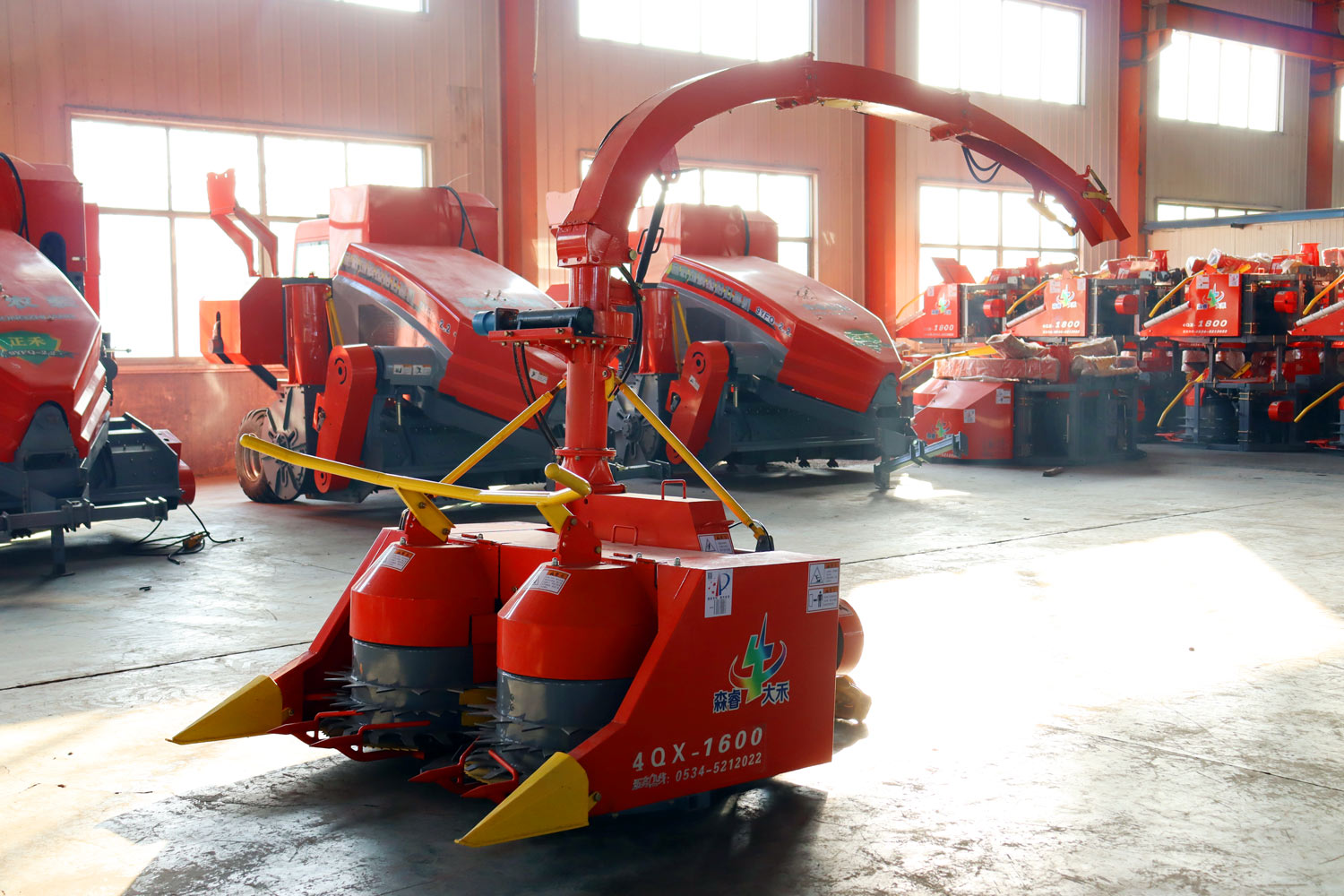

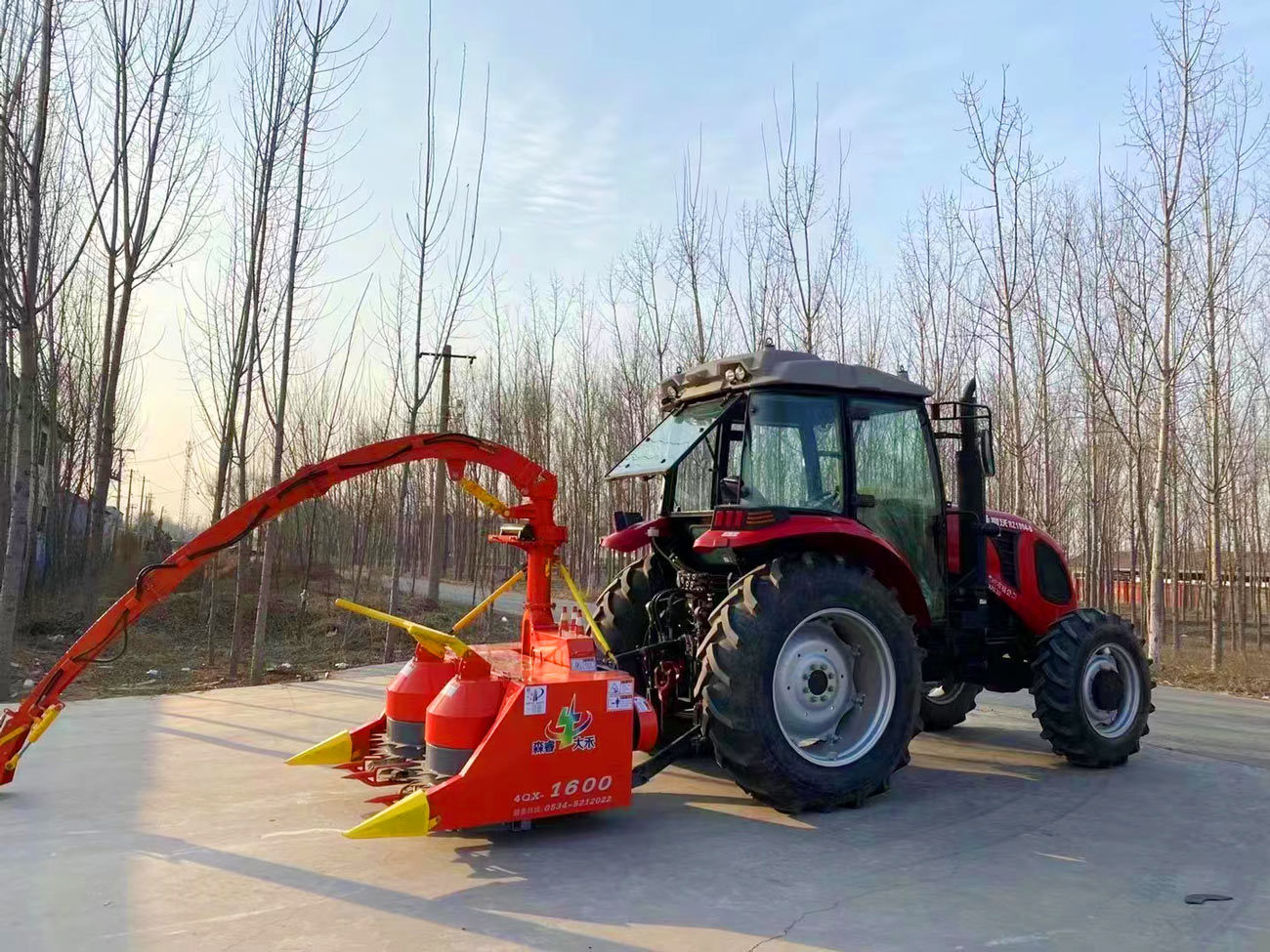

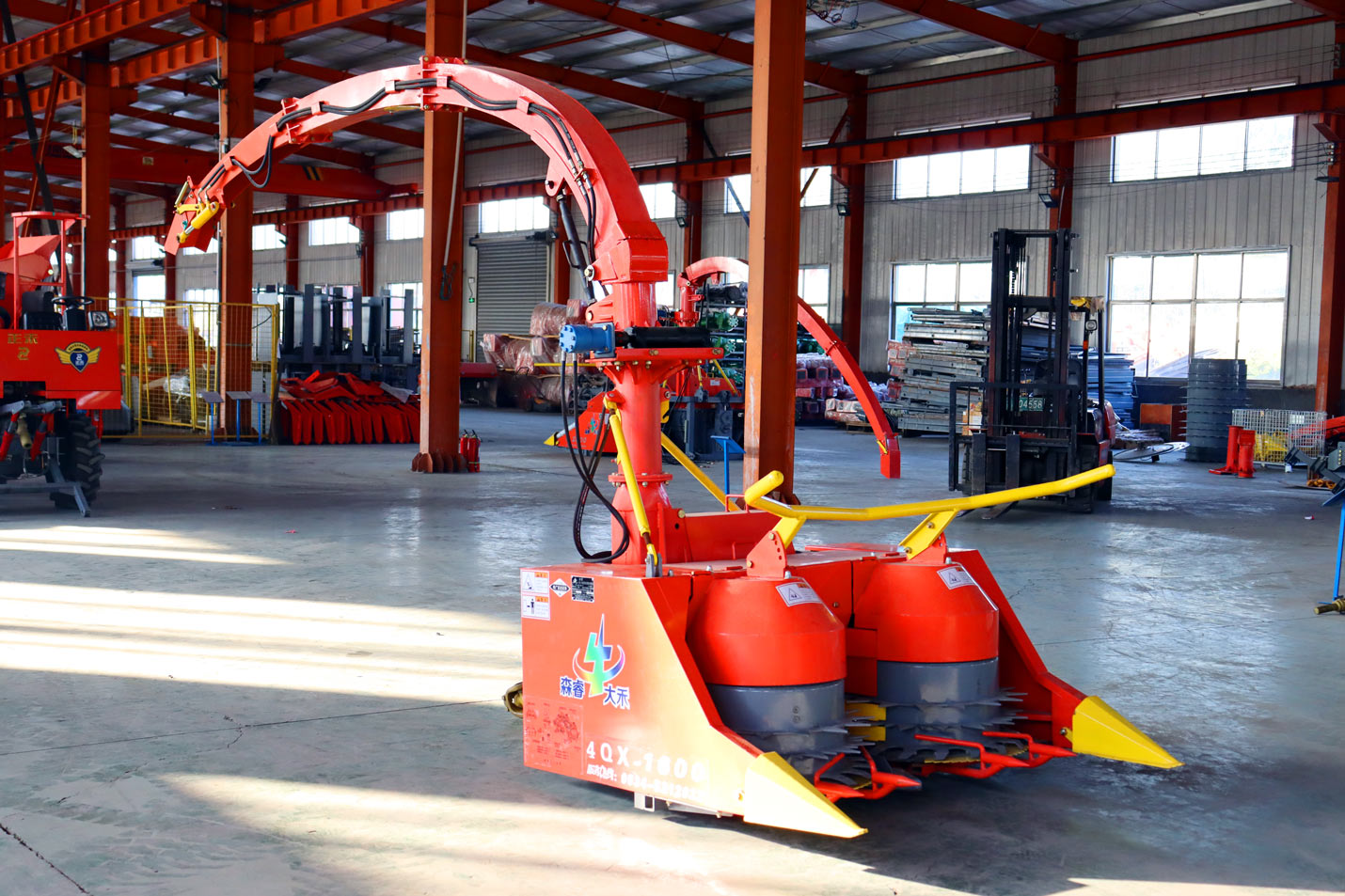

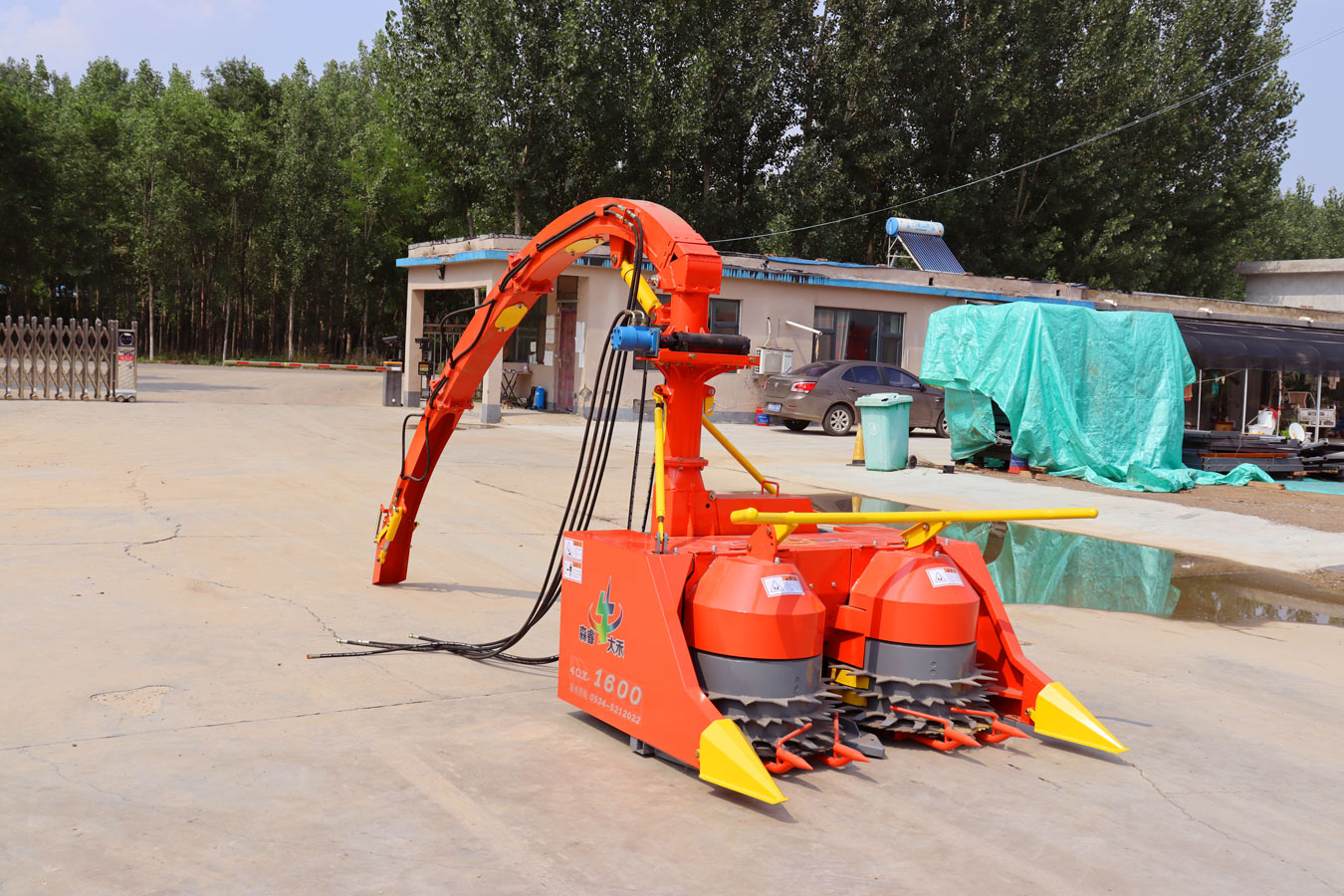

4QX-1600 Feed Crusher Machine receiving width of the field operation cutting table is 1.480 m, specially designed for one film and three rows, it can harvest crop straw, it is small in size and high in working efficiency, it can be matched with various brand tractors and harvesters which meet the requirements, one-time to complete the isolation of feed crops, sequential feeding, uniform shredding, throwing loading operations.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1600 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1020 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
