2.220m Silage Cutter For Sale
Product introduction:

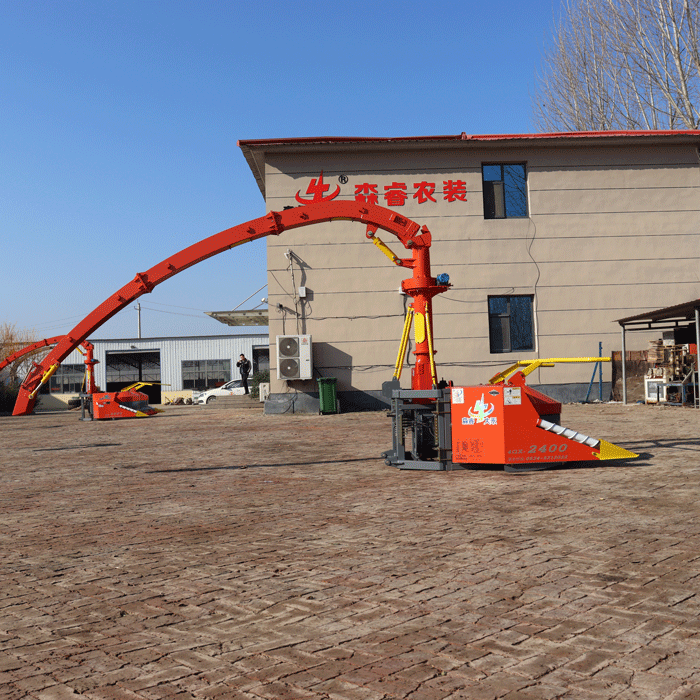

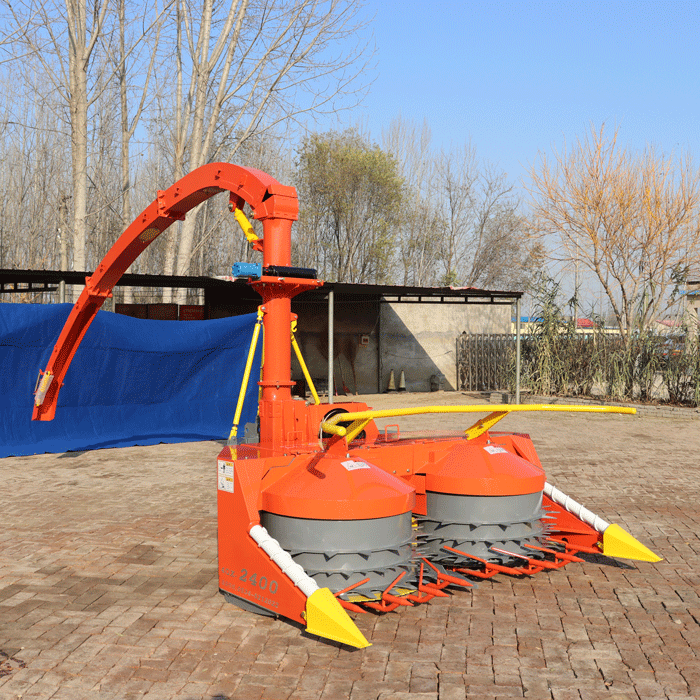

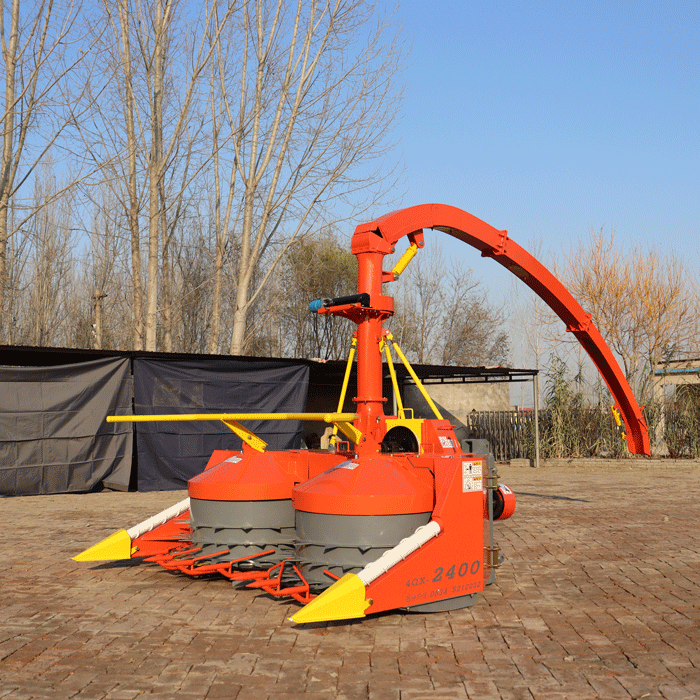

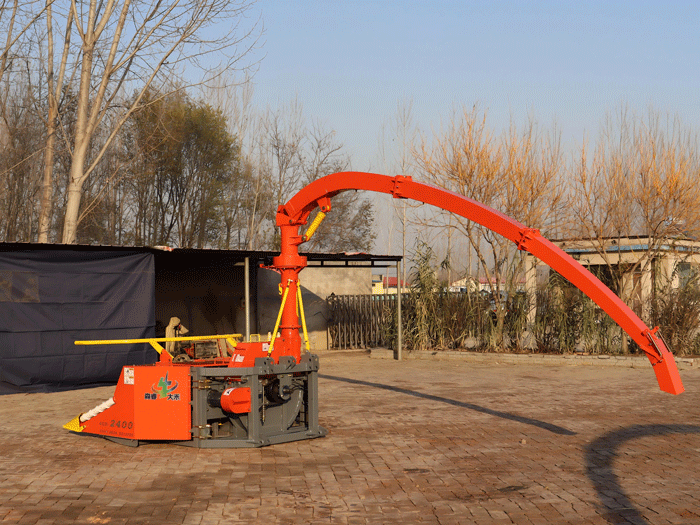

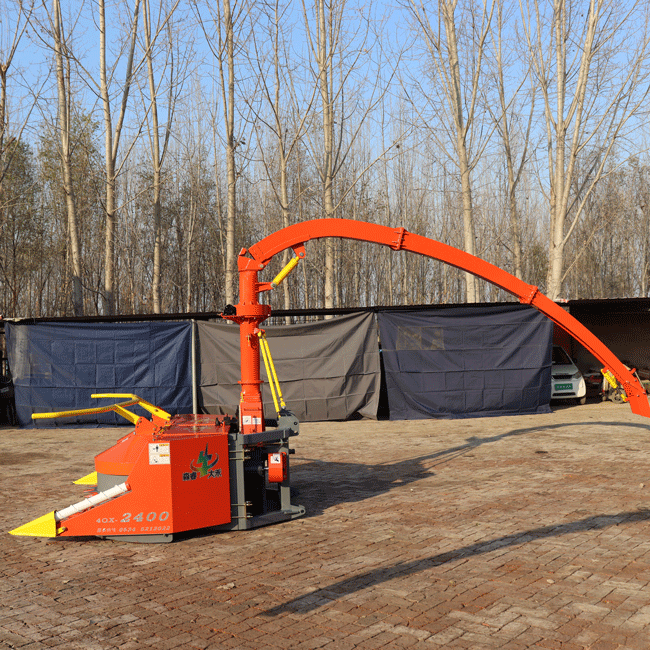

Senrui 4QX-2400 green forage harvester is novel in design, and completely realizes the wrong harvesting operation. The equipment has the advantages of small size, high efficiency, wide application, low energy consumption, dexterous action, no restriction of crop row spacing, high working efficiency, safe and reliable performance, etc. It can be matched with tractors and harvesters of various brands that meet the requirements, and can perform many operations such as cutting off the ground, sequentially feeding, evenly chopping, throwing and loading green (yellow) stored feed crops.
Product features:
★ The header of Senrui 2.220m harvester for harvesting and crushing green fodder needs 103~117.6kw tractor installation, and the rated revolution of tractor spindle is 850/1000r/min.The header body of 2.220m silage machine has automatic sharpening function, which saves you time for sharpening and maintenance and effectively improves the harvesting efficiency.

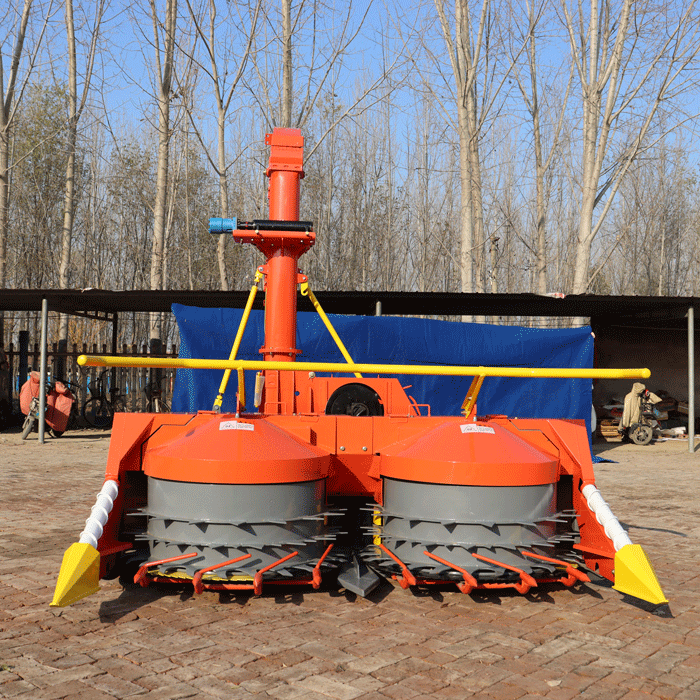

★ Two vertical cylinder feeding devices can adapt to the different harvesting and crushing operations of high and low straw crops such as corn, sorghum, pasture, barley, oats, rye, alfalfa, etc. with the height of 400 mm ~ 5000 mm.
★ Four-roller feeding forced sequential feeding device can feed the cut materials evenly into the material chopping device.
★ The nozzle rotates with worm gear and worm mechanism, which can rotate 180, effectively locking the nozzle angle and making the spraying angle more stable.

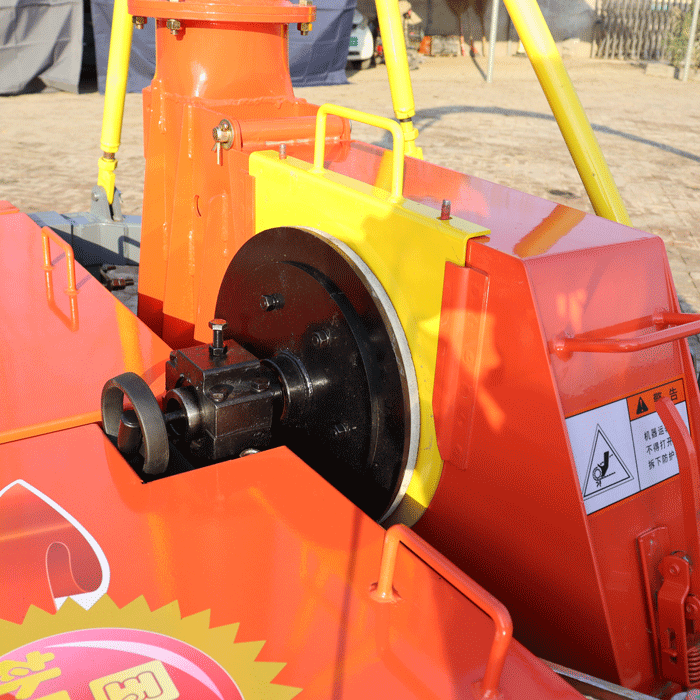

★ The material chopping device can realize that the chopping length of materials can be adjusted to meet the requirements of different forage harvesting.
★ The cutting device adopts double circular saw blades and 12 movable blades, which ensures accurate and stable material cutting and uniform stubble.
★ The spraying barrel throwing device can quickly and accurately throw chopped materials into the accompanying material box, and the throwing direction, angle and position can be adjusted.Harvest 15-20 acres of land an hour.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2370×4930 |
structural quality | kg | 1490 |
Matching power range | kW | 103~117.6 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
